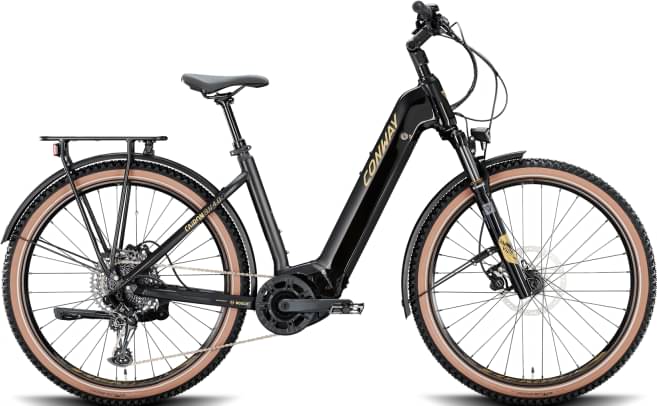

Conway Cairon SUV 4.0 2022
2022 E-bike
Estimate price |
4,472$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 90mm -
Fork RST
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Powertube 625 Wh, -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RST "Vibe", 90 mm
Drivetrain
Rear Derailleur
SRAM "NX Eagle", 12speed
Shift Levers
SRAM "SX Eagle Trigger", single click
Cassette
SRAM "PG 1230 Eagle", 11-50 Z.
Crank
FSA "CK-745", 170 mm
Wheels
Front Hub
FORMULA "DC 511", 15 x 110 mm
Rear Hub
FORMULA "DC 22LW", QR
Rims
RODI "Ready 30"
Tires
CONTINENTAL "eRuban Plus", 58-584, Reflex/ CONTINENTAL "eRuban Plus", 58-584, Reflex
Brakes
Brakes
TEKTRO "HD-M535", 4-Kolben
Cockpit
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Gen.4 "Performance CX", 36 V, 250 W
Battery
Powertube 625 Wh,
Remote
Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.57 mm | 1.56 mm | 1.49 mm |
| Stack | 643 mm | 643 mm | 662 mm | 662 mm |
| Reach | 391 mm | 410 mm | 424 mm | 444 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 68 mm | 68 mm | 68 mm | 68 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1127 mm | 1147 mm | 1168 mm | 1188 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon SUV 4.0 belongs to the Conway E Cairon model. There are 281 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Conway Cairon TF 1.7 2022 has a starting price of 2653$. Conway Cairon SUV FS 5.7 2022 on the other hand is the most expensive at 5096$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 4140$. In conclusion, this e-bike price is 61.15% more expensive than the price of the average Commuter e-bike.
Overview of components
Fork
This e-bike has the RST fork installed. The fork’s travel is 90mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Cairon SUV 4.0 e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
