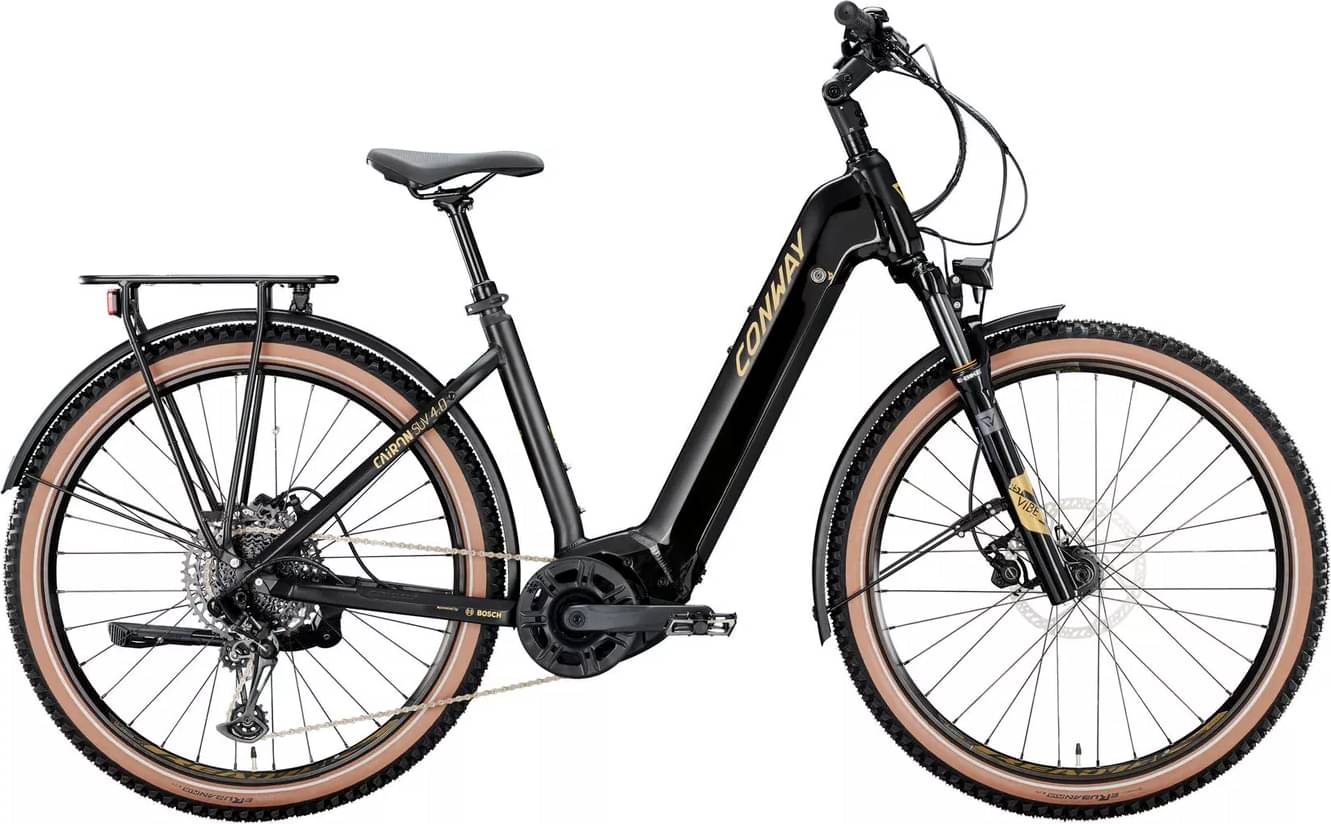

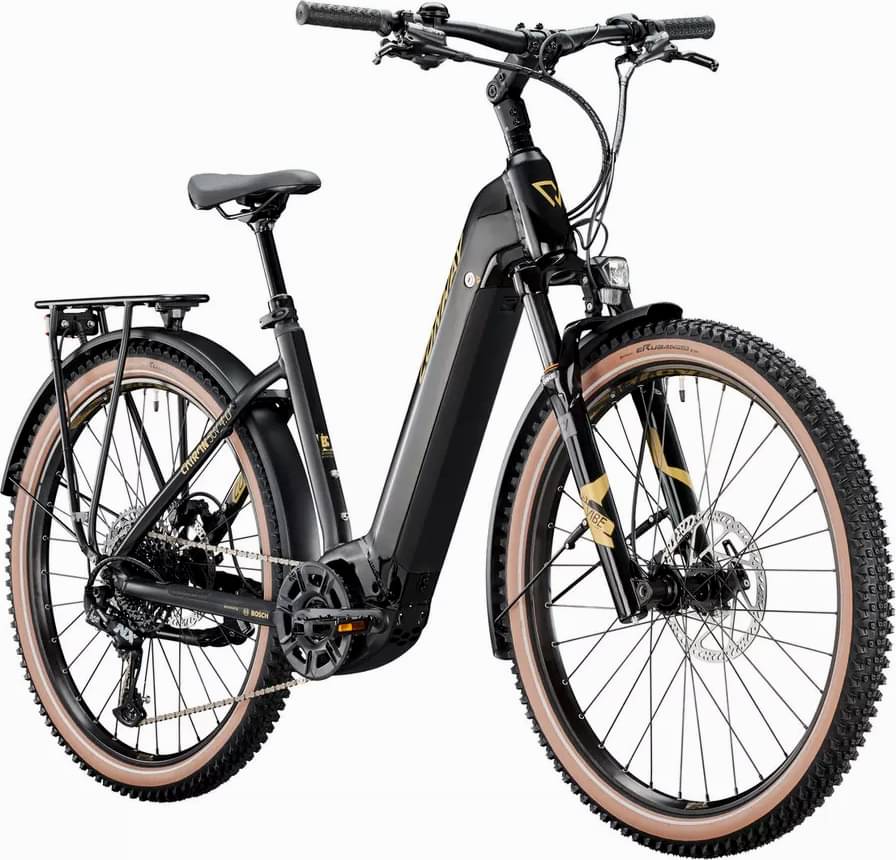

Conway Cairon SUV 4.0 wave 2023
2023 E-bike
Estimate price |
4,472$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 90mm -
Fork RST VIBE
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Vibe", 90 mm
Drivetrain
Rear Derailleur
SRAM "NX Eagle", 12speed
Shift Levers
SRAM "SX Eagle Trigger", single click
Cassette
SRAM "PG 1230 Eagle", 11-50 Z.
Crank
FSA "CK-745", 170 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
FORMULA "DC 511", 15 x 110 mm
Rear Hub
FORMULA "DC 22LW", QR
Rims
RODI "Ready 30"
Spokes
Niro
Tires
CONTINENTAL "eRuban Plus", 58-584, Reflex
Brakes
Brakes
TEKTRO "HD-M535", 4-Kolben
Brake Levers
TEKTRO "HD-M535"
Cockpit
Stem
LEVEL 9 "Adjustable", 90 mm
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Grips
CONWAY "Sport fix"
Headset
ZS44 / ZS56
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONTEC "Drop - A - Gogo", 31,6 mm, 100 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.57 mm | 1.56 mm | 1.49 mm |
| Stack | 643 mm | 643 mm | 662 mm | 662 mm |
| Reach | 391 mm | 410 mm | 424 mm | 444 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 150 mm | 170 mm | 170 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon SUV 4.0 wave completes the Conway E Cairon model. There are 281 e-bikes that carry this model name. You can easily view all of the Conway E Cairon e-bikes models from 2023, here.
Model range prices
Conway Cairon TF 1.7 ladies, wave 2023 is the most economical model, with a starting price of 2653$. Conway Cairon SUV FS 7.7 2023 on the other hand costs 5839$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Conway released this model in 2023, its price was 4140$. Doing a quick comparison, we notice that Cairon SUV 4.0 wave price is 61.15% more expensive than the average cost of a Commuter e-bike.
Overview of components
Fork
Conway Cairon SUV 4.0 wave 2023 e-bike is equipped with the RST VIBE fork, and has 90mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Cairon SUV 4.0 wave 2023 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon SUV 4.0 wave has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Conway Cairon SUV 4.0 wave includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
