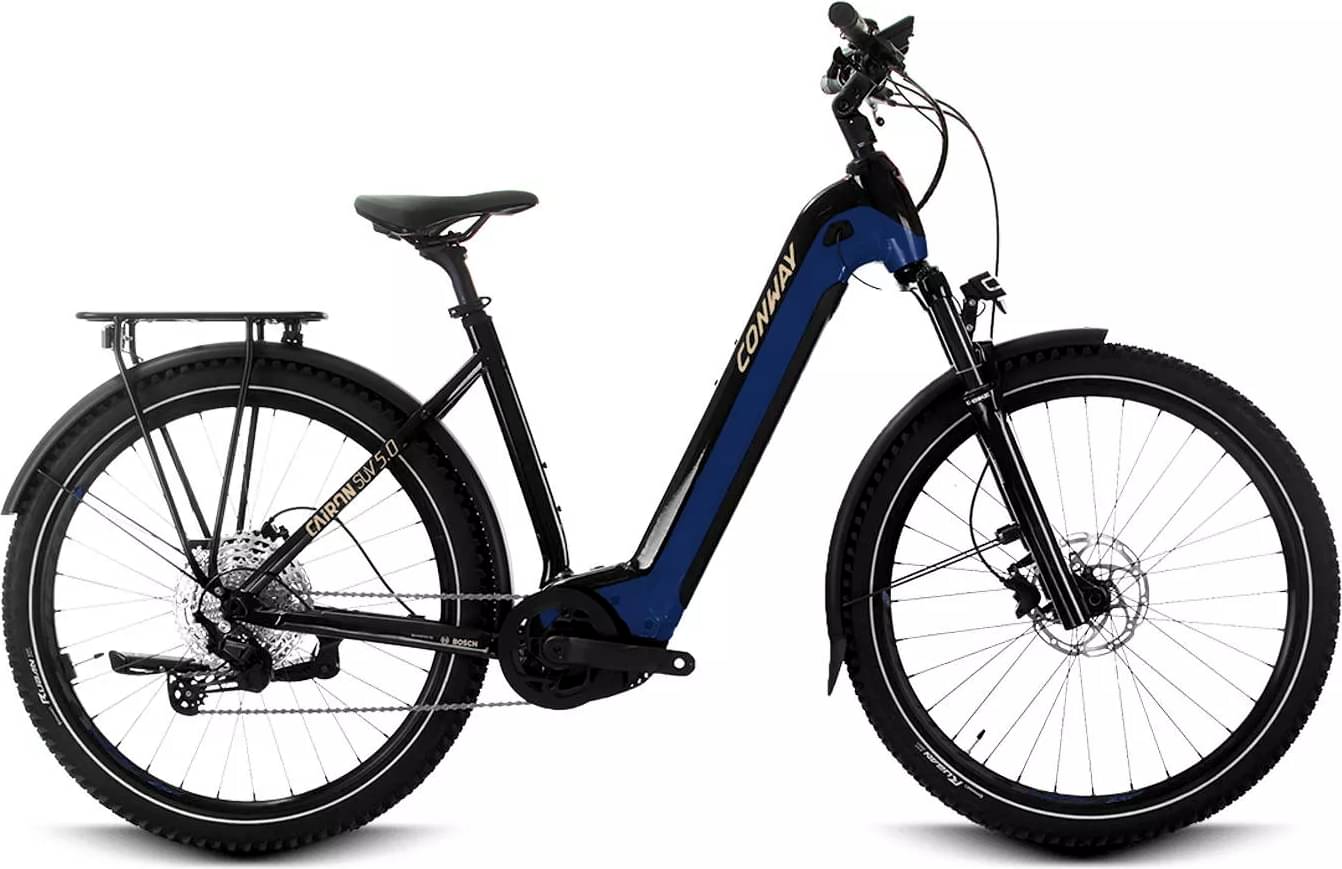

Conway Cairon SUV 5.0 ladies, wave 2023
2023 E-bike
Estimate price |
4,587$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RST VIBE
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Vibe Air", 100 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M5100 Shadow Plus", 11speed
Shift Levers
SHIMANO "Deore SL-M5100"
Cassette
SHIMANO "CS-M5100", 11-51 Z.
Crank
FSA "CK-745", 165mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
MACH1 "Trucky 30"
Spokes
Niro
Tires
CONTINENTAL "Ruban", 58-584, Reflex
Brakes
Brakes
TEKTRO "HD-T390"
Brake Levers
TEKTRO "HD-T390"
Cockpit
Stem
LEVEL 9 "Adjustable", 90 mm
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Grips
SQlab "70X"
Headset
ZS56 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "Vivo Moderat Ergo", Da
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3600"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.62 mm | 1.58 mm | 1.51 mm |
| Stack | 674 mm | 678 mm | 688 mm | 688 mm |
| Reach | 399 mm | 418 mm | 435 mm | 455 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 165 mm | 150 mm | 160 mm | 160 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon SUV 5.0 ladies, wave completes the Conway E Cairon model. There are 281 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Conway Cairon TF 1.7 ladies, wave 2023 is the cheapest e-bike model and costs 2653$. Conway Cairon SUV FS 7.7 2023 is the most expensive one and costs 5839$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4246$. Comparing the average cost of a Commuter e-bike to this one, you will see that Cairon SUV 5.0 ladies, wave price is 65.28% more expensive.
Overview of components
Fork
The RST VIBE is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Cairon SUV 5.0 ladies, wave model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon SUV 5.0 ladies, wave has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Conway Cairon SUV 5.0 ladies, wave e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
