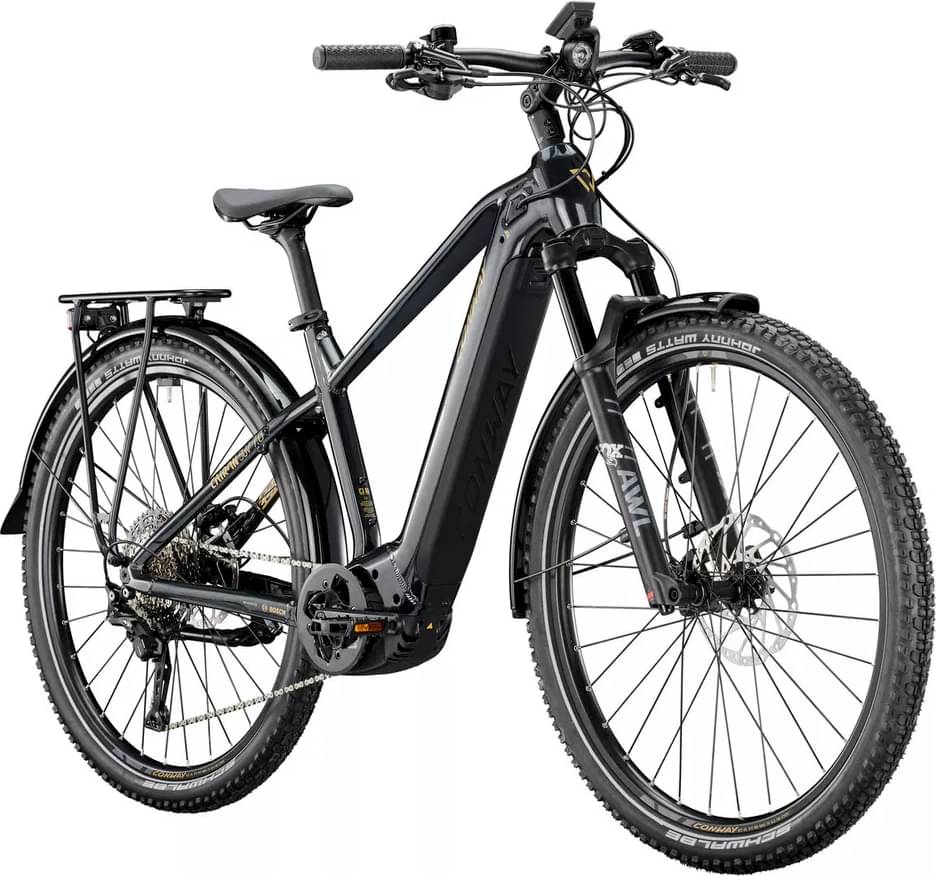

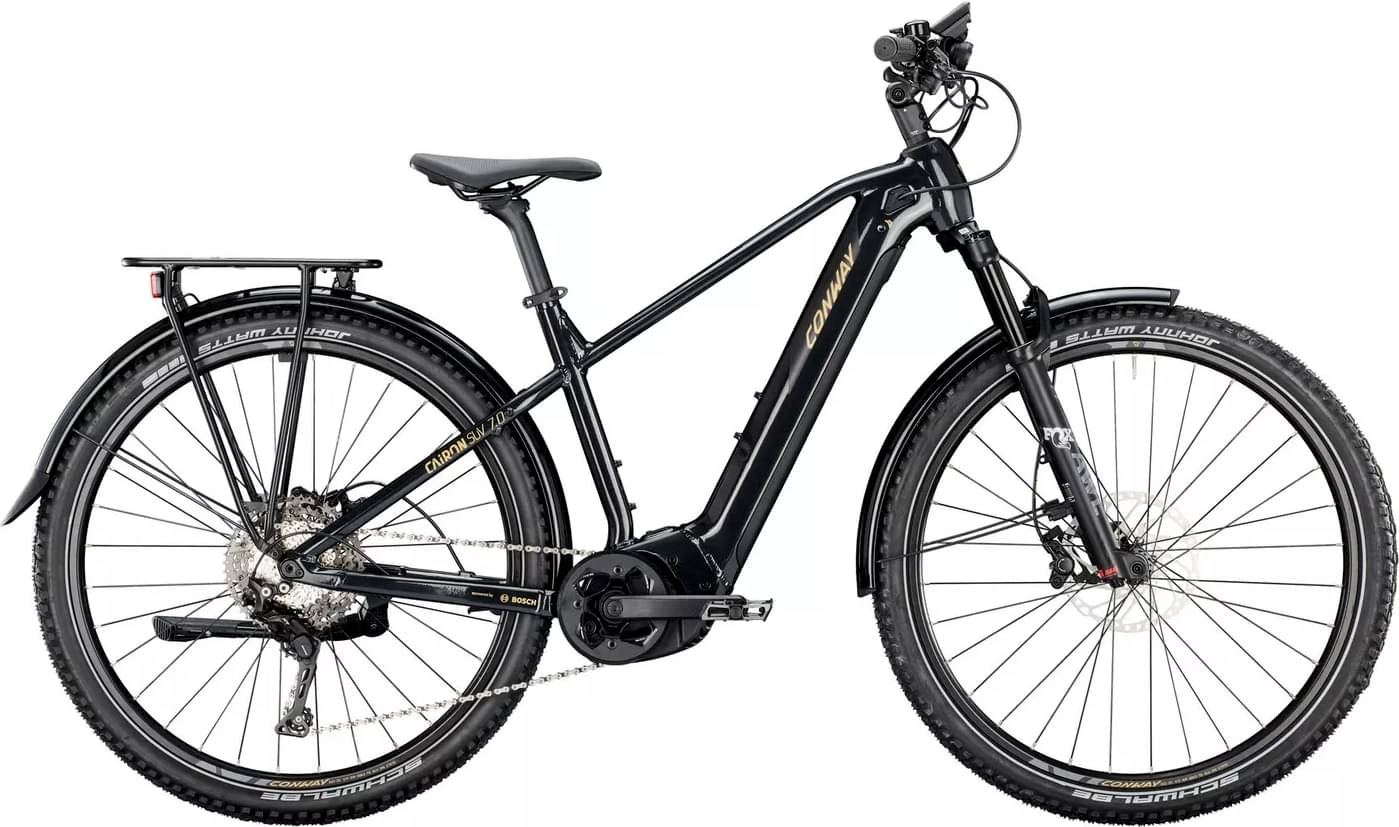

Conway Cairon SUV 7.0 gents, diamond 2023
2023 E-bike
Estimate price |
5,275$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Fox AWL
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
FOX "AWL", 120 mm

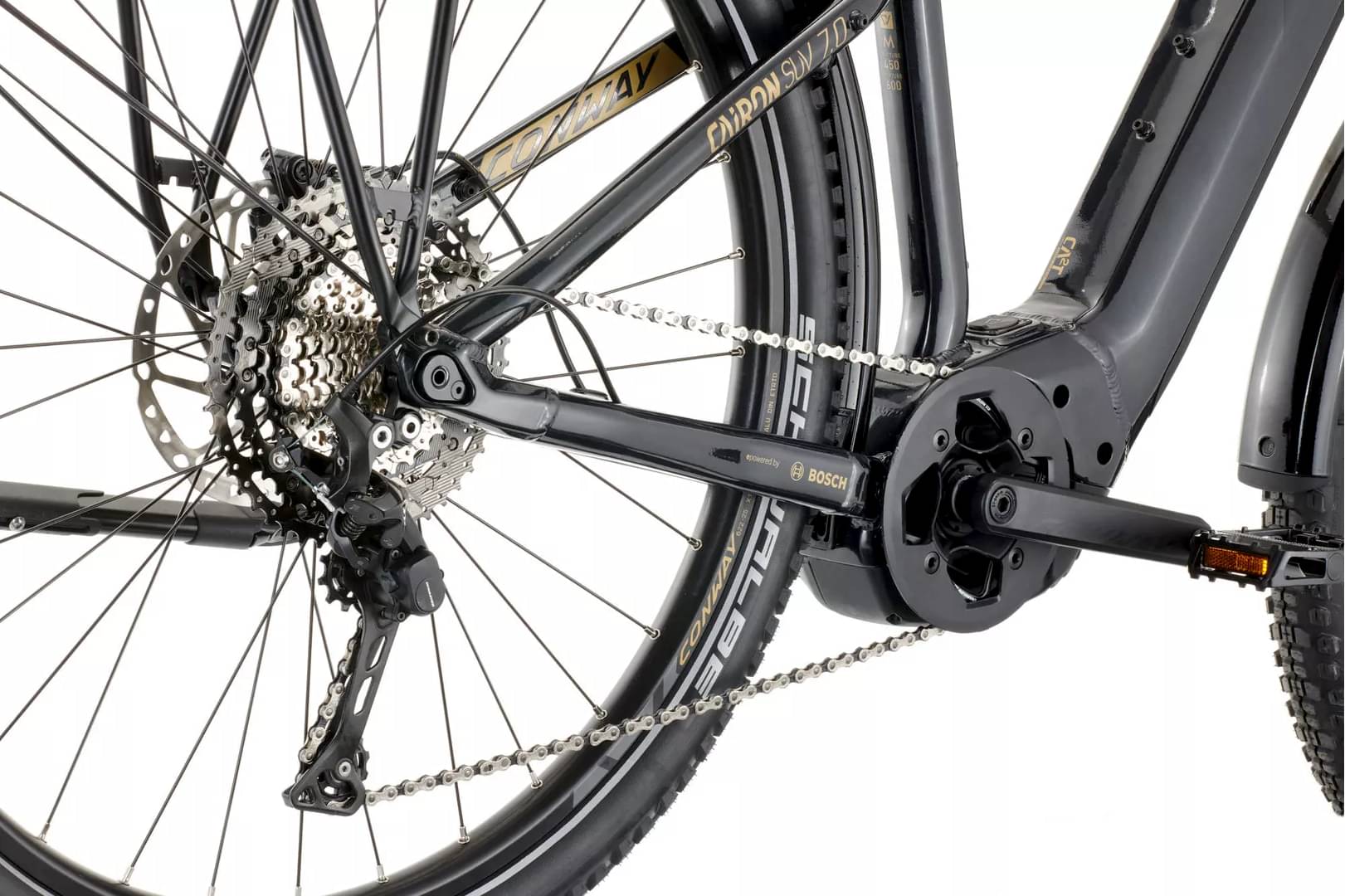

Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8130 Shadow Plus", 11speed
Shift Levers
SHIMANO "Deore XT SL-M8130"
Cassette
SHIMANO "CS-LG600", 11-50 Z.
Crank
MIRANDA "PSI", 170 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
CONWAY Hohlkammer "X18", Disc
Spokes
Niro
Tires
SCHWALBE "Johnny Watts", 60-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT520"
Brake Levers
SHIMANO "BL-MT501"

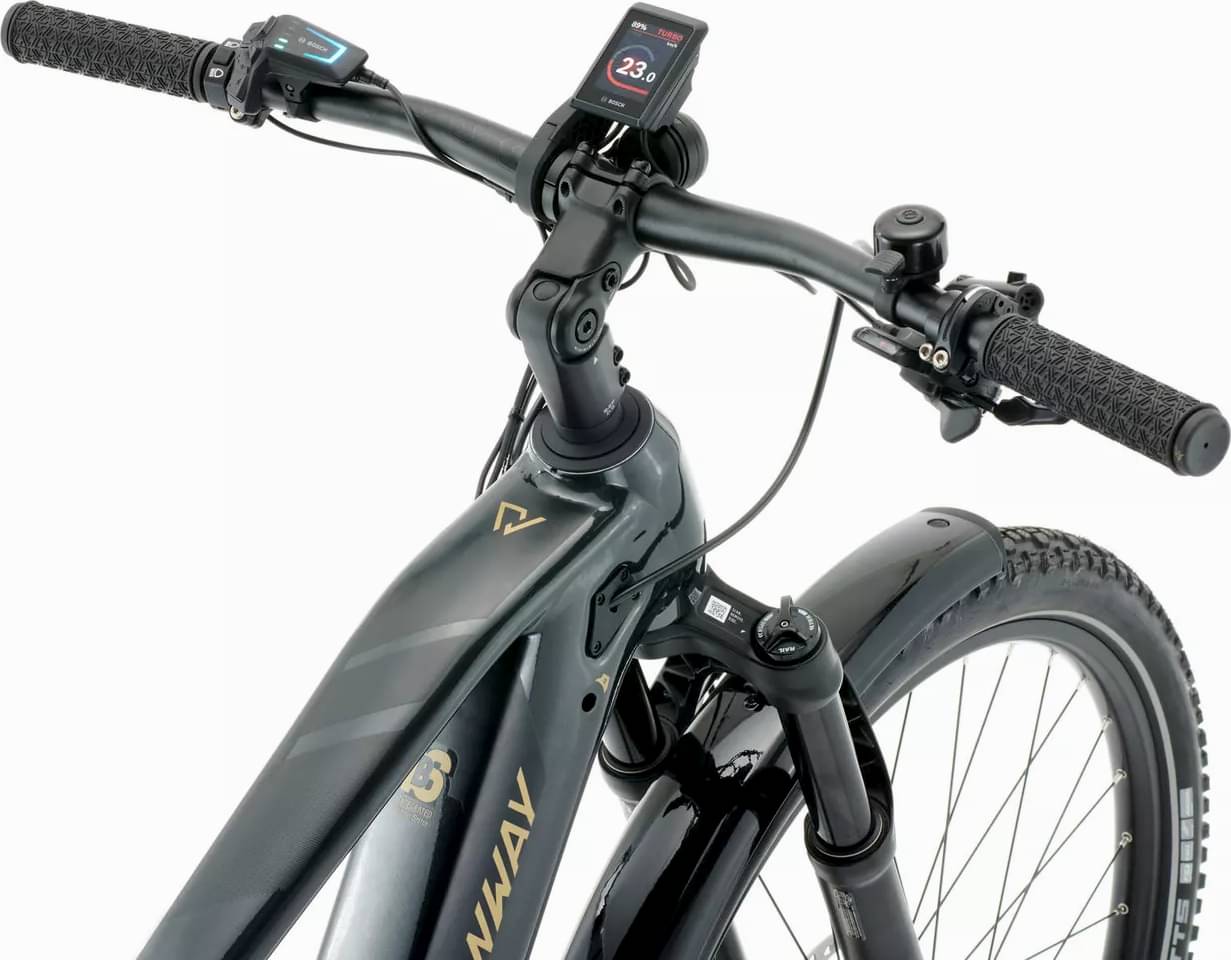

Cockpit
Stem
LEVEL 9 "Adjustable", 65 mm
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Grips
CONWAY "Sport fix"
Headset
ZS56 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY Patent, 31,6 mm, 350 mm

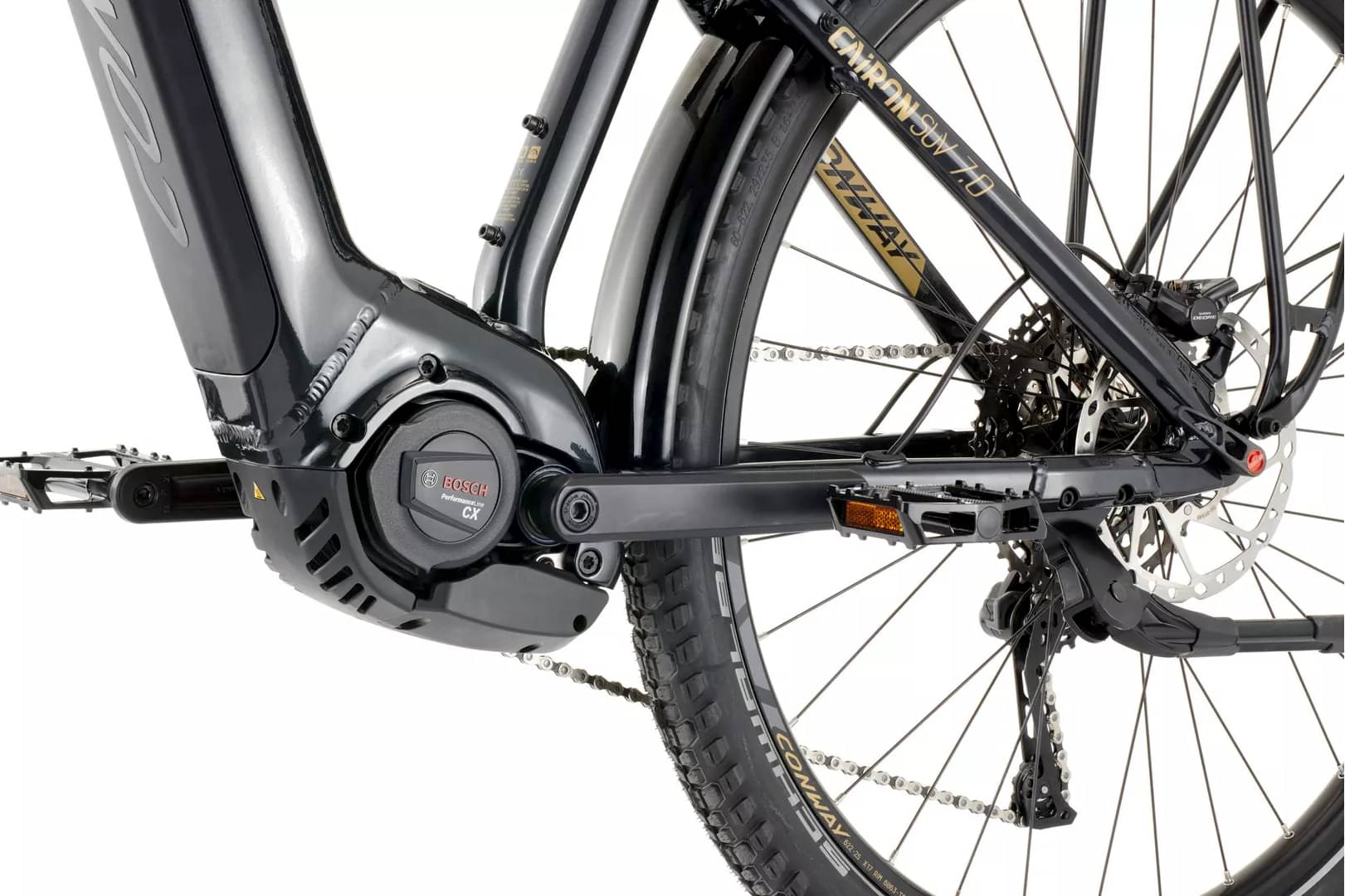

Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3600"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.53 mm | 1.49 mm | 1.41 mm | 1.38 mm |
| Stack | 642 mm | 642 mm | 651 mm | 651 mm | 660 mm |
| Reach | 396 mm | 419 mm | 438 mm | 461 mm | 480 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Cairon SUV 7.0 gents, diamond is part of the Conway E Cairon model. 281 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Conway Cairon TF 1.7 ladies, wave 2023 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, Conway Cairon SUV FS 7.7 2023, is the most expensive and costs 5839$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 4883$. In conclusion, this e-bike price is 90.07% more expensive than the price of the average Commuter e-bike.
Cairon SUV 7.0 gents, diamond components
Fork
The Cairon SUV 7.0 gents, diamond comes factory-installed with the Fox AWL fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Cairon SUV 7.0 gents, diamond 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon SUV 7.0 gents, diamond has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
