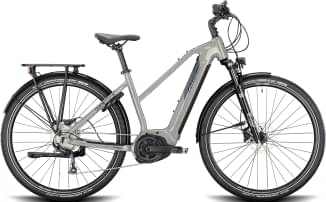

Conway Cairon T 2.0 500 Trapez 2022
2022 E-bike
Estimate price |
3,268$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork RST -
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Powertube 500 Wh, -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RST "Blaze ML", 80 mm
Drivetrain
Rear Derailleur
TEKTRO "RD-T 350-E", 9speed
Shift Levers
TEKTRO "SL-M 330"
Cassette
TEKTRO "CS-M 330", 11-42 Z.
Crank
FSA "CK-200", 170 mm
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "FH-TX505" QR
Rims
CONWAY Hohlkammer "X17", Disc
Tires
CONTINENTAL "Contact Urban", 50-622, Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Cockpit
Handlebar
HUMPERT "Ergotec" Low Riser/ Ladytown
Seat
Saddle
SELLE ROYAL "Vivo"
Seatpost
CONWAY "Patent"/ HUMPERT "Ergotec SP10"
Motor & Battery
Motor
BOSCH Gen.3 "Performance", 36 V, 250 W
Battery
Powertube 500 Wh,
Remote
Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.62 mm | 1.58 mm |
| Stack | 626 mm | 631 mm | 650 | 650 |
| Reach | 386 mm | 396 mm | 401 mm | 411 mm |
| Top Tube Length | 574 mm | 585 mm | 596 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 69 mm | 70 mm | 70 mm | 70 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1138 mm | 1138 mm | 1150 mm | 1161 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon T 2.0 500 Trapez completes the Conway E Cairon model. 281 e-bikes variations carry this model name so far. You can easily view all of the Conway E Cairon e-bikes models from 2022, here.
Model range prices
Conway Cairon TF 1.7 2022 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, Conway Cairon SUV FS 5.7 2022, is the most expensive and costs 5096$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Touring e-bikes average price
If you want to purchase a solid Touring e-bike, it is important to know that the average cost is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3025$. If we compare this with the average Touring e-bike cost we notice that the price is 24.54% more expensive.
Cairon T 2.0 500 Trapez components
Fork
This e-bike has the RST fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Cairon T 2.0 500 Trapez are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon T 2.0 500 Trapez has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Conway Cairon T 2.0 500 Trapez e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
