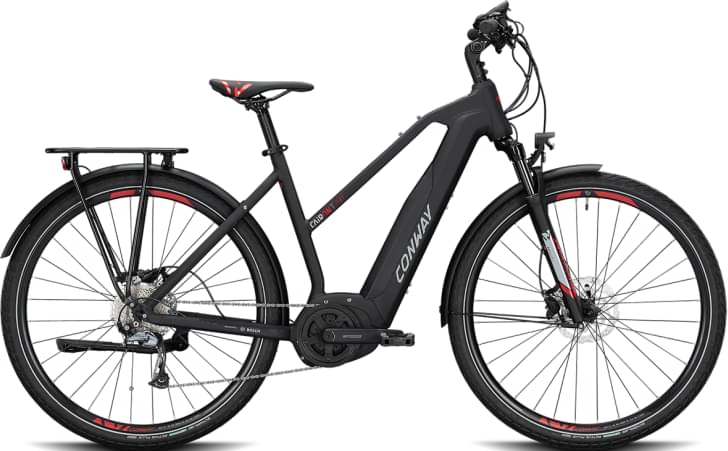

Conway Cairon T 200 SE 500 Trapez 2020
2020 E-bike
Estimate price |
2,752$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PP, Alu
Suspension Fork
RST "Blaze T", 80 mm
Drivetrain
Rear Derailleur
SHIMANO "Acera RD-M3000", 9speed
Shift Levers
SHIMANO "Altus SL-M2000"
Cassette
SHIMANO "HG200", 11-36 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "FH-TX505" QR
Rims
CONWAY Hohlkammer "X6", Disc
Tires
SCHWALBE "Energizer Active Plus", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200", 180 mm
Cockpit
Handlebar
HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3530 Comfort"
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
Battery
BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh
Remote
BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.61 mm | 1.63 mm | 1.58 mm |
| Stack | 620 mm | 622 mm | 643 mm | 643 mm |
| Reach | 373 mm | 387 mm | 395 mm | 408 mm |
| Top Tube Length | 562 mm | 577 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Length | 70 mm | 70.5 mm | 71 mm | 71 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1115 mm | 1124 mm | 1134 mm | 1149 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon T 200 SE 500 Trapez is a Conway E Cairon model. There are 281 e-bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Conway Cairon T 270 SE Wave 400 2020 is the cheapest e-bike model and costs 2335$. Conway Cairon T 800 Wave Enviolo 2020 is the most expensive one and costs 4565$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Touring e-bikes average price
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Conway Cairon T 200 SE 500 Trapez price was 2547$. In conclusion, this e-bike price is 4.86% more expensive than the price of the average Touring e-bike.
Average weight for Touring e-bikes
If we make a quick analysis of the average weight of a Touring e-bike, we get 25.55 kg (56.33 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 26.1 kg (57.54 lbs), the Cairon T 200 SE 500 Trapez model is slightly heavier than average. In short, the average Touring e-bike weight is 2.15% lower than this one.
Overview of components
Fork
The Cairon T 200 SE 500 Trapez comes factory-installed with the RST fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Cairon T 200 SE 500 Trapez has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Cairon T 200 SE 500 Trapez model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon T 200 SE 500 Trapez has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Cairon T 200 SE 500 Trapez comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
