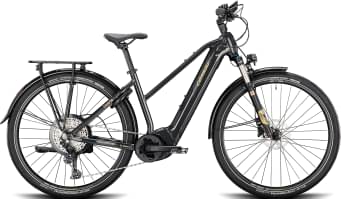

Conway Cairon T 5.0 Trapez 2022
2022 E-bike
Estimate price |
4,472$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork RST -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Powertube 750 Wh, -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RST "Aerial Air TNL"
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M5100 Shadow Plus", 11speed
Shift Levers
SHIMANO "Deore SL-M5100"
Cassette
SHIMANO "CS-M5100", 11-42 Z.
Crank
MIRANDA "PSI", 170 mm
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
CONWAY Hohlkammer "X17", Disc
Tires
CONTINENTAL "Contact Urban", 55-622/ 50-622 Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Cockpit
Handlebar
LEVEL 9 "Low Riser"/ "Race Trekking"
Seat
Saddle
SELLE ROYAL "Vivo"
Seatpost
CONWAY "Patent"/ HUMPERT "Ergotec SP10"
Motor & Battery
Motor
BOSCH Gen.4 "Performance CX", 36 V, 250 W
Battery
Powertube 750 Wh,
Remote
Kiox 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.49 mm | 1.41 mm |
| Stack | 640 mm | 642 mm | 651 mm | 651 mm |
| Reach | 402 mm | 419 mm | 438 mm | 461 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1155 mm | 1167 mm | 1190 mm | 1213 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon T 5.0 Trapez belongs to the Conway E Cairon model. Conway released 281 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2022, here.
Model range prices
The most economical model, the Conway Cairon TF 1.7 2022 has a starting price of 2653$. Conway Cairon SUV FS 5.7 2022 on the other hand is the most expensive at 5096$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Touring e-bikes average price
If you want to purchase a solid Touring e-bike, it is important to know that the average cost is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Conway released this model in 2022, its price was 4140$. Comparing the average cost of a Touring e-bike to this one, you will see that Cairon T 5.0 Trapez price is 70.44% higher.
Overview of components
Fork
The Cairon T 5.0 Trapez comes factory-installed with the RST fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Cairon T 5.0 Trapez model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon T 5.0 Trapez comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Cairon T 5.0 Trapez comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
