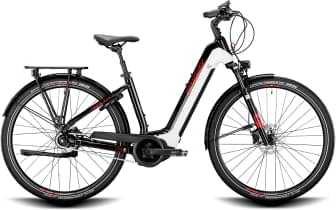

Conway Cairon TR 4.5 2023
2023 E-bike
Estimate price |
4,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork RST BLAZE
-
Groupset Alfine, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Powertube 625 Wh, -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RST "Blaze ML", 80 mm
Drivetrain
Shift Levers
SHIMANO "Alfine SL-C7000"
Cassette
SHIMANO, 27 Z.
Crank
FSA "CK-200", 170 mm
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "Nexus SG-C7002", 5-Gg, RBN
Rims
CONWAY Hohlkammer "X17", Disc
Tires
CONTINENTAL "Contact Urban", 50-622, Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Cockpit
Handlebar
HUMPERT "Ergotec Ladytown", Ø 31,8, 620 mm
Seat
Saddle
SELLE ROYAL "Vivo Moderat Ergo", Da
Seatpost
HUMPERT "Ergotec SP10", 350 mm
Motor & Battery
Motor
BOSCH Gen.3 "Performance", 36 V, 250 W
Battery
Powertube 625 Wh,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.57 mm | 1.57 mm | 1.49 mm |
| Stack | 643 mm | 643 mm | 662 mm | 662 mm |
| Reach | 389 mm | 409 mm | 423 mm | 443 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 68 mm | 68 mm | 68 mm | 68 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1151 mm | 1171 mm | 1192 mm | 1212 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon TR 4.5 is a Conway E Cairon model. Conway launched 281 e-bikes of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2023, here.
Model range prices
Conway Cairon TF 1.7 ladies, wave 2023 is the most economical model, with a starting price of 2653$. Conway Cairon SUV FS 7.7 2023 on the other hand costs 5839$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 3821$. Comparing the average cost of a Commuter e-bike to this one, you will see that Cairon TR 4.5 price is 48.73% more expensive.
Cairon TR 4.5 components
Fork
Conway Cairon TR 4.5 2023 e-bike is equipped with the RST BLAZE fork, and has 80mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Cairon TR 4.5 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Conway Cairon TR 4.5 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
