Conway Ryvon LT 10.0 full suspension 2023
2023 E-bike
Estimate price |
11,468$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 55Nm mid-drive -
Battery BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY E-Light Fully Intube Bosch, Carbon
Suspension Fork
FOX "Float 36 Factory", 170 mm
Rear Shock
FOX "Float X2 Factory" 170 mm
Drivetrain
Rear Derailleur
SRAM "X0 Eagle AXS T-Type", 12speed
Shift Levers
SRAM "AXS POD"
Cassette
SRAM "XS 1295 Eagle T-Type", 10-52 Z.
Crank
E*THIRTEEN "Helix Race Carbon", 160mm
Bottom Bracket
BOSCH
Pedals
VPE527
Wheels
Front Hub
ACROS "Enduro Carbon 29", 15 x 110 mm
Rear Hub
ACROS "Enduro Carbon 27,5", 12 x 148 mm
Rims
ACROS
Spokes
ACROS
Tires
MAXXIS "Assegai EXO+ 3C MaxxGrip", 63-622
Brakes
Brakes
TRP "DH-R EVO HD-M846", 4-Kolben
Brake Levers
TRP "DH-R EVO HD-M846"
Cockpit
Stem
RACEFACE "Turbine-R 35", 32 mm
Handlebar
RACEFACE "NEXT 35", 760 mm, 10 mm Rise, Carbon
Grips
SQlab "70X", S
Headset
ACROS "ZS56 / ZS56", Blocklock
Seat
Saddle
FIZIK "Terra Aidon X1", 145mm
Seatpost
VECNUM "Nivo", 152 mm
Motor & Battery
Motor
BOSCH Mittelmotor "Performance SX", 36 V, 250 W
Battery
BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh
Remote
BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.363 mm | 1.335 mm | 1.308 mm |
| Stack | 618 mm | 627 mm | 641 mm | 654 mm |
| Reach | 440 mm | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 573 mm | 595 mm | 619 mm | 642 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ryvon LT 10.0 full suspension completes the Conway E Ryvon model. There are 4 e-bikes that carry this model name. You can easily view all of the Conway E Ryvon e-bikes models from 2023, here.
Model range prices
Conway Ryvon ST 4.0 full suspension 2023 is the cheapest e-bike model and costs 6352$. Conway Ryvon LT 10.0 full suspension 2023 is the most expensive one and costs 10588$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Downhill e-bikes average price
According to our calculations, the average cost of a Downhill e-bike that is reliable is 5530$. However, this doesn’t mean that if you spend less money on a Downhill e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Conway Ryvon LT 10.0 full suspension price was 10588$. Comparing this to the average Downhill e-bike price, we see that the price is 91.46% more expensive.
Ryvon LT 10.0 full suspension components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

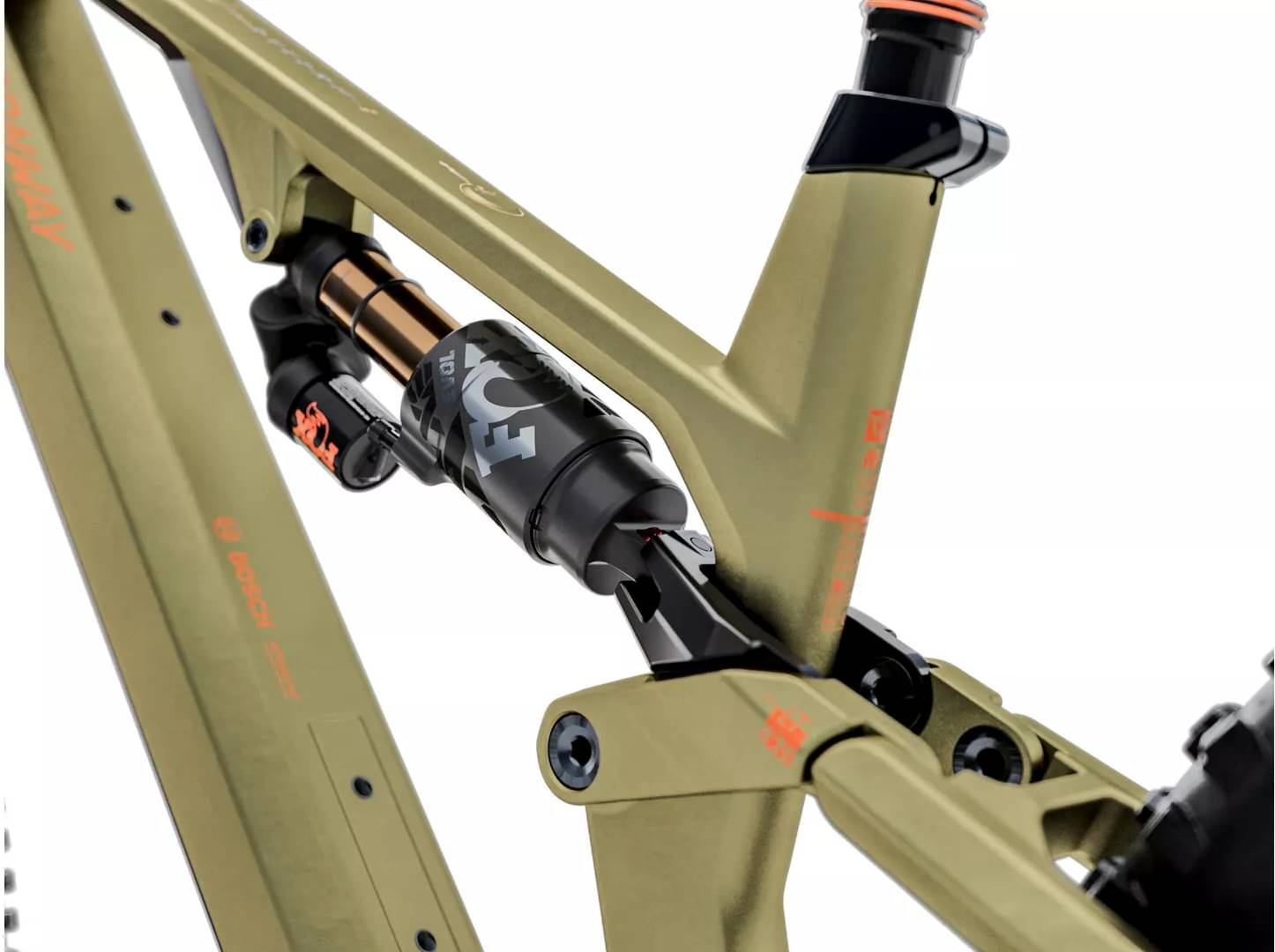

Rear Shock
The Ryvon LT 10.0 full suspension has a rear shock with a travel of 170mm. The model FOX “Float X2 Factory” 170 mm is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Conway Ryvon LT 10.0 full suspension 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Conway Ryvon LT 10.0 full suspension has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Conway Ryvon LT 10.0 full suspension e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
