Conway Ryvon ST 4.0 full suspension 2023
2023 E-bike
Estimate price |
6,881$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select
-
Groupset NX Eagle -
Suspension Full -
Motor Bosch 250W 55Nm mid-drive -
Battery BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY E-Light Fully Intube Bosch, Carbon
Suspension Fork
ROCKSHOX "Lyrik Select", 150 mm
Rear Shock
ROCKSHOX "Deluxe Select" 150 mm
Drivetrain
Rear Derailleur
SRAM "NX Eagle", 12speed
Shift Levers
SRAM "NX Eagle Trigger", single click
Cassette
SRAM "PG 1230 Eagle", 11-50 Z.
Crank
MIRANDA "OMEGA" 160mm
Bottom Bracket
BOSCH
Pedals
VPE527
Wheels
Front Hub
SUN RINGLÉ "Duroc Comp 29", 15 x 110 mm
Rear Hub
SUN RINGLÉ "Duroc Comp 27,5", 12 x 148 mm
Rims
SUN RINGLÉ
Spokes
SUN RINGLÉ
Tires
SCHWALBE "Magic Mary Evo Super Trail", 62-622
Brakes
Brakes
MAGURA "MT5", 4-Kolben
Brake Levers
MAGURA "MT5"
Cockpit
Stem
CONWAY "eMTB 31,8", 40 mm
Handlebar
LEVELNINE "TEAM 31,8", 760 mm, 10 mm Rise
Grips
SQlab "70X", S
Headset
ACROS "ZS56 / EC56", 10 mm Highstack
Seat
Saddle
FIZIK "Terra Aidon X5", 145mm
Seatpost
LIMOTEC "A1L", Offset 0, 150 mm
Motor & Battery

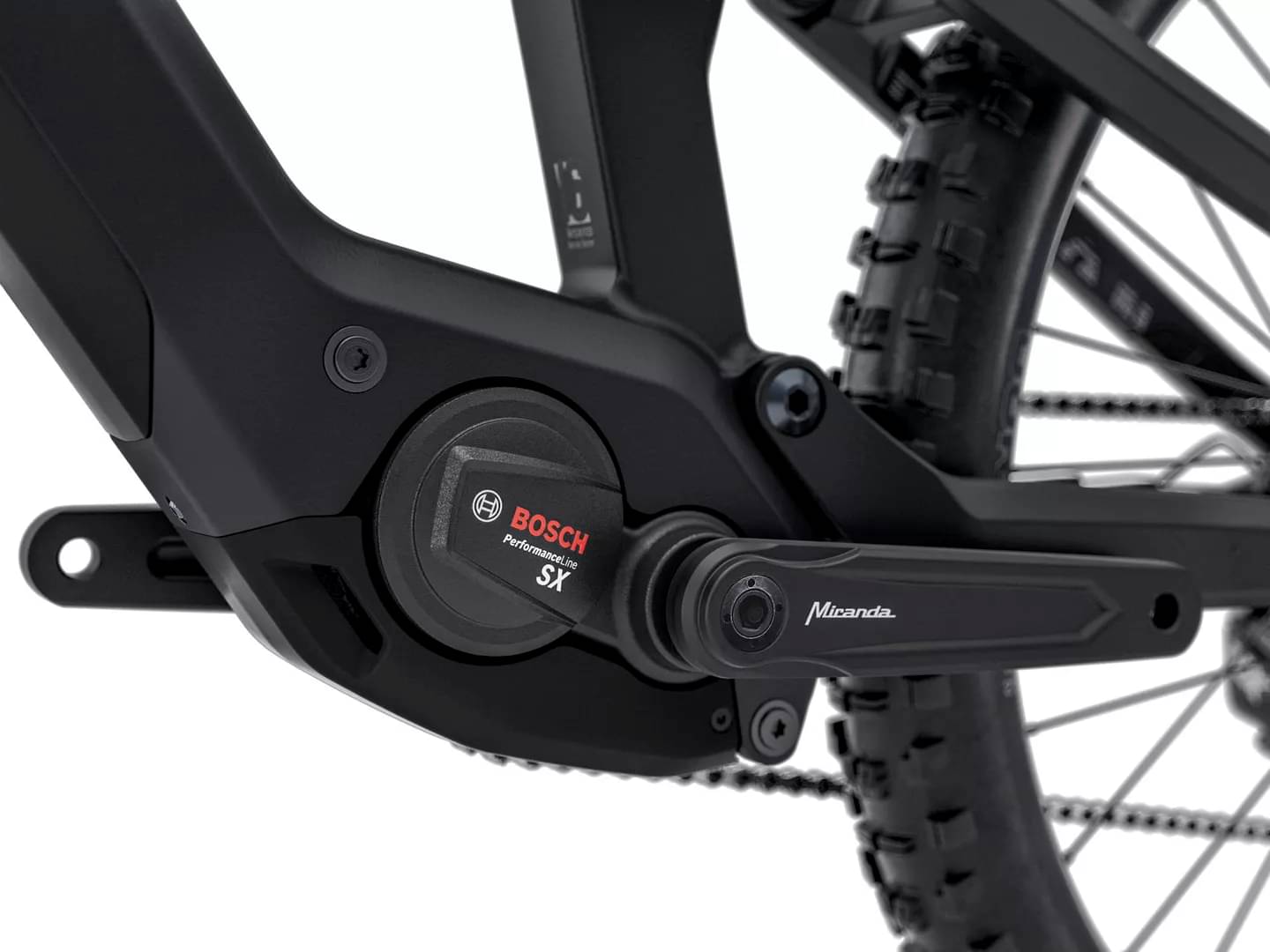

Motor
BOSCH Mittelmotor "Performance SX", 36 V, 250 W
Battery
BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh
Remote
BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.34 mm | 1.313 mm | 1.287 mm |
| Stack | 615 mm | 623 mm | 637 mm | 650 |
| Reach | 445 mm | 465 mm | 485 mm | 505 mm |
| Top Tube Length | 572 mm | 594 mm | 618 mm | 641 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ryvon ST 4.0 full suspension belongs to the Conway E Ryvon model. 4 e-bikes variations carry this model name so far. You can easily view all of the Conway E Ryvon e-bikes models from 2023, here.
Model range prices
Conway Ryvon ST 4.0 full suspension 2023 is the most economical model, with a starting price of 6352$. Conway Ryvon LT 10.0 full suspension 2023 on the other hand costs 10588$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Conway Ryvon ST 4.0 full suspension price was 6352$. If we compare this with the average Enduro e-bike cost we notice that the price is 32.75% more expensive.
Overview of components
Fork
This e-bike has the RockShox Lyrik Select fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.

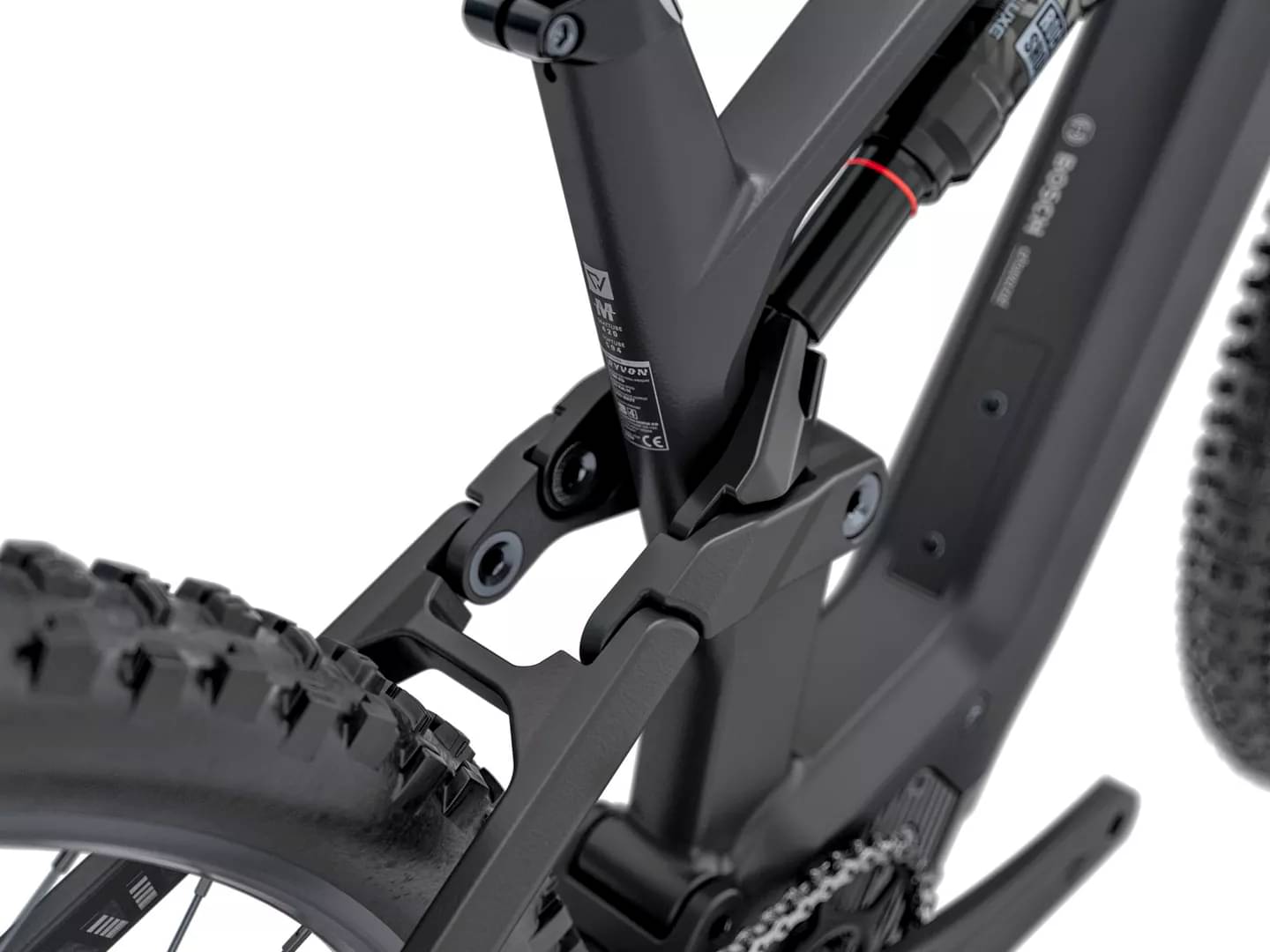

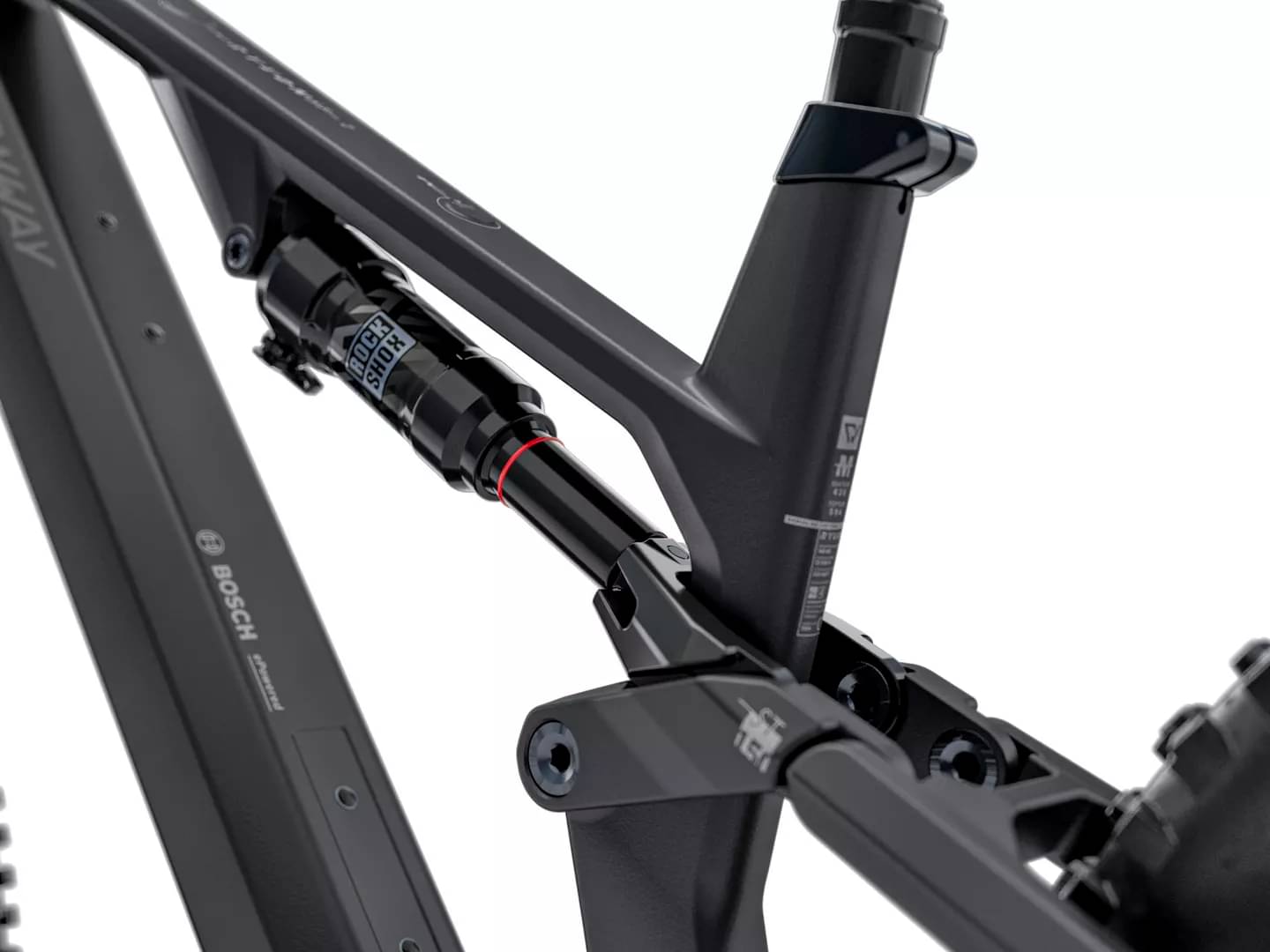

Rear Shock
The shock that’s installed on this e-bike is ROCKSHOX “Deluxe Select” 150 mm, with a travel distance of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Ryvon ST 4.0 full suspension model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ryvon ST 4.0 full suspension comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Conway Ryvon ST 4.0 full suspension e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Ryvon ST 4.0 full suspension. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
