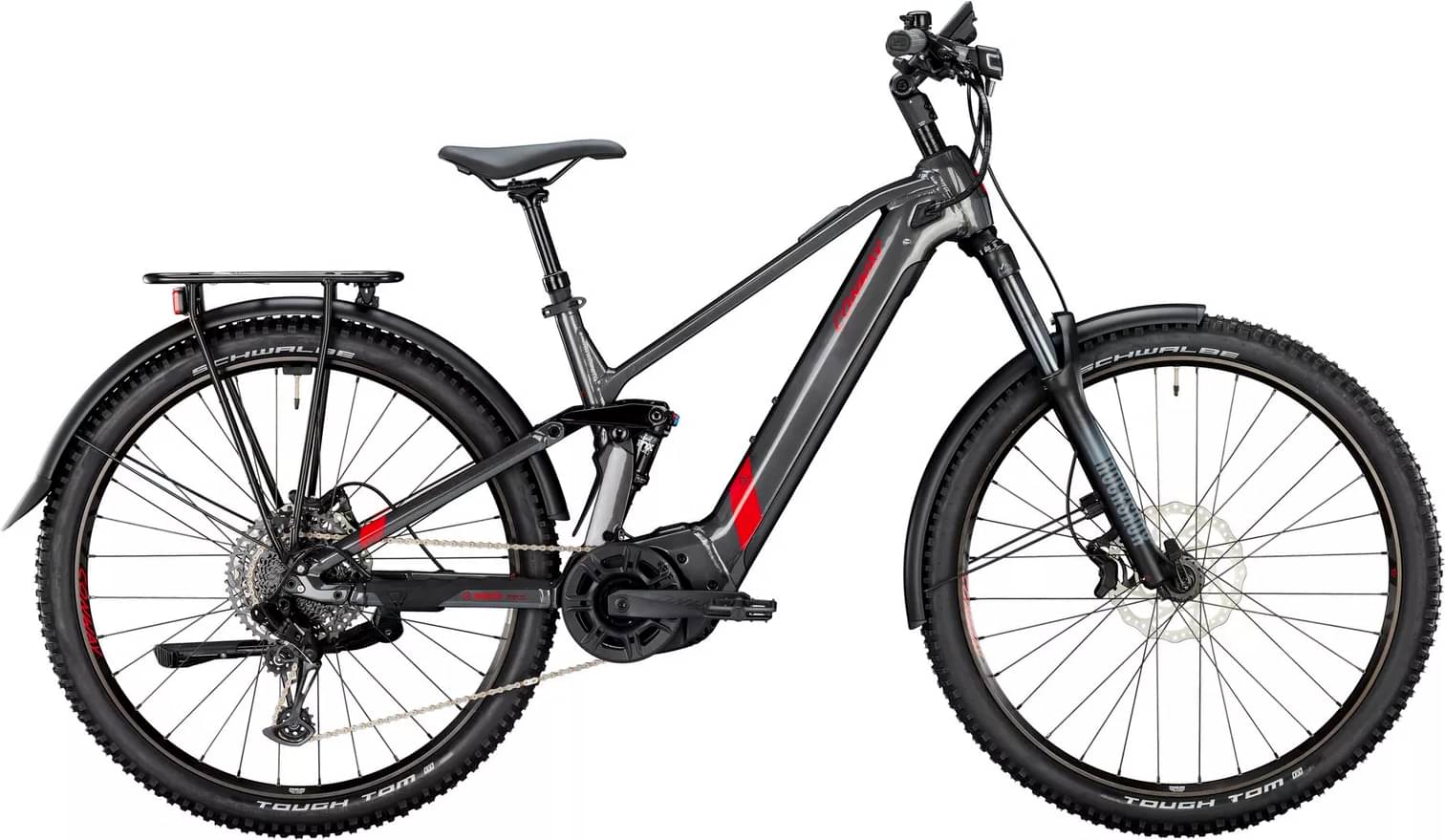

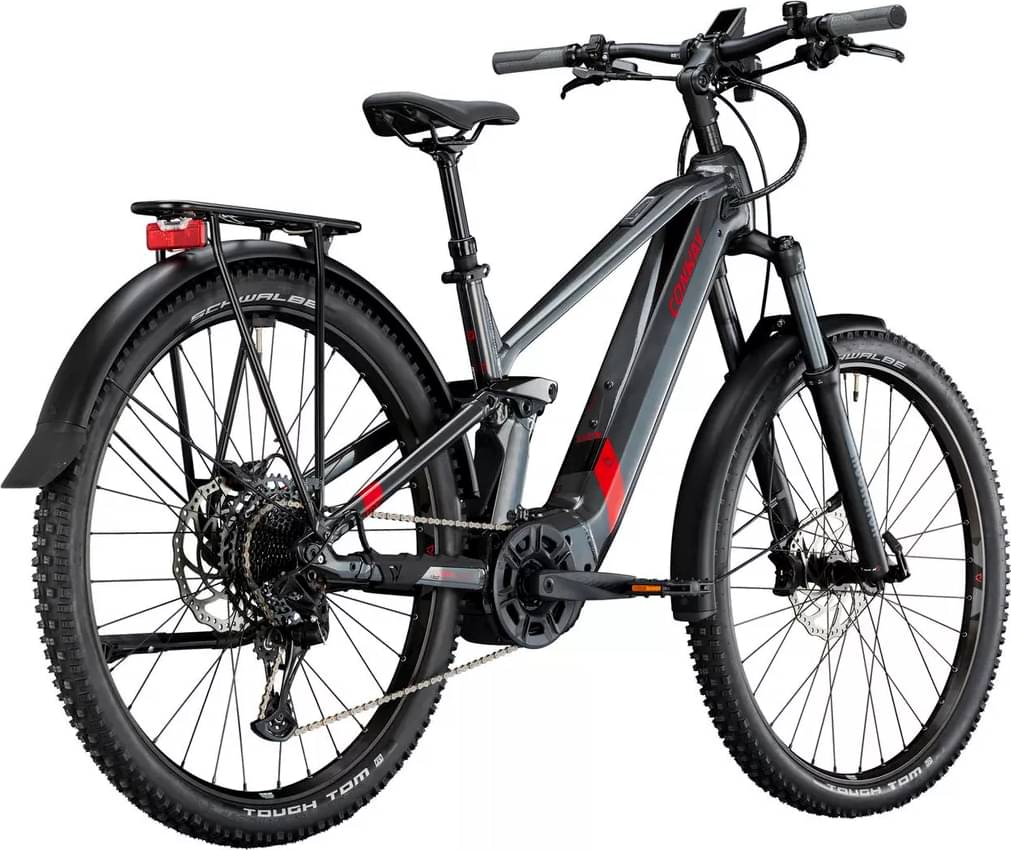

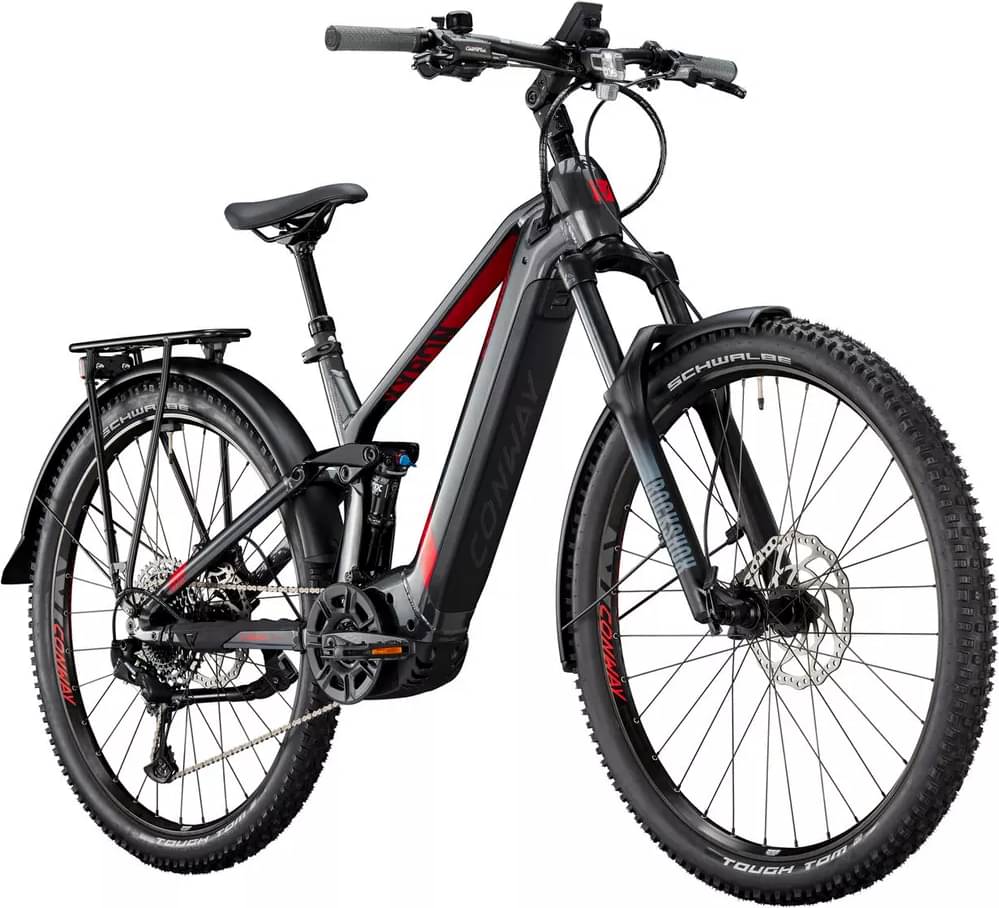

Conway Xyron SUV 4.9 gents 2023
2023 E-bike
Estimate price |
6,078$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Intube Bosch, Alu
Suspension Fork
ROCKSHOX "35 Silver TK", 150 mm

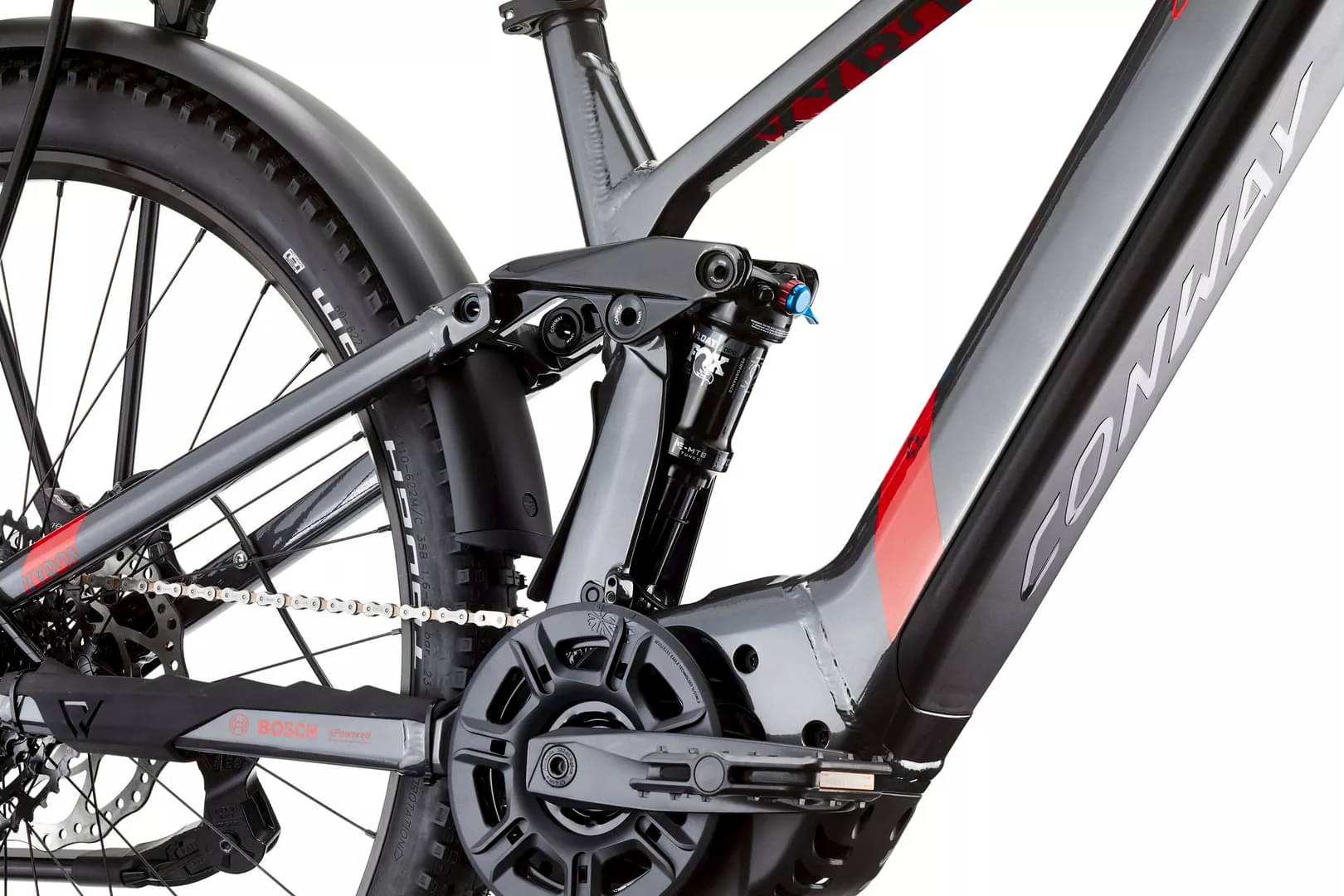

Rear Shock
FOX "Float DPS" 140 mm
Drivetrain
Rear Derailleur
SRAM "SX Eagle", 12speed
Shift Levers
SRAM "SX Eagle Trigger", single click
Cassette
SRAM "PG 1210 Eagle", 11-50 Z.
Crank
MIRANDA "Epsilon", 165 mm
Bottom Bracket
BOSCH
Wheels
Front Hub
FORMULA "DC 511", 15 x 110 mm
Rear Hub
FORMULA "eHL-148 S", 12 x 148 mm
Rims
RODI "Ready 30"
Spokes
Niro
Tires
CONTINENTAL "Ruban", 58-622, Reflex
Brakes
Brakes
TEKTRO "HD-M535", 4-Kolben
Brake Levers
TEKTRO "HD-M535"

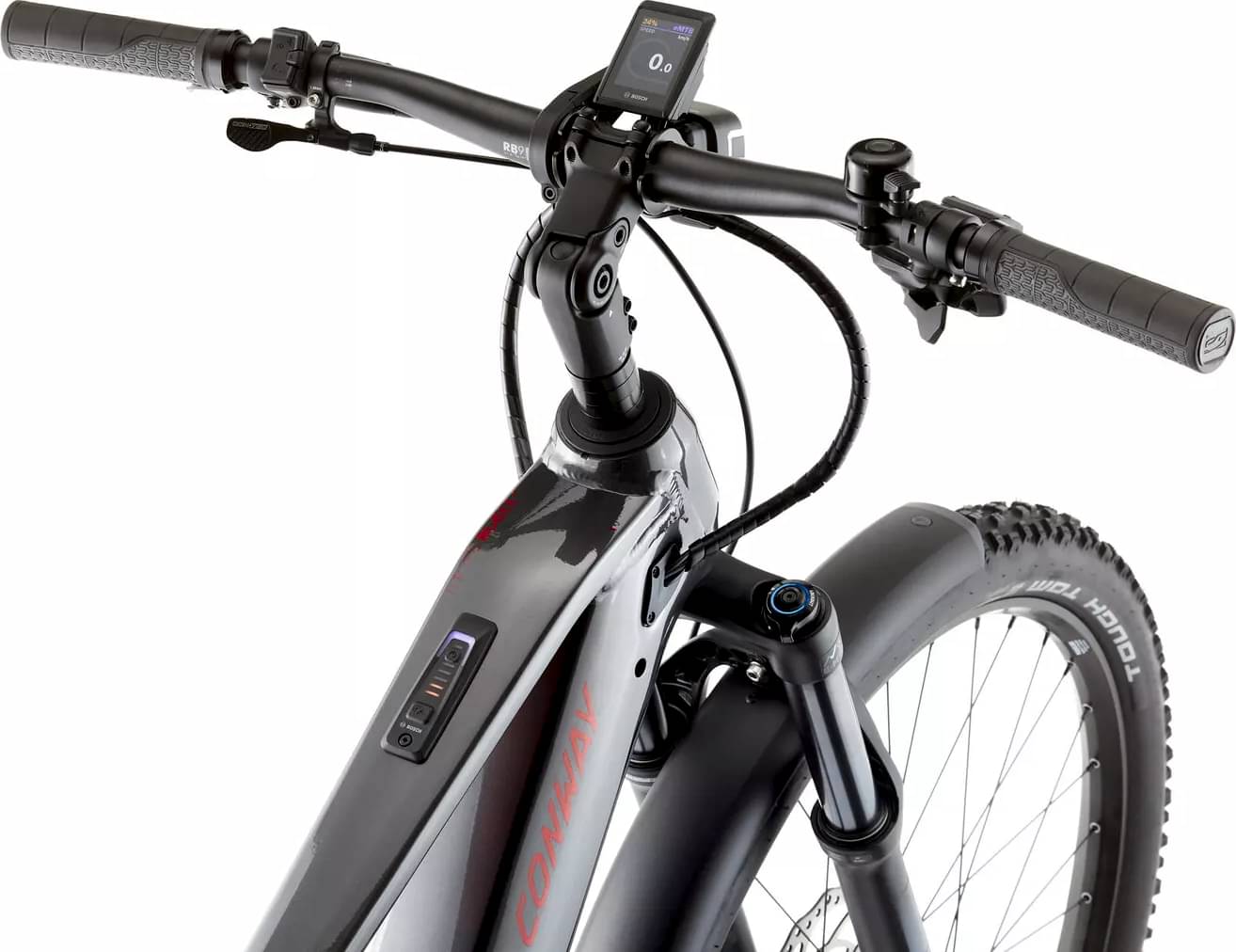

Cockpit
Stem
LEVEL 9 "Adjustable", 65mm
Handlebar
LEVEL 9 "Low Riser", Ø 31,8, 720 mm
Grips
CONTEC "MERGE Mountain Straight"
Headset
ZS56 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "2315HRN"
Seatpost
CONTEC "Drop - A - Gogo", 31,6 mm, 100 mm
Motor & Battery

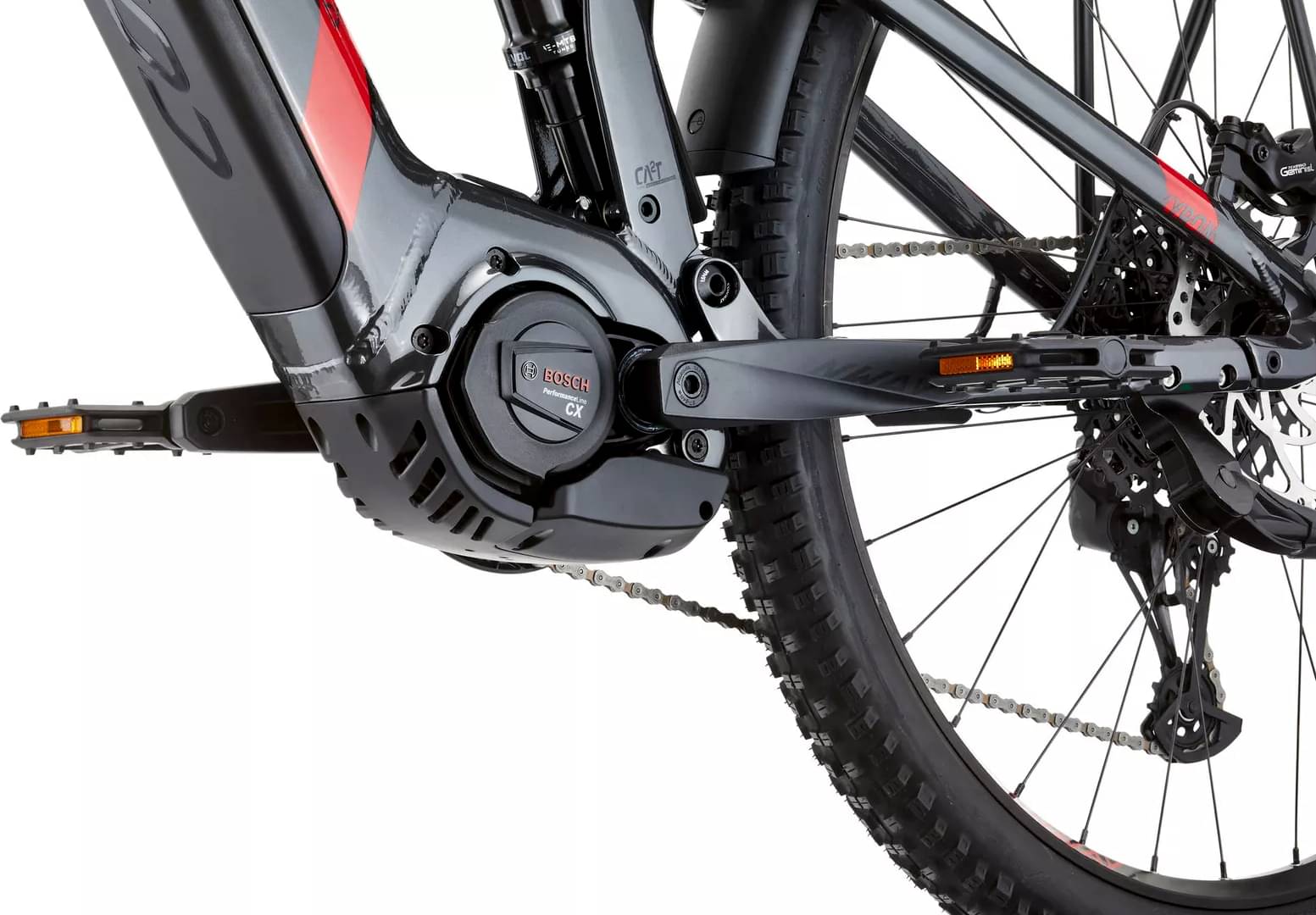

Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.432 mm | 1.399 mm | 1.368 mm | 1.339 mm |
| Stack | 633 mm | 633 mm | 642 mm | 651 mm | 660 mm |
| Reach | 422 mm | 442 mm | 459 mm | 476 mm | 493 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Xyron SUV 4.9 gents completes the Conway E Xyron model. Conway launched 59 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Conway Xyron S 2.7 Full Suspension 2023 has a starting price of 4565$. Conway Xyron S 9.9 MX Carbon Full Suspension 2023 on the other hand is the most expensive at 11679$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5626$. If we compare this with the average Trail e-bike cost we notice that the price is 67.19% higher.
Overview of components
Fork
The RockShox 35 Silver is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX “Float DPS” 140 mm model, with a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Xyron SUV 4.9 gents are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Conway Xyron SUV 4.9 gents is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Conway Xyron SUV 4.9 gents includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
