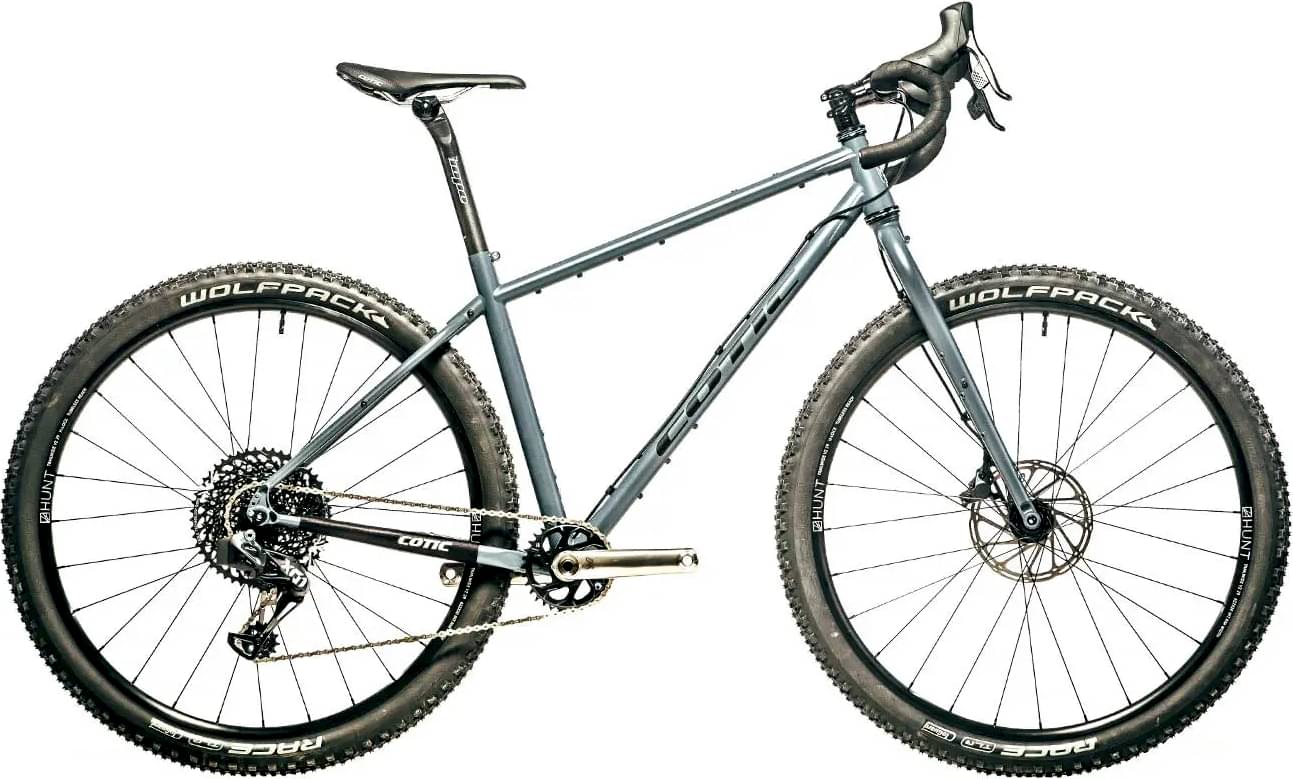

Cotic Cascade Drop Bar / Silver SRAM Apex 1×11 2023
2023 Road
Estimate price |
3,478$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 168cm
SM
165cm - 174cm
MD
172cm - 180cm
LG
178cm - 188cm
XL
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Apex 1x11, 11-42 Cassette, Hydraulic Disc Brakes
Bottom Bracket
SRAM DUB BB for DUB Cranks - BBDUB5000
Wheels
Rims
HUNT XC Wide 29 HG
Tires
WTB Ranger 29x2.4 Light Tanwall with tubeless kit
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Cotic 60mm Stem, 31.8 Clamp
Handlebar
Cotic Valley Bars - 46cm Alu Flared Drop
Headset
Cane Creek Headset 40 Series EC34/EC44
Seat
Seatpost
CC Alu 31.6 350mm seatpost for Cascade
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.55 mm | 1.51 mm | 1.46 mm | 1.42 mm |
| Front Center | 643 mm | 663 mm | 680 mm | 707 mm | 733 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 85 mm | 85 mm | 79 mm | 78 mm | 79 mm |
| Stack | 607 mm | 607 mm | 624 mm | 636 mm | 648 mm |
| Reach | 371 mm | 391 mm | 413 mm | 435 mm | 457 mm |
| Top Tube Length | 544 mm | 564 mm | 591 mm | 616 mm | 642 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 435 mm | 470 mm | 505 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 113 mm | 126 mm | 139 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1075 mm | 1095 mm | 1112 mm | 1139 mm | 1165 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 178 cm | 186 cm |
| Rider Max Height | 168 cm | 174 cm | 180 cm | 188 cm | 195 cm |
About this model
Cascade Drop Bar / Silver SRAM Apex 1×11 is a Cotic Cascade model. Cotic launched 18 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Cotic Cascade Drop Bar / Bronze Microshift Advent X 1×10 2023 is the most affordable bike of this model and has a price of 2492$. On the other hand, Cotic Cascade Drop Bar / Platinum SRAM Force1+X01 AXS 1×12 2023, is the most expensive and costs 5631$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Cotic released this model in 2023, its price was 3161$. Comparing the average cost of a Gravel bike to this one, you will see that Cascade Drop Bar / Silver SRAM Apex 1×11 price is 28.39% higher.
Cascade Drop Bar / Silver SRAM Apex 1×11 components
Wheels size
When leaving the production line, the Cascade Drop Bar / Silver SRAM Apex 1×11 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cascade Drop Bar / Silver SRAM Apex 1×11 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
