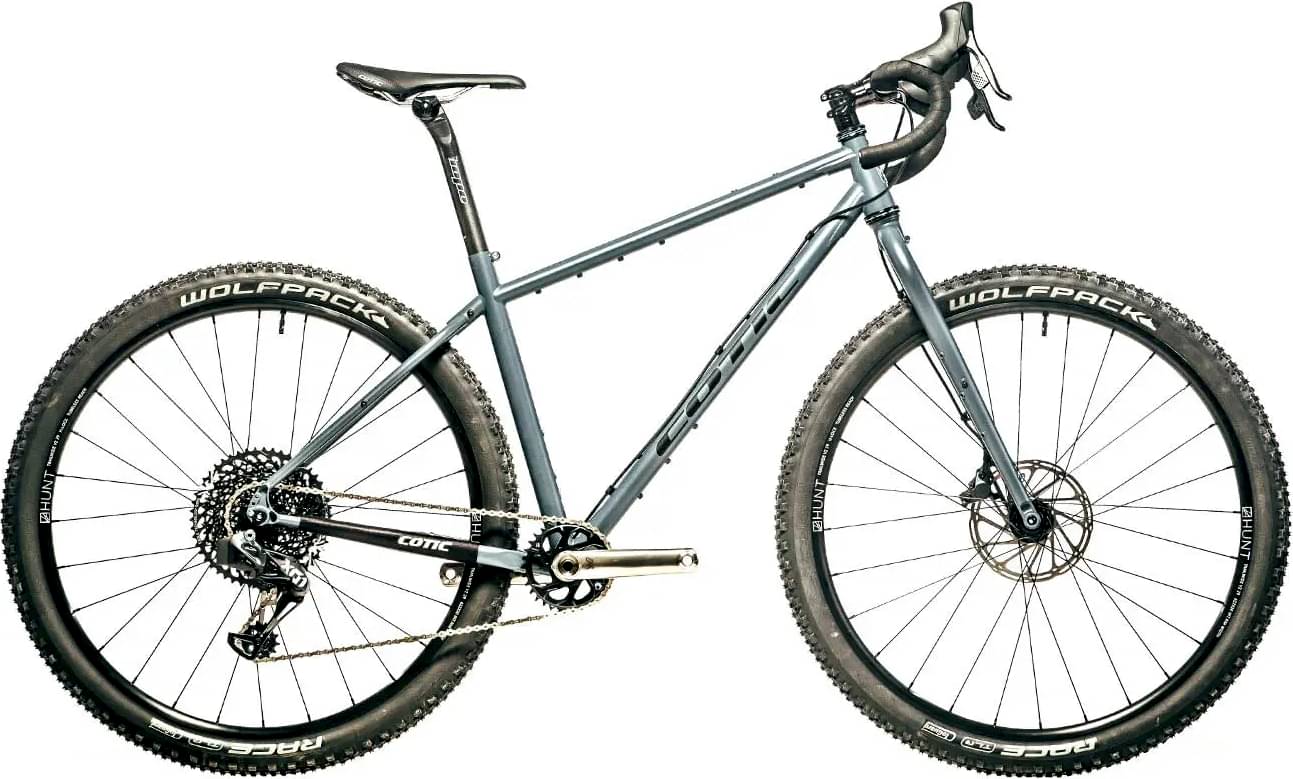

Cotic Cascade Flat Bar / Platinum SRAM X01 Eagle AXS 1×12 2023
2023 Road
Estimate price |
5,753$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Groupset X01 Eagle AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
157cm - 168cm
SM
165cm - 174cm
MD
172cm - 180cm
LG
178cm - 188cm
XL
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM X01 Eagle 1x12 AXS wireless shifting, eeWings ti cranks
Bottom Bracket
Hope Stainless Steel 30mm (black)
Wheels
Rims
Hunt XC Wide 29 XD
Tires
WTB Ranger 29x2.4 Light Tanwall with tubeless kit
Brakes
Brakes
Hope standard (non-floating) rotors 180/180 6bolt for Cascade
Cockpit
Stem
Cotic 100mm x 6deg Stem
Handlebar
Ritchey Comp Trail flat bar 740mm 9deg
Headset
Hope 1H for taper steerer (black)
Seat
Seatpost
BikeYoke Devine Seatpost 125mm drop for Cascade
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.55 mm | 1.51 mm | 1.46 mm | 1.42 mm |
| Front Center | 643 mm | 663 mm | 680 mm | 707 mm | 733 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 85 mm | 85 mm | 79 mm | 78 mm | 79 mm |
| Stack | 607 mm | 607 mm | 624 mm | 636 mm | 648 mm |
| Reach | 371 mm | 391 mm | 413 mm | 435 mm | 457 mm |
| Top Tube Length | 544 mm | 564 mm | 591 mm | 616 mm | 642 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 435 mm | 470 mm | 505 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 113 mm | 126 mm | 139 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1075 mm | 1095 mm | 1112 mm | 1139 mm | 1165 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 178 cm | 186 cm |
| Rider Max Height | 168 cm | 174 cm | 180 cm | 188 cm | 195 cm |
About this model
Cascade Flat Bar / Platinum SRAM X01 Eagle AXS 1×12 is part of the Cotic Cascade model. There are 18 bikes that carry this model name. Take a sneak peek at all Cotic Cascade bikes models from 2023, by clicking here.
Model range prices
Cotic Cascade Drop Bar / Bronze Microshift Advent X 1×10 2023 is the cheapest bike model and costs 2492$. Cotic Cascade Drop Bar / Platinum SRAM Force1+X01 AXS 1×12 2023 is the most expensive one and costs 5631$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Cotic Cascade Flat Bar / Platinum SRAM X01 Eagle AXS 1×12 price was 5229$. Comparing the average cost of a Gravel bike to this one, you will see that Cascade Flat Bar / Platinum SRAM X01 Eagle AXS 1×12 price is 112.39% more expensive.
Cascade Flat Bar / Platinum SRAM X01 Eagle AXS 1×12 components
Wheels
When leaving the production line, the Cascade Flat Bar / Platinum SRAM X01 Eagle AXS 1×12 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cotic Cascade Flat Bar / Platinum SRAM X01 Eagle AXS 1×12 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
