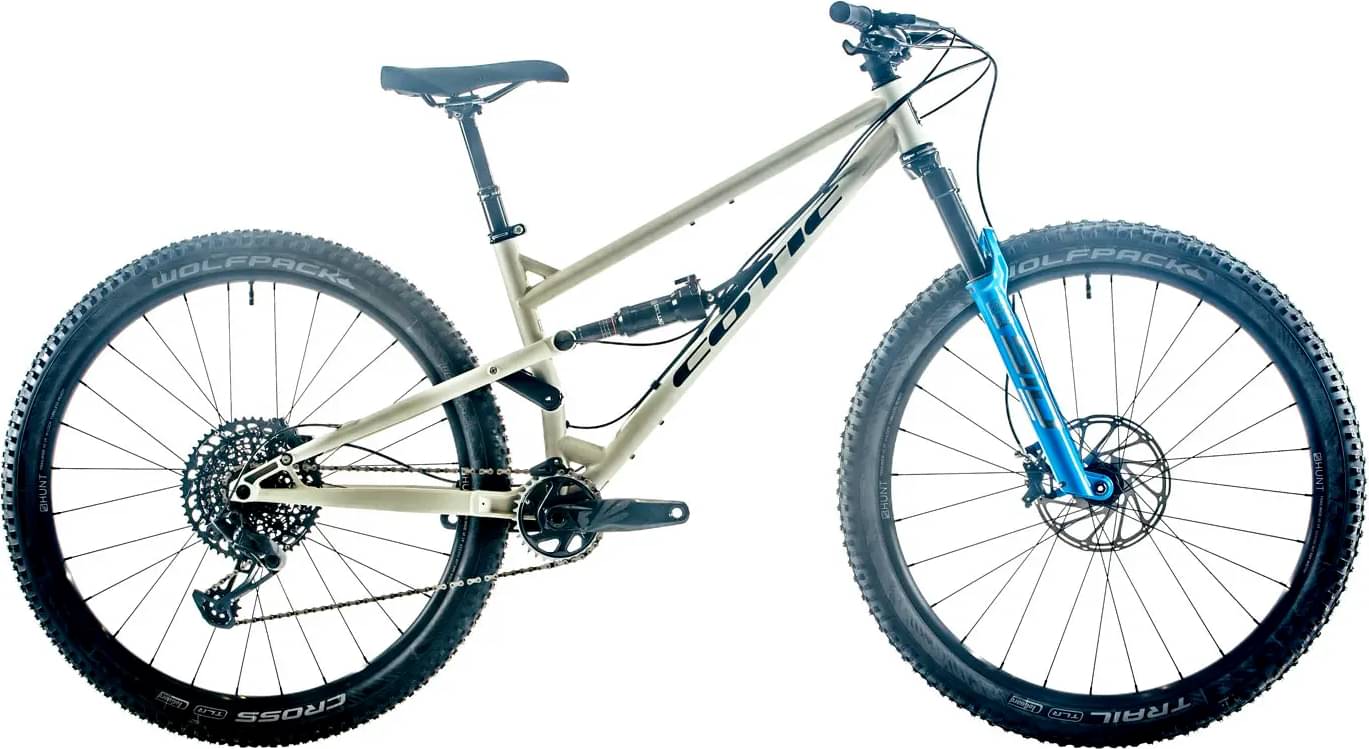

Cotic FlareMAX Downcountry / Works XTR eeWING 2023
2023 Mountain
Estimate price |
9,969$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 120mm -
Travel Rear 125mm -
Fork RockShox SID Ultimate
-
Groupset XTR, Cane Creek -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox SID Ultimate 120mm Blue
Rear Shock
Cane Creek DB Air IL Climb Switch 210x50
Drivetrain
Rear Derailleur
XTR M9100 1x12 Drivetrain
Cassette
Garbaruk 12spd 10-52 Cassette
Crank
Cane Creek eeWings ti chainset 170mm + Garbaruk Shimano Chainring
Bottom Bracket
Enduro Bearings Stainless Steel Maxhit 30mm Bottom Bracket
Wheels
Rims
Hope Fortus30 Single Cavity 29 Microspline (black Pro5 hubs)
Tires
Wolfpack Trail/Cross 29x2.4 tyres
Brakes
Brakes
Hope standard (non-floating) rotors 203/180 6bolt
Cockpit
Stem
Hope Gravity 35mm Stem 31.8mm Clamp (black)
Handlebar
Hope Carbon Bar 800 x 20mm Rise 31.8 Clamp
Headset
Enduro Bearings Stainless Steel Maxhit Headset
Seat
Seatpost
BikeYoke Devine Seatpost 160mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.33 mm | 1.3 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 749 mm | 772 mm | 795 mm | 818 mm | 837 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 119 mm | 119 mm | 119 mm | 117 mm | 117 mm |
| Stack | 618 mm | 627 mm | 636 mm | 646 mm | 646 mm |
| Reach | 451 mm | 470 mm | 489 mm | 508 mm | 527 mm |
| Top Tube Length | 601 mm | 623 mm | 640 mm | 662 mm | 681 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 496 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1201 mm | 1224 mm | 1247 mm | 1271 mm | 1290 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
Model Overview
FlareMAX Downcountry / Works XTR eeWING belongs to the Cotic Flaremax model. 56 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Cotic FlareMAX Special Deal / Bronze SLX 2023 is the cheapest bike model and costs 4139$. Cotic FlareMAX Trail / Works XTR eeWing 2023 is the most expensive one and costs 9194$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 9072$. Comparing the average cost of a Trail bike to this one, you will see that FlareMAX Downcountry / Works XTR eeWING price is 228.46% more expensive.
FlareMAX Downcountry / Works XTR eeWING components
Fork
The fork installed on this bike is the RockShox SID Ultimate model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Cane Creek DB Air IL Climb Switch 210×50 rear shock model, which has a travel of 125mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The FlareMAX Downcountry / Works XTR eeWING 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The FlareMAX Downcountry / Works XTR eeWING has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 162 cm – 195 cm (5.31 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
