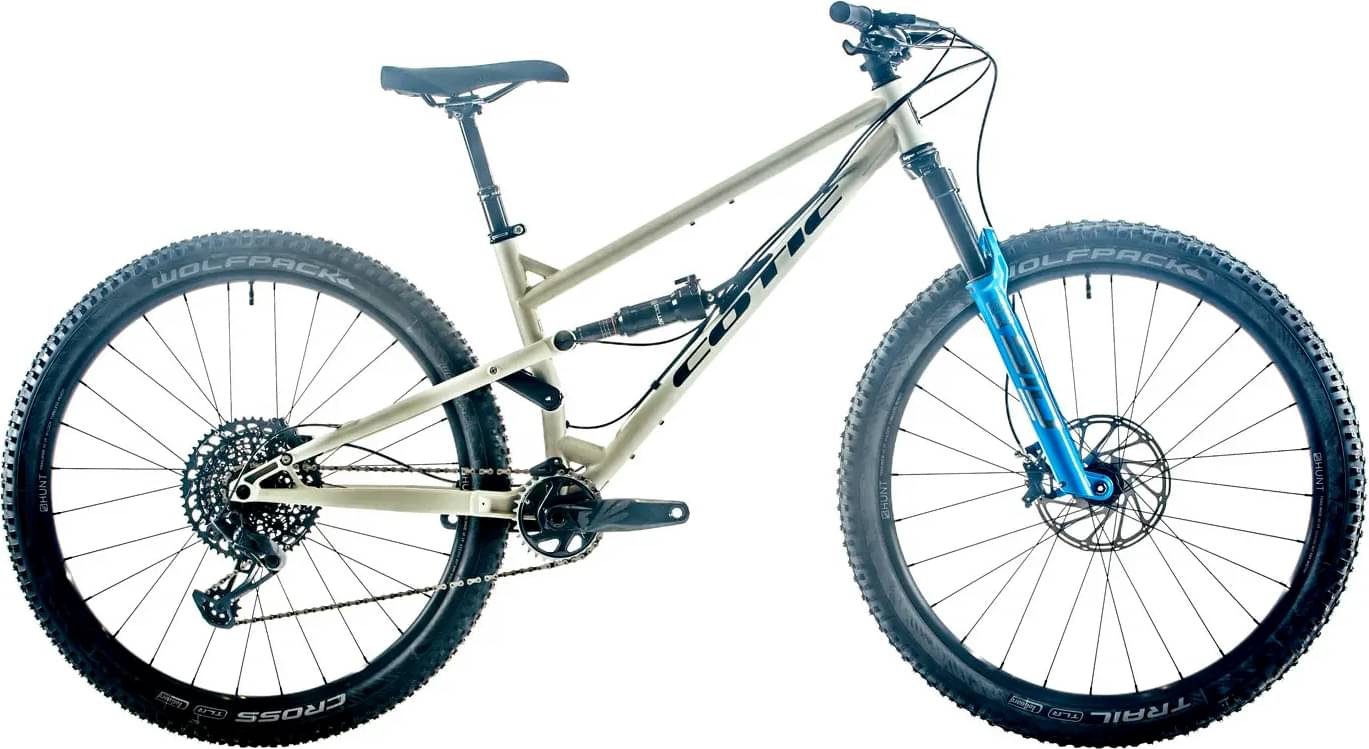

Cotic FlareMAX Trail / Platinum XTR 2023
2023 Mountain
Estimate price |
8,764$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Cane Creek HELM
-
Groupset XTR -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Cane Creek HELM29 - 130mm
Rear Shock
Cane Creek DB Air IL Climb Switch 210x50
Drivetrain
Rear Derailleur
XTR M9100 1x12 Drivetrain
Cassette
XT 12spd 10-51 Cassette
Crank
Hope EVO 175mm Silver Chainset with DM32 Black Chainring
Bottom Bracket
Enduro Bearings Stainless Steel Maxhit 30mm Bottom Bracket
Wheels
Rims
Hope Fortus30 Single Cavity 29 Microspline (black Pro5 hubs)
Tires
WTB 29 Verdict 2.5 / Trail Boss 2.4 Light Slashguard with tubeless kit
Brakes
Brakes
Hope standard (non-floating) rotors 203/180 6bolt
Cockpit
Stem
Hope Gravity 35mm Stem 31.8mm Clamp (black)
Handlebar
Hope Carbon Bar 800 x 20mm Rise 31.8 Clamp
Headset
Hope 2H for tapered steerer (black)
Seat
Seatpost
BikeYoke Devine Seatpost 160mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 752 mm | 775 mm | 798 mm | 822 mm | 841 mm |
| Rake | 45 mm | 45 mm | 45 mm | 46 mm | 46 mm |
| Trail | 120 mm | 120 mm | 120 mm | 119 mm | 119 mm |
| Stack | 622 mm | 631 mm | 640 mm | 650 | 650 |
| Reach | 446 mm | 465 mm | 484 mm | 503 mm | 522 mm |
| Top Tube Length | 602 mm | 624 mm | 641 mm | 663 mm | 682 mm |
| Seat Tube Angle | 75.4 ° | 75.4 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 496 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1205 mm | 1228 mm | 1251 mm | 1275 mm | 1294 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
About this model
FlareMAX Trail / Platinum XTR completes the Cotic Flaremax model. Cotic launched 56 bikes of this model so far. You can easily view all of the Cotic Flaremax bikes models from 2023, here.
Model range prices
Cotic FlareMAX Special Deal / Bronze SLX 2023 is the cheapest bike model and costs 4139$. Cotic FlareMAX Trail / Works XTR eeWing 2023 is the most expensive one and costs 9194$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Cotic FlareMAX Trail / Platinum XTR price was 7976$. Comparing this to the average Trail bike price, we see that the price is 188.78% more expensive.
FlareMAX Trail / Platinum XTR components
Fork
The FlareMAX Trail / Platinum XTR comes factory-installed with the Cane Creek HELM fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Cane Creek DB Air IL Climb Switch 210×50, with a travel distance of 125mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the FlareMAX Trail / Platinum XTR model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cotic FlareMAX Trail / Platinum XTR is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Cotic FlareMAX Trail / Platinum XTR bike has 5 sizes, in the range of 162 cm – 195 cm (5.31 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Cotic FlareMAX Trail / Platinum XTR comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
