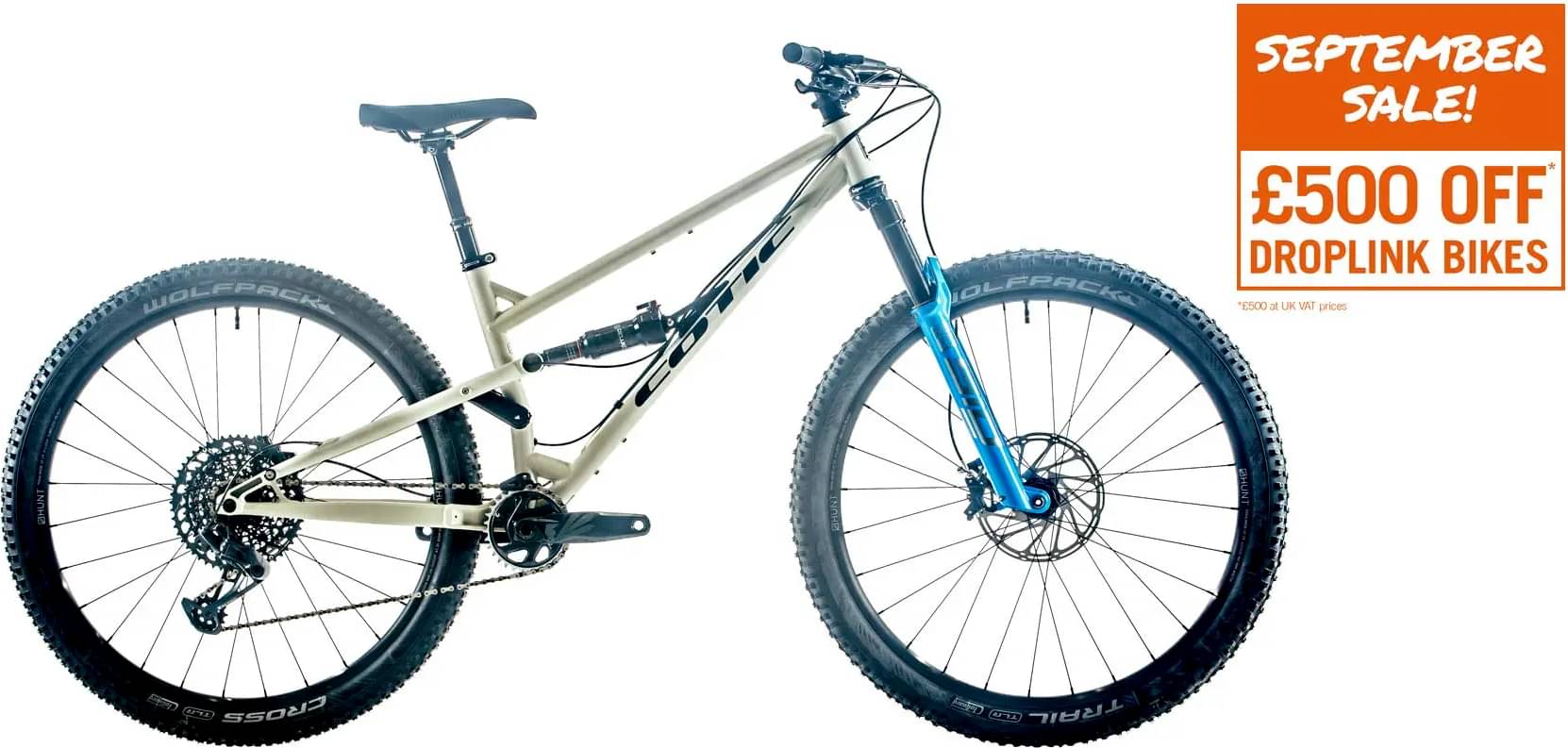

Cotic FlareMAX5 Trail / Gold XT 2023
2023 Mountain
Estimate price |
6,757$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Cane Creek HELM
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Cane Creek HELM29 - 130mm
Rear Shock
Cane Creek DB Air IL Climb Switch 210x50
Drivetrain
Rear Derailleur
XT M8100 1x12 Drivetrain
Cassette
XT 12spd 10-51 Cassette
Crank
XT M8100 Chainset with 32t chainring
Bottom Bracket
Shimano MT800 XT Bottom Bracket
Wheels
Rims
Hunt Trail Wide 29 V2 Microspline
Tires
WTB 29 Vigilante 2.5 light and Trail Boss 2.4 light with tubeless kit
Brakes
Brakes
Pair of Shimano rotors 203/180 6bolt
Cockpit
Stem
Cotic SHORTERSTEM - 35mm
Handlebar
Cotic Calver Bars - 780 x 25 rise, 5deg up, 9deg back (black)
Headset
Hope 2H for tapered steerer (black)
Seat
Seatpost
BikeYoke Devine Seatpost 160mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 752 mm | 775 mm | 798 mm | 822 mm | 841 mm |
| Rake | 45 mm | 45 mm | 45 mm | 46 mm | 46 mm |
| Trail | 120 mm | 120 mm | 120 mm | 119 mm | 119 mm |
| Stack | 622 mm | 631 mm | 640 mm | 650 | 650 |
| Reach | 446 mm | 465 mm | 484 mm | 503 mm | 522 mm |
| Top Tube Length | 602 mm | 624 mm | 641 mm | 663 mm | 682 mm |
| Seat Tube Angle | 75.4 ° | 75.4 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 496 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1205 mm | 1228 mm | 1251 mm | 1275 mm | 1294 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
Model Overview
FlareMAX5 Trail / Gold XT completes the Cotic Flaremax5 model. Cotic launched 15 bikes of this model so far. You can easily view all of the Cotic Flaremax5 bikes models from 2023, here.
Model range prices
Cotic FlareMAX5 Downcountry / Silver SLX 2023 is the most economical model, with a starting price of 4621$. Cotic FlareMAX5 Trail / Platinum XTR eeWing 2023 on the other hand costs 9000$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Cotic released this model in 2023, its price was 6142$. Doing a quick comparison, we notice that FlareMAX5 Trail / Gold XT price is 122.38% higher than the average cost of a Trail bike.
FlareMAX5 Trail / Gold XT components
Fork
The Cane Creek HELM is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Cotic FlareMAX5 Trail / Gold XT bike has the Cane Creek DB Air IL Climb Switch 210×50 model installed, and has a travel of 125mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Cotic FlareMAX5 Trail / Gold XT 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The FlareMAX5 Trail / Gold XT has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 162 cm – 195 cm (5.31 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
