Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery CTM IGB 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
18"
165cm - 181cm
20"
179cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

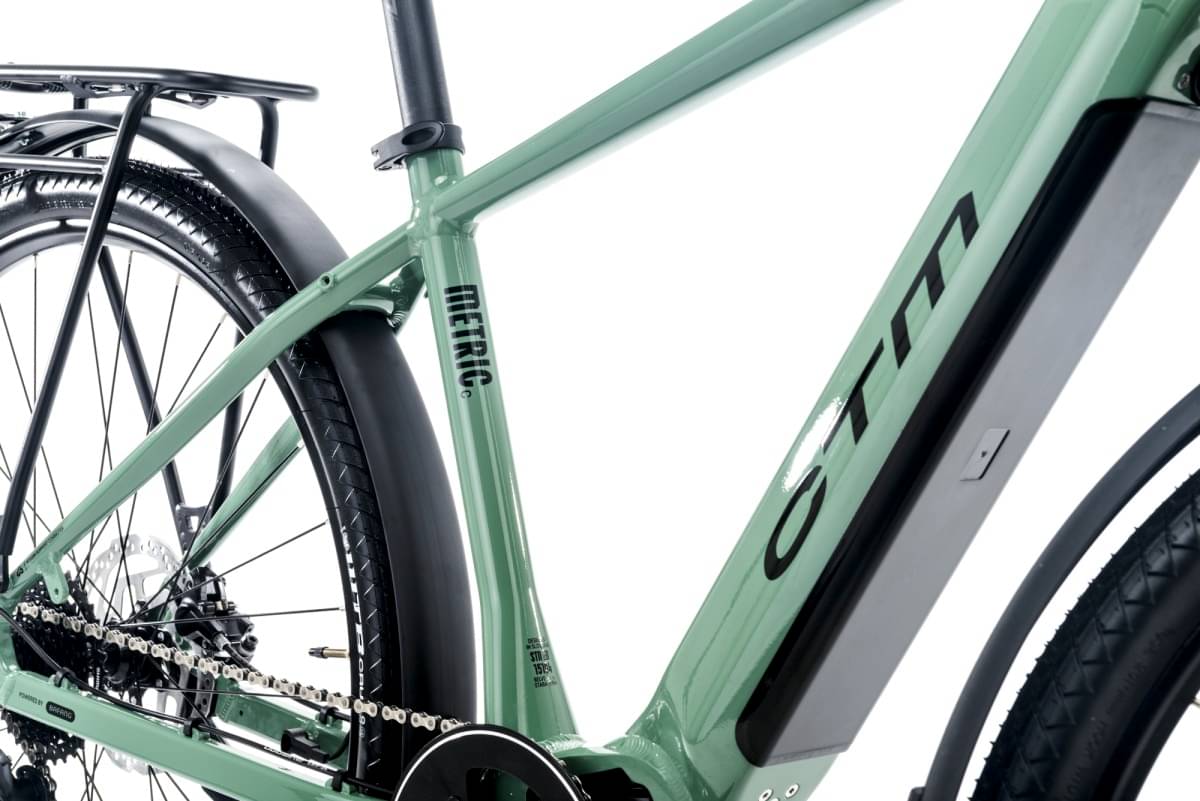

Frame
Frame
ALU 6061, M (18"), L (20")
Suspension Fork
Suntour XCM32 ATB 80mm
Drivetrain

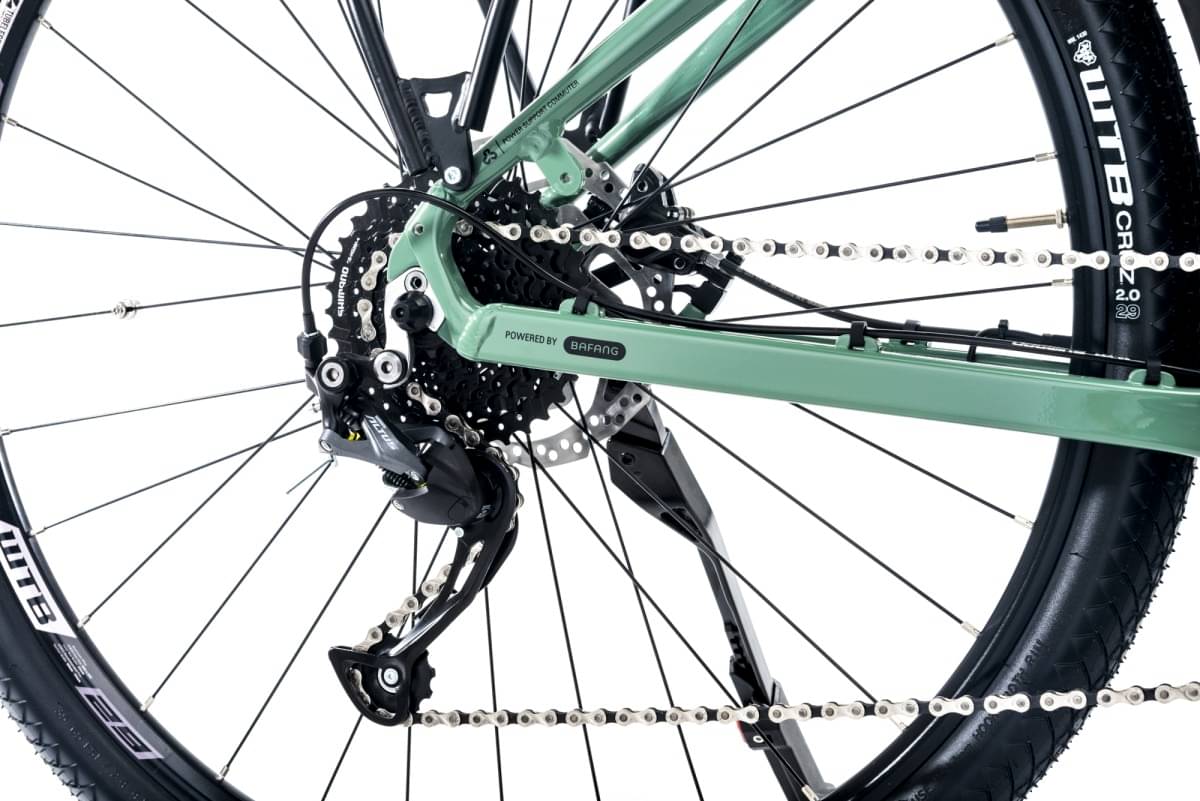

Rear Derailleur
1. Shimano Altus RD-M2000 2. LTWOO RD-V5009-L
Shift Levers
Shimano Altus SL-M2000RA 9 sp.
Crank
Bafang 42T, 170mm
Chain
KMC X9e 126L
Pedals
VP-615
Wheels
Rear Hub
Novatec D041DSB/D142TSE,36H,CL
Rims
WTB ST i23 TCS 2.0 29" 36H
Tires
WTB Cruz 29x2.0" Comp
Brakes
Brakes
Shimano MT200 / SMRT10M

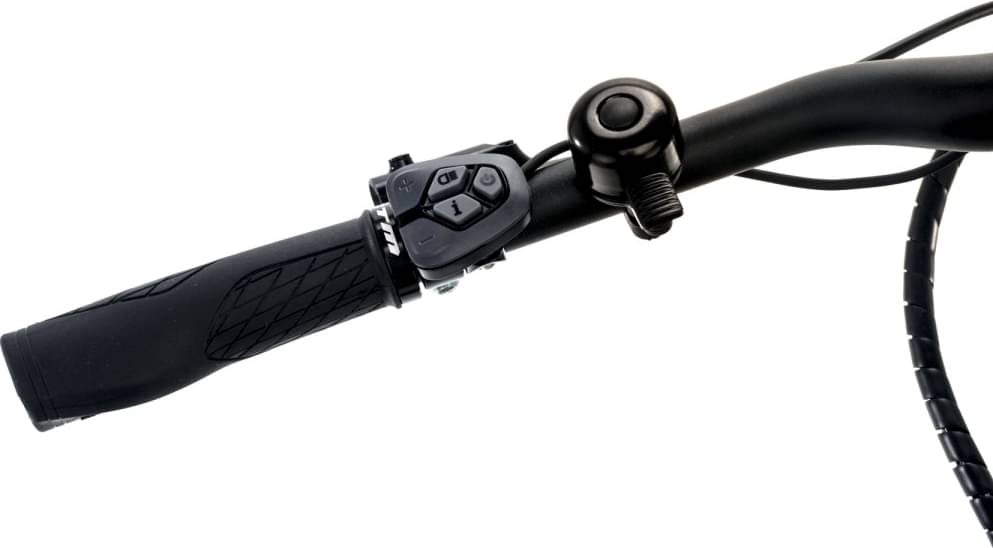

Cockpit

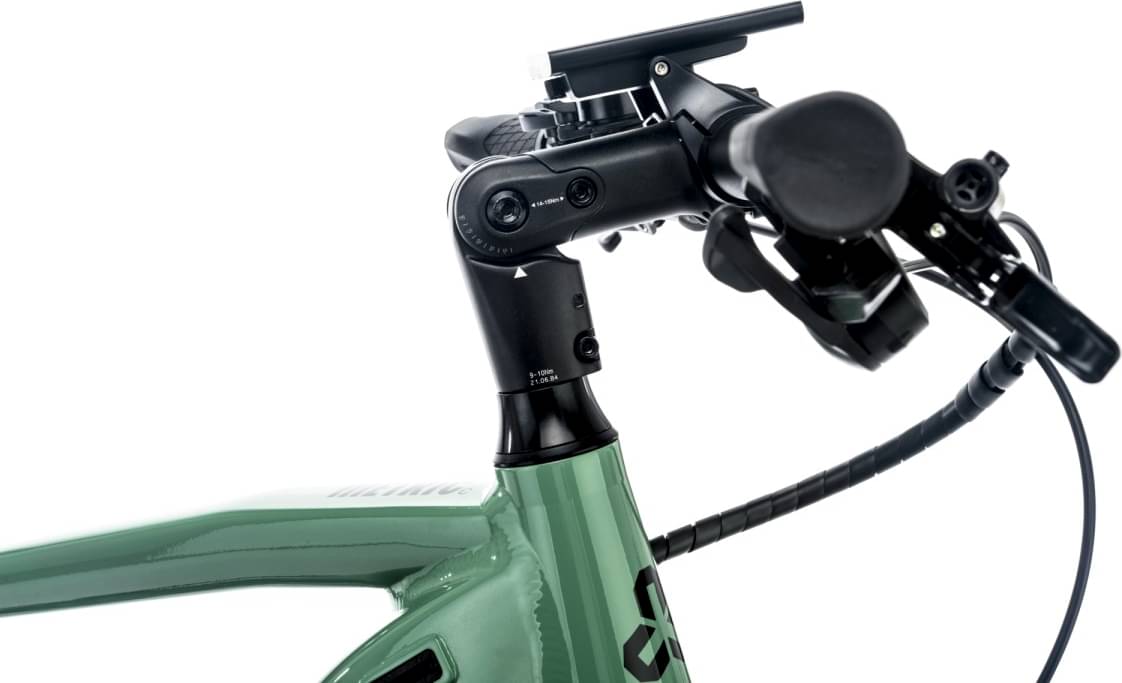

Stem
CTM UP2/90mm
Handlebar
CTM rise bar, 660/31.8 mm
Headset
NECO H156
Seat
Saddle
CTM
Seatpost
CTM 350x31.6 mm

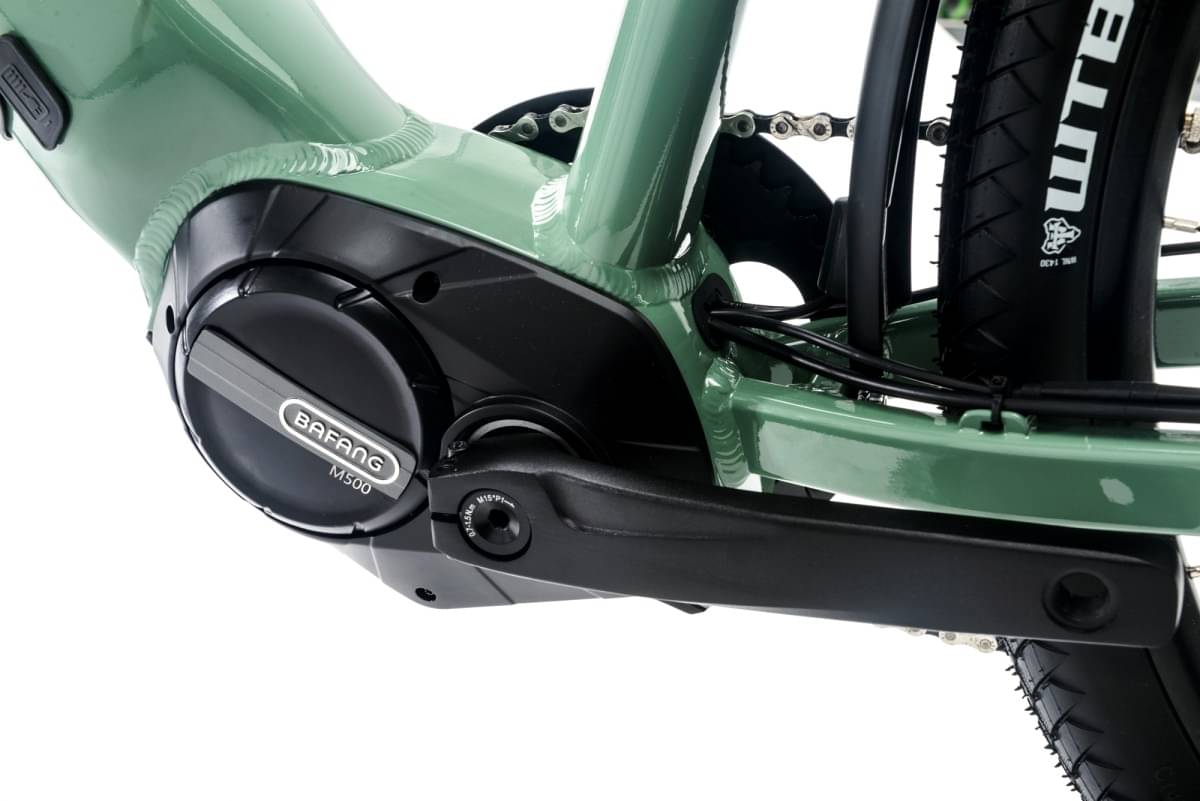

Motor & Battery

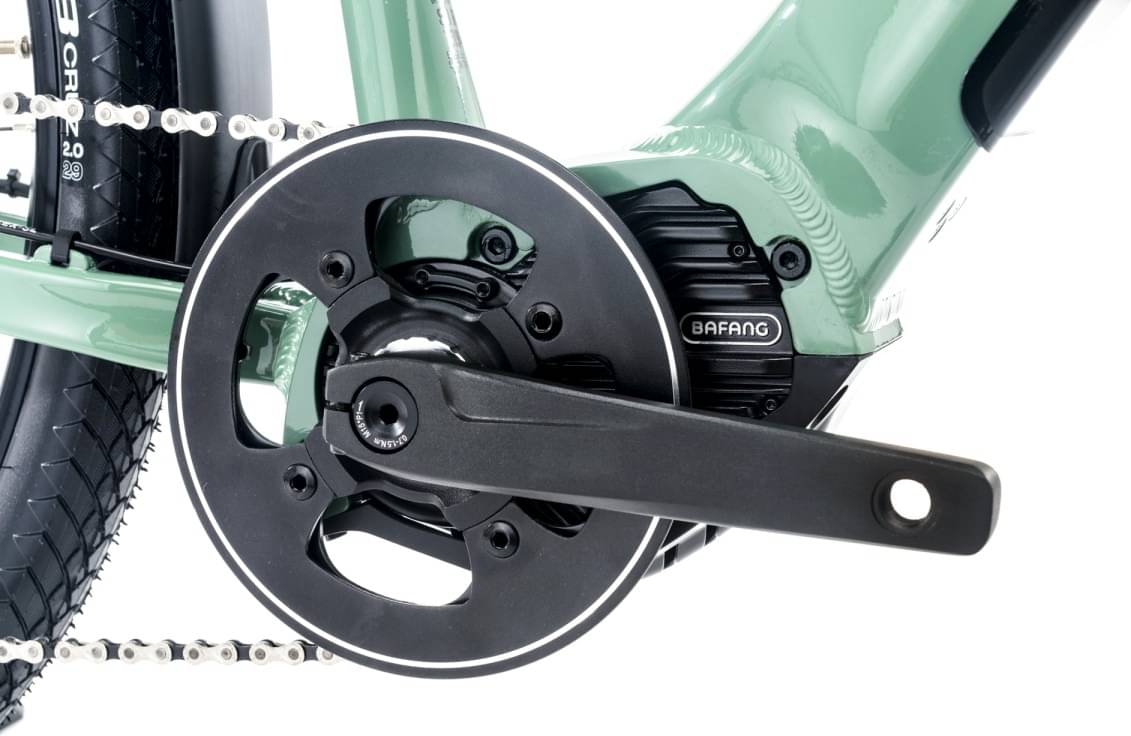

Motor
BAFANG M500 / 250W / 95Nm
Battery
CTM IGB 630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 18" | 20" |
|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm |
| Front Center | 675 mm | 695 mm |
| Rake | 46 mm | 46 mm |
| Stack | 619 mm | 619 mm |
| Reach | 407 mm | 427 mm |
| Top Tube Length | 608 mm | 629 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 450 mm | 495 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 140 mm |
| Chainstay Length | 484 mm | 484 mm |
| Wheelbase | 1152 mm | 1173 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 165 cm | 179 cm |
| Rider Max Height | 181 cm | 195 cm |
About this model
METRIC C is part of the Ctm E Metric model. CTM released 6 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CTM METRIC Lady 1.0 2023 is the most affordable e-bike of this model and has a price of 2282$. On the other hand, CTM METRIC Lady 2.0 2023, is the most expensive and costs 2653$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2600$. Comparing the average cost of a Hybrid e-bike to this one, you will see that METRIC C price is 4.84% higher.
Overview of components

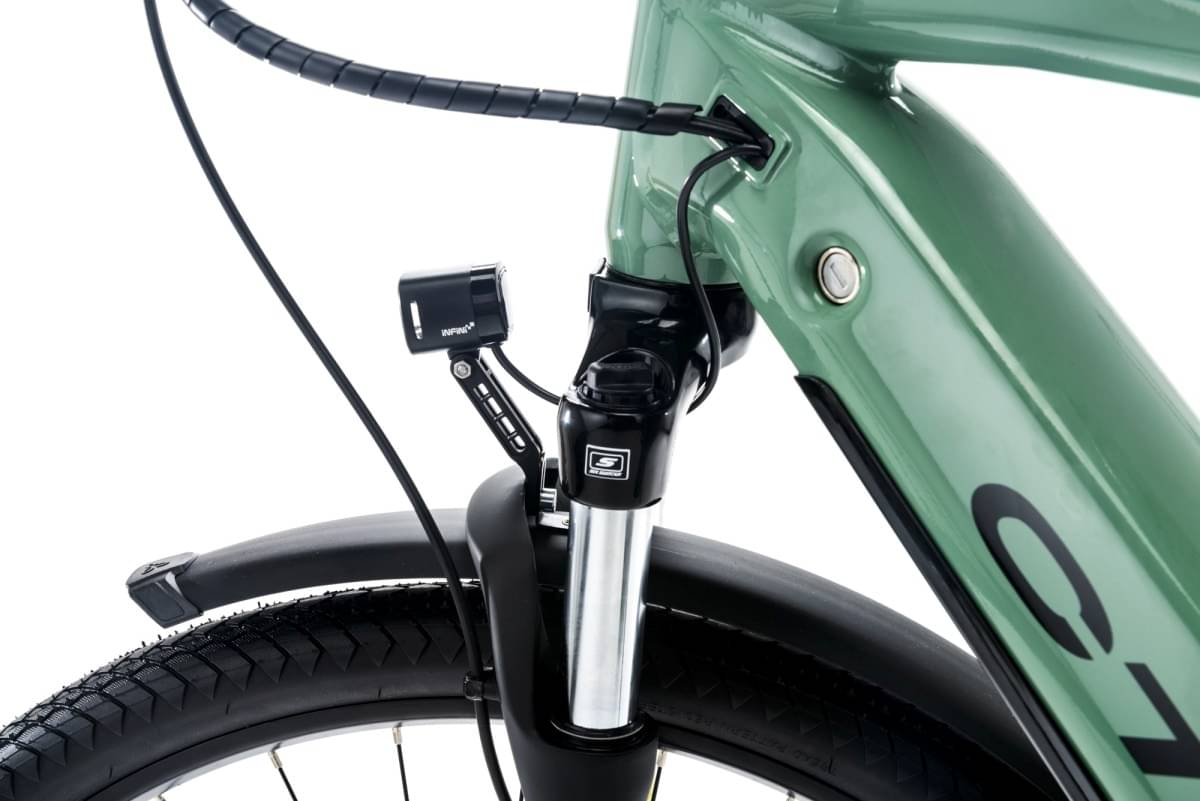

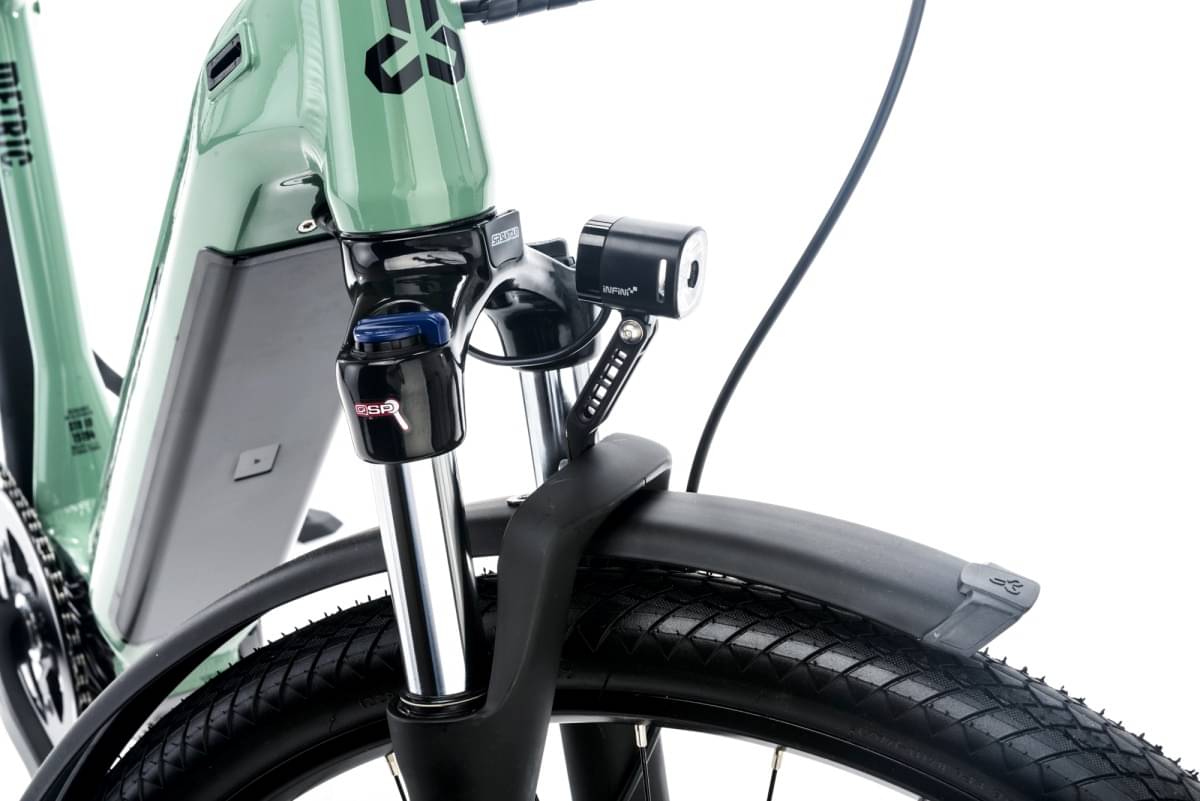

Fork
CTM METRIC C 2023 e-bike is equipped with the Suntour XCM fork, and has 80mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the METRIC C e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. CTM METRIC C is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
CTM METRIC C e-bike has 2 sizes, in the range of 165 cm – 195 cm (5.41 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
