Bike details
Overview
Key information split into simple groups.

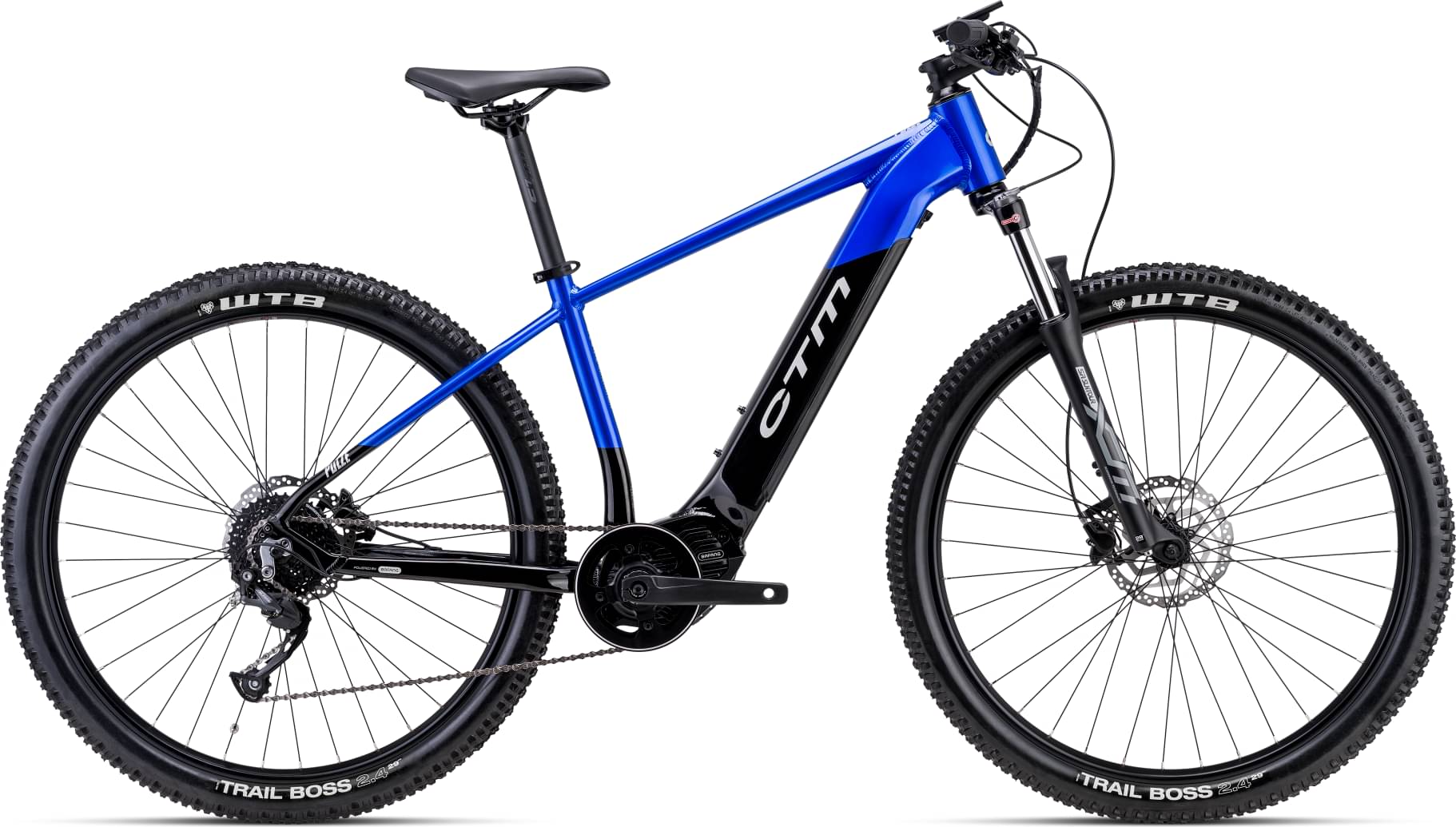

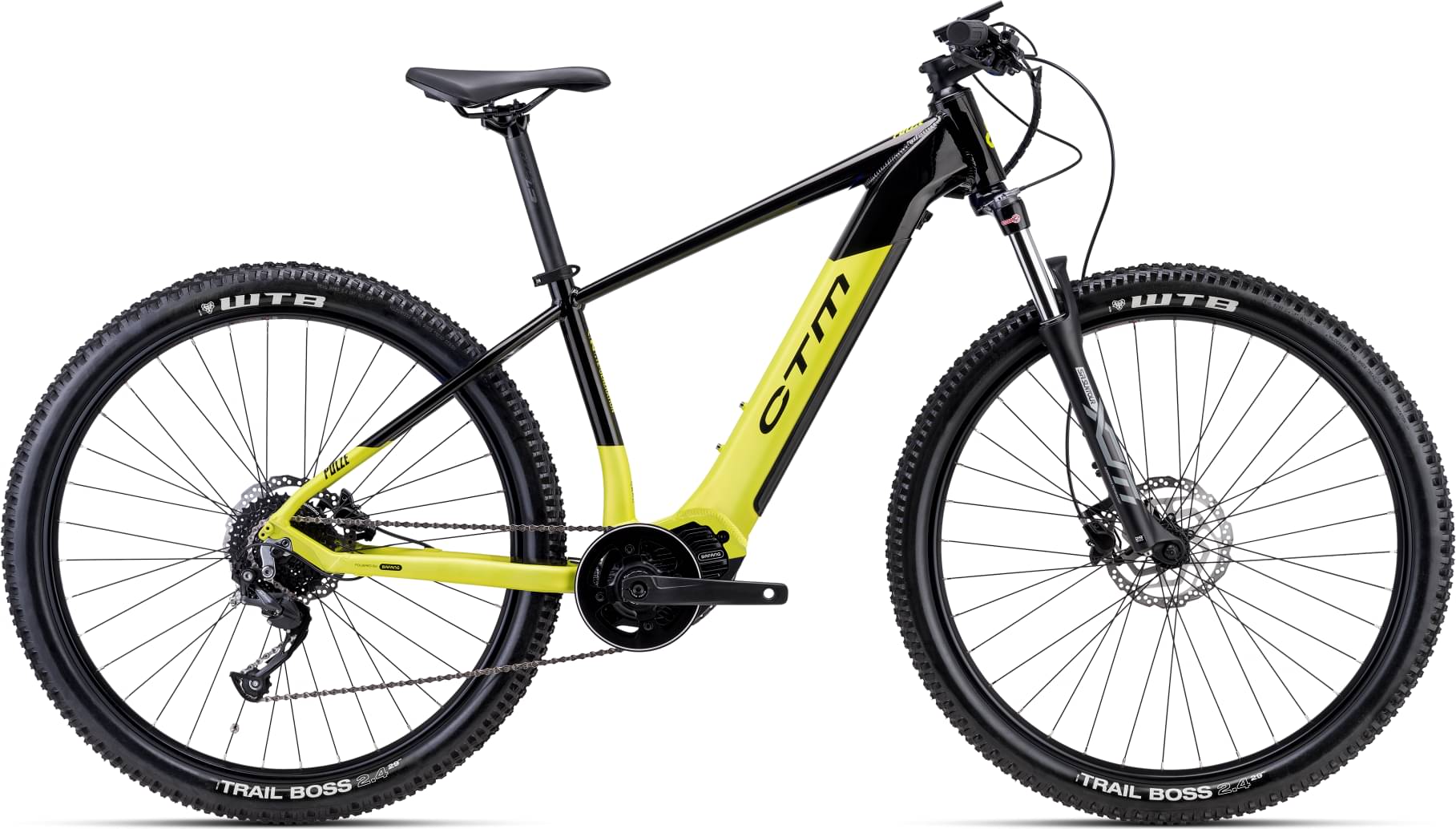

Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Fork Suntour XCM -
Groupset Altus -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery CTM IGB 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

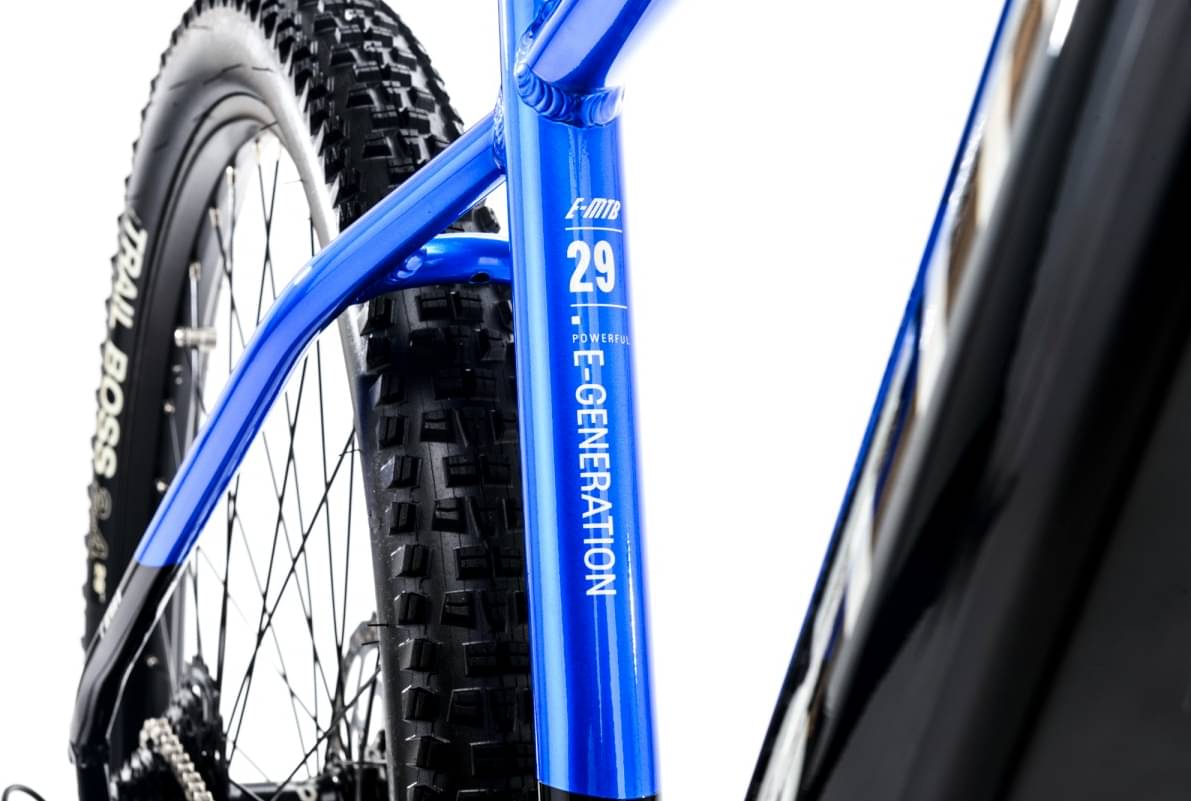

Frame
Frame
ALU 6061, M (17"), L (19"), XL (21")
Suspension Fork
Suntour XCM RL DS 29"
Drivetrain

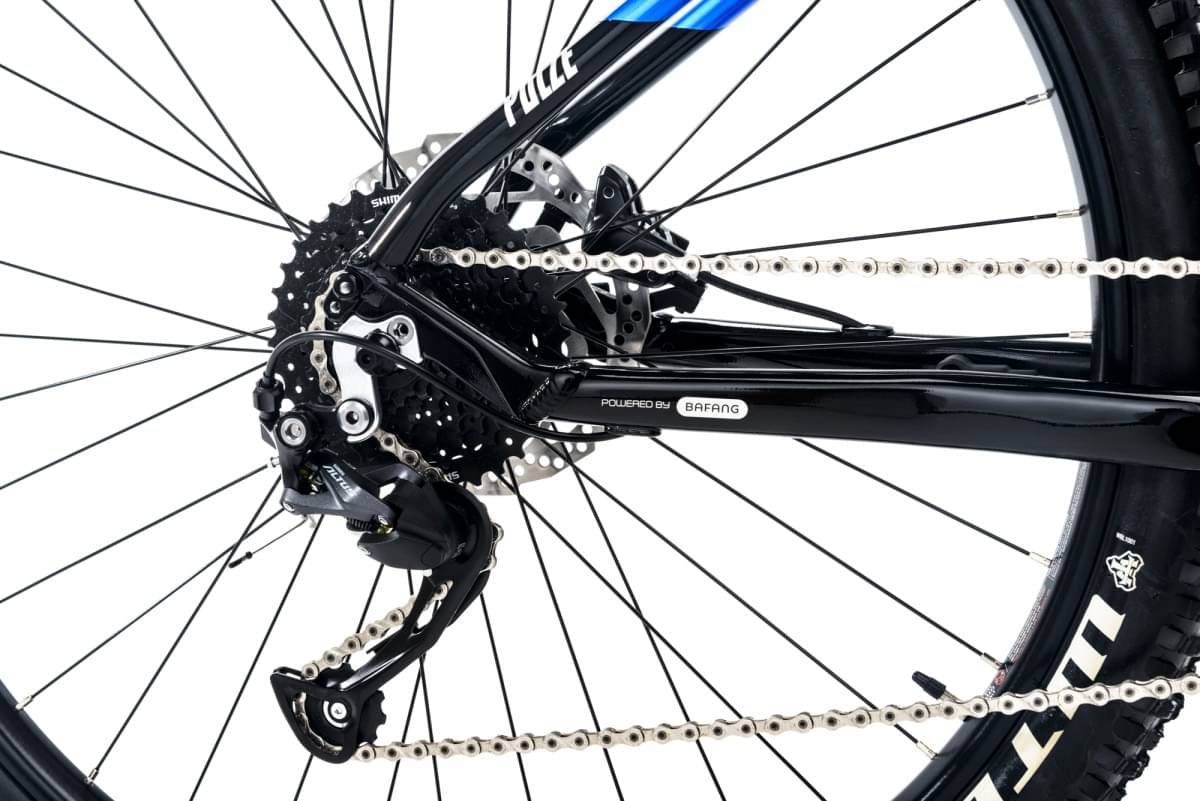

Rear Derailleur
1.Shimano Altus RD-M2000 2.LTWOO RD-V5009-L

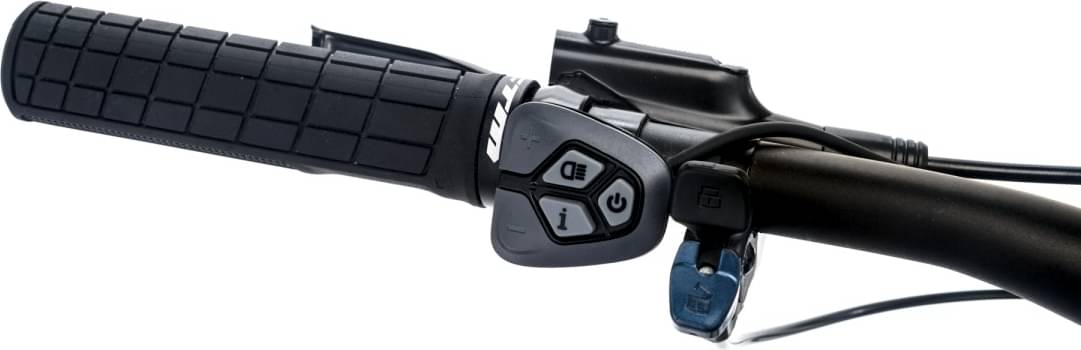

Shift Levers
Shimano Altus SL-M2000RA 9 sp.
Crank
Bafang 38T, 170mm
Chain
KMC X9e 124L
Pedals
VPE-537
Wheels
Rear Hub
Novatec D041DSB,15mm/D142TSE,36H,CL
Rims
WTB ST i29 TCS 2.0 29" 36H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
Shimano MT200 / SMRT10M
Cockpit
Stem
CTM LCS/80mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H153
Seat
Saddle
SR Vivo Ergo Man

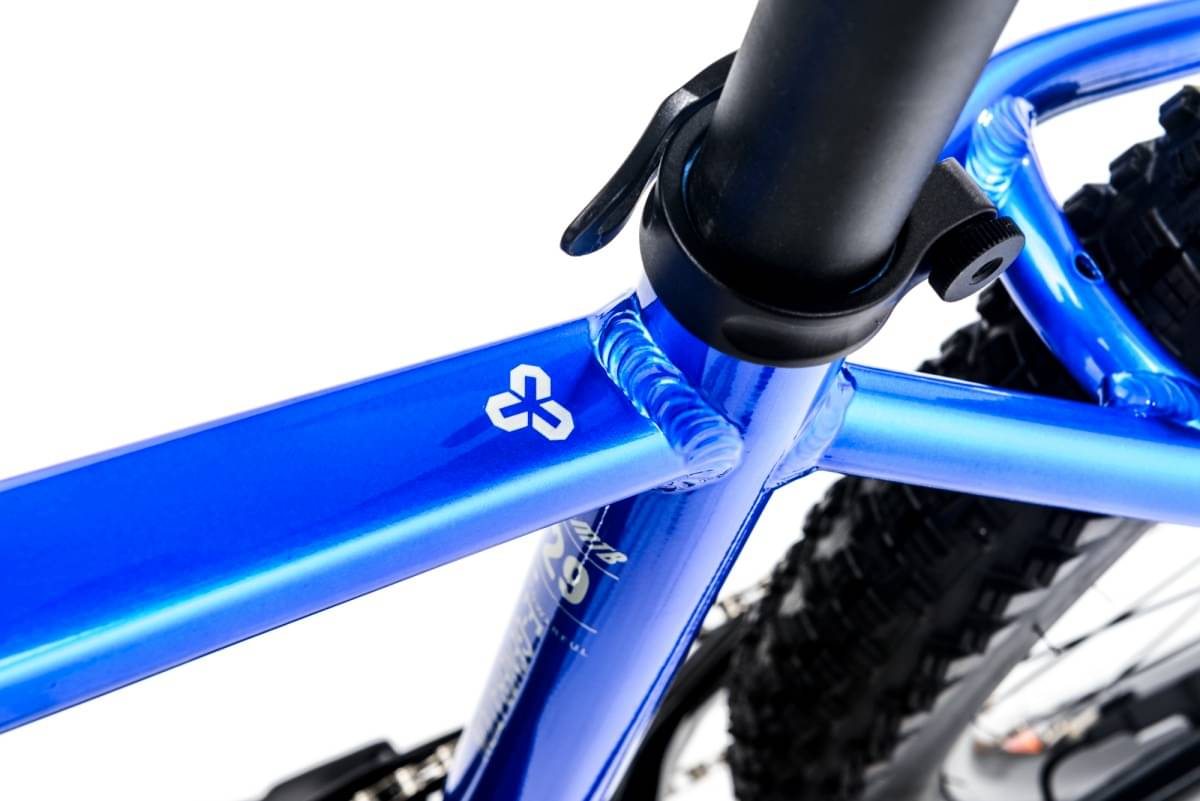

Seatpost
CTM 350x31.6 mm
Motor & Battery

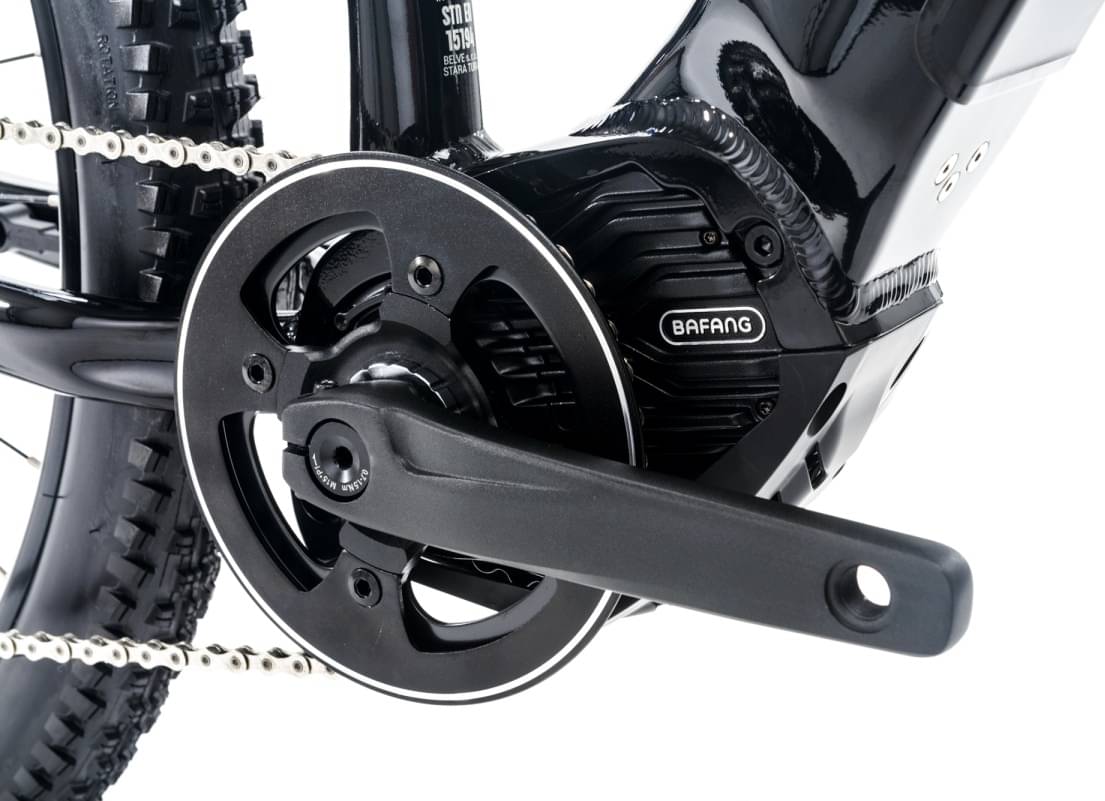

Motor

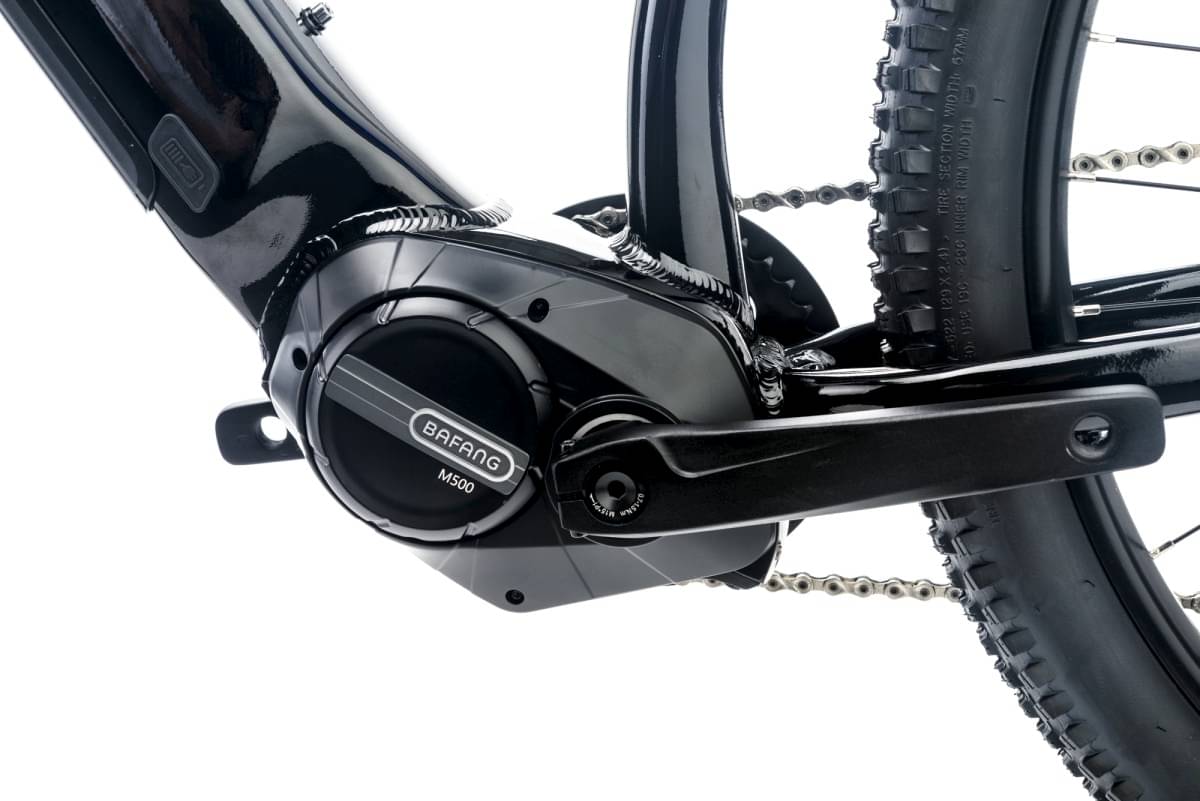

BAFANG M500 / 250W / 95Nm

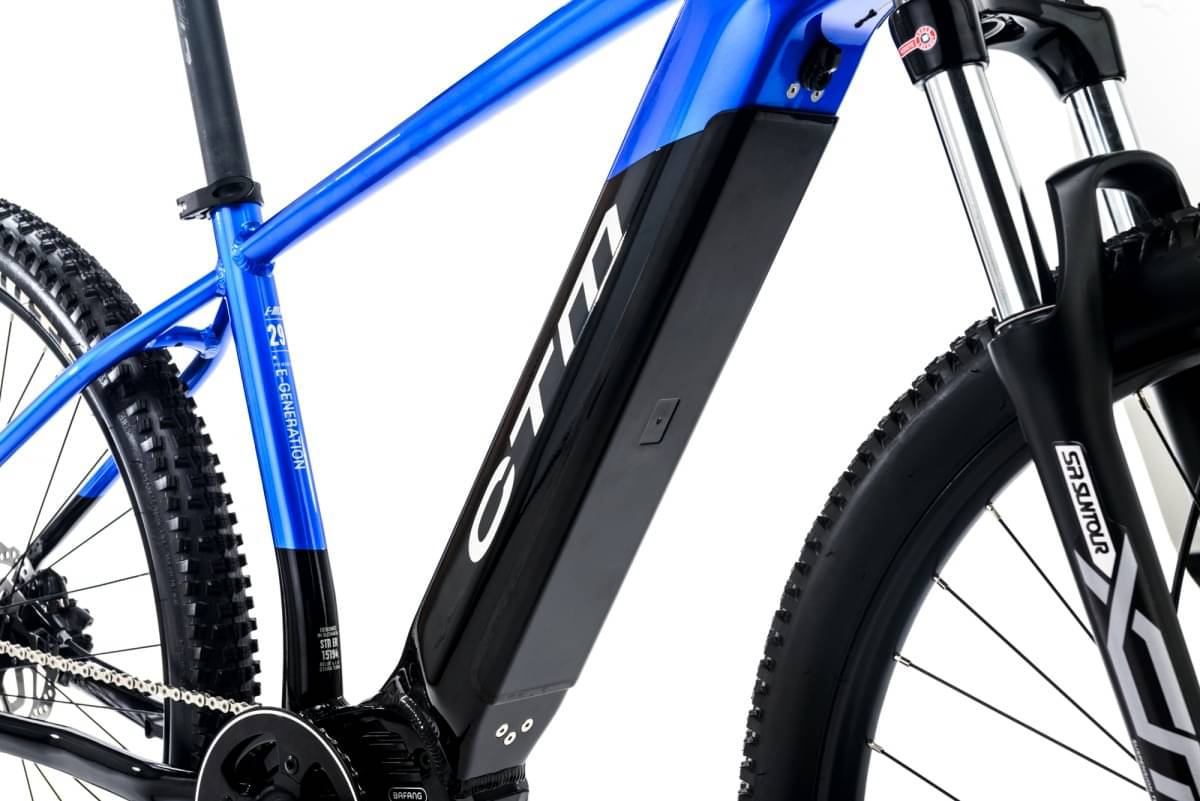

Battery
CTM IGB 630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.46 mm | 1.42 mm |
| Front Center | 693 mm | 714 mm | 735 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 627 mm | 637 mm | 646 mm |
| Reach | 420 mm | 437 mm | 454 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1159 mm | 1180 mm | 1201 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
Model Overview
PULZE is a Ctm E Pulze model. 4 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CTM PULZE 2023 is the most affordable e-bike of this model and has a price of 2441$. On the other hand, CTM PULZE Xpert 2023, is the most expensive and costs 2653$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When CTM released this model in 2023, its price was 2441$. If we compare this with the average Trail e-bike cost we notice that the price is 37.85% smaller.
PULZE components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on PULZE are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. CTM PULZE has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, finding one for you shouldn’t be a problem.
