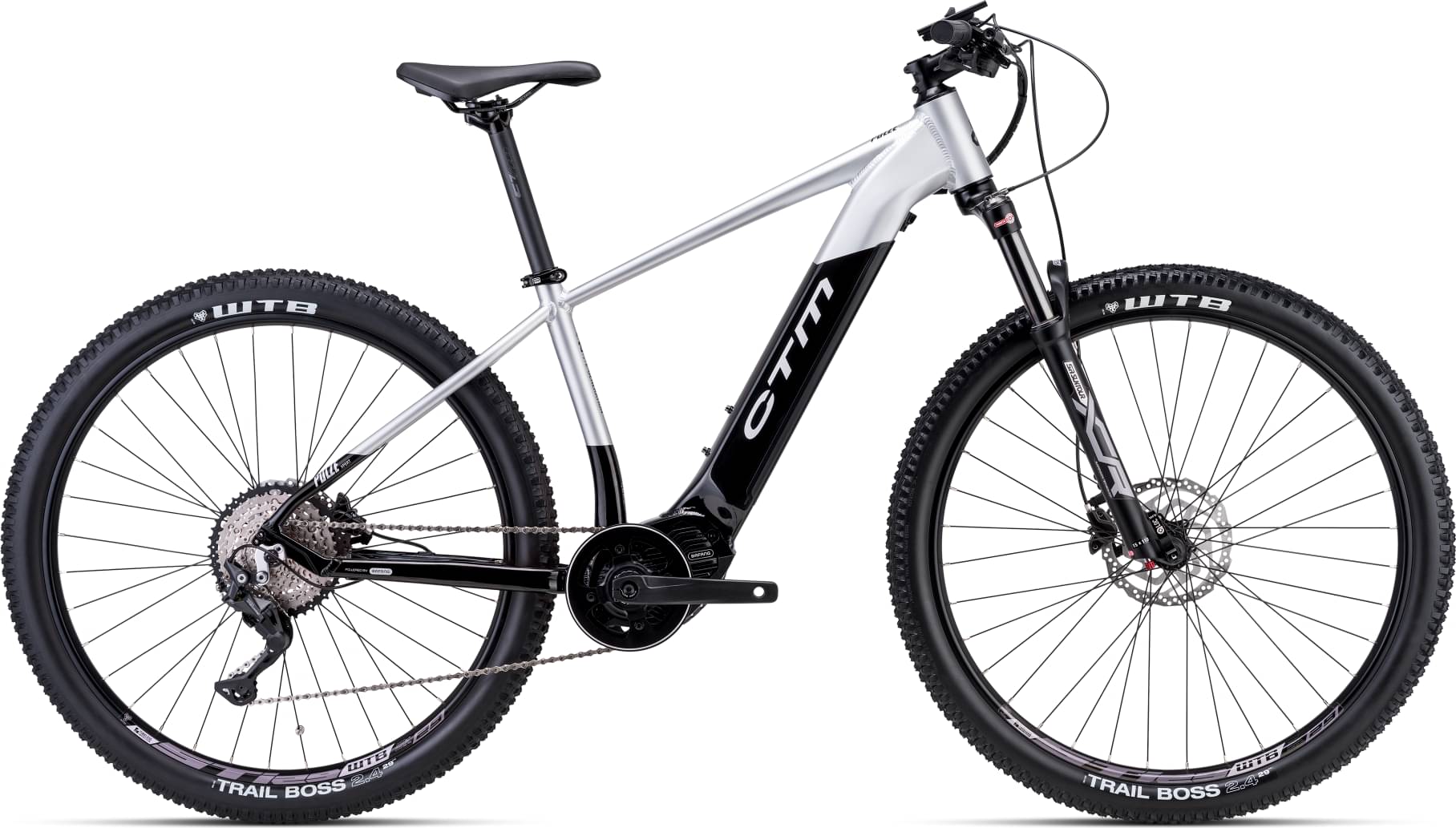

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Fork Suntour XCR Air -
Groupset Deore -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery CTM IGB 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

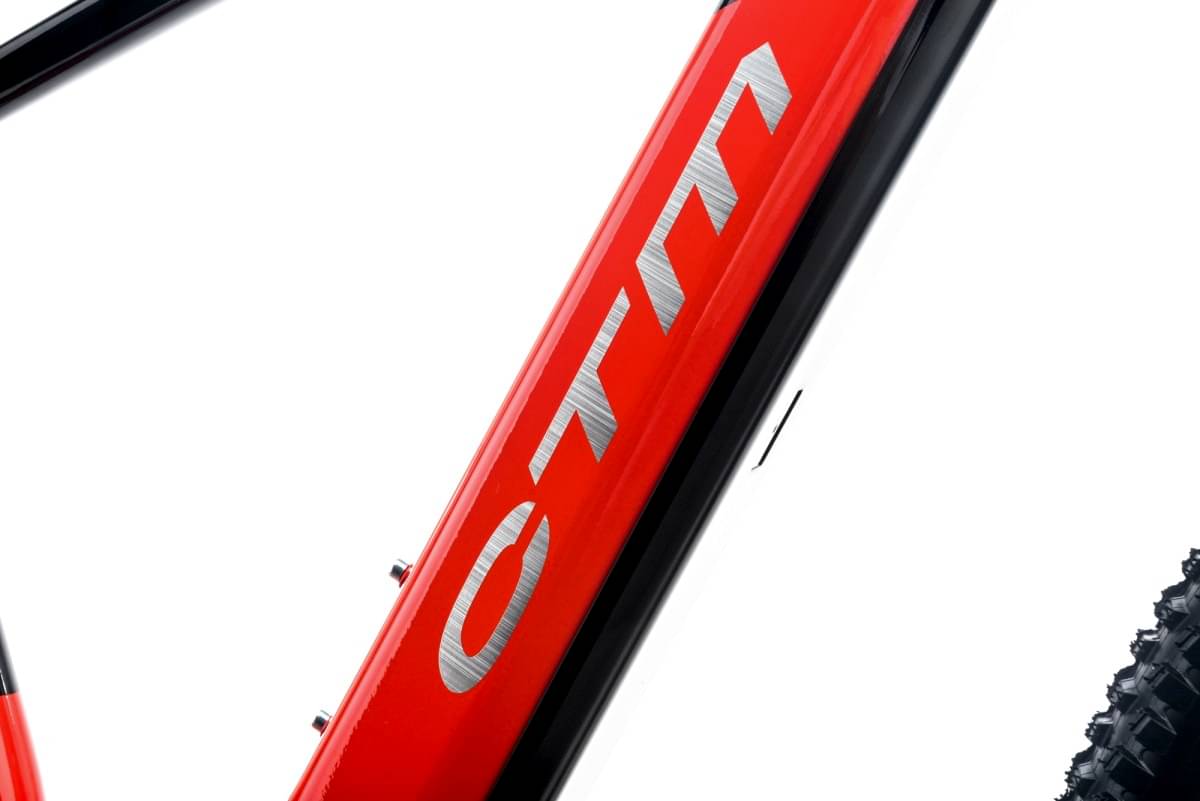

Frame
Frame
ALU 6061, M (17"), L (19"), XL (21")
Suspension Fork
Suntour XCR34 AIR boost RLR 15QL 29"
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120
Shift Levers
Shimano Deore SL-M4100/10sp.
Crank
Bafang 38T, 170mm
Chain
KMC X10e 124L
Pedals
VPE-537
Wheels
Rear Hub
Novatec D041DSB,15mm/D142TSE,36H,CL
Rims
WTB ST i29 TCS 2.0 29" 36H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
Shimano MT200 / SMRT10M

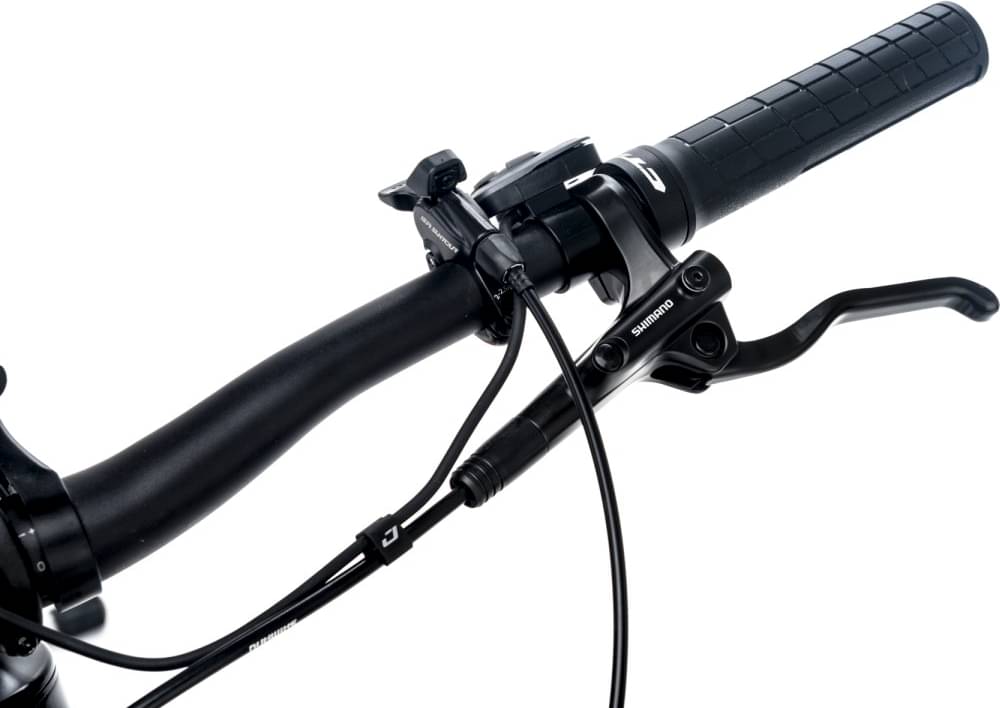

Cockpit
Stem
CTM LCS/80mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H153
Seat
Saddle
SR Vivo Ergo Man

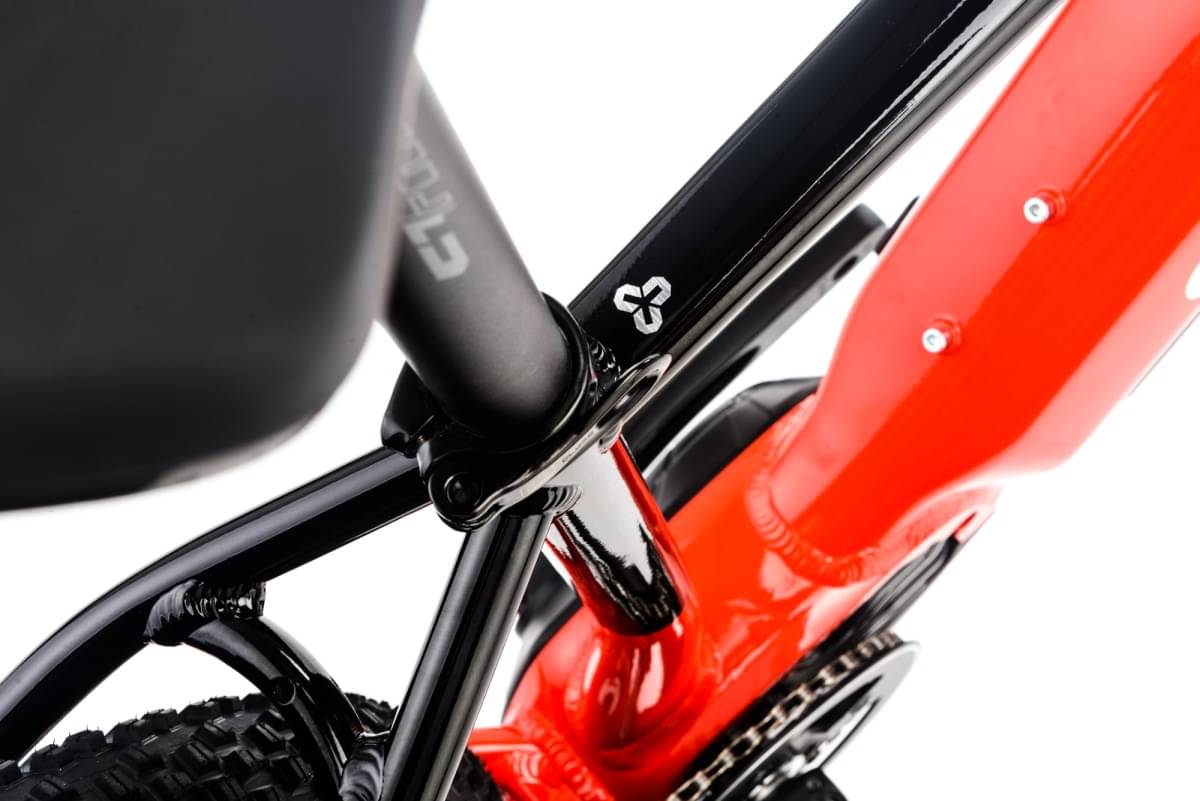

Seatpost
CTM 350x31.6 mm
Motor & Battery

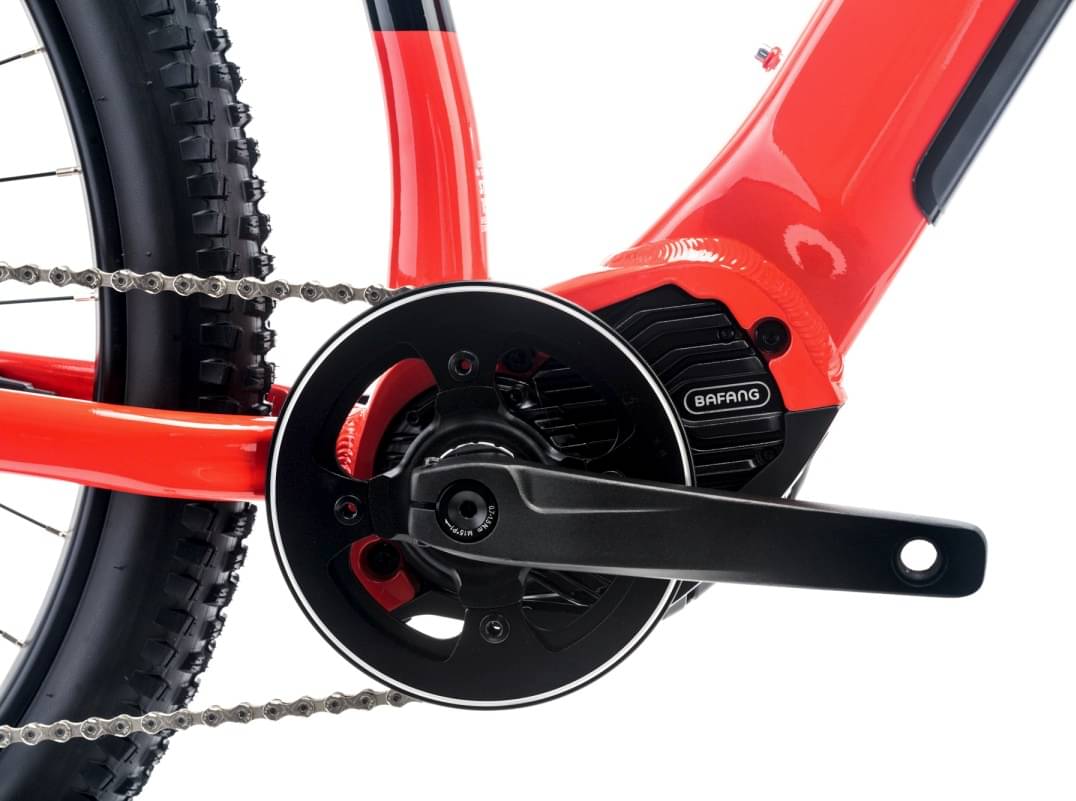

Motor
BAFANG M500 / 250W / 95Nm
Battery
CTM IGB 630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.46 mm | 1.42 mm |
| Front Center | 693 mm | 714 mm | 735 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 627 mm | 637 mm | 646 mm |
| Reach | 420 mm | 437 mm | 454 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1159 mm | 1180 mm | 1201 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
Model Overview
PULZE Xpert is part of the Ctm E Pulze model. CTM launched 4 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
CTM PULZE 2023 is the most affordable e-bike of this model and has a price of 2441$. On the other hand, CTM PULZE Xpert 2023, is the most expensive and costs 2653$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When CTM released this model in 2023, its price was 2653$. If we compare this with the average Trail e-bike cost we notice that the price is 26.84% lower.
PULZE Xpert components

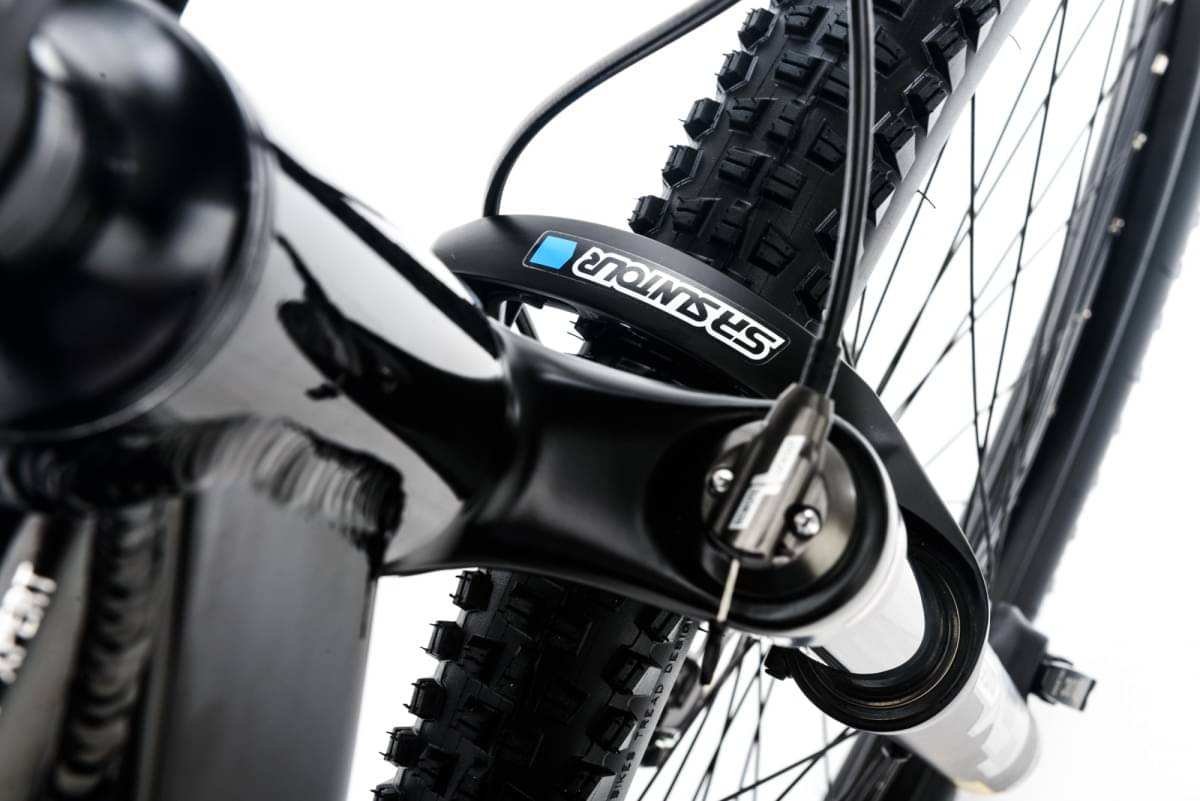

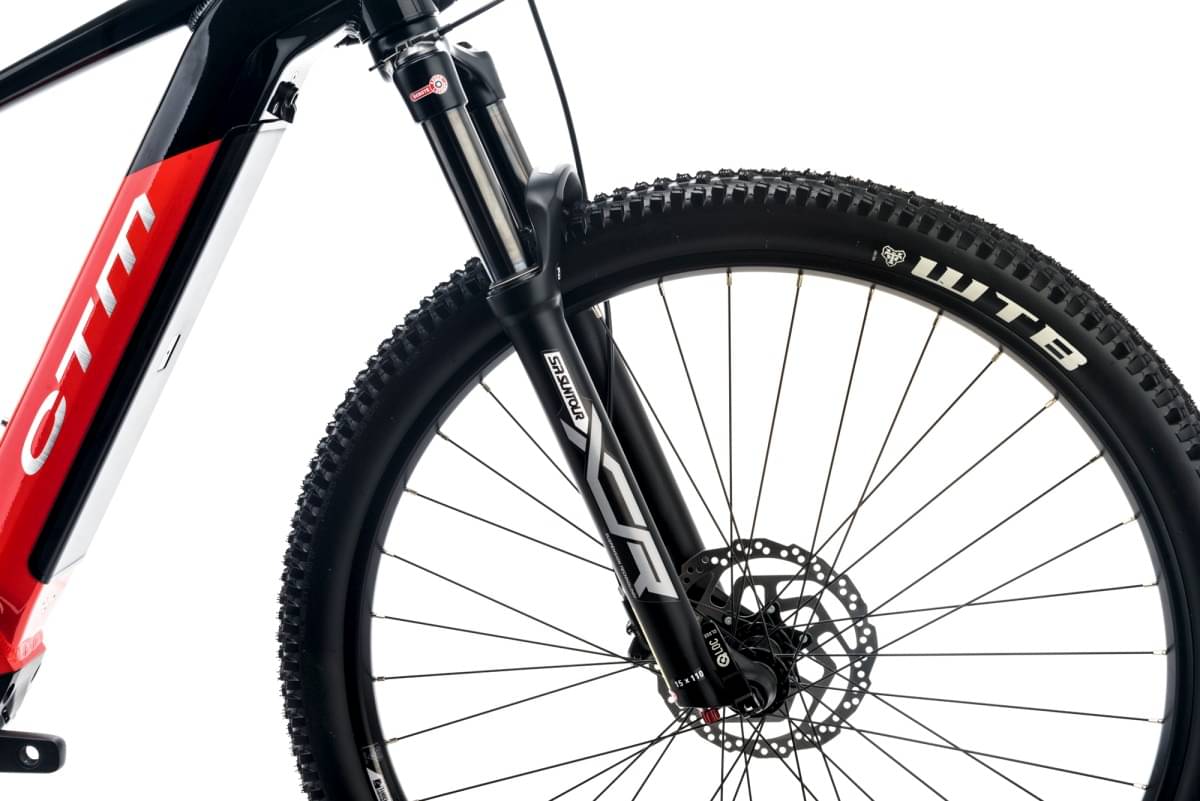

Fork
This e-bike has the Suntour XCR Air fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, CTM PULZE Xpert 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. CTM PULZE Xpert is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, you won’t have a problem finding one that suits you.
