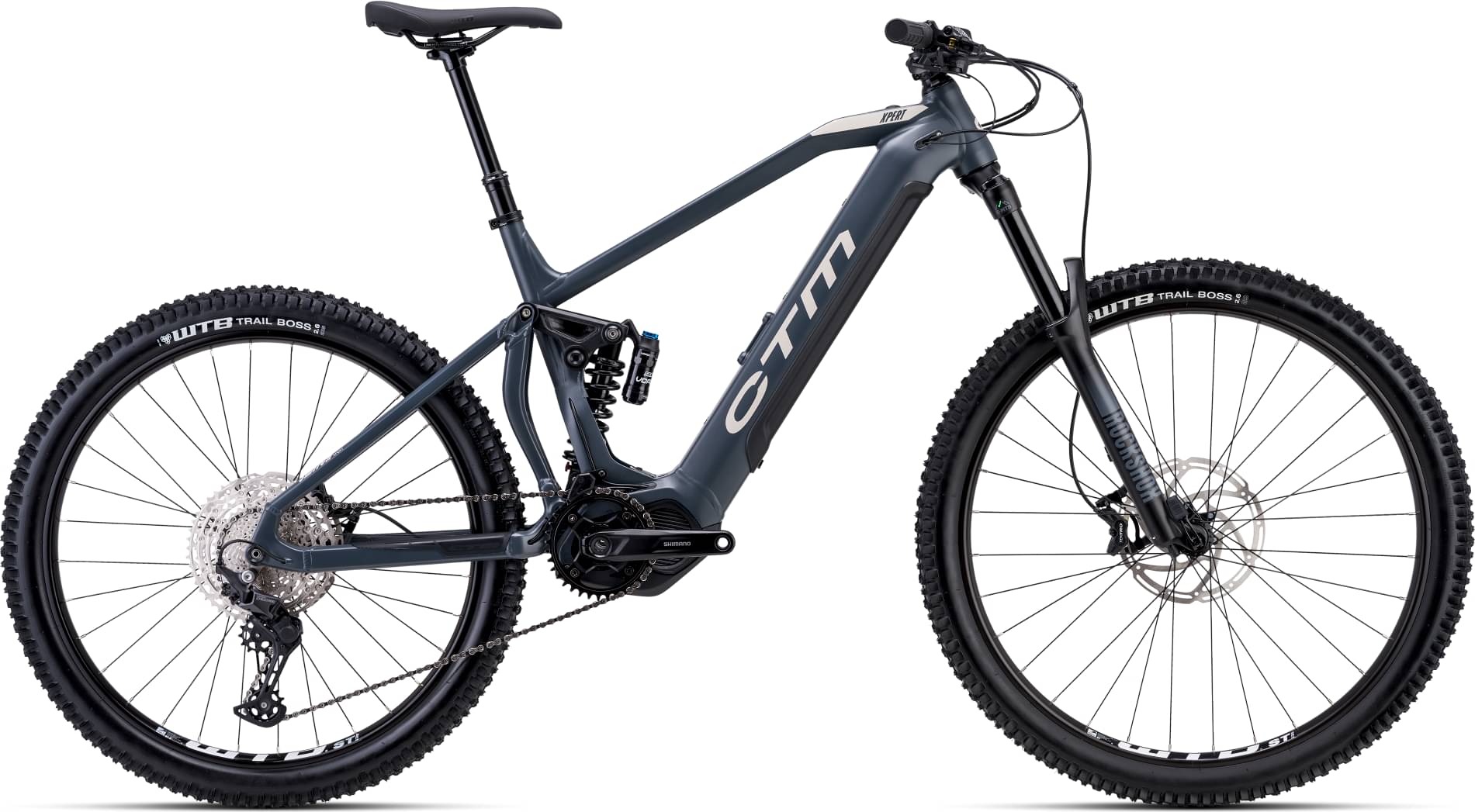

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-E8036 / 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, rear travel 150 mm, MD, LG, XL
Suspension Fork
Rock Shox 35 GOLD RL, DebonAir, 160mm, boost™ 15x110axle
Drivetrain

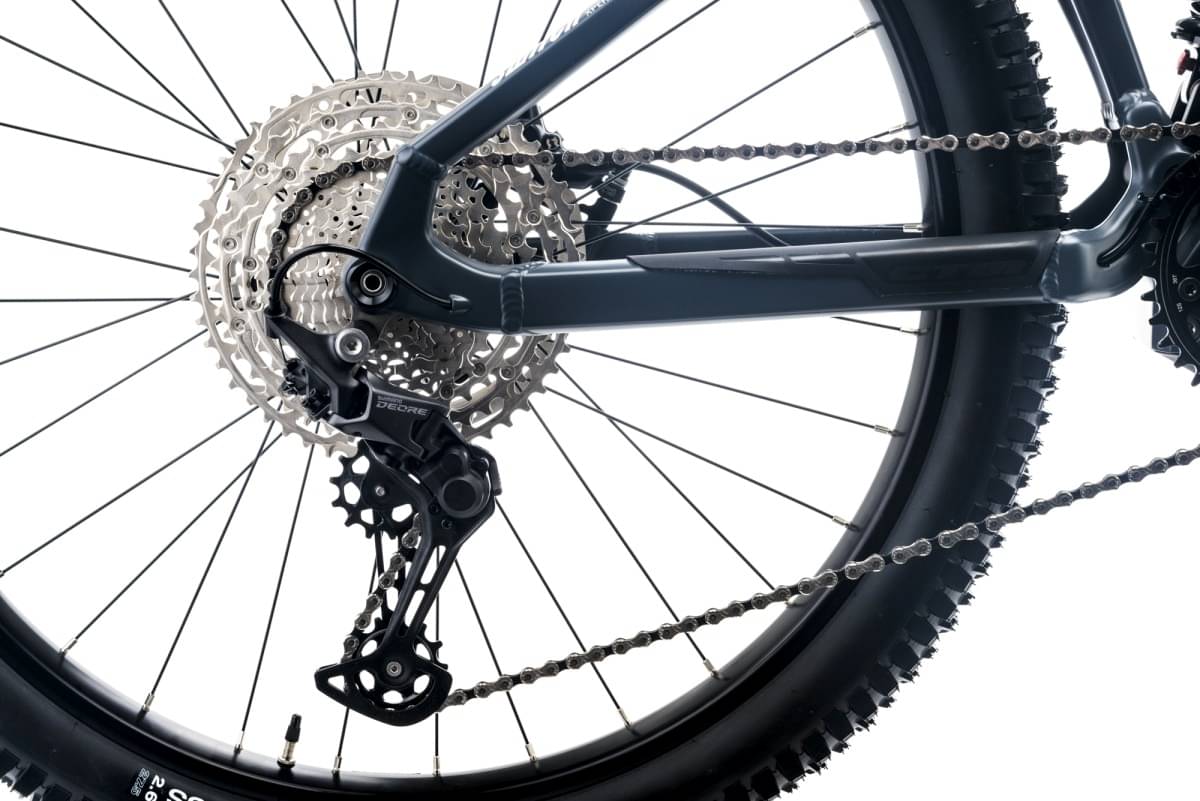

Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100/11sp.
Crank
Shimano FC-EM600, 36T, 165mm
Chain
KMC X11e 122L
Pedals
VPE-527
Wheels
Rear Hub
Shimano MT400 boost / 32H
Rims
WTB ST i35 TCS 2.0 / 27.5" / 29" / 32H
Tires
WTB Trail Boss G2 F 29x 2.6", R 27.5x2.6"
Brakes
Brakes
TEKTRO ORION / 203 / DISC

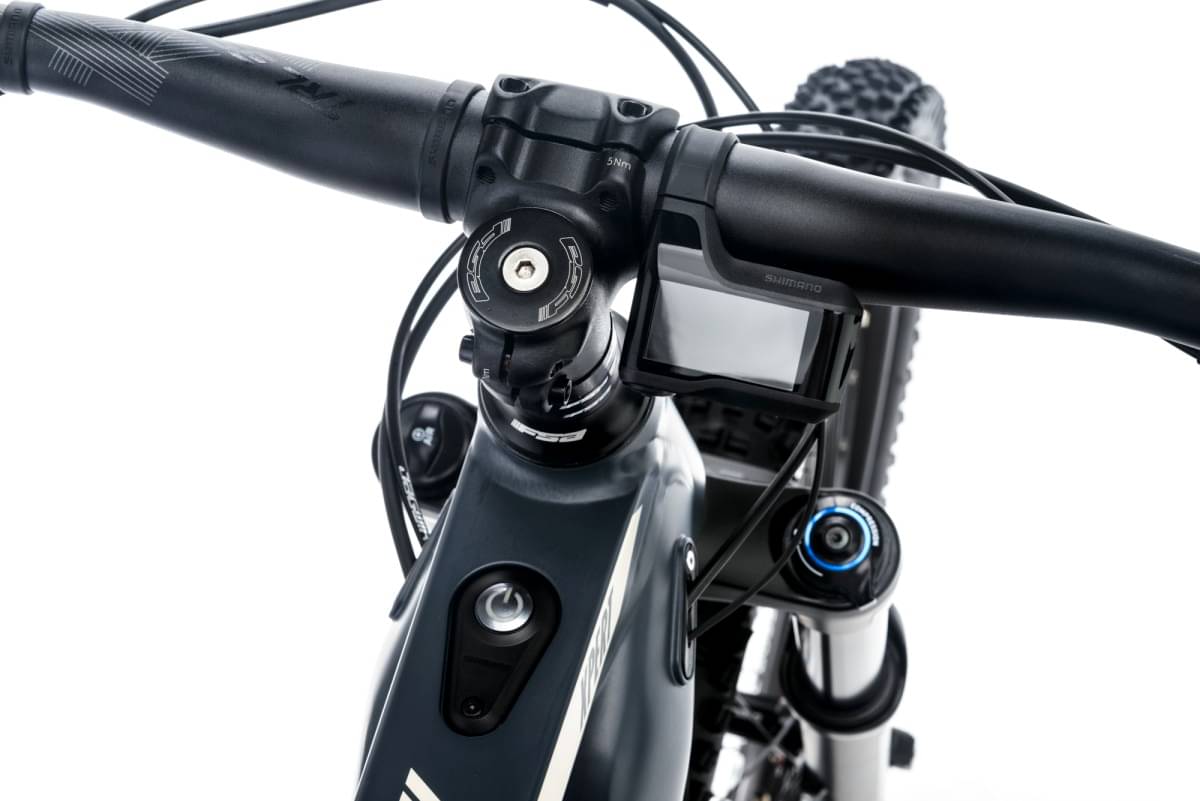

Cockpit
Stem
CTM ASM04 35 mm
Handlebar
CTM HB352, 35dia, 780mm
Headset
FSA Orbit 1.5
Seat
Saddle
WTB Volt
Seatpost
KS RAGEi (M-125mm/L-150mm/XL-170mm)
Motor & Battery

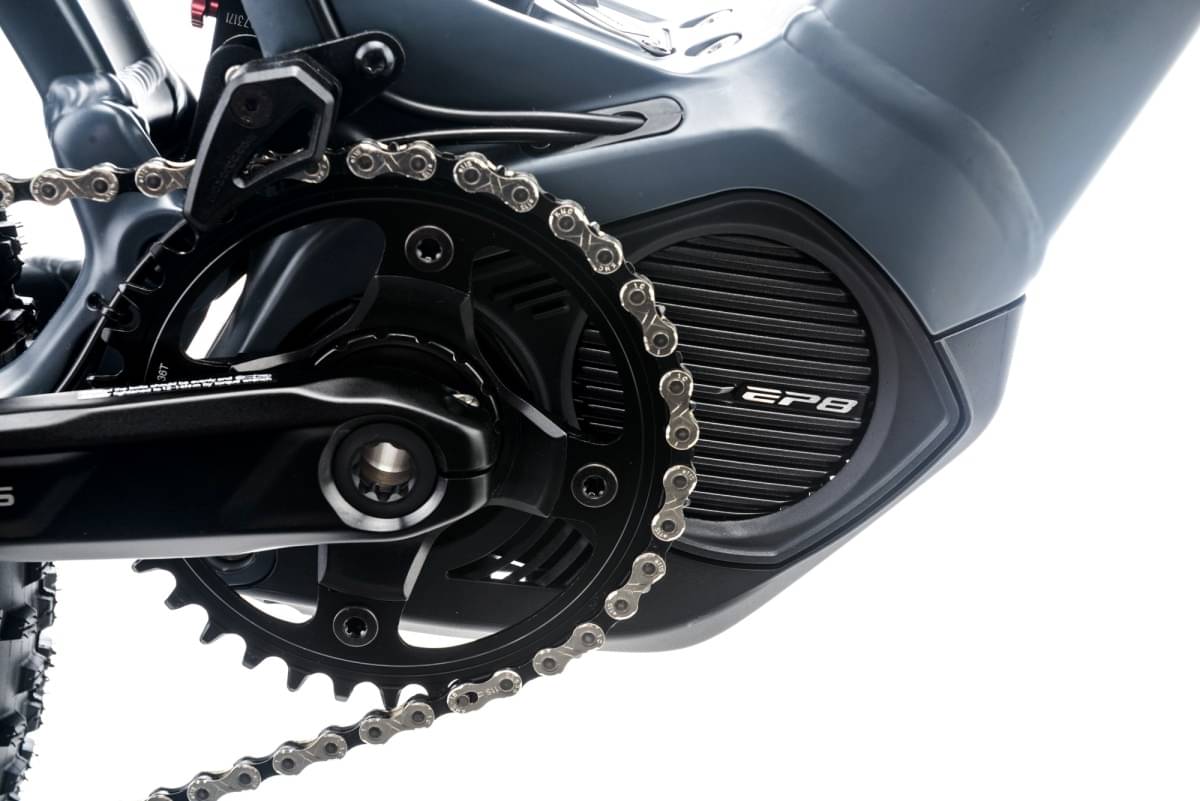

Motor
SHIMANO STEPS EP8 / 250W / 85Nm
Battery
SHIMANO BT-E8036 / 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.25 mm | 1.22 mm |
| Front Center | 760 mm | 784 mm | 808 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 595 mm | 604 mm | 613 mm |
| Reach | 463 mm | 483 mm | 503 mm |
| Top Tube Length | 622 mm | 644 mm | 667 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1223 mm | 1248 mm | 1271 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 180 cm | 190 cm | 205 cm |
Model Overview
SWITCH Xpert completes the Ctm E Switch model. CTM released 10 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CTM SWITCH Comp 2023 is the most affordable e-bike of this model and has a price of 4246$. On the other hand, CTM SWITCH Pro 2023, is the most expensive and costs 5733$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 4565$. Comparing the average cost of an Enduro e-bike to this one, you will see that SWITCH Xpert price is 4.82% lower.
SWITCH Xpert components

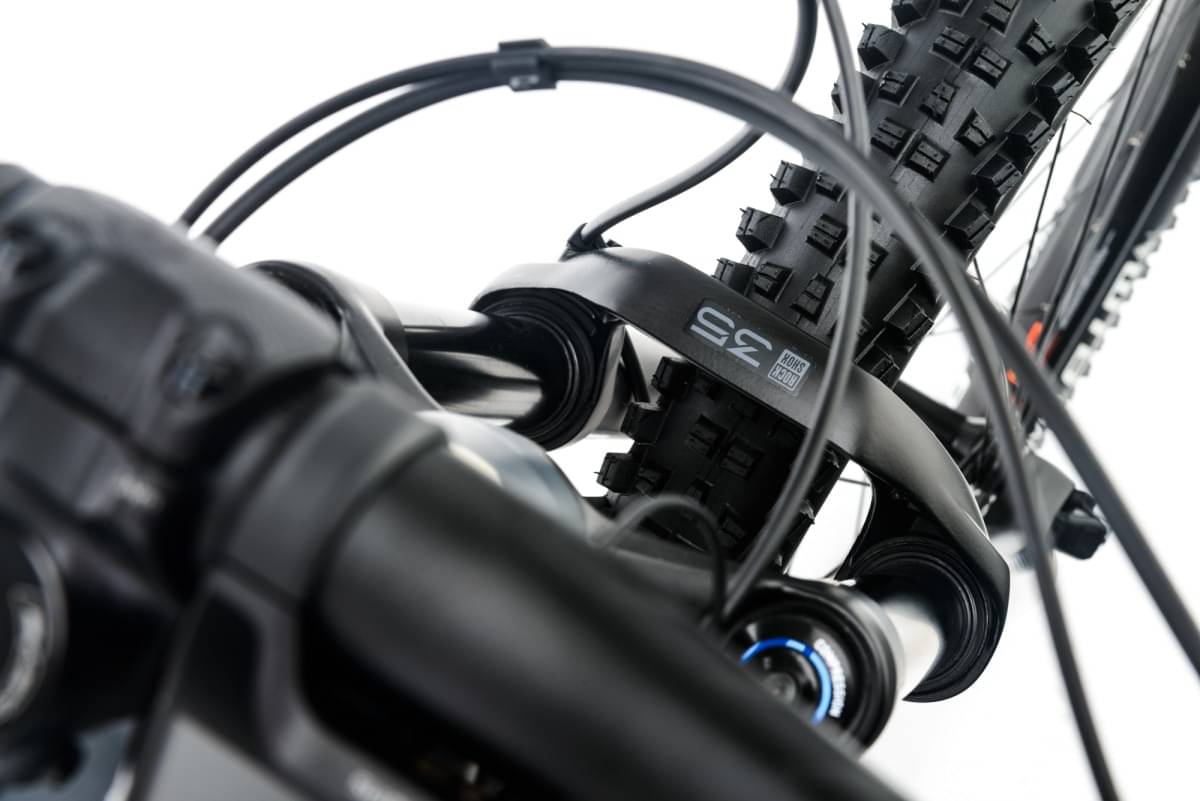

Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.

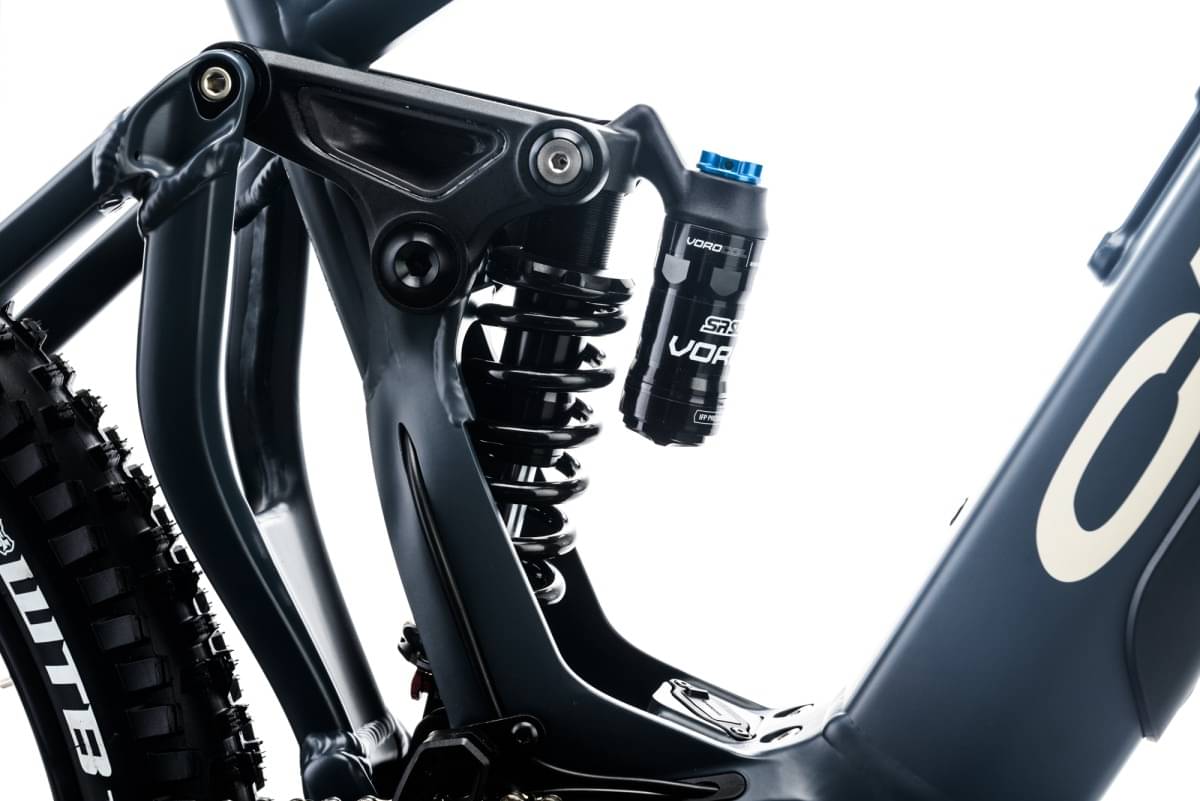

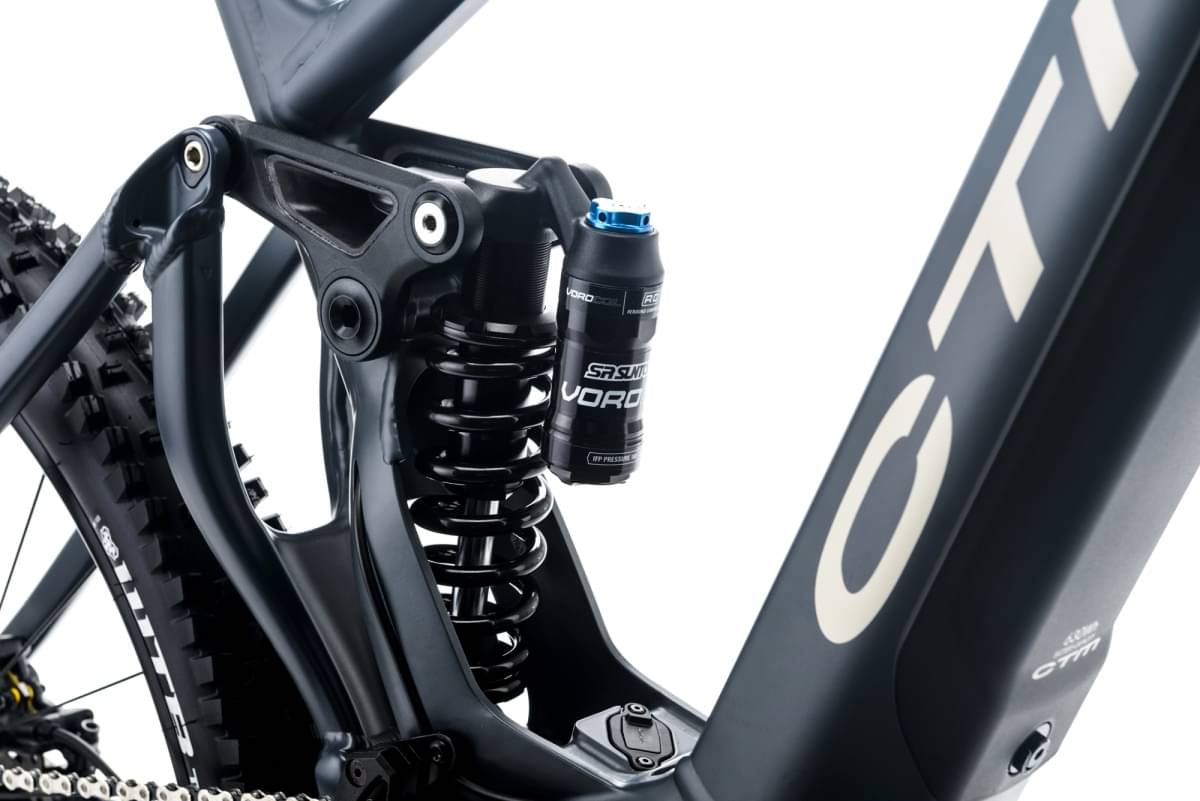

Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on SWITCH Xpert are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SWITCH Xpert comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 205 cm (5.41 ft – 6.73 ft). In short, you can easily find one that suits you.

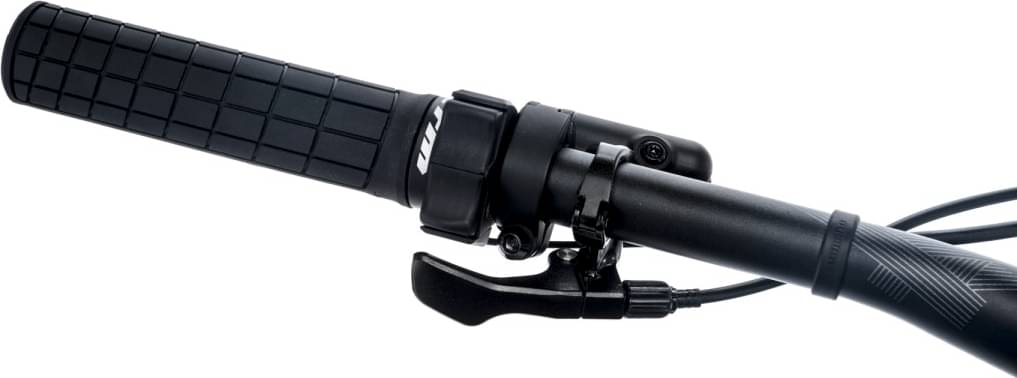

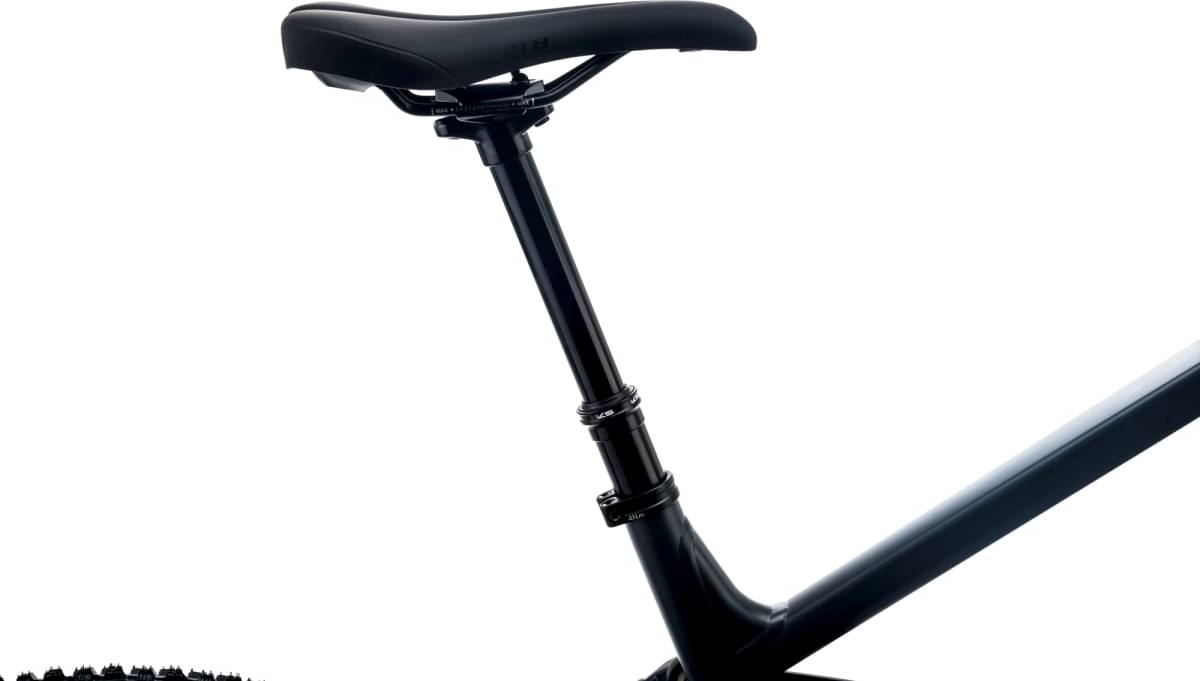

Dropper post
A dropper post is included with the SWITCH Xpert. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
