Bike details
Overview
Key information split into simple groups.

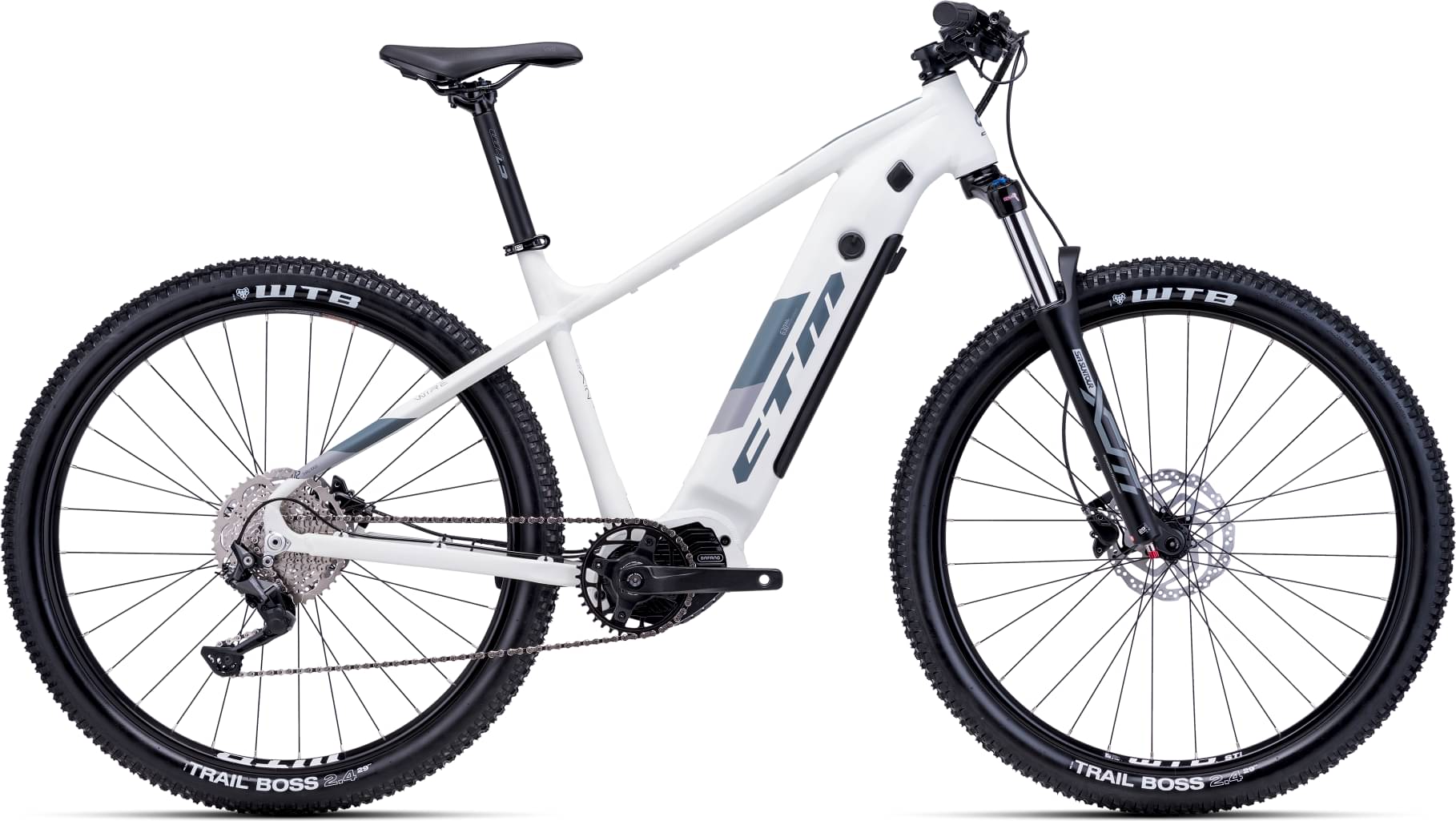

Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (17"), L (19"), XL (21")

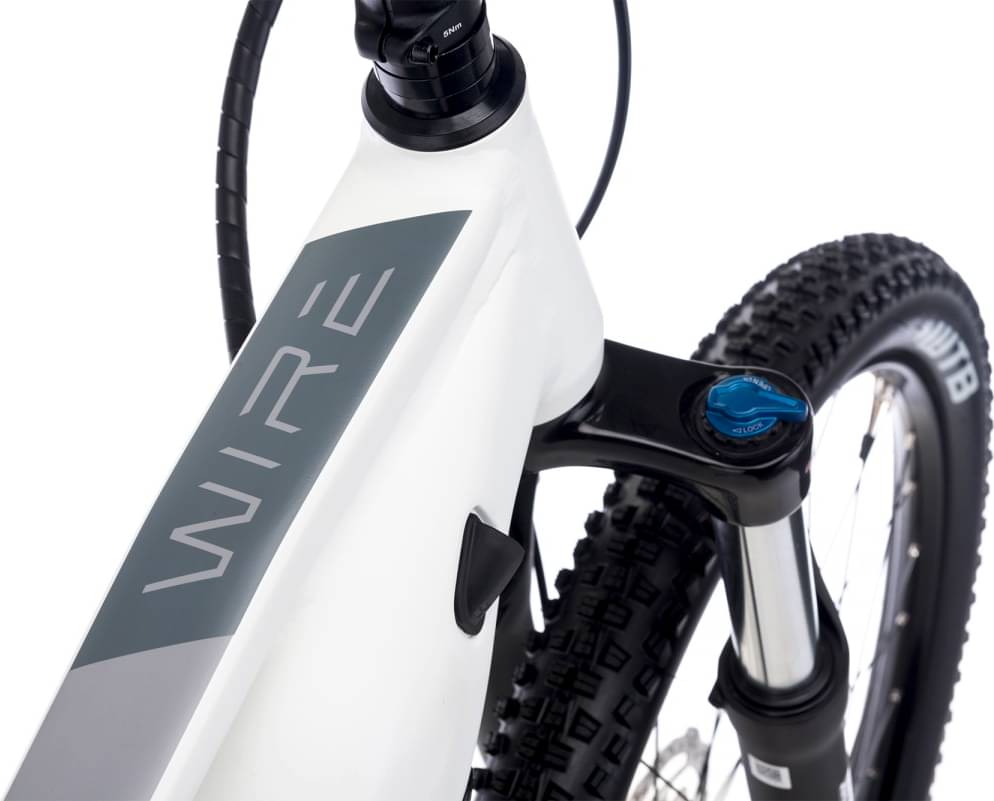

Suspension Fork
Suntour XCM34, LOR, DS, 120mm, boost™ 15x110axle
Drivetrain

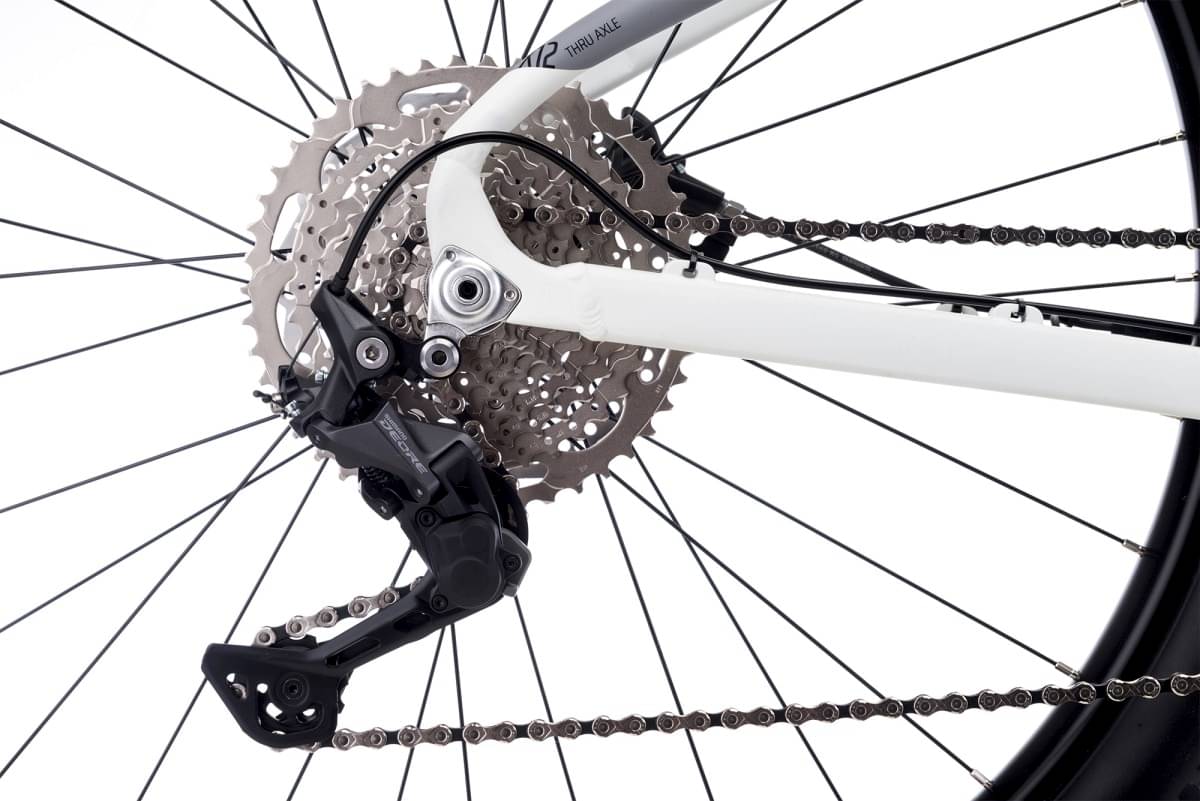

Rear Derailleur
Shimano Deore RD-M5120

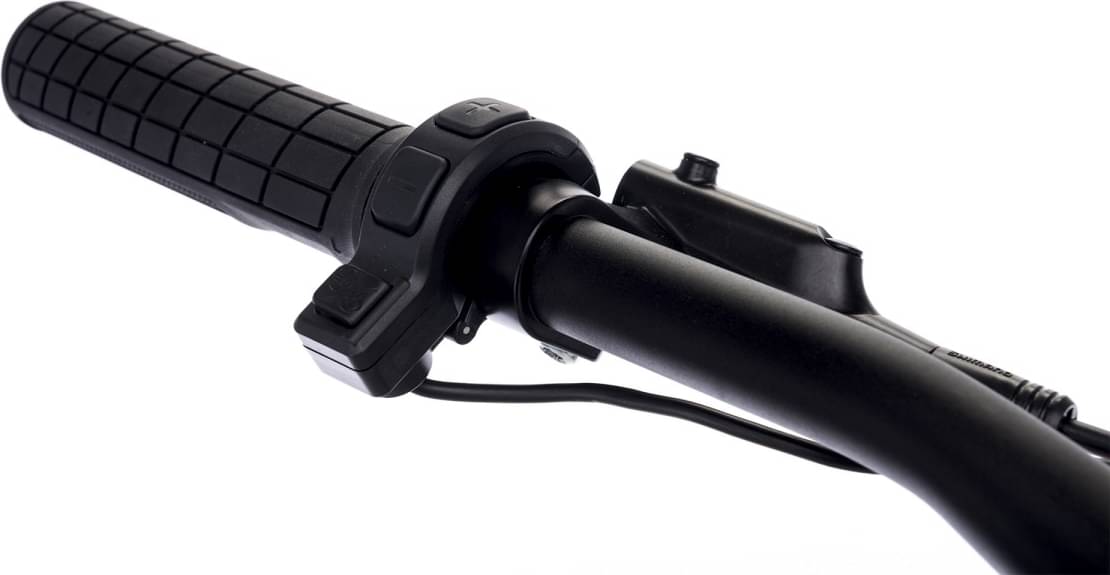

Shift Levers
Shimano Deore SL-M4100/10 sp.
Crank
Bafang 38T, 170mm
Chain
KMC X10e 124L
Pedals
VPE-527
Wheels
Rear Hub
Shimano MT400 boost / 32H
Rims
WTB ST i29 TCS 2.0 29" 32H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
ZOOM HB875/CL180

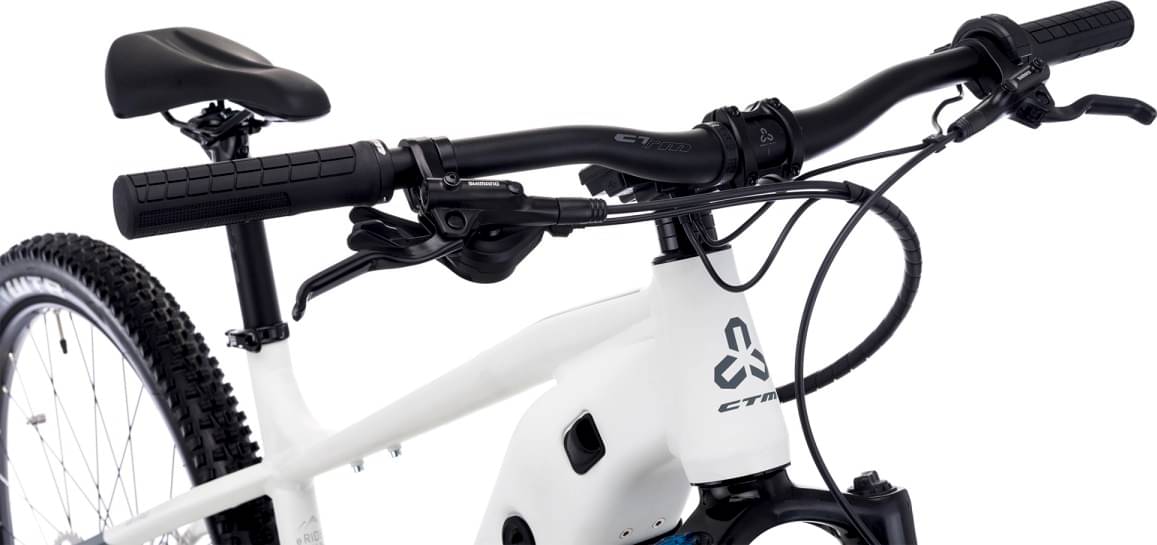

Cockpit

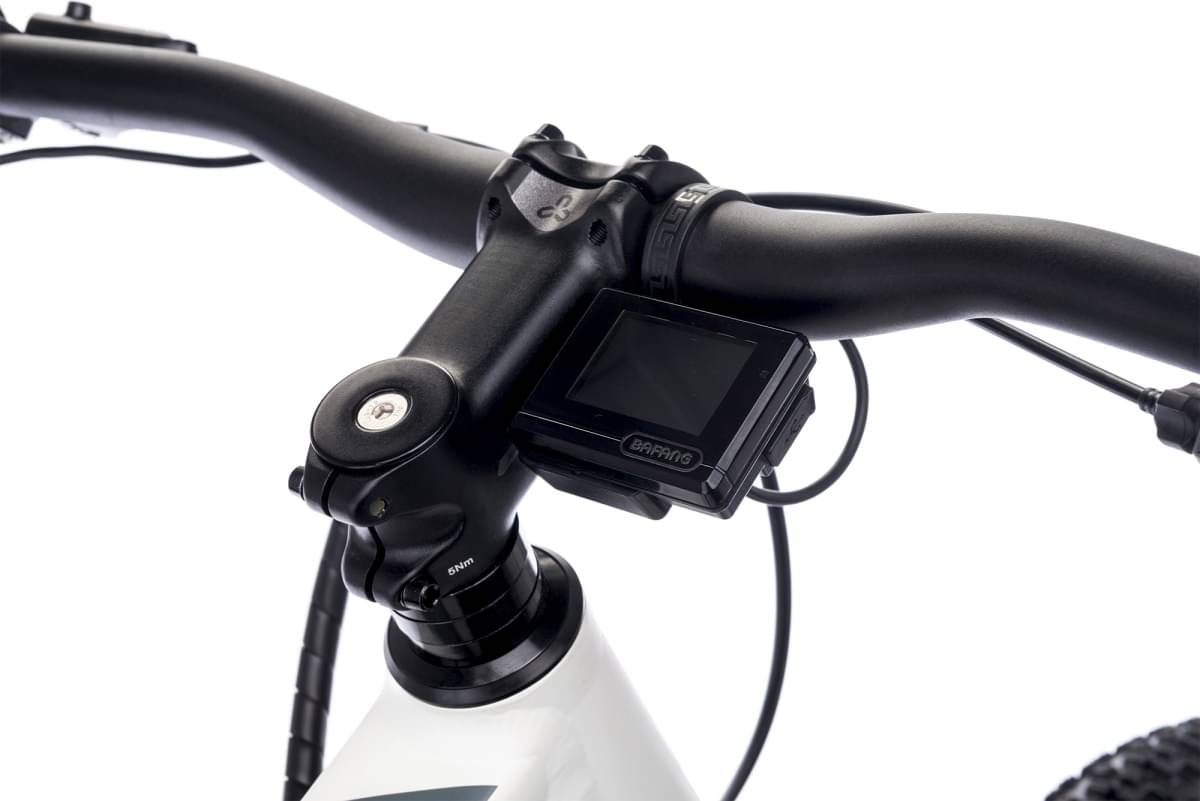

Stem
CTM LCS/80mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H383
Seat
Saddle
SR Vivo Ergo Man
Seatpost
CTM 350x31.6 mm
Motor & Battery
Motor
BAFANG M500 / 250W / 95Nm
Battery
630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.54 mm | 1.44 mm |
| Front Center | 671 mm | 701 mm | 731 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 656 mm | 656 mm | 656 mm |
| Reach | 397 mm | 427 mm | 457 mm |
| Top Tube Length | 596 mm | 626 mm | 656 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 481 mm | 481 mm | 481 mm |
| Wheelbase | 1145 mm | 1175 mm | 1205 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
About this model
WIRE is a Ctm E Wire model. 6 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CTM WIRE 2022 is the most economical model, with a starting price of 2547$. CTM WIRE PRO 2022 on the other hand costs 2866$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2547$. Comparing this to the average Trail e-bike price, we see that the price is 32.12% lower.
WIRE components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the WIRE model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. CTM WIRE is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 160 cm – 205 cm (5.25 ft – 6.73 ft). In short, you can easily find one that suits you.
