Bike details
Overview
Key information split into simple groups.

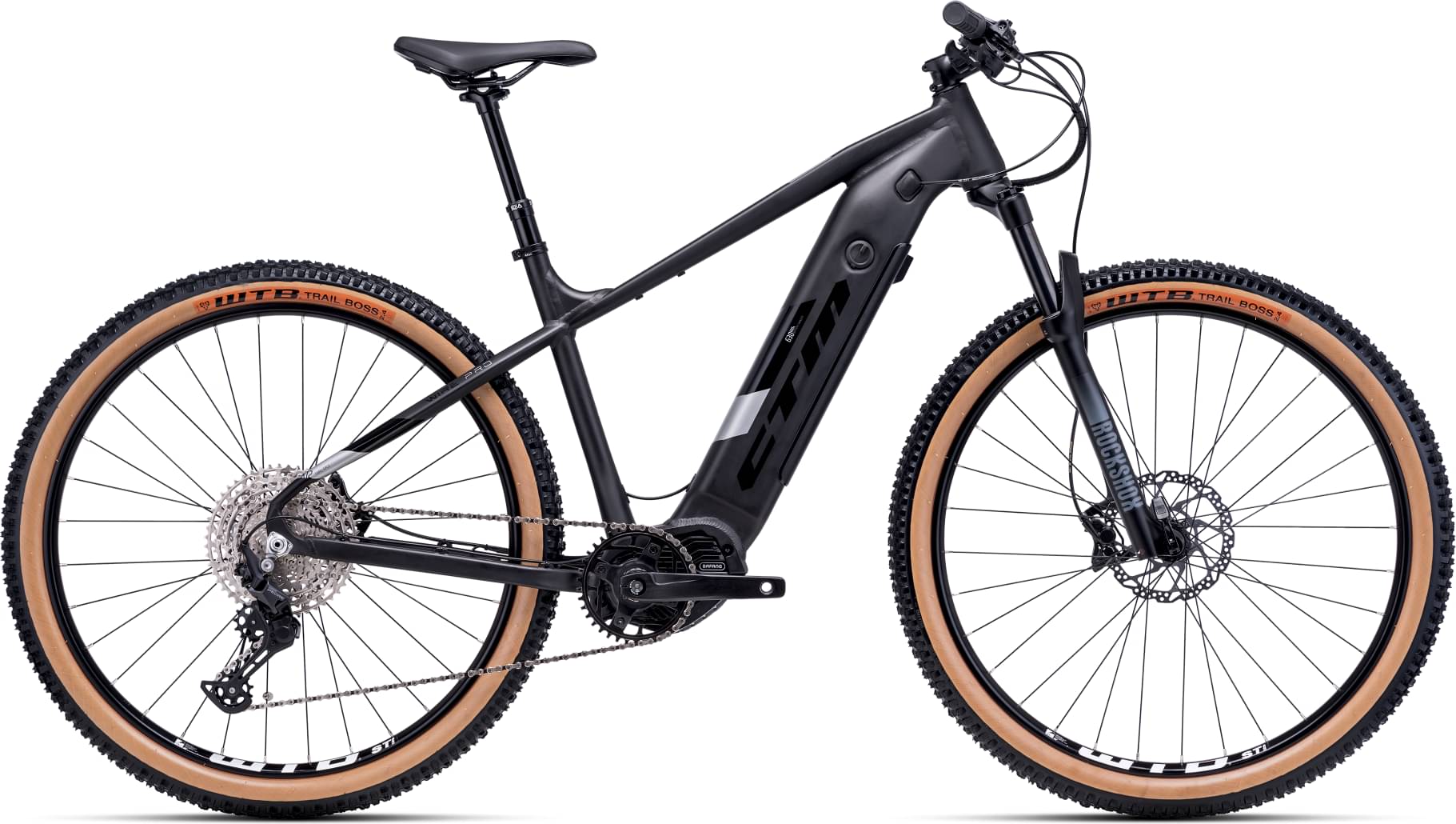

Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery 630Wh / 36V / 17.5Ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (17"), L (19"), XL (21")
Suspension Fork
Rock Shox RECON SILVER RL, SA, 120mm, boost™ 15x110axle
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100/11sp.
Crank
Bafang 38T, 170mm
Chain
KMC X11e 128L
Pedals
VPE-527
Wheels
Rear Hub
Shimano MT400 boost / 32H
Rims
WTB ST i29 TCS 2.0 29" 32H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
Shimano MT420 / SMRT54M

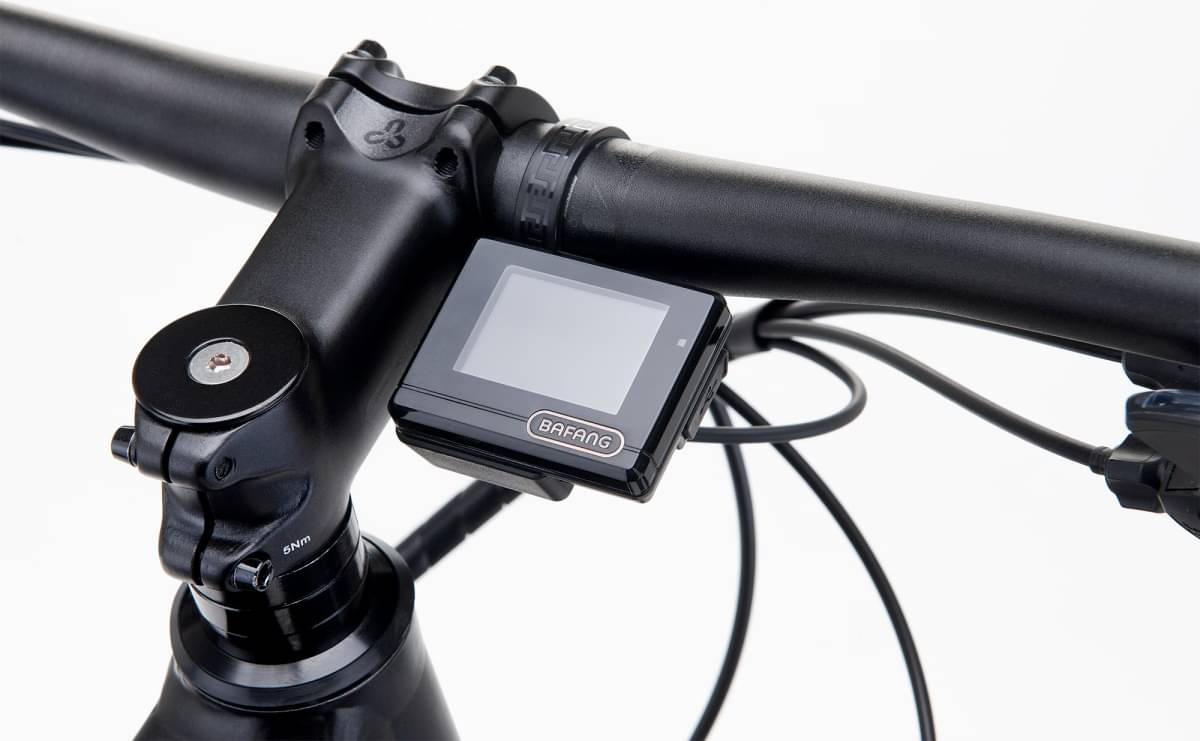

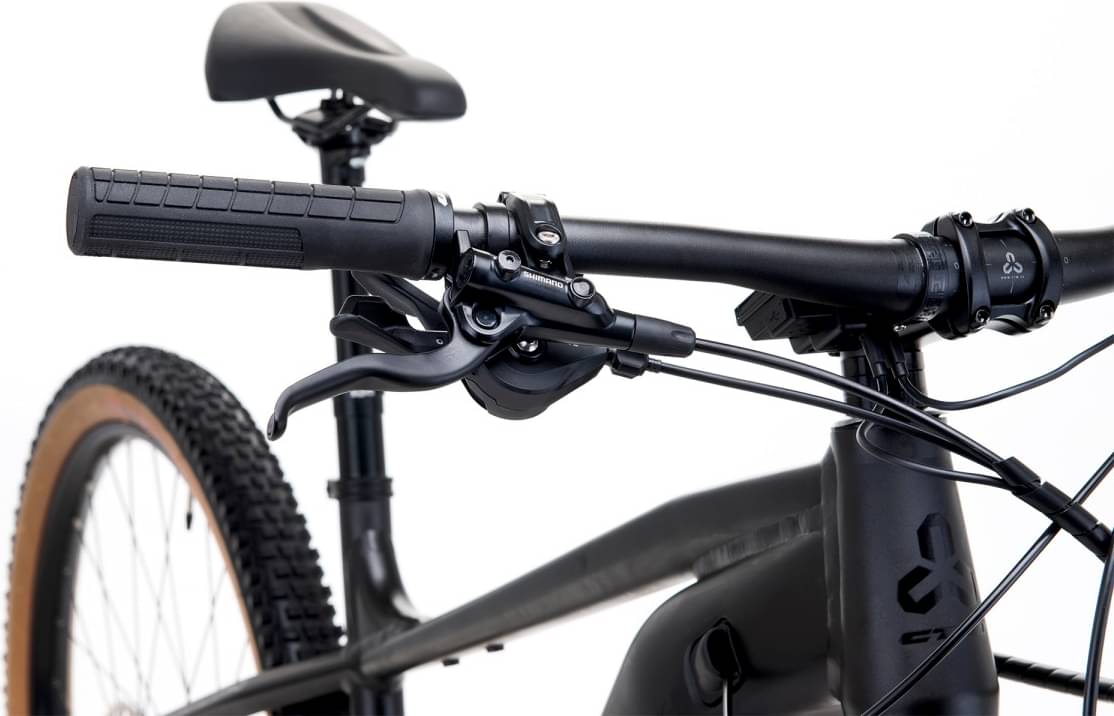

Cockpit
Stem
CTM LCS/80mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H383
Seat
Saddle
SR Vivo Ergo Man
Seatpost
EXA Form KSP900 (M-125mm/L,XL-150mm)
Motor & Battery

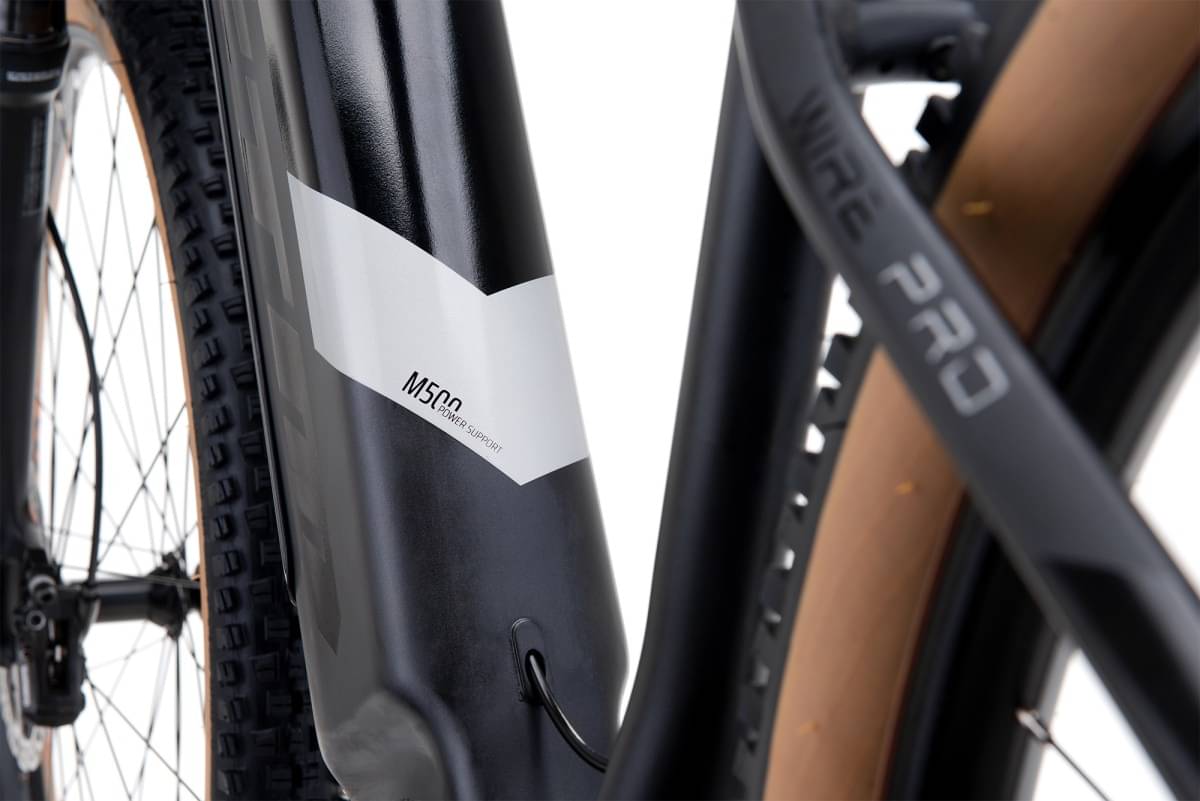

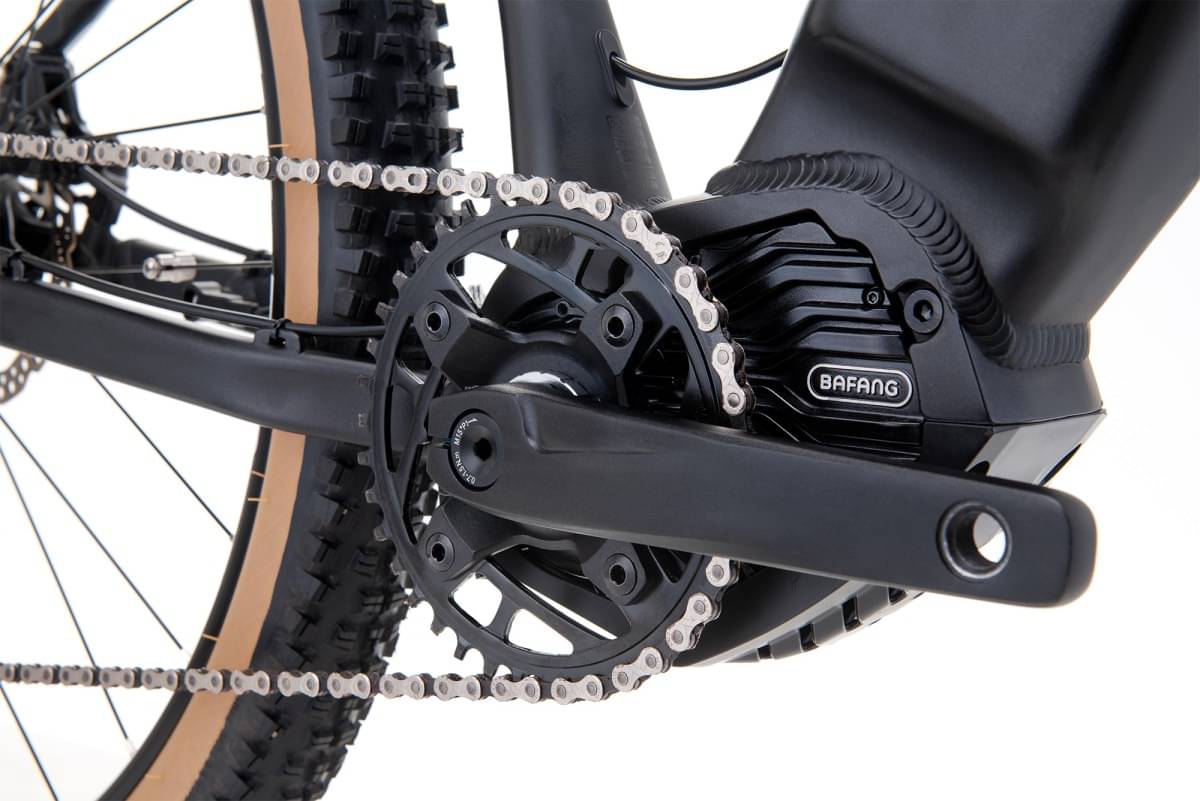

Motor
BAFANG M500 / 250W / 95Nm
Battery
630Wh / 36V / 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.54 mm | 1.44 mm |
| Front Center | 671 mm | 701 mm | 731 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 656 mm | 656 mm | 656 mm |
| Reach | 397 mm | 427 mm | 457 mm |
| Top Tube Length | 596 mm | 626 mm | 656 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 520 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 481 mm | 481 mm | 481 mm |
| Wheelbase | 1145 mm | 1175 mm | 1205 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
About this model
WIRE PRO is a Ctm E Wire model. CTM released 6 e-bikes variations of this model so far. You can easily view all of the Ctm E Wire e-bikes models from 2022, here.
Model range prices
CTM WIRE 2022 is the most affordable e-bike of this model and has a price of 2547$. On the other hand, CTM WIRE PRO 2022, is the most expensive and costs 2866$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 2866$. If we compare this with the average Trail e-bike cost we notice that the price is 17.41% lower.
WIRE PRO components

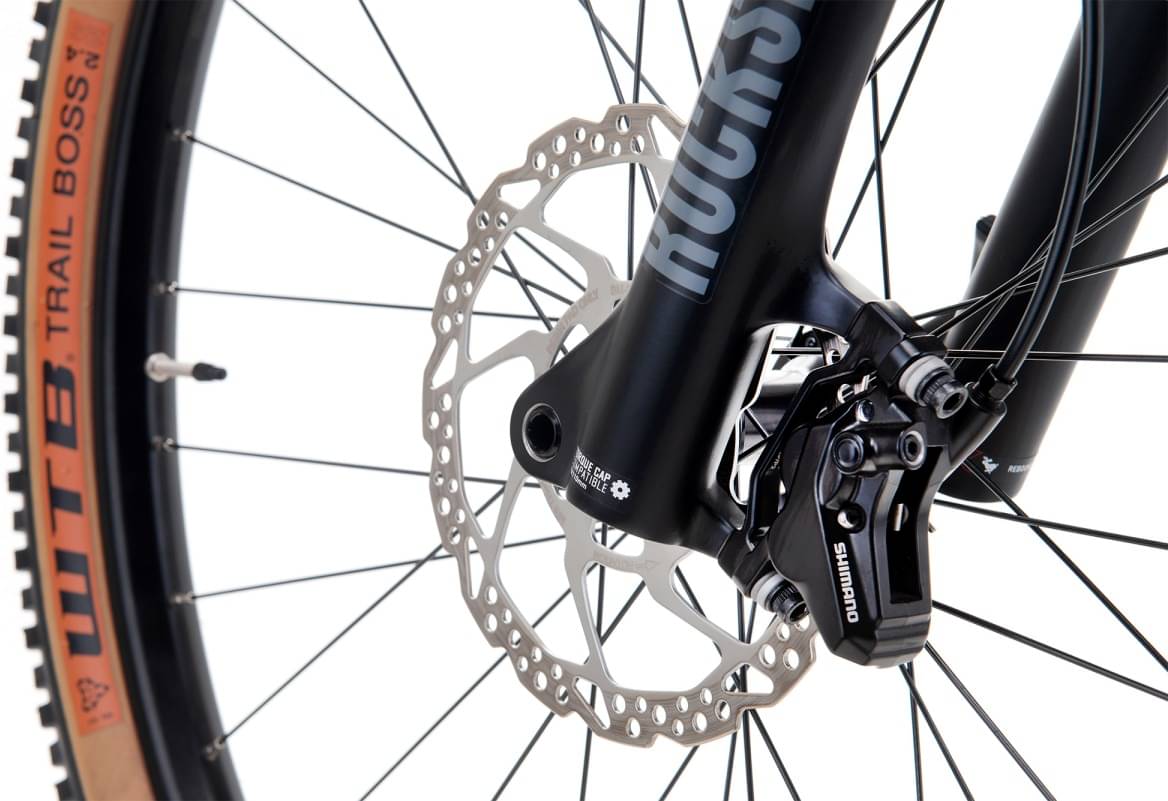

Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The WIRE PRO 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.

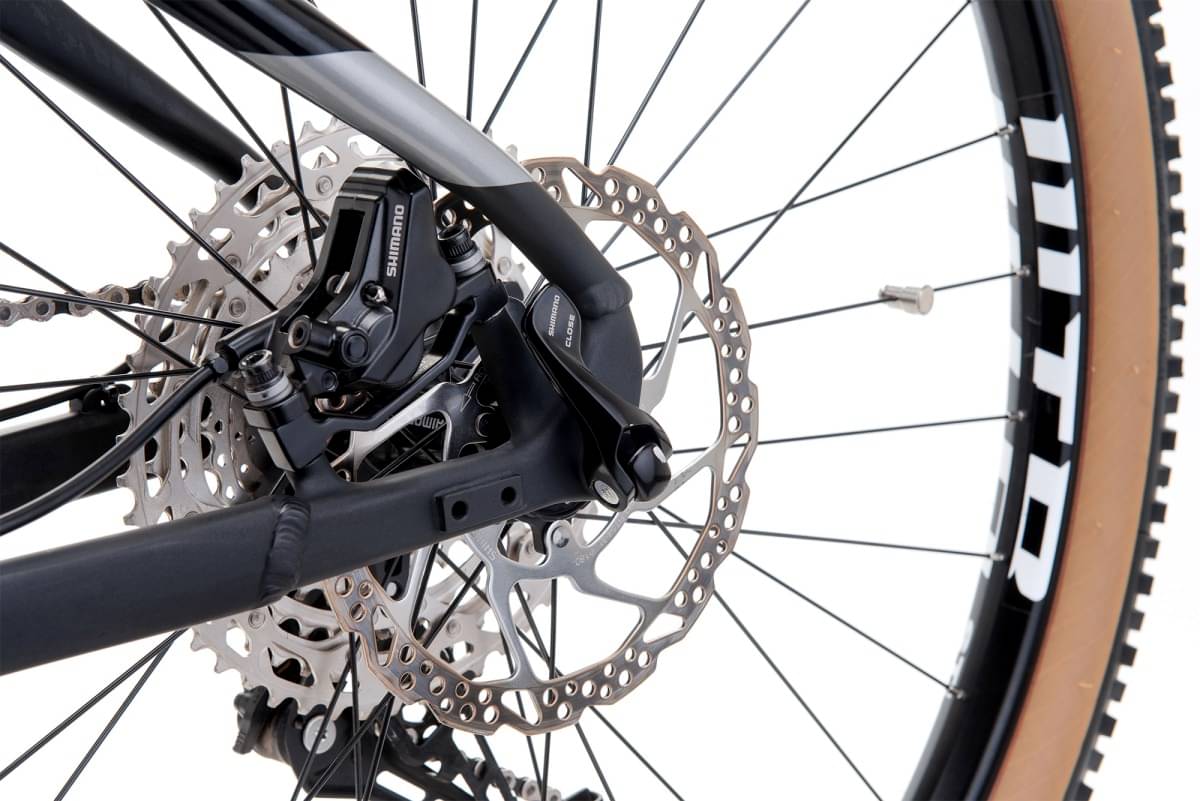

Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 160 cm – 205 cm (5.25 ft – 6.73 ft). In short, it won’t be difficult to find the right one for you.

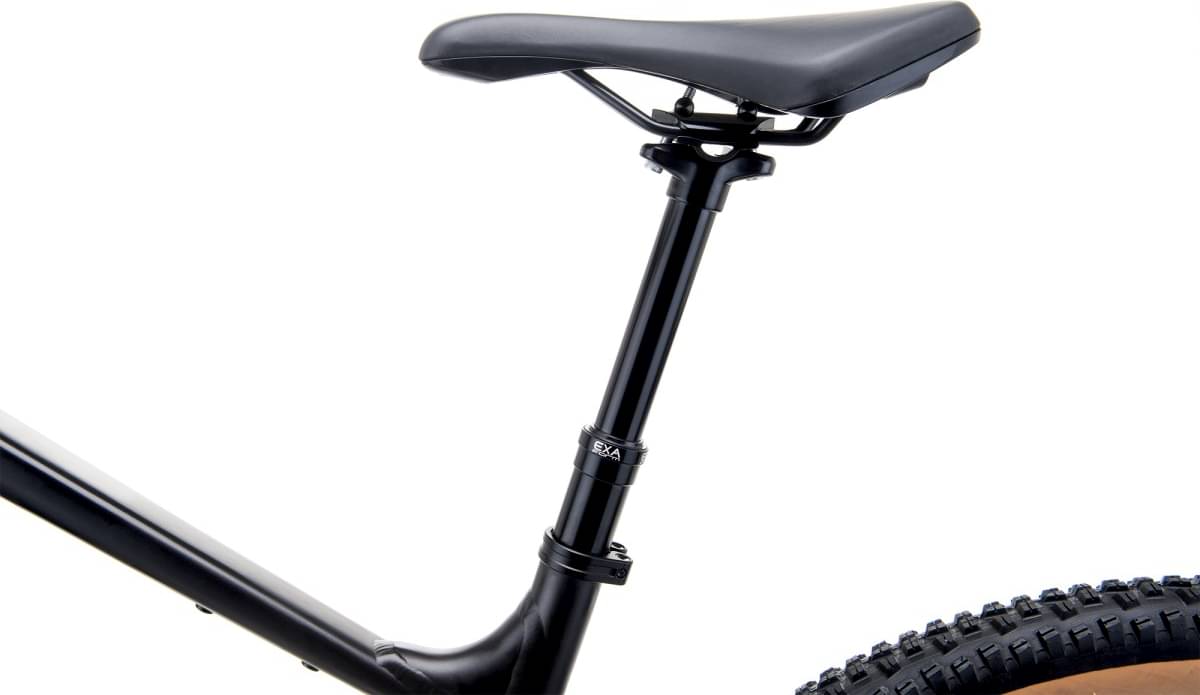

Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
