Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (18"), L (20"), XL (22")
Suspension Fork
Suntour XCM32, LO, DS, 120mm 29"
Drivetrain
Rear Derailleur
RDX 9 speed

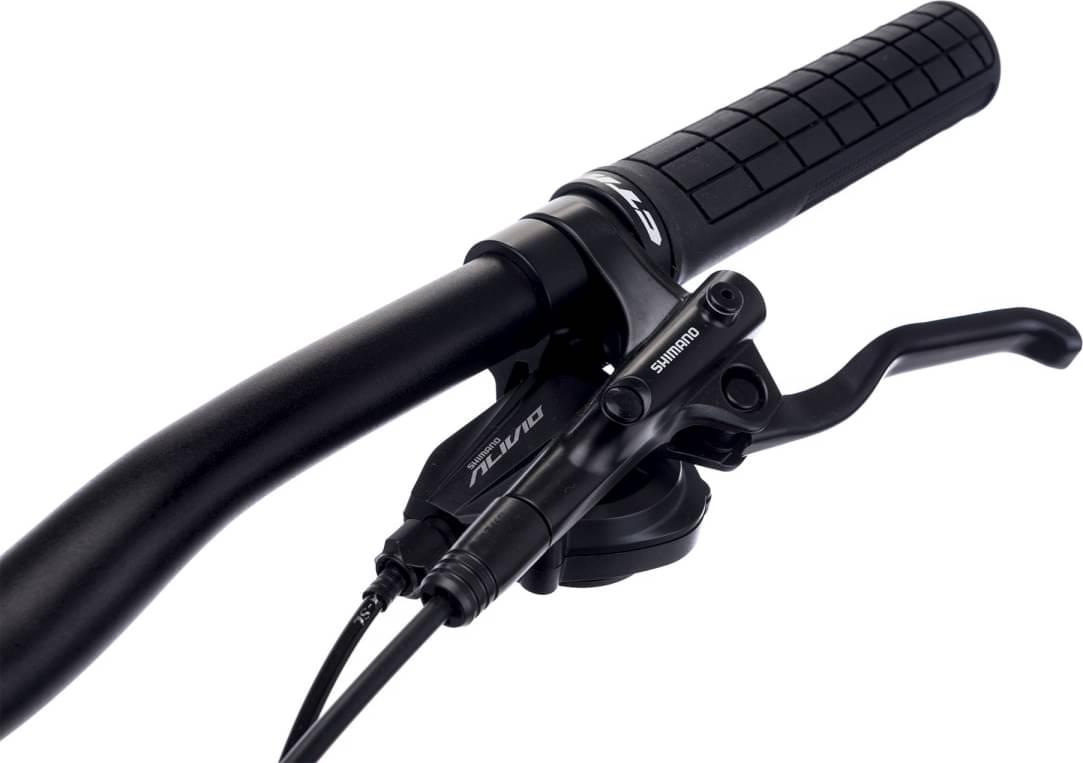

Shift Levers
Shimano Alivio SL-M3100/9sp.

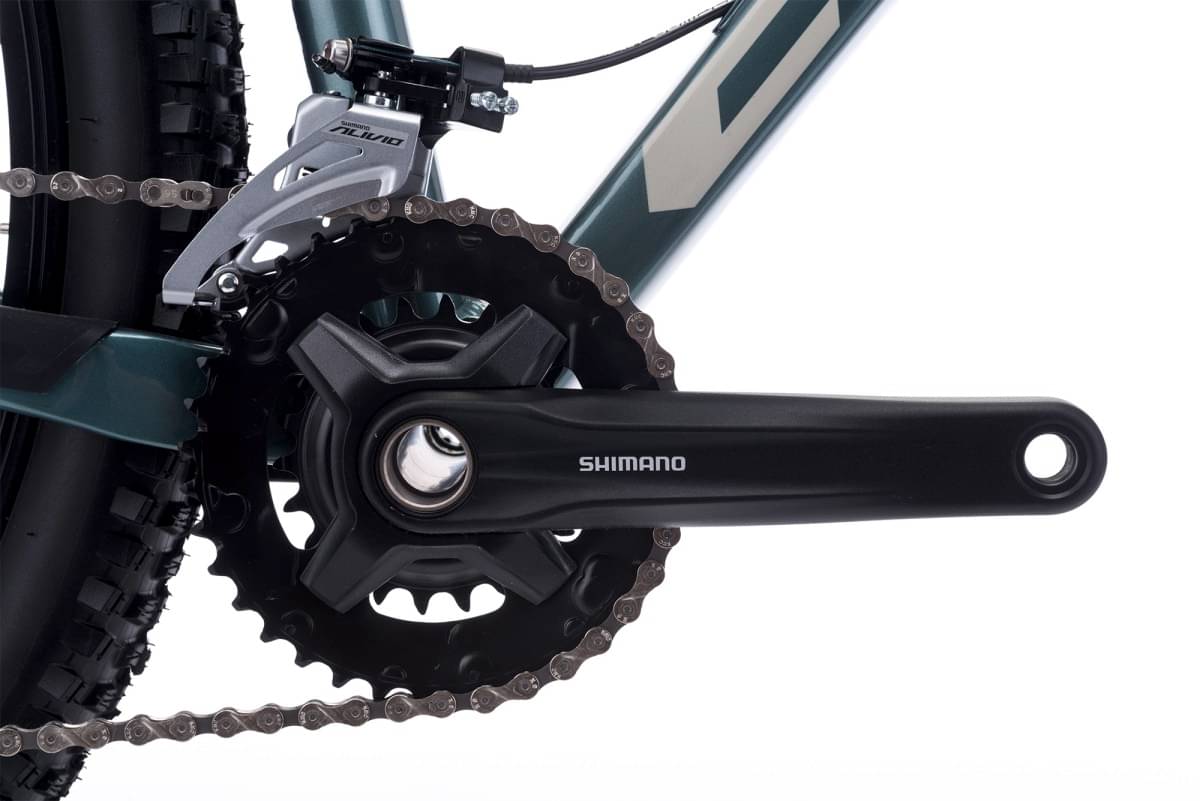

Crank
SR12A, 36-22T, 170mm
Chain
KMC X9/114L
Pedals
SP 510
Wheels
Rear Hub
CTM D041 CL TA / D762TSE / 32H
Rims
CTM ZX-lite, 622x19 BA, 32H
Tires
WTB Trail Boss 29x2.25 " Comp
Brakes
Brakes
ZOOM HB875/CL160-180
Cockpit

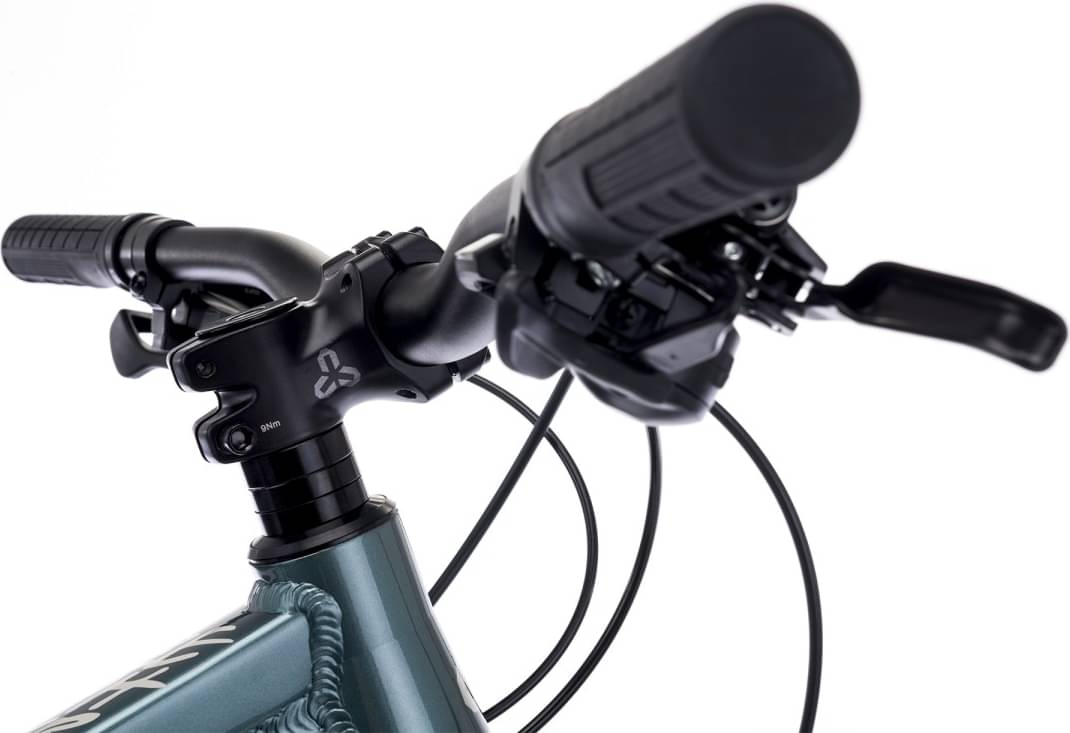

Stem
CTM LCS 50/31.8 mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H156
Seat

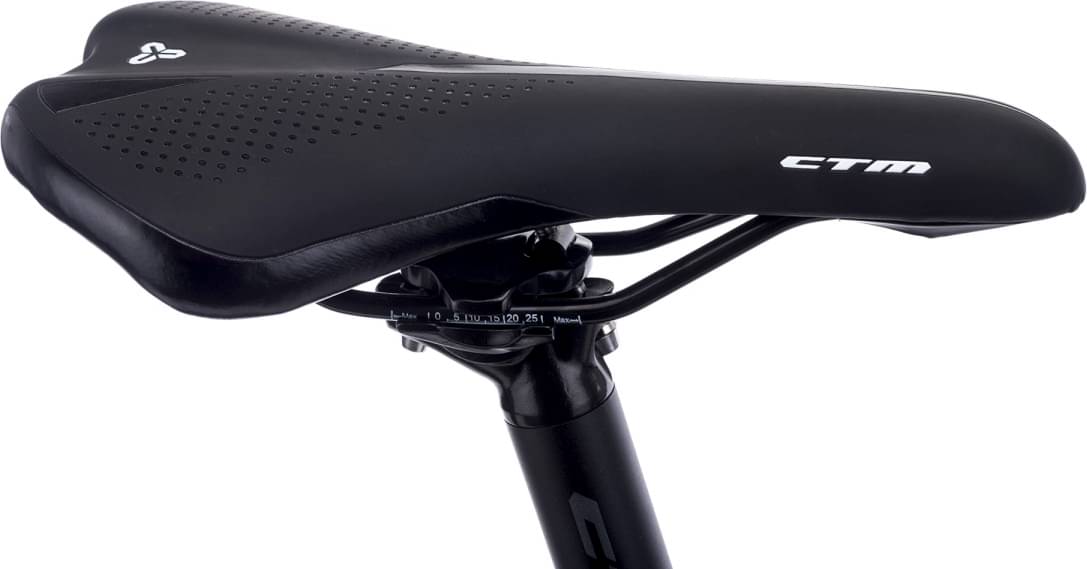

Saddle
CTM
Seatpost
CTM SPDC1, 350x31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.44 mm | 1.38 mm |
| Front Center | 726 mm | 753 mm | 780 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Stack | 632 mm | 636 mm | 641 mm |
| Reach | 416 mm | 441 mm | 466 mm |
| Top Tube Length | 610 mm | 637 mm | 663 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 457 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1157 mm | 1184 mm | 1211 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
Model Overview
ZEPHYR belongs to the Ctm Zephyr model. 10 bikes variations carry this model name so far. You can easily view all of the Ctm Zephyr bikes models from 2022, here.
Model range prices
CTM ZEPHYR 2022 is the cheapest bike model and costs 721$. CTM ZEPHYR PRO 2022 is the most expensive one and costs 1241$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, CTM ZEPHYR price was 721$. In conclusion, this bike price is 283.08% smaller than the price of the average Trail bike.
ZEPHYR components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The ZEPHYR 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 160 cm – 205 cm (5.25 ft – 6.73 ft). In short, it won’t be difficult to find the right one for you.
