Bike details
Overview
Key information split into simple groups.

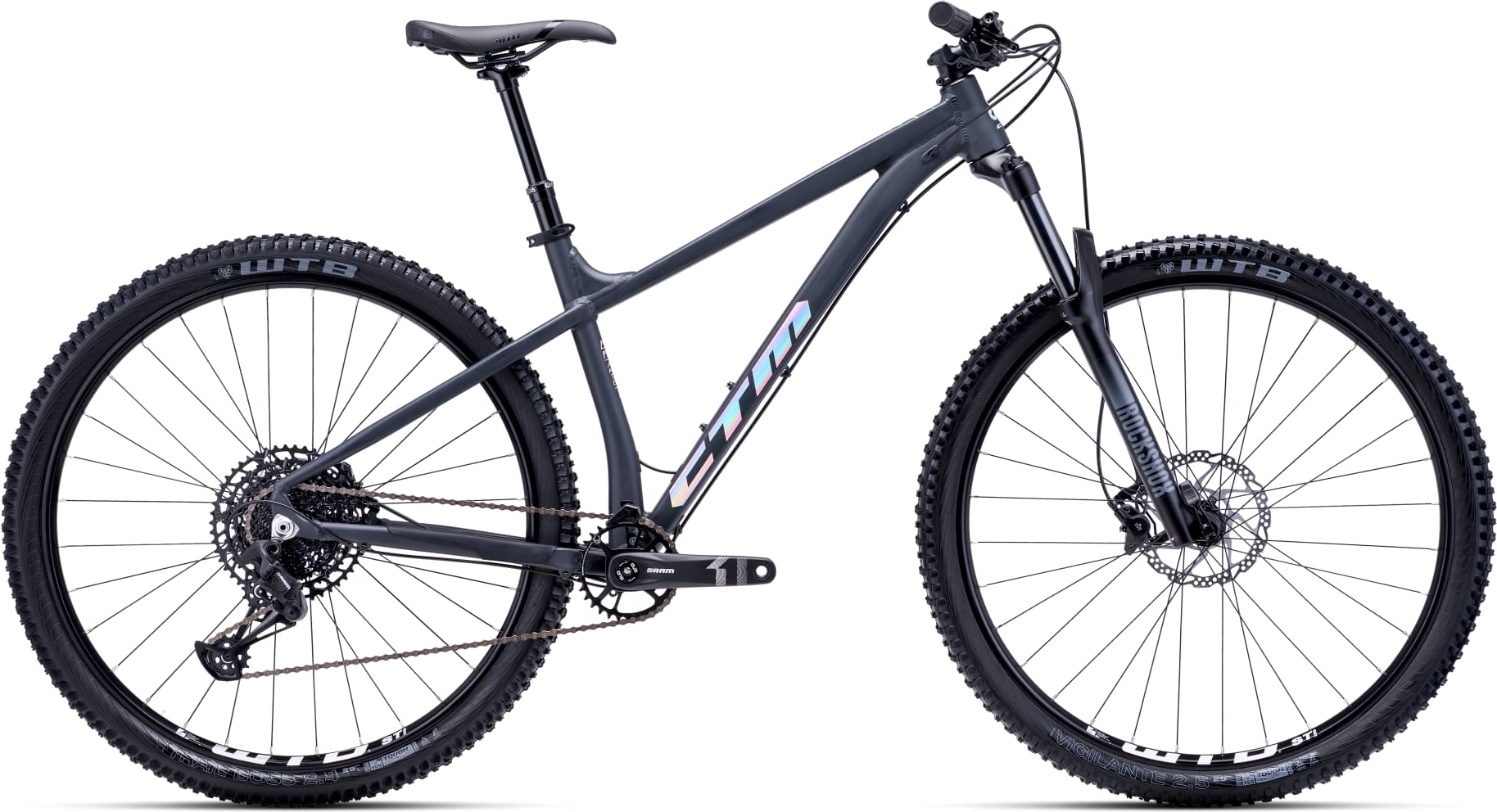

Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, S, M, L, XL
Suspension Fork
Rock Shox RECON SILVER RL, SA, 130mm, boost™ 15x110axle
Drivetrain

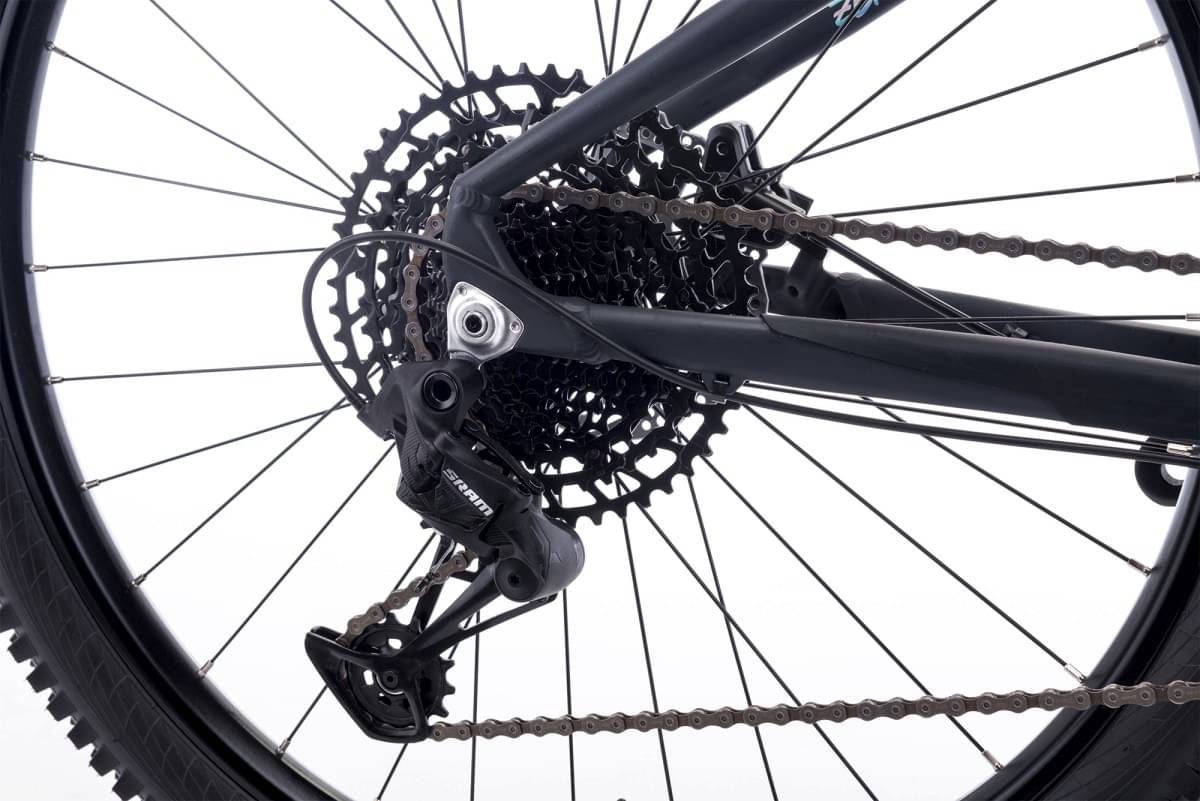

Rear Derailleur
Shame on the SX Eagle
Shift Levers
Shame on the SX Eagle

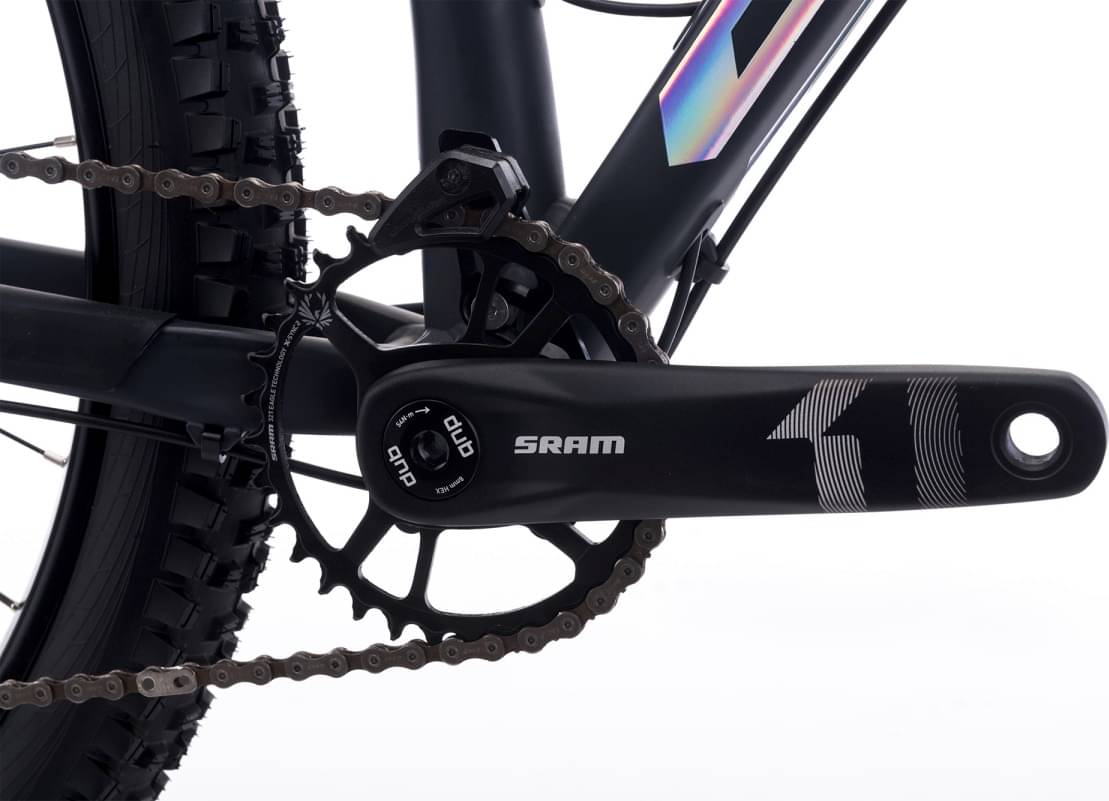

Crank
SRAM FC X1 1000 Eagle, Boost, 32T, 170mm
Chain
SRAM SX EAGLE 12s
Pedals
HT PA12 black
Wheels
Rear Hub
Shimano MT400 / 32H
Rims
WTB STi29, TCS 2.0, 29", 32H
Tires
WTB Trail Boss G2 TCS 29x2.4" Comp
Brakes
Brakes
Shimano MT400 / SMRT54 S,M

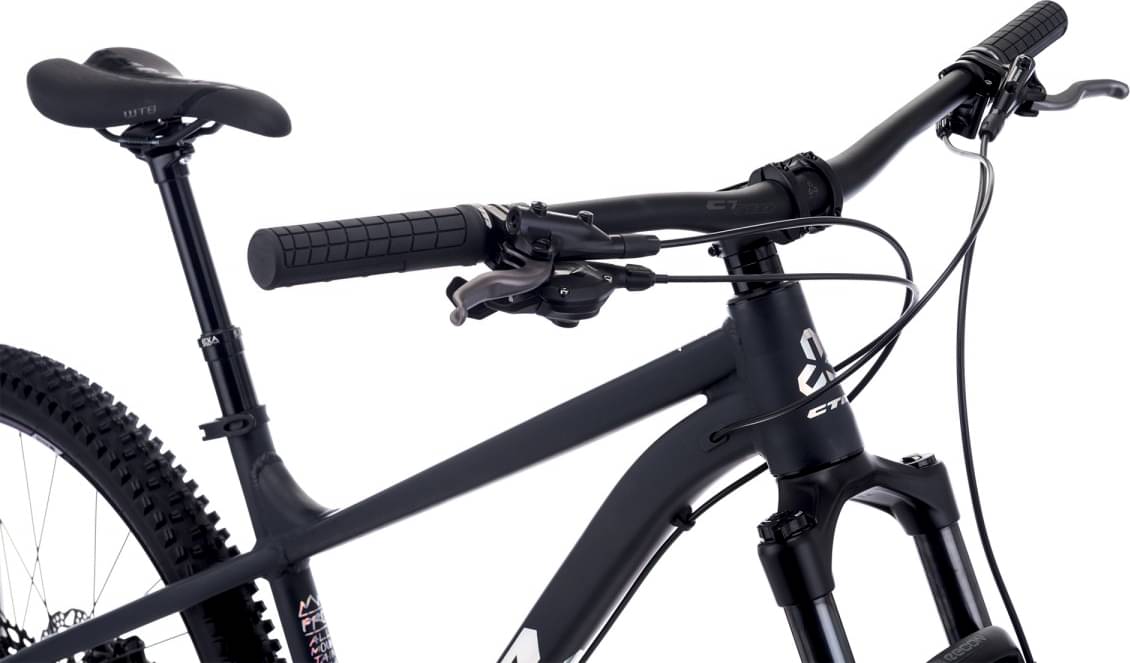

Cockpit
Stem
CTM LCS 50/31.8 mm
Handlebar
CTM HB-RB12,760/31,8 9 deg.rise
Headset
NECO H-383
Seat
Saddle
WTB Volt

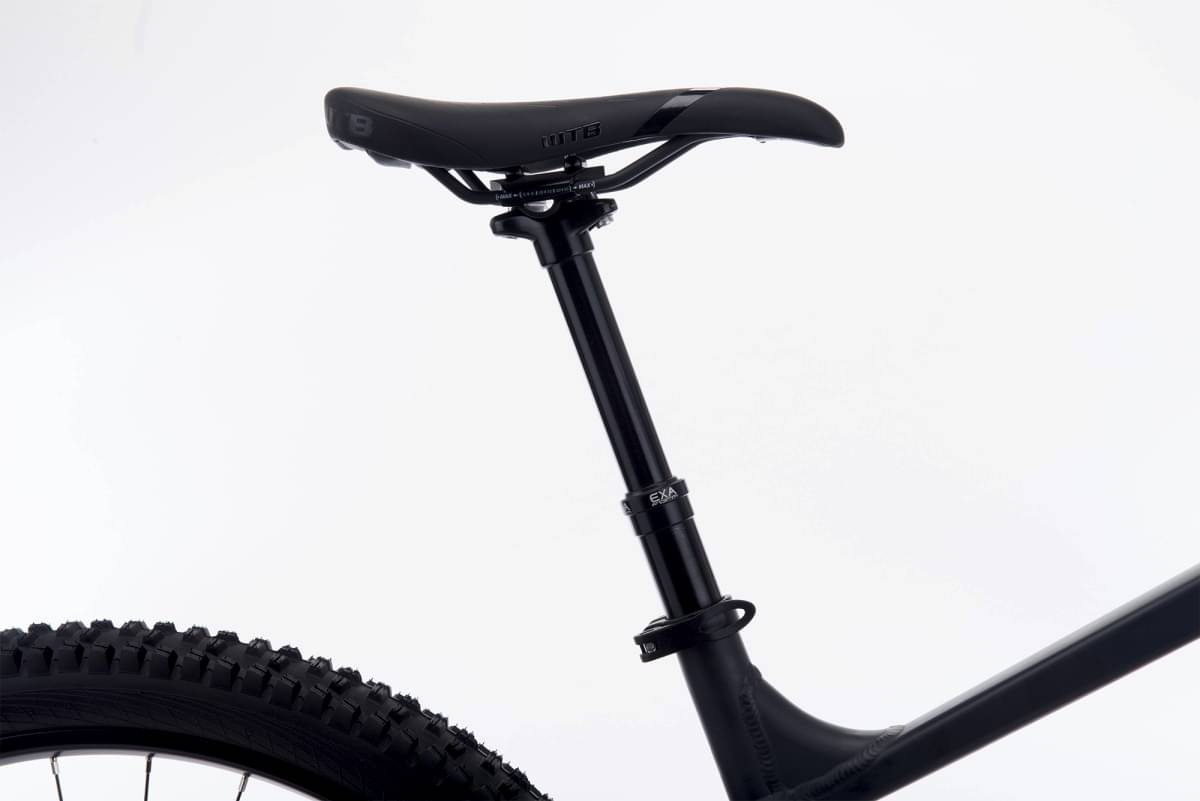

Seatpost
EXA Form KSP900 (S-100mm/M-125mm/L,XL-150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.469 mm | 1.416 mm | 1.351 mm |
| Front Center | 708 mm | 730 mm | 761 mm | 788 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 612 mm | 617 mm | 630 mm | 635 mm |
| Reach | 400 mm | 420 mm | 445 mm | 470 mm |
| Top Tube Length | 556 mm | 577 mm | 607 mm | 633 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1138 mm | 1160 mm | 1191 mm | 1218 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 205 cm |
About this model
ZEPHYR PRO completes the Ctm Zephyr model. 10 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CTM ZEPHYR 2022 is the cheapest bike model and costs 721$. CTM ZEPHYR PRO 2022 is the most expensive one and costs 1241$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2022 and its price was 1241$. Doing a quick comparison, we notice that ZEPHYR PRO price is 122.56% smaller than the average cost of a Trail bike.
Overview of components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, CTM ZEPHYR PRO 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. CTM ZEPHYR PRO has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
CTM ZEPHYR PRO bike has 4 sizes, in the range of 155 cm – 205 cm (5.09 ft – 6.73 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
