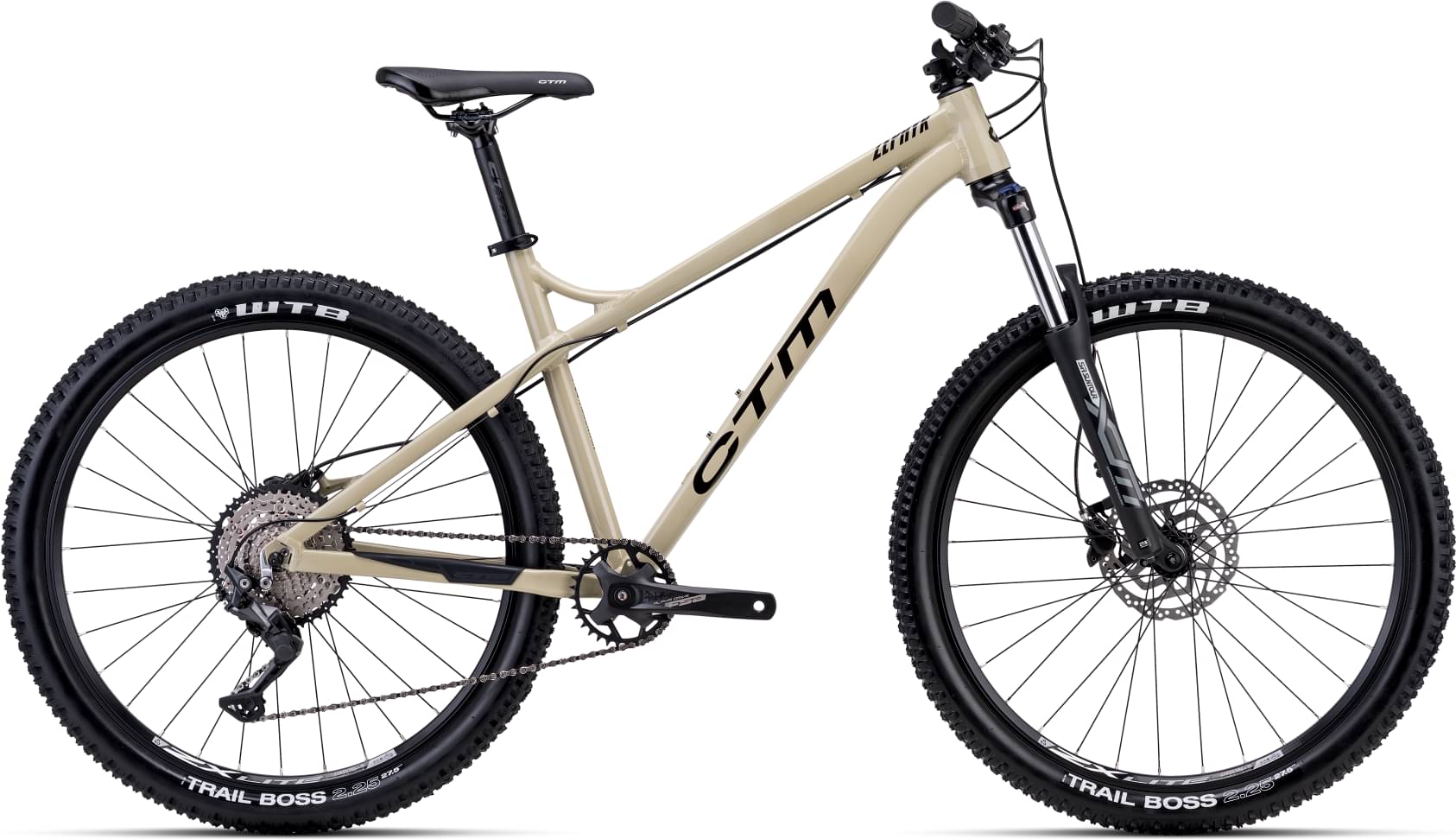

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components

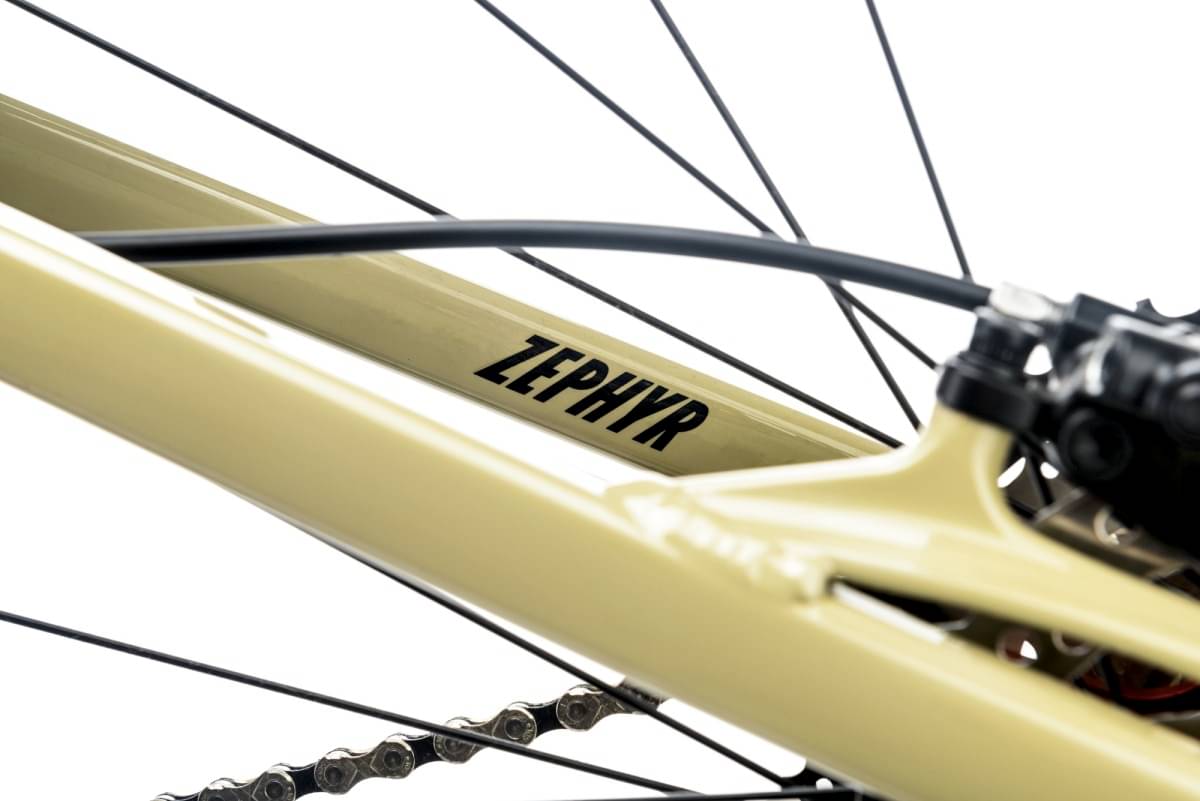

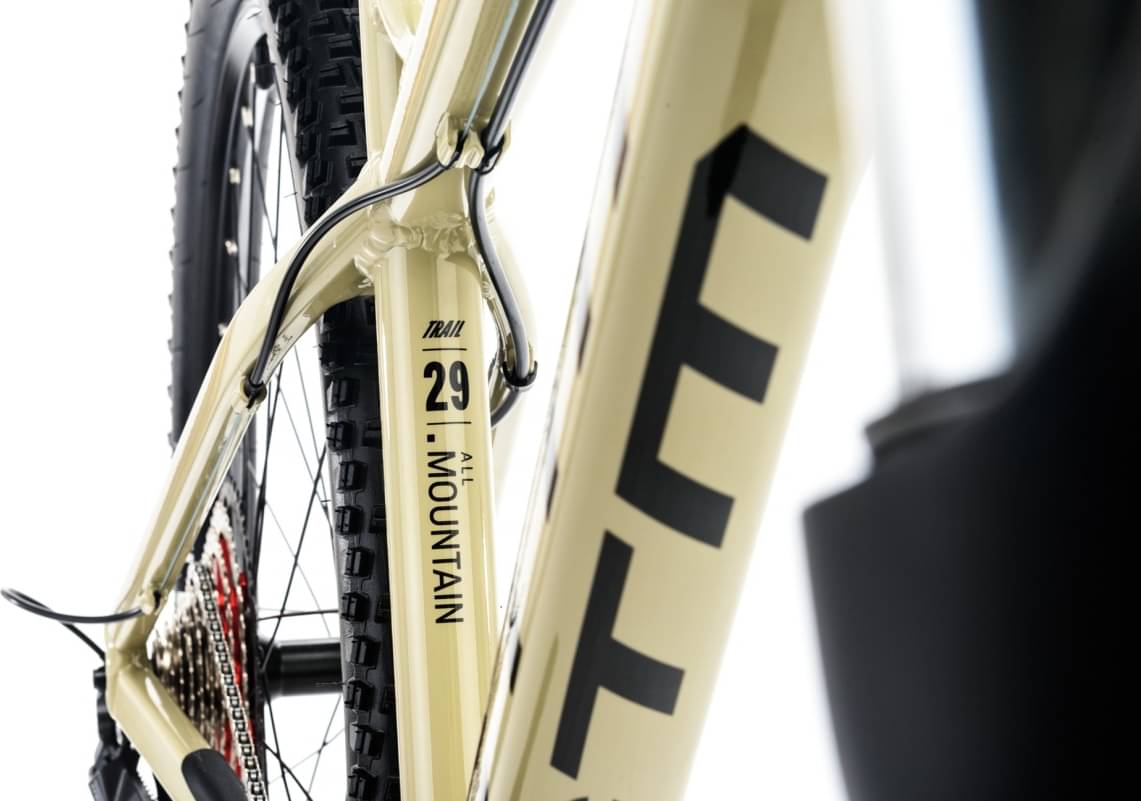

Frame
Frame
ALU 6061, S (16"), M (18"), L (20")
Suspension Fork
Suntour XCM32, LO, DS, 120mm 27.5"
Drivetrain

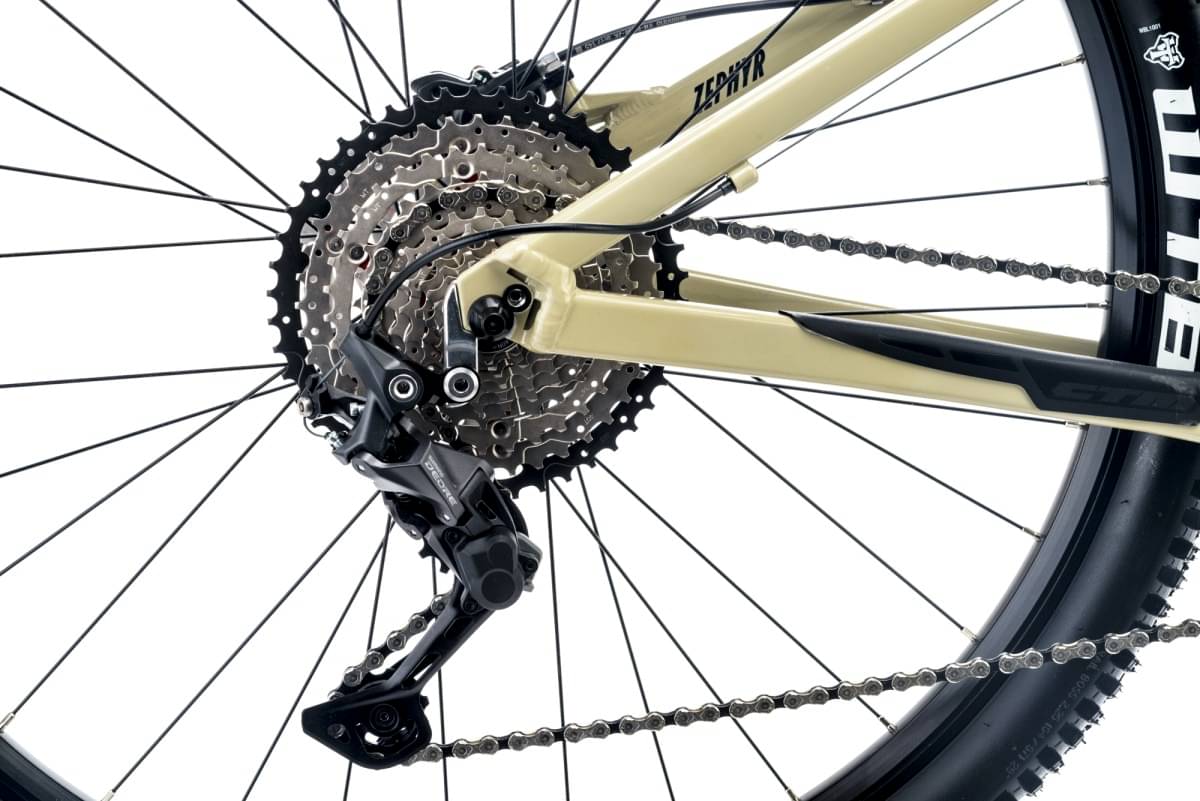

Rear Derailleur
Shimano Deore RD-M5120
Shift Levers
Shimano Deore SL-M4100/10sp.

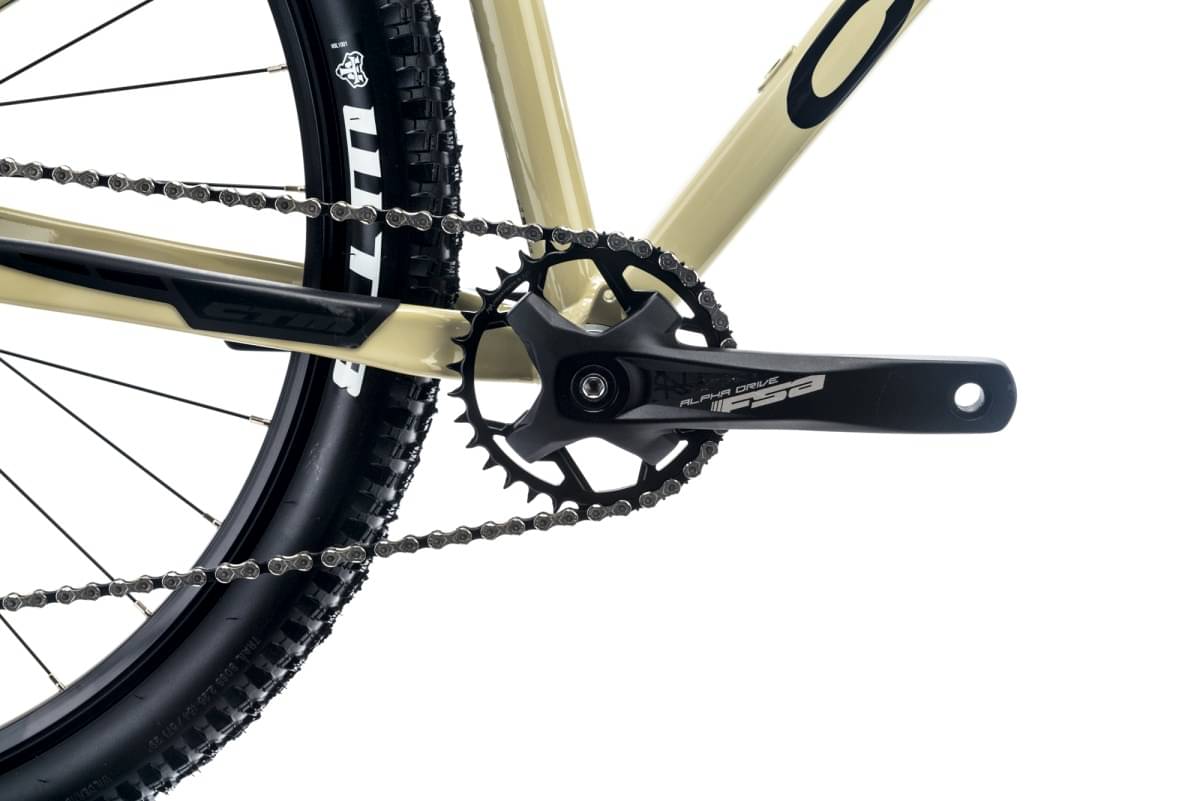

Crank
FSA Alpha Drive 1X 32T 170mm
Chain
KMC X10/114L
Pedals
SP 510
Wheels
Rear Hub
CTM D041 CL TA / D762TSE / 32H
Rims
CTM ZX-lite, 584x19 BA, 32H
Tires
WTB Trail Boss 27.5x2.25 " Comp
Brakes
Brakes
Shimano MT200 / SMRT10S,M

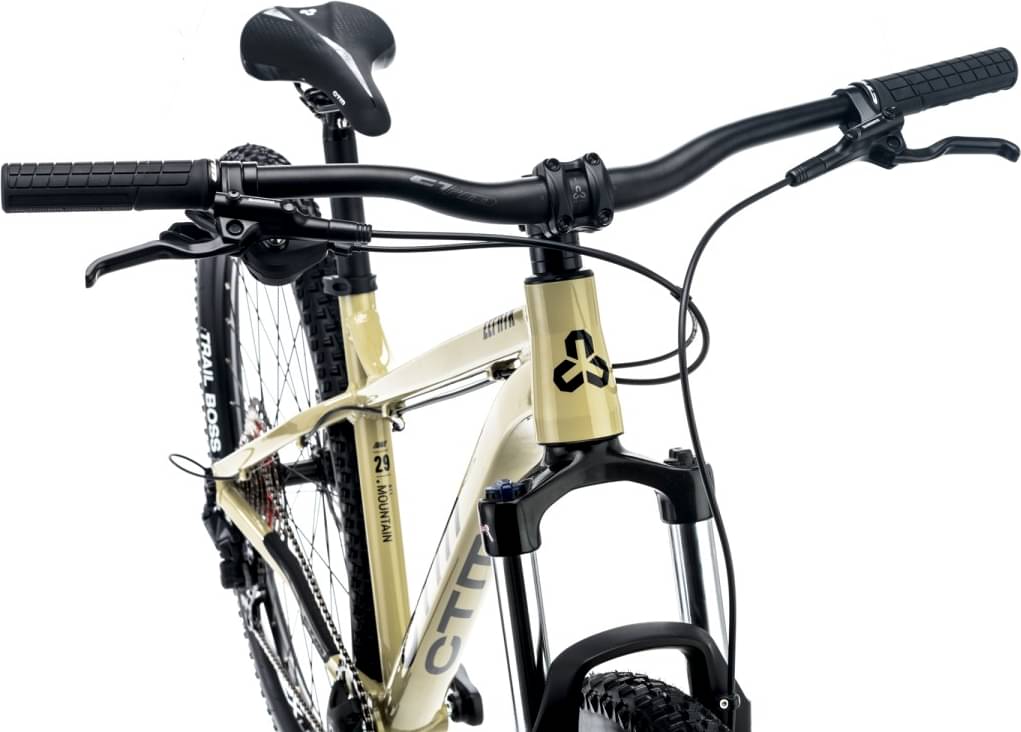

Cockpit

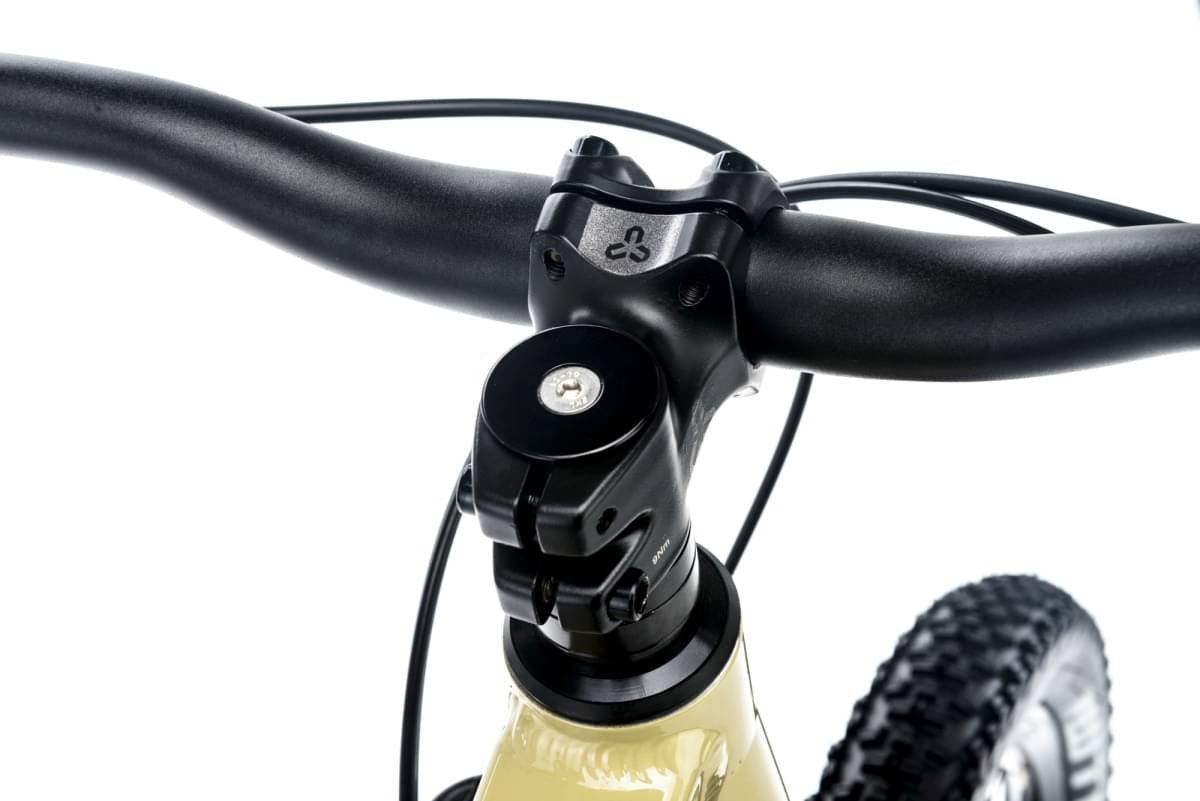

Stem
CTM LCS 50/31.8 mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H156
Seat
Saddle
CTM
Seatpost
CTM SPDC1, 350x31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Front Center | 661 mm | 682 mm | 707 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 596 mm | 616 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1093 mm | 1113 mm | 1139 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 185 cm |
Model Overview
ZEPHYR completes the Ctm Zephyr model. 10 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CTM ZEPHYR 2023 is the most economical model, with a starting price of 774$. CTM ZEPHYR Pro 2023 on the other hand costs 1379$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 774$. Comparing this to the average Trail bike price, we see that the price is 256.85% smaller.
Overview of components

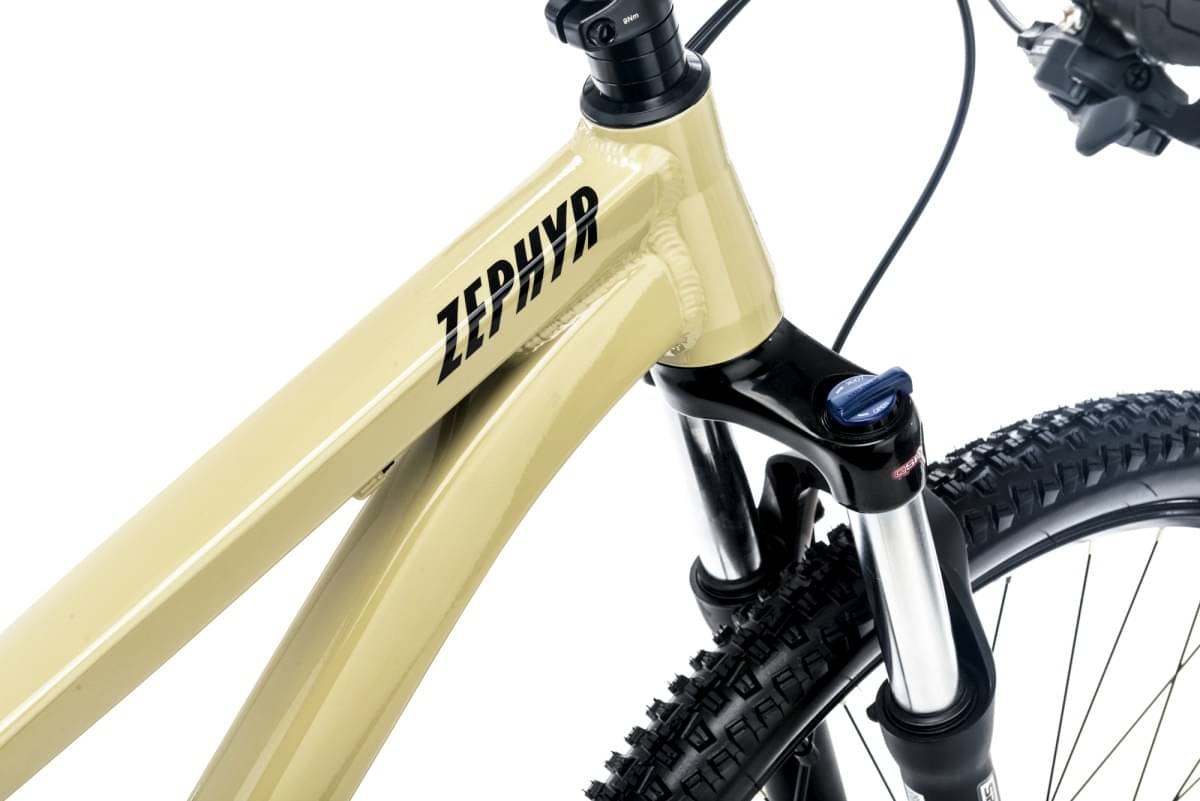

Fork
CTM ZEPHYR 2023 bike is equipped with the Suntour XCM fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The ZEPHYR 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.

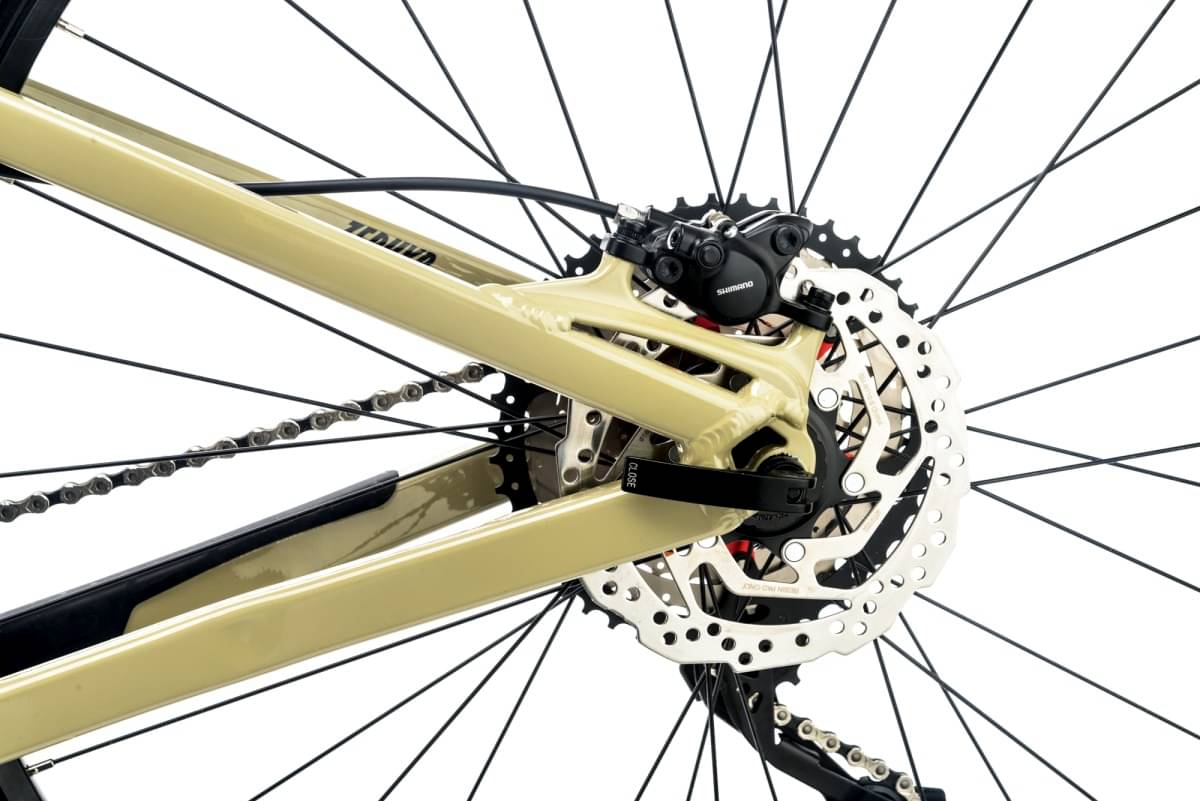

Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 155 cm – 185 cm (5.09 ft – 6.07 ft). In conclusion, finding one for you shouldn’t be a problem.
