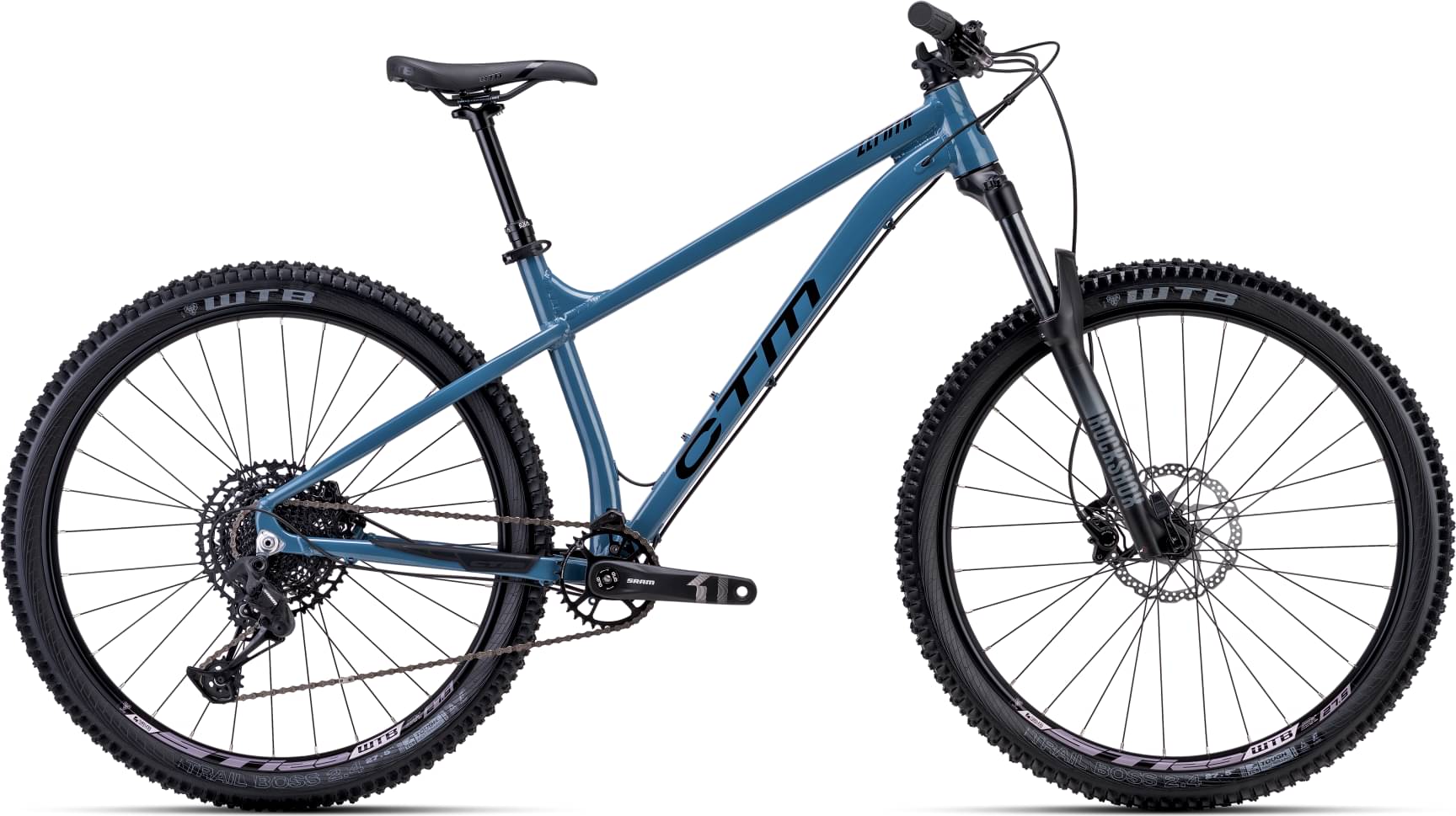

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

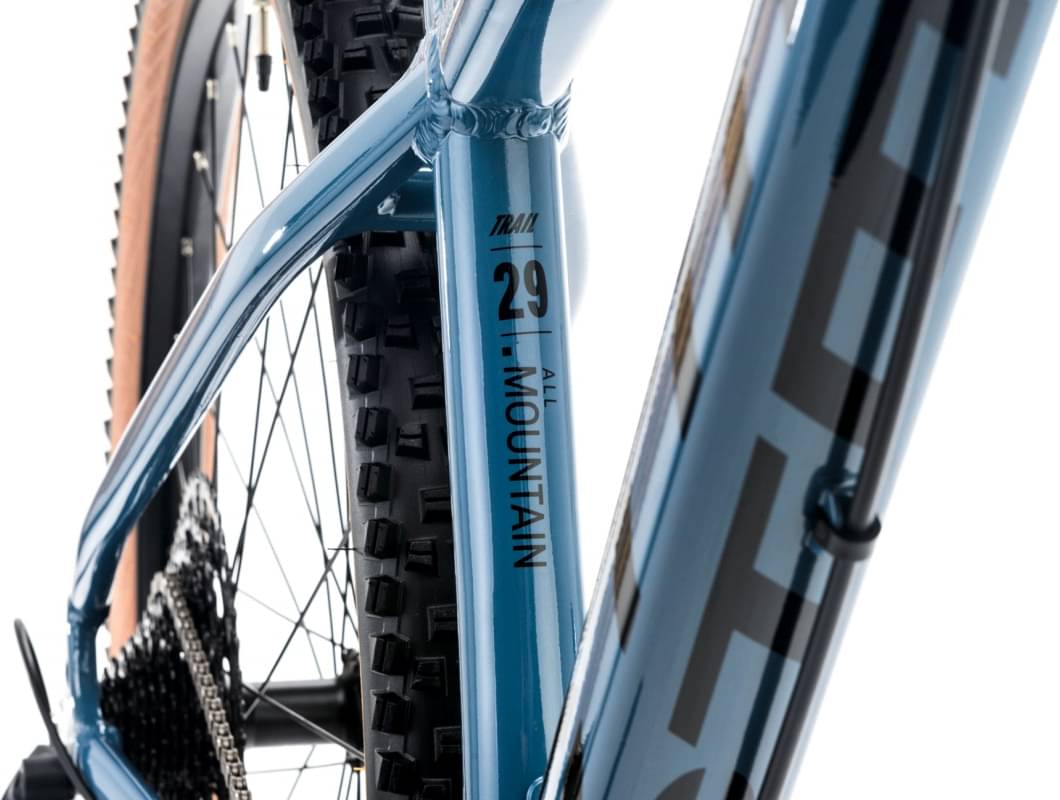

Frame
ALU 6061, S, M, L, XL
Suspension Fork
Rock Shox RECON SILVER RL, SA, 130mm, boost™ 15x110axle
Drivetrain

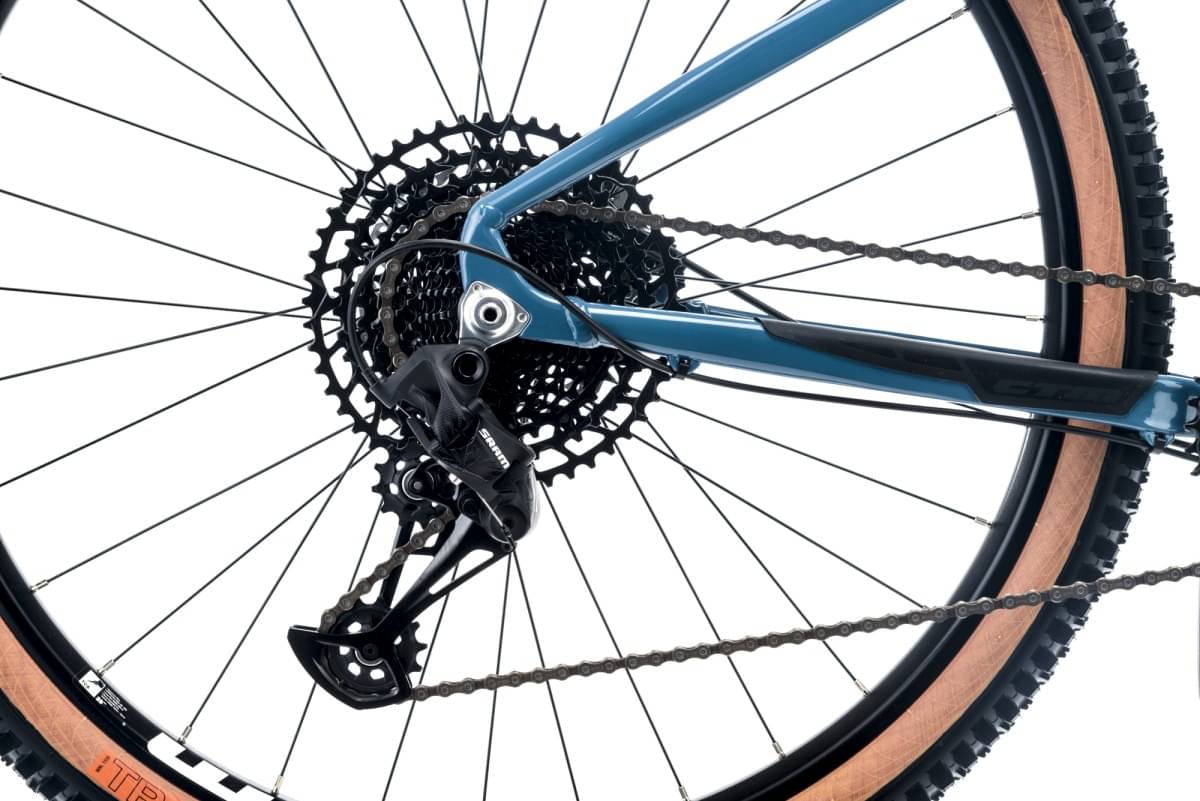

Rear Derailleur
Shame on the SX Eagle
Shift Levers
Shame on the SX Eagle

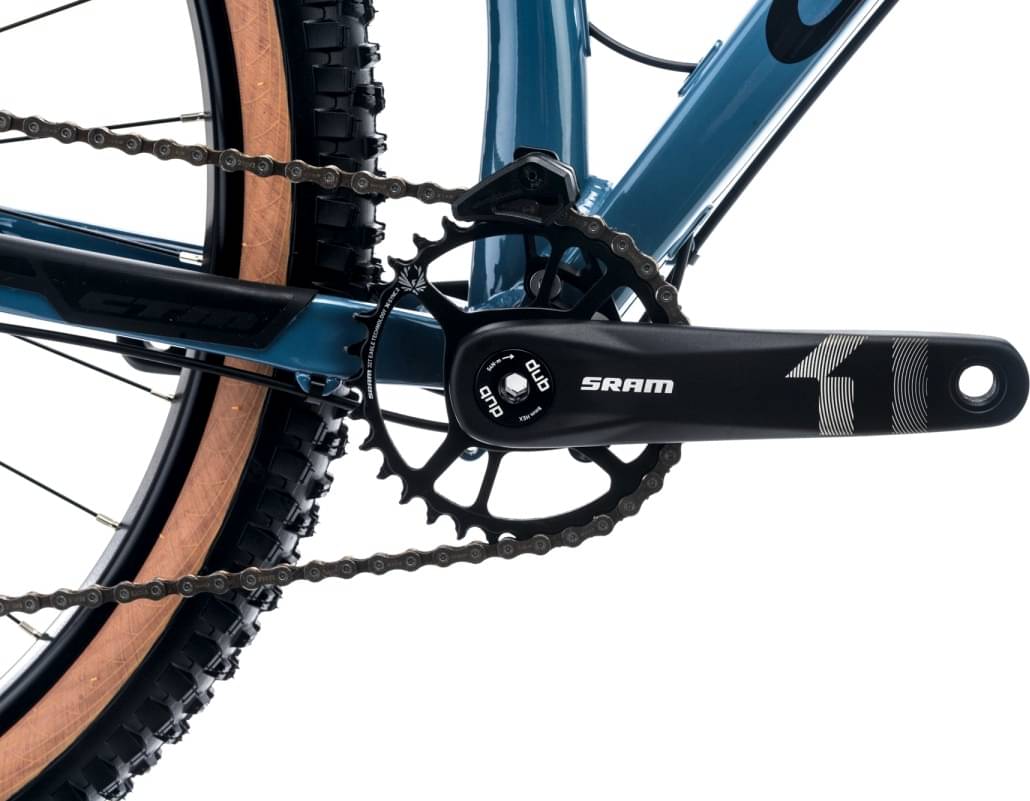

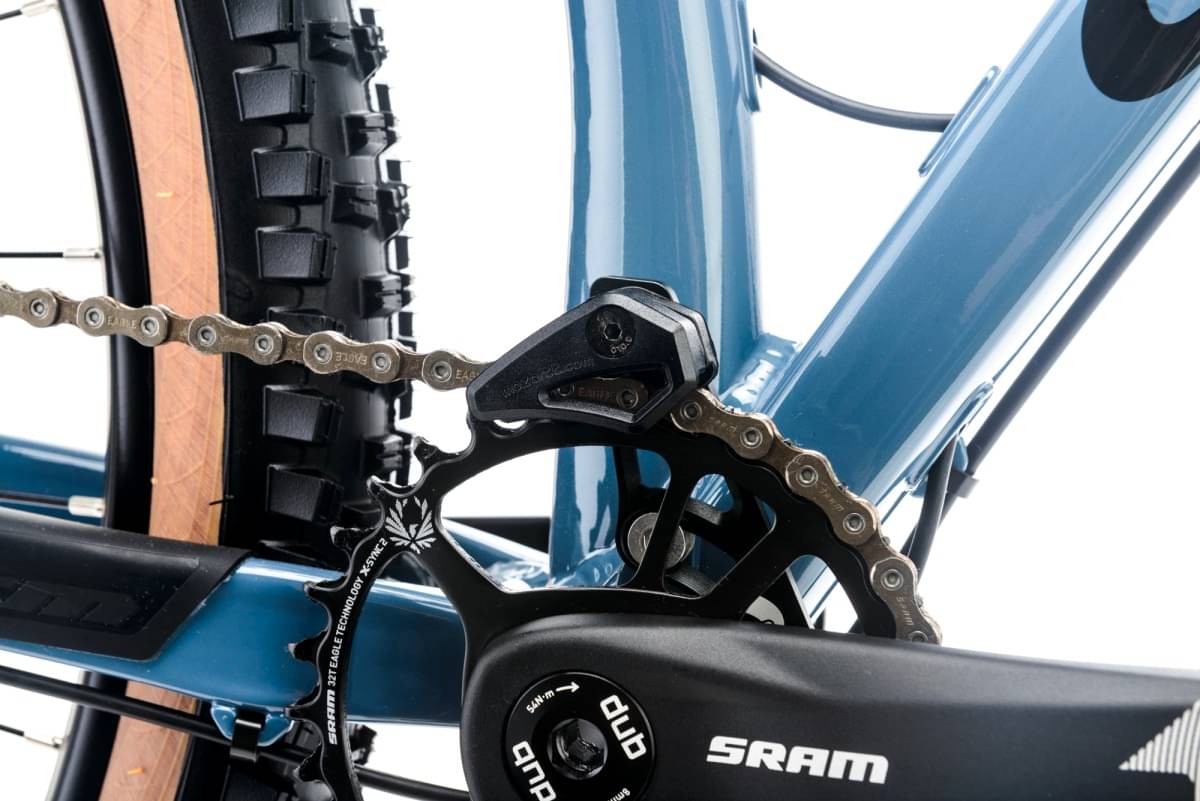

Crank
SRAM FC X1 1000 Eagle, Boost, 32T, 170mm
Chain
SRAM SX EAGLE 12s
Pedals
HT PA12 black
Wheels

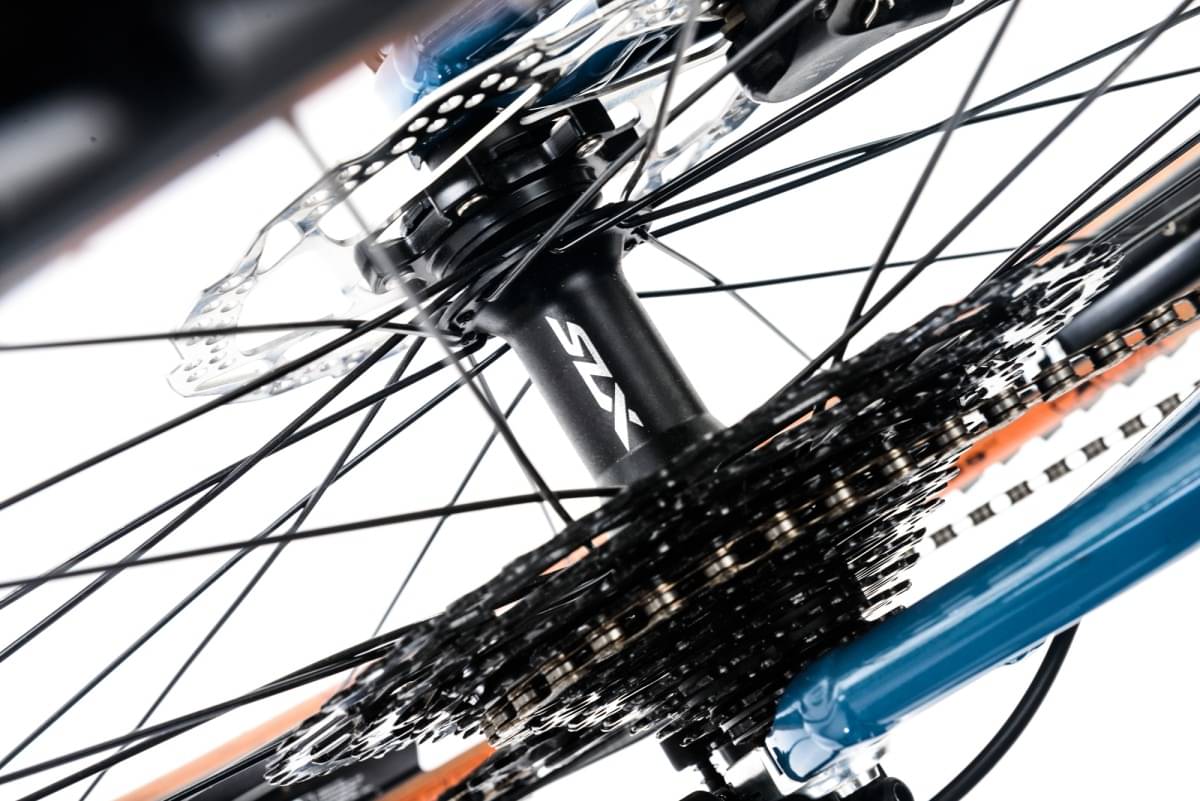

Rear Hub
Shimano MT400 / 32H
Rims
WTB STi29 TCS 2.0 27.5" 32H
Tires
WTB Trail Boss G2 TCS 27.5x2.4 " Comp
Brakes
Brakes
Shimano MT400 / SMRT54 S,M

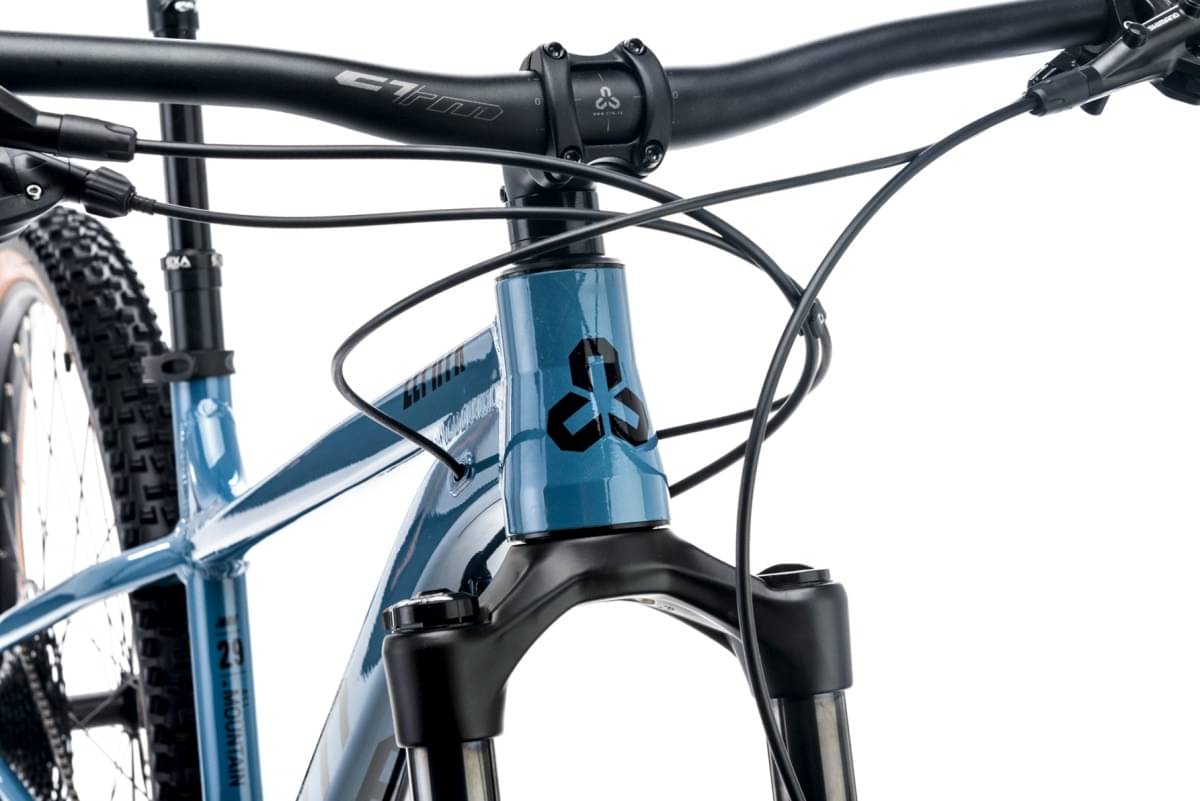

Cockpit

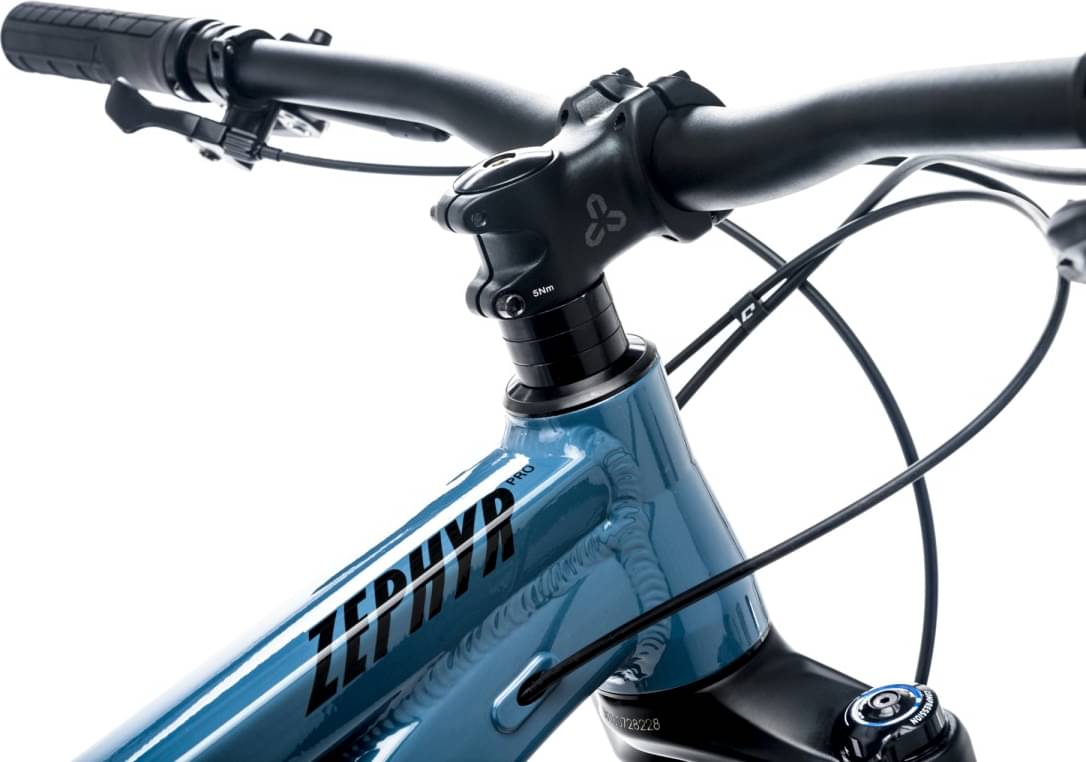

Stem
CTM LCS 50/31.8 mm
Handlebar
CTM HB-RB12,760/31,8 9 deg.rise
Headset
NECO H-383
Seat
Saddle
WTB Volt
Seatpost
EXA Form KSP900 (S-100mm/M-125mm/L,XL-150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.467 mm | 1.398 mm | 1.332 mm |
| Front Center | 689 mm | 713 mm | 740 mm | 767 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 608 mm | 616 mm | 622 mm | 626 mm |
| Reach | 400 mm | 420 mm | 445 mm | 470 mm |
| Top Tube Length | 578 mm | 601 mm | 628 mm | 654 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 400 mm | 430 mm | 475 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1110 mm | 1134 mm | 1161 mm | 1188 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 205 cm |
About this model
ZEPHYR Pro completes the Ctm Zephyr model. 10 bikes variations carry this model name so far. Take a sneak peek at all Ctm Zephyr bikes models from 2023, by clicking here.
Model range prices
The most economical model, the CTM ZEPHYR 2023 has a starting price of 774$. CTM ZEPHYR Pro 2023 on the other hand is the most expensive at 1379$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, CTM ZEPHYR Pro price was 1379$. Comparing this to the average Trail bike price, we see that the price is 100.29% smaller.
Overview of components

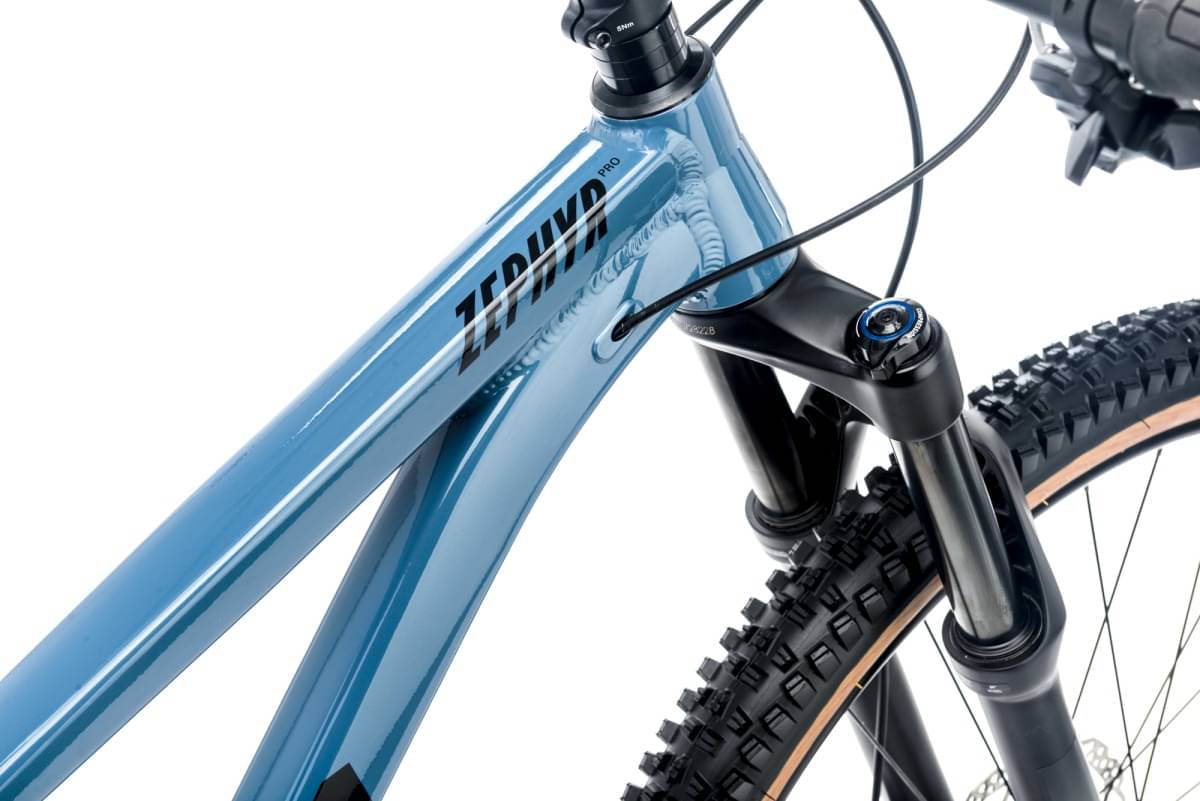

Fork
The ZEPHYR Pro comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the ZEPHYR Pro bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 155 cm – 205 cm (5.09 ft – 6.73 ft). In short, you can easily find one that suits you.

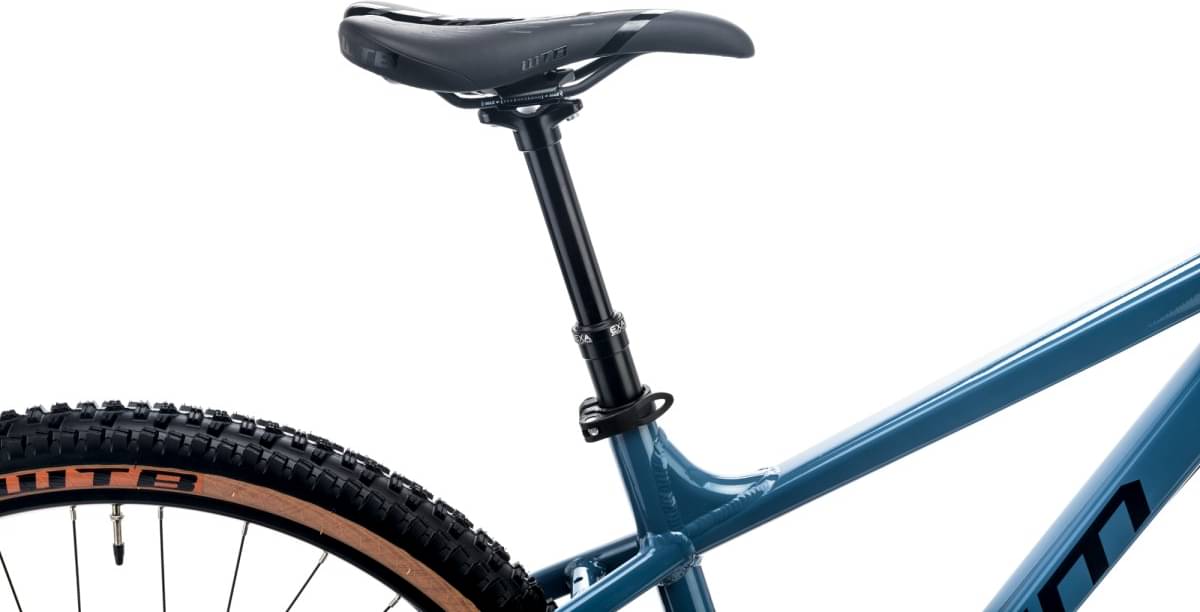

Dropper post
CTM ZEPHYR Pro includes a dropper post. Therefore, climbing or descending will be a breeze.
