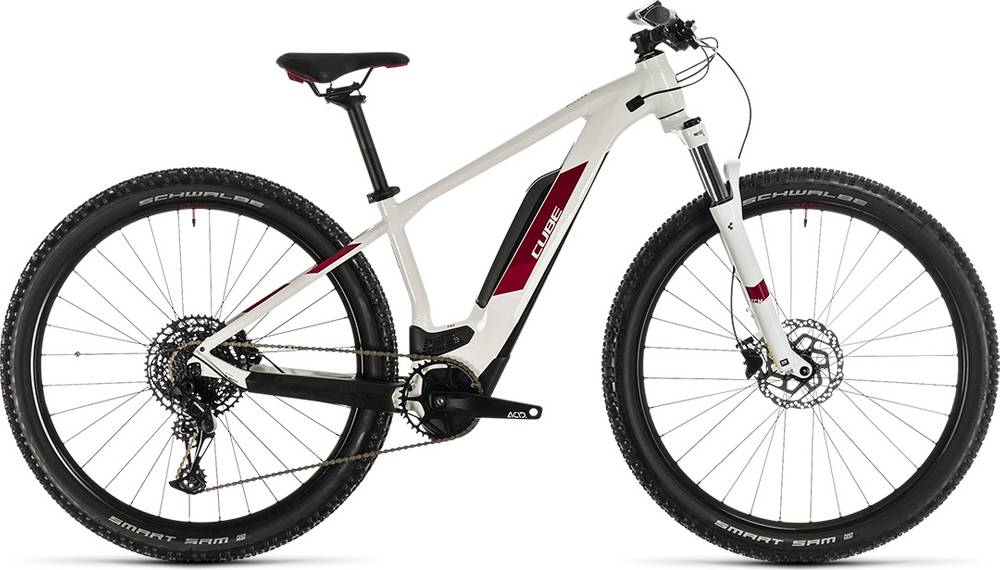

CUBE ACCESS HYBRID PRO 500 29 2020
2020 E-bike
Weight | 22.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Semi-Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
SR Suntour XCM34 Coil, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
SRAM SX Eagle™, 12-Speed
Shift Levers
SRAM SX Eagle™ Trigger, Single Click
Cassette
SRAM PG-1210 Eagle™, 11-50T
Crank
ACID E-Crank, 38T, 170mm
Chain
SRAM SX Eagle™
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit All Terrain
Headset
FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Sequence WS
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" |
|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm |
| Bottom Bracket Height | 309 mm | 309 mm |
| Front Center | 677 mm | 697 mm |
| Rake | 52 mm | 50 mm |
| Trail | 88 mm | 90 mm |
| Stack | 633 mm | 643 mm |
| Reach | 407 mm | 425 mm |
| Top Tube Length | 585 mm | 605 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 405 mm | 450 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1134 mm | 1154 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Wheels | 29" | 29" |
About this model
ACCESS HYBRID PRO 500 29 belongs to the Cube E Access model. CUBE released 57 e-bikes variations of this model so far. You can easily view all of the Cube E Access e-bikes models from 2020, here.
Model range prices
CUBE ACCESS HYBRID ONE 500 2020 is the cheapest e-bike model and costs 2276$. CUBE ACCESS HYBRID SLT 625 29 2020 is the most expensive one and costs 3932$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 22.9 kg (50.49 lbs), CUBE e-bike is slightly lighter than average. In conclusion, the average Crosscountry e-bike weighs 1.35% more than ACCESS HYBRID PRO 500 29.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The ACCESS HYBRID PRO 500 29 comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the ACCESS HYBRID PRO 500 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The ACCESS HYBRID PRO 500 29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
