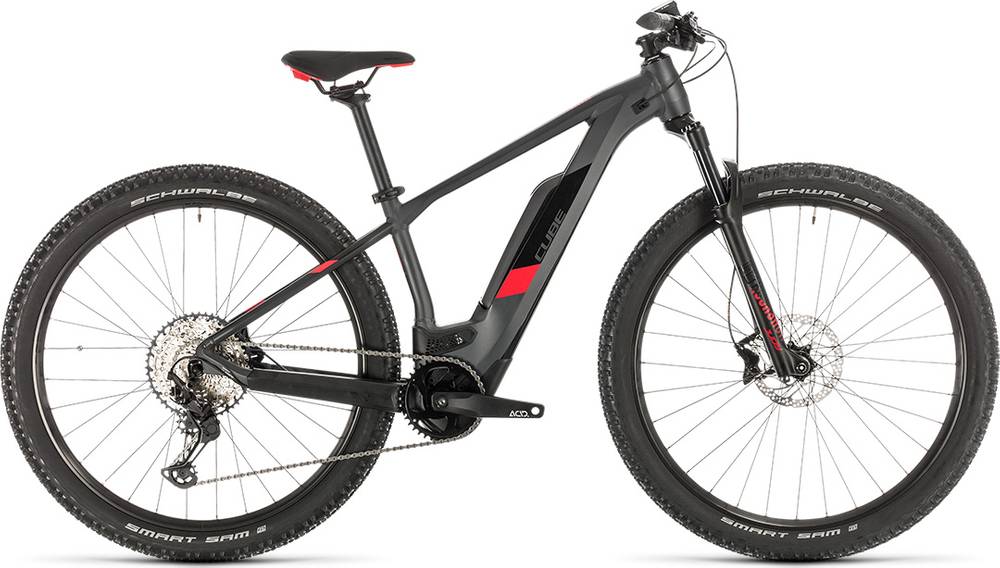

CUBE ACCESS HYBRID RACE 500 2020
2020 E-bike
Estimate price |
3,129$
Weight | 21.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery PowerPack 500 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
RockShox Judy Silver Air, eMTB Approved, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT, 10-51T, 1x12
Shift Levers
Shimano SLX SL-M7100
Cassette
Shimano SLX CS-M7100, 10-51T
Crank
ACID E-Crank, 38T
Chain
Shimano SLX CN-M7100
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT500, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Shimano BR-MT420
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
Natural Fit All Terrain
Headset
FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Sequence WS
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Battery
PowerPack 500
Remote
Purion
Charger
2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 19" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.52 mm | 1.55 mm | 1.51 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 309 mm | 309 mm |
| Front Center | 648 mm | 666 mm | 677 mm | 697 mm |
| Rake | 44 mm | 44 mm | 52 mm | 50 mm |
| Trail | 104 mm | 104 mm | 88 mm | 90 mm |
| Stack | 597 mm | 606 mm | 634 mm | 644 mm |
| Reach | 385 mm | 399 mm | 408 mm | 426 mm |
| Top Tube Length | 551 mm | 566 mm | 586 mm | 606 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 355 mm | 370 mm | 405 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 466 mm | 466 mm |
| Wheelbase | 1091 mm | 1109 mm | 1135 mm | 1155 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 65 mm | 65 mm |
| Standover Height | 723 mm | 734 mm | 771 mm | 804 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
ACCESS HYBRID RACE 500 is part of the Cube E Access model. There are 57 e-bikes that carry this model name. Take a sneak peek at all Cube E Access e-bikes models from 2020, by clicking here.
Model range prices
CUBE ACCESS HYBRID ONE 500 2020 is the most economical model, with a starting price of 2276$. CUBE ACCESS HYBRID SLT 625 29 2020 on the other hand costs 3932$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2897$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that ACCESS HYBRID RACE 500 price is 18.1% more expensive.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
ACCESS HYBRID RACE 500 weighs 21.7 kg (47.84 lbs) and is a bit lighter than the average. In conclusion, the average Crosscountry e-bike weighs 6.96% more than ACCESS HYBRID RACE 500.
ACCESS HYBRID RACE 500 components
Fork
The ACCESS HYBRID RACE 500 comes factory-installed with the RockShox Judy fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the ACCESS HYBRID RACE 500 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The ACCESS HYBRID RACE 500 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
