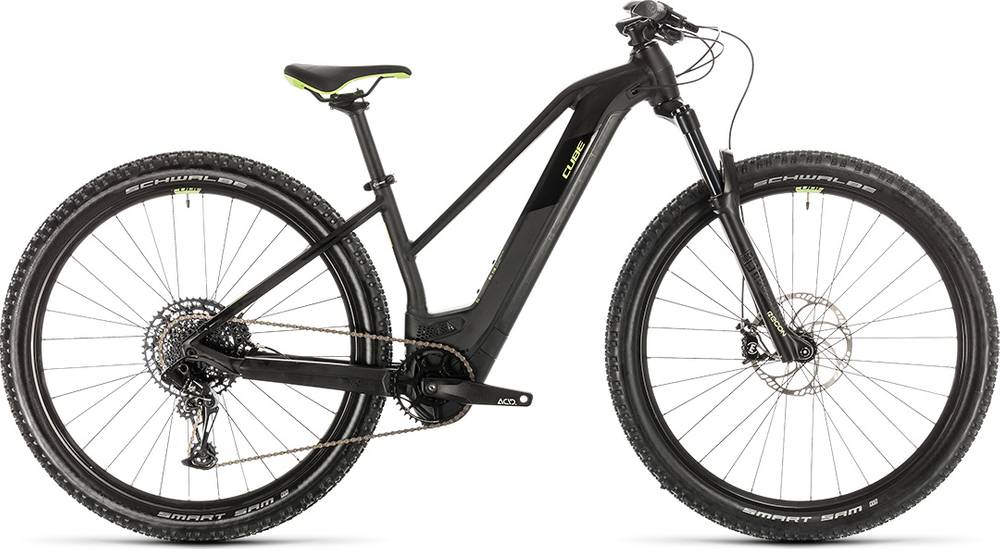

CUBE ACCESS HYBRID SL 625 29 Trapeze 2020
2020 E-bike
Weight | 22.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset NX Eagle -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
RockShox Recon RL Air, Tapered, 15x110mm, eMTB Approved, 120mm
Drivetrain
Rear Derailleur
SRAM NX Eagle™, 12-Speed
Shift Levers
SRAM NX Eagle™ Trigger, Single Click
Cassette
SRAM PG-1210 Eagle™, 11-50T
Crank
ACID E-Crank, 38T, 170mm
Chain
SRAM SX Eagle™
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Magura MT Fifty, Hydr. Disc Brake (203/180)
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
Newmen Evolution 318.10, 720mm
Grips
Natural Fit All Terrain
Headset
FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Sequence+ WS
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 625
Remote
Bosch Kiox
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.58 mm | 1.52 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 694 mm | 694 mm | 714 mm |
| Rake | 50 mm | 51 mm | 51 mm |
| Trail | 101 mm | 96 mm | 96 mm |
| Stack | 620 mm | 627 mm | 631 mm |
| Reach | 395 mm | 397 mm | 416 mm |
| Top Tube Length | 572 mm | 577 mm | 597 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 375 mm | 405 mm | 450 mm |
| Head Tube Angle | 67.5 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1138 mm | 1138 mm | 1158 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
ACCESS HYBRID SL 625 29 Trapeze is part of the Cube E Access model. CUBE launched 57 e-bikes of this model so far. You can easily view all of the Cube E Access e-bikes models from 2020, here.
Model range prices
CUBE ACCESS HYBRID ONE 500 2020 is the cheapest e-bike model and costs 2276$. CUBE ACCESS HYBRID SLT 625 29 2020 is the most expensive one and costs 3932$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 22.9 kg (50.49 lbs), the ACCESS HYBRID SL 625 29 Trapeze model is slightly lighter than average. In other words, this model is 3.49% lighter than the average Trail e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
CUBE ACCESS HYBRID SL 625 29 Trapeze 2020 e-bike is equipped with the RockShox Recon Silver RL fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The ACCESS HYBRID SL 625 29 Trapeze 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ACCESS HYBRID SL 625 29 Trapeze comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
