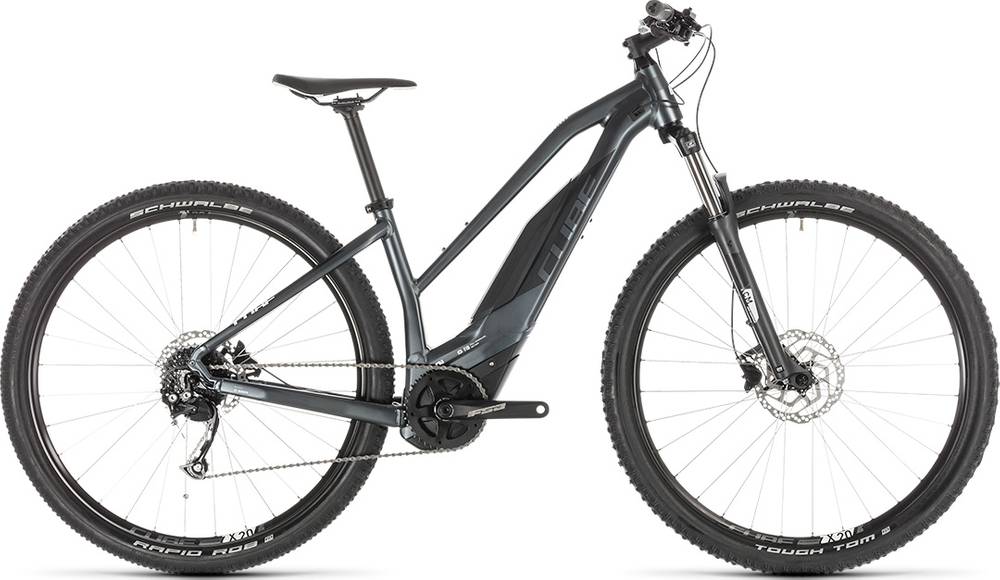

CUBE ACID HYBRID ONE 400 29 Trapeze 2019
2019 E-bike
Estimate price |
2,063$
Weight | 21.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Shimano, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Advanced Hydroforming, Agile Ride Geometry, Double Butted, Tapered Headtube, Internal Cable Routing, Full Integrated Battery
Suspension Fork
SR Suntour XCM ATB Coil, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M2000-SGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA CK-602, 38T, 175mm
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm | 1.54 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 647 mm | 663 mm | 684 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 619 mm | 626 mm | 636 mm |
| Reach | 382 mm | 395 mm | 412 mm |
| Top Tube Length | 564 mm | 579 mm | 599 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 112 mm | 123 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1113 mm | 1129 mm | 1150 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
About this model
ACID HYBRID ONE 400 29 Trapeze belongs to the Cube E Acid model. 31 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
CUBE ACID HYBRID ONE 400 29 2019 is the cheapest e-bike model and costs 1910$. CUBE ACID HYBRID Pro 500 29 2019 is the most expensive one and costs 2547$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When CUBE released this model in 2019, its price was 1910$. Doing a quick comparison, we notice that ACID HYBRID ONE 400 29 Trapeze price is 28.43% smaller than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 21.5 kg (47.4 lbs), CUBE e-bike is a bit lighter than average. To sum up, it’s 7.95% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
ACID HYBRID ONE 400 29 Trapeze components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on ACID HYBRID ONE 400 29 Trapeze are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The ACID HYBRID ONE 400 29 Trapeze has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
