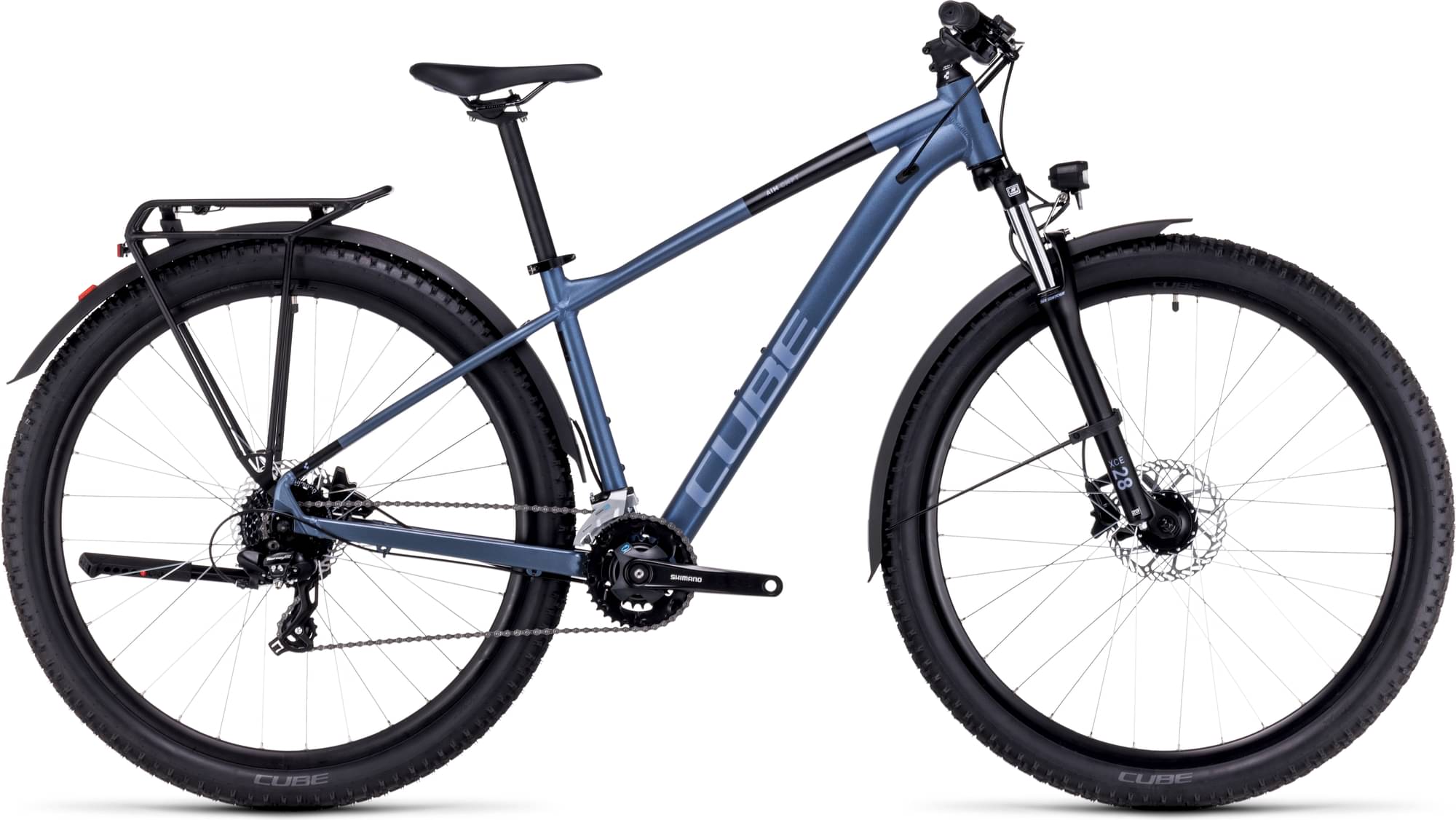

CUBE AIM, ALLROAD 2023
2023 Road
Estimate price |
813$
Weight | 17.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Fork Suntour XCE -
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

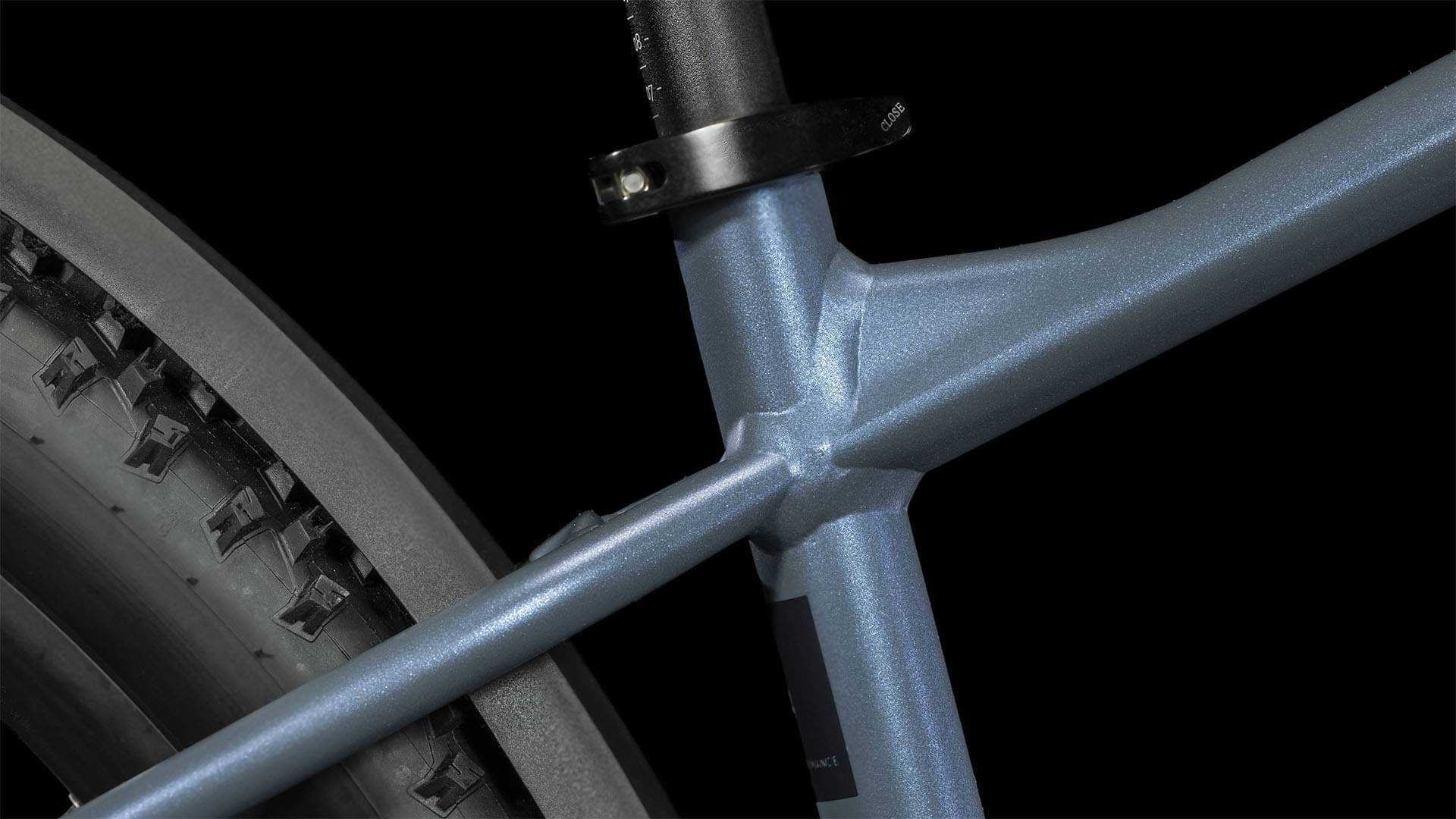

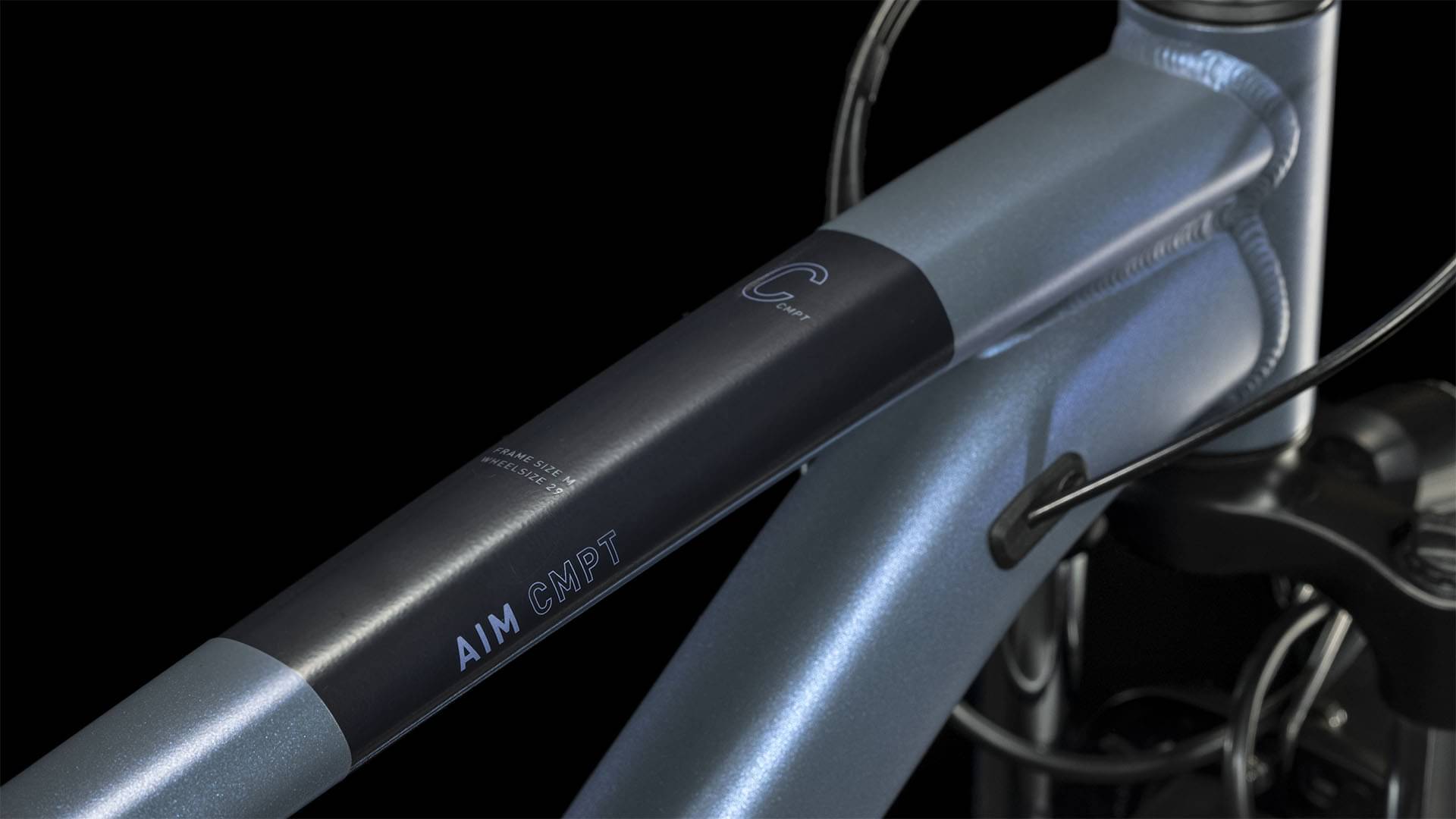

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Suspension Fork
SR Suntour XCE, 100mm
Drivetrain
Rear Derailleur
Shimano RD-TX800, 8-Speed
Front Derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG200, 12-32T
Crank
Shimano FC-M315, 36x22T, 170mm
Bottom Bracket
Feimin FP-B902N, 73mm BSA
Chain
KMC Z8.3
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-3D32, Hub Dynamo, QR
Rear Hub
CUBE Alloy Light, QR, 6-Bolt
Rims
CUBE ZX20, 32H, Disc
Tires
CUBE IMPAC Smartpac, 2.25
Brakes
Brakes
Clarks Clout 1, Hydr. Disc Brake PM/FM (160/160)
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID React
Headset
CUBE FPH863, Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.55 mm | 1.51 mm | 1.5 mm |
| Front Center | 632 mm | 660 mm | 684 mm | 705 mm | 722 mm |
| Rake | 30 mm | 42 mm | 47 mm | 47 mm | 42 mm |
| Trail | 93 mm | 80 mm | 82 mm | 82 mm | 87 mm |
| Stack | 586 mm | 589 mm | 618 mm | 628 mm | 647 mm |
| Reach | 375 mm | 389 mm | 400 mm | 417 mm | 432 mm |
| Top Tube Length | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 470 mm | 515 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 107 mm | 110 mm | 110 mm | 121 mm | 141 mm |
| Chainstay Length | 432 mm | 432 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1059 mm | 1087 mm | 1128 mm | 1149 mm | 1166 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
AIM, ALLROAD belongs to the Cube Aim model. CUBE released 58 bikes variations of this model so far. Take a sneak peek at all Cube Aim bikes models from 2023, by clicking here.
Model range prices
CUBE AIM 2023 is the most economical model, with a starting price of 636$. CUBE AIM, SLX ALLROAD 2023 on the other hand costs 955$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Road bikes
According to our math, the average price for a trustworthy General Road bike is 1915$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, CUBE AIM, ALLROAD price was 742$. Comparing the average cost of a General Road bike to this one, you will see that AIM, ALLROAD price is 158.09% lower.
General Road bikes average weight
The average weight for General Road bikes is 7.68 kg (16.93 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, AIM, ALLROAD has a weight of 17.1 kg (37.7 lbs). In other words, this model is 122.66% heavier than the average General Road bike.

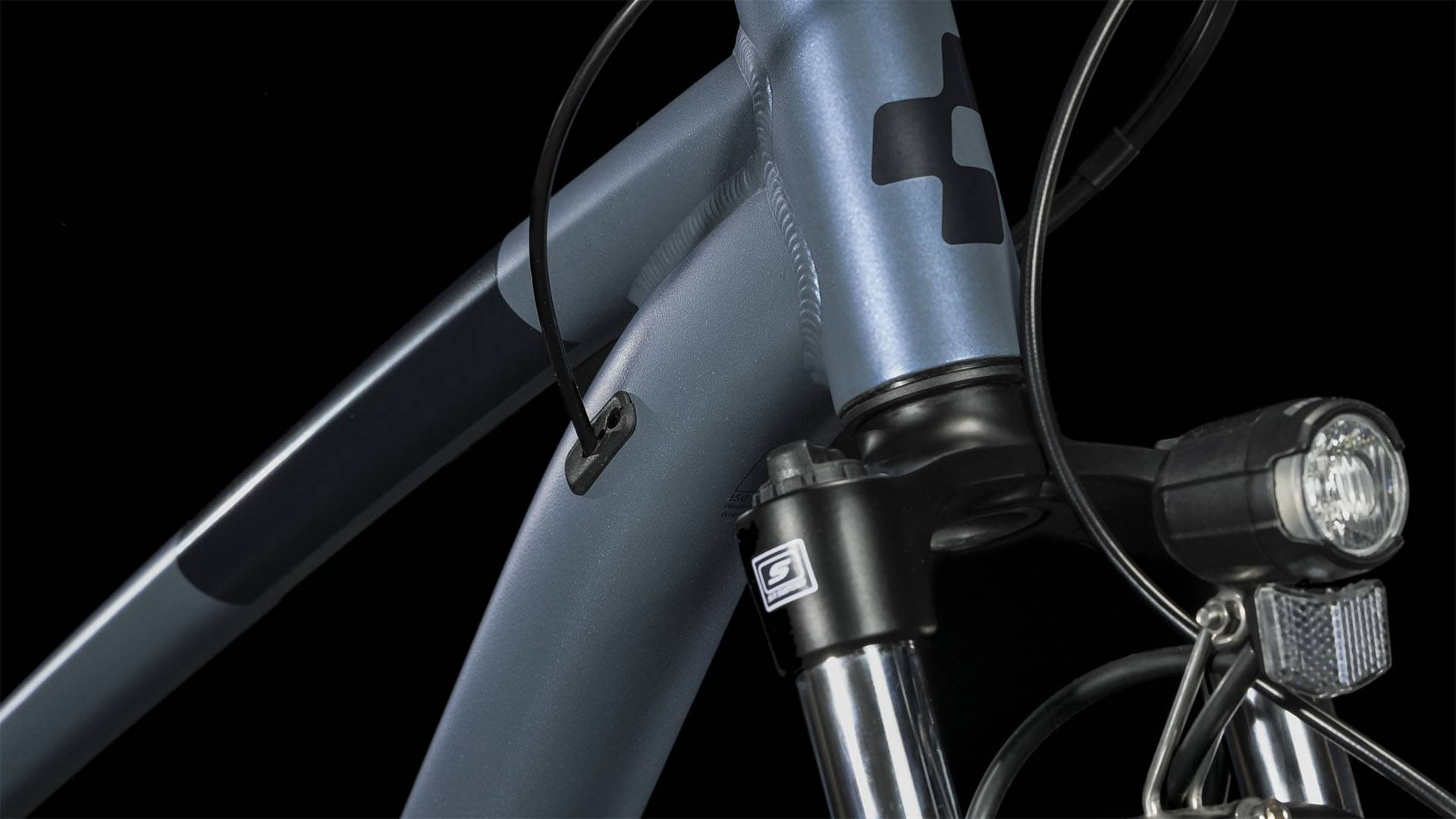

Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
AIM, ALLROAD components
Fork
The Suntour XCE is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the AIM, ALLROAD model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE AIM, ALLROAD has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
