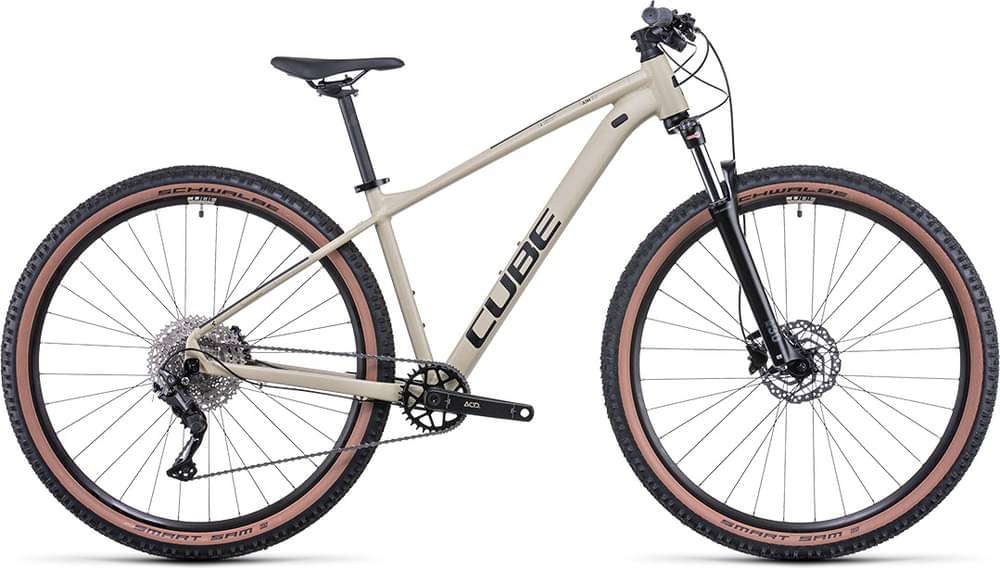

CUBE AIM EX 2022
2022 Mountain
Estimate price |
744$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Suspension Fork
SR Suntour XCM Disc, 100mm, Remote Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M4100, Rapidfire-Plus
Cassette
Sunrace CSM52, 11-46T
Crank
ACID MTB Alloy 32T
Chain
KMC X10
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Brakes
Brakes
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID React
Headset
CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.54 mm | 1.51 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 646 mm | 660 mm | 683 mm | 704 mm | 726 mm | 747 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 95 mm | 95 mm | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 586 mm | 588.6 mm | 618.3 mm | 628.4 mm | 647 mm | 660.9 mm |
| Reach | 375.4 mm | 389 mm | 400.2 mm | 417.2 mm | 431.7 mm | 447.6 mm |
| Top Tube Length | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 470 mm | 515 mm | 560 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 108.2 mm | 111 mm | 111 mm | 121.8 mm | 141.8 mm | 156.8 mm |
| Chainstay Length | 418 mm | 418 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1058 mm | 1073 mm | 1116 mm | 1137 mm | 1159 mm | 1180 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 698 mm | 711 mm | 750 mm | 783 mm | 815 mm | 849 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
AIM EX completes the Cube Aim model. CUBE released 58 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CUBE AIM 2022 is the most economical model, with a starting price of 530$. CUBE AIM, SLX ALLROAD 2022 on the other hand costs 955$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 689$. Doing a quick comparison, we notice that AIM EX price is 176.49% lower than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
AIM EX weighs 13.9 kg (30.64 lbs) and is considerably heavier than the average. In conclusion, the average Crosscountry bike weighs 12.1% less than AIM EX.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the AIM EX bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The AIM EX has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
