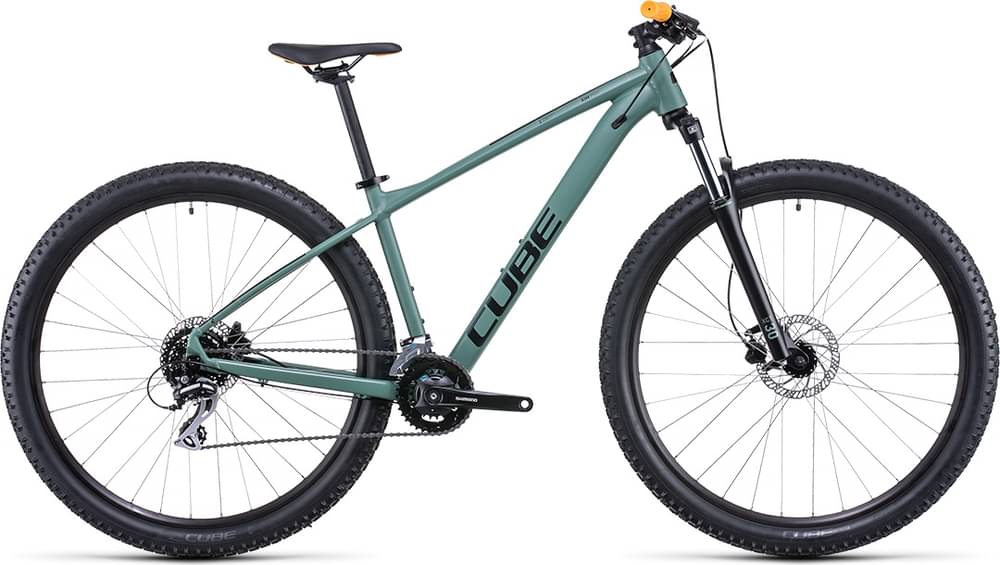

CUBE AIM PRO 2022
2022 Mountain
Estimate price |
630$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Suspension Fork
SR Suntour XCT, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M360, 8-Speed
Front Derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG31, 11-34T
Crank
Shimano FC-M315, 36x22T
Chain
KMC Z8.3
Pedals
CUBE PP MTB
Wheels
Front Hub
CUBE Alloy Light, QR, 6-Bolt
Rear Hub
CUBE Alloy Light, QR, 6-Bolt
Rims
CUBE ZX20, 32H, Disc
Tires
CUBE IMPAC Smartpac, 2.25
Brakes
Brakes
Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID React
Headset
CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.54 mm | 1.51 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 646 mm | 660 mm | 683 mm | 704 mm | 726 mm | 747 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 95 mm | 95 mm | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 586 mm | 588.6 mm | 618.3 mm | 628.4 mm | 647 mm | 660.9 mm |
| Reach | 375.4 mm | 389 mm | 400.2 mm | 417.2 mm | 431.7 mm | 447.6 mm |
| Top Tube Length | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 470 mm | 515 mm | 560 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 108.2 mm | 111 mm | 111 mm | 121.8 mm | 141.8 mm | 156.8 mm |
| Chainstay Length | 418 mm | 418 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1058 mm | 1073 mm | 1116 mm | 1137 mm | 1159 mm | 1180 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 698 mm | 711 mm | 750 mm | 783 mm | 815 mm | 849 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
AIM PRO belongs to the Cube Aim model. CUBE released 58 bikes variations of this model so far. You can easily view all of the Cube Aim bikes models from 2022, here.
Model range prices
CUBE AIM 2022 is the cheapest bike model and costs 530$. CUBE AIM, SLX ALLROAD 2022 is the most expensive one and costs 955$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 583$. Comparing the average cost of a Crosscountry bike to this one, you will see that AIM PRO price is 226.76% lower.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, AIM PRO has a weight of 14.6 kg (32.19 lbs). In other words, this model is 17.74% heavier than the average Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
CUBE AIM PRO 2022 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the AIM PRO bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The AIM PRO has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
CUBE AIM PRO bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
