CUBE AIM, RACE 2023
2023 Mountain
Estimate price |
779$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Suspension Fork
SR Suntour XCT Disc, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano RD-M3020, 8-Speed
Front Derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG31, 11-34T
Crank
Shimano FC-M315, 36x22T, 170mm
Bottom Bracket
Thun Paso-ML, 73mm BSA
Chain
KMC Z8.3
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Brakes
Brakes
Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)
Cockpit
Stem
CUBE Peformance Stem Race, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID React
Headset
CUBE FPH868, Semi-Integrated
Seat
Saddle

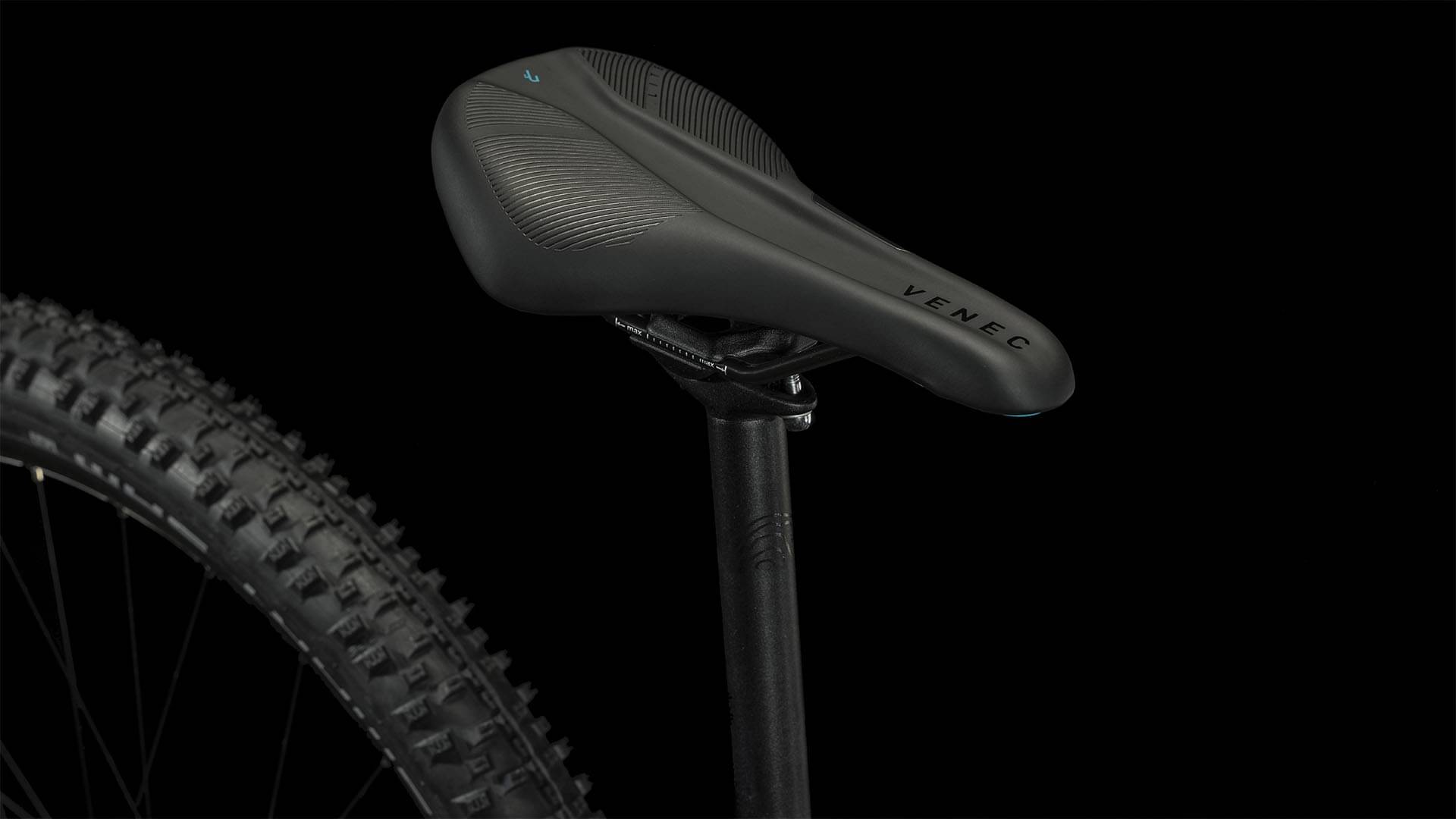

Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.55 mm | 1.51 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 646 mm | 660 mm | 683 mm | 704 mm | 726 mm | 748 mm |
| Rake | 43 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 94 mm | 95 mm | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 586 mm | 589 mm | 618 mm | 628 mm | 647 mm | 661 mm |
| Reach | 375 mm | 389 mm | 400 mm | 417 mm | 432 mm | 448 mm |
| Top Tube Length | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 470 mm | 515 mm | 560 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 108 mm | 111 mm | 111 mm | 122 mm | 142 mm | 157 mm |
| Chainstay Length | 418 mm | 418 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1059 mm | 1073 mm | 1116 mm | 1137 mm | 1159 mm | 1181 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
AIM, RACE is a Cube Aim model. There are 58 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CUBE AIM 2023 is the cheapest bike model and costs 636$. CUBE AIM, SLX ALLROAD 2023 is the most expensive one and costs 955$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 721$. If we compare this with the average Crosscountry bike cost we notice that the price is 164.22% smaller.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.31 kg (27.14 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 14.3 kg (31.53 lbs), the AIM, RACE model is much heavier than average. To sum up, it’s 16.17% heavier than the average weight of Crosscountry bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork

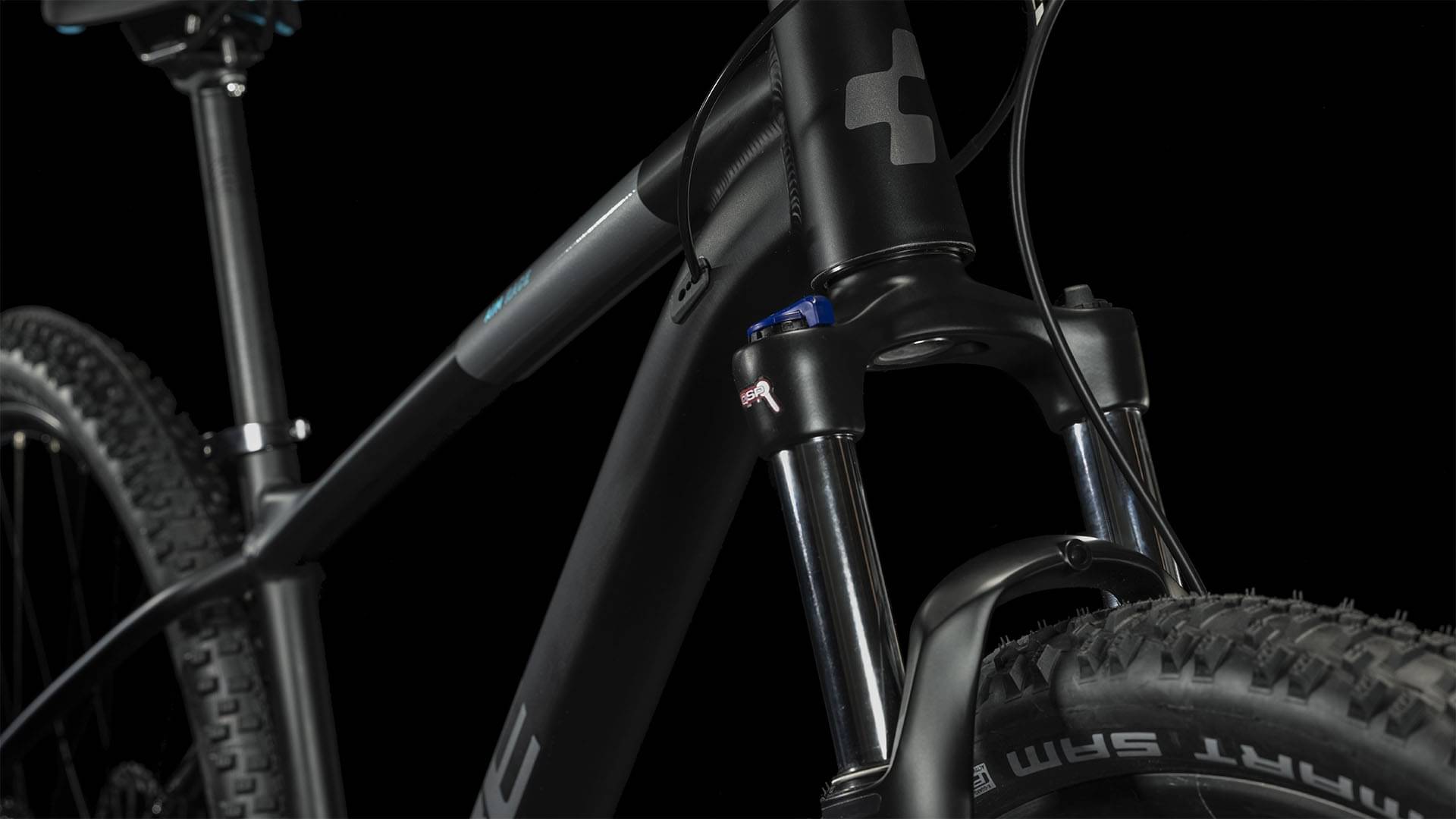

CUBE AIM, RACE 2023 bike is equipped with the Suntour XCT fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on AIM, RACE are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE AIM, RACE has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
AIM, RACE comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
