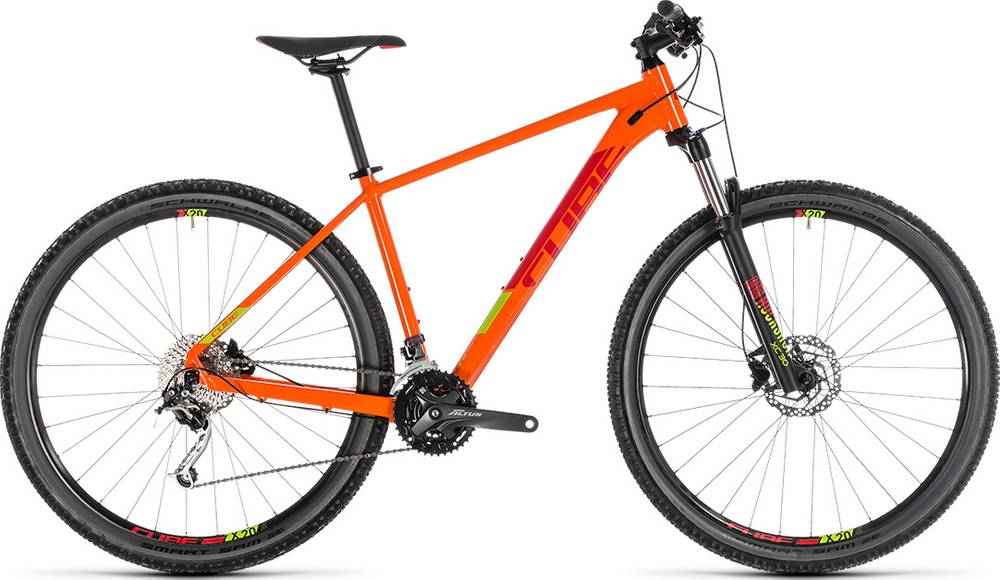

CUBE ANALOG 2019
2019 Mountain
Estimate price |
802$
Weight | 14.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset XT, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Suspension Fork
RockShox XC 30 TK Coil, 100mm, Remote Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M772, Shadow, 9-Speed
Front Derailleur
Shimano FD-M4000, Downswing, 31.8mm Clamp
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG400, 12-36T
Crank
Shimano FC-M2000, 40x30x22T, 175mm
Chain
Shimano CN-HG53
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 18" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.55 mm | 1.58 mm | 1.53 mm | 1.55 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 304 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 630 mm | 641 mm | 663 mm | 666 mm | 684 mm | 704 mm | 726 mm |
| Rake | 42 mm | 42 mm | 51 mm | 42 mm | 52 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 89 mm | 91 mm | 88 mm | 89 mm | 89 mm |
| Stack | 601 mm | 604 mm | 629 mm | 623 mm | 639 mm | 648 mm | 663 mm |
| Reach | 380 mm | 390 mm | 397 mm | 408 mm | 413 mm | 431 mm | 447 mm |
| Top Tube Length | 551 mm | 567 mm | 581 mm | 591 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 450 mm | 470 mm | 515 mm | 565 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 106 mm | 109 mm | 109 mm | 129 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 433 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1058 mm | 1069 mm | 1111 mm | 1094 mm | 1132 mm | 1152 mm | 1174 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 51 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" | 29" |
About this model
ANALOG is part of the Cube Analog model. There are 12 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
CUBE ANALOG 2019 is the most affordable bike of this model and has a price of 742$. On the other hand, CUBE ANALOG “DIE MANNSCHAFT” DFB Edition 2019, is the most expensive and costs 742$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When CUBE released this model in 2019, its price was 742$. If we compare this with the average Crosscountry bike cost we notice that the price is 156.74% smaller.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE ANALOG it’s weighing 14.1 kg (31.09 lbs). At this weight, is considerably heavier than average. In conclusion, the average Crosscountry bike weighs 13.71% less than ANALOG.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
ANALOG components
Fork
This bike has the RockShox 30 Silver TK fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The ANALOG 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ANALOG comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
