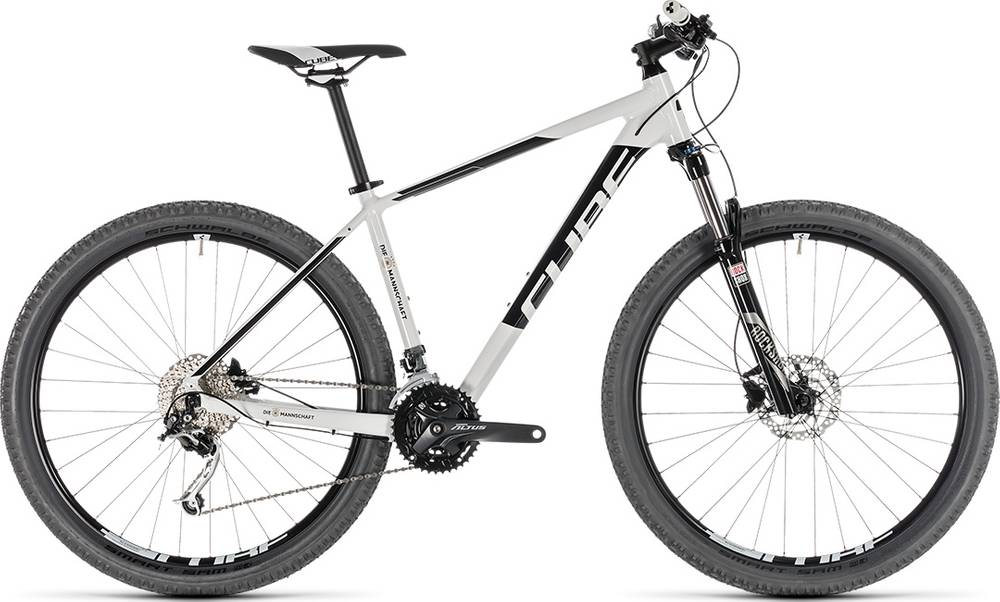

CUBE ANALOG “DIE MANNSCHAFT” DFB Edition 2019
2019 Mountain
Estimate price |
802$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset XT, Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Suspension Fork
RockShox XC 30 TK Coil, 100mm, Remote Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M772, Shadow, 9-Speed
Front Derailleur
Shimano FD-M4000, Downswing, 31.8mm Clamp
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG400, 12-36T
Crank
Shimano FC-M2000, 40x30x22T, 175mm
Chain
Shimano CN-HG53
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 18" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.55 mm | 1.58 mm | 1.53 mm | 1.55 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 304 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 630 mm | 641 mm | 663 mm | 666 mm | 684 mm | 704 mm | 726 mm |
| Rake | 42 mm | 42 mm | 51 mm | 42 mm | 52 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 89 mm | 91 mm | 88 mm | 89 mm | 89 mm |
| Stack | 601 mm | 604 mm | 629 mm | 623 mm | 639 mm | 648 mm | 663 mm |
| Reach | 380 mm | 390 mm | 397 mm | 408 mm | 413 mm | 431 mm | 447 mm |
| Top Tube Length | 551 mm | 567 mm | 581 mm | 591 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 450 mm | 470 mm | 515 mm | 565 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 106 mm | 109 mm | 109 mm | 129 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 433 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1058 mm | 1069 mm | 1111 mm | 1094 mm | 1132 mm | 1152 mm | 1174 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 51 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" | 29" |
About this model
ANALOG “DIE MANNSCHAFT” DFB Edition belongs to the Cube Analog model. CUBE released 12 bikes variations of this model so far. Take a sneak peek at all Cube Analog bikes models from 2019, by clicking here.
Model range prices
CUBE ANALOG 2019 is the most economical model, with a starting price of 742$. CUBE ANALOG “DIE MANNSCHAFT” DFB Edition 2019 on the other hand costs 742$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 742$. Doing a quick comparison, we notice that ANALOG “DIE MANNSCHAFT” DFB Edition price is 156.74% lower than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
CUBE ANALOG “DIE MANNSCHAFT” DFB Edition it’s weighing 13.9 kg (30.64 lbs). At this weight, is considerably heavier than average. In short, the average Crosscountry bike weight is 12.1% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the RockShox 30 Silver TK model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The ANALOG “DIE MANNSCHAFT” DFB Edition 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
