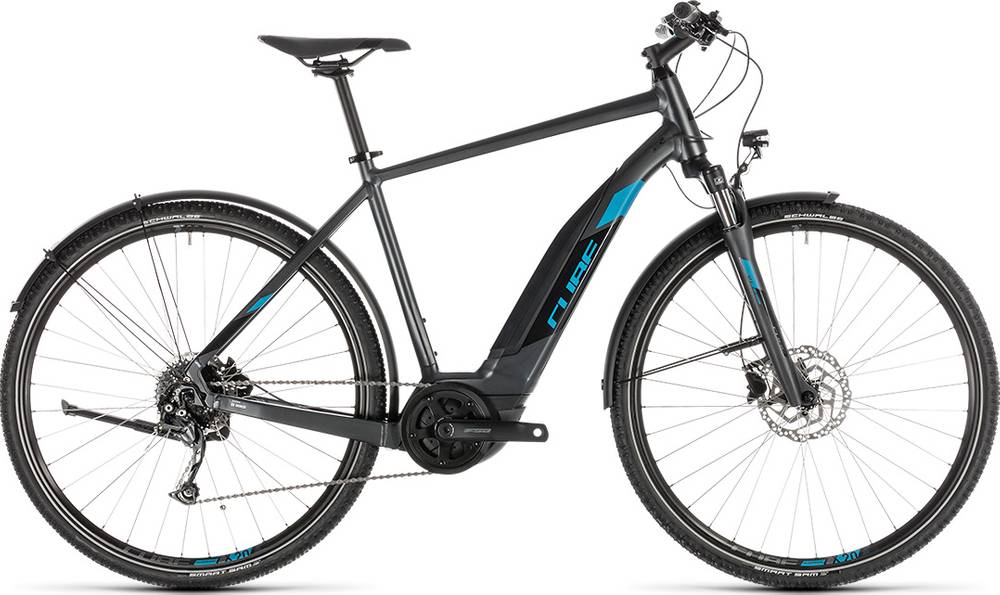

CUBE CROSS HYBRID ONE 400 Allroad 2019
2019 E-bike
Estimate price |
2,178$
Weight | 21.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort, Full Integrated Battery, Double Butted
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M4000-SGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA Metropolis Comfort, 38T, 165mm
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 36H, Disc
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-1-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.58 mm | 1.6 mm | 1.63 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 649 mm | 655 mm | 667 mm | 679 mm |
| Rake | 67 mm | 41 mm | 42 mm | 43 mm |
| Trail | 54 mm | 79 mm | 78 mm | 77 mm |
| Stack | 603 mm | 624 mm | 642 mm | 661 mm |
| Reach | 364 mm | 396 mm | 401 mm | 406 mm |
| Top Tube Length | 577 mm | 588 mm | 599 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1107 mm | 1113 mm | 1125 mm | 1138 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
CROSS HYBRID ONE 400 Allroad completes the Cube E Cross model. There are 67 e-bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
CUBE CROSS HYBRID ONE 400 2019 is the most affordable e-bike of this model and has a price of 1910$. On the other hand, CUBE CROSS HYBRID SL 500 Allroad Trapeze 2019, is the most expensive and costs 3503$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Touring e-bikes average price
According to our math, the average price for a trustworthy Touring e-bike is 2429$. However, even though the average price of a Touring e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 2016$. If we compare this with the average Touring e-bike cost we notice that the price is 20.49% lower.
Average weight for Touring e-bikes
On a deeper look, we notice that the average weight of a Touring e-bike is 25.55 kg (56.33 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, CROSS HYBRID ONE 400 Allroad has a weight of 21.7 kg (47.84 lbs). To sum up, it’s 17.74% lighter than the average weight of Touring e-bikes.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on CROSS HYBRID ONE 400 Allroad are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSS HYBRID ONE 400 Allroad has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
