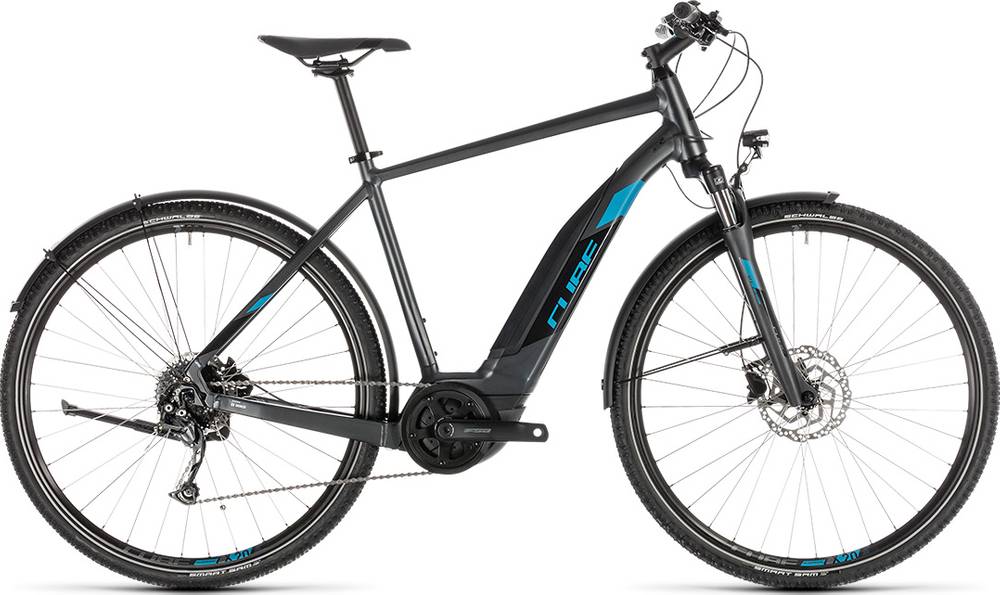

CUBE CROSS HYBRID ONE 500 Allroad 2019
2019 E-bike
Estimate price |
2,407$
Weight | 21.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort, Full Integrated Battery, Double Butted
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M4000-SGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA Metropolis Comfort, 38T, 165mm
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 36H, Disc
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-1-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.58 mm | 1.6 mm | 1.63 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 649 mm | 655 mm | 667 mm | 679 mm |
| Rake | 67 mm | 41 mm | 42 mm | 43 mm |
| Trail | 54 mm | 79 mm | 78 mm | 77 mm |
| Stack | 603 mm | 624 mm | 642 mm | 661 mm |
| Reach | 364 mm | 396 mm | 401 mm | 406 mm |
| Top Tube Length | 577 mm | 588 mm | 599 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1107 mm | 1113 mm | 1125 mm | 1138 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
CROSS HYBRID ONE 500 Allroad is part of the Cube E Cross model. There are 67 e-bikes that carry this model name. You can easily view all of the Cube E Cross e-bikes models from 2019, here.
Model range prices
The most economical model, the CUBE CROSS HYBRID ONE 400 2019 has a starting price of 1910$. CUBE CROSS HYBRID SL 500 Allroad Trapeze 2019 on the other hand is the most expensive at 3503$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Touring e-bikes average price
If you want an acceptable Touring e-bike you should know that the average price is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, CUBE CROSS HYBRID ONE 500 Allroad price was 2229$. In conclusion, this e-bike price is 8.97% lower than the price of the average Touring e-bike.
Average weight for Touring e-bikes
Touring e-bikes have an average weight of 25.55 kg (56.33 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 21.7 kg (47.84 lbs), the CROSS HYBRID ONE 500 Allroad model is much lighter than average. In other words, this model is 17.74% lighter than the average Touring e-bike.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on CROSS HYBRID ONE 500 Allroad are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE CROSS HYBRID ONE 500 Allroad has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
