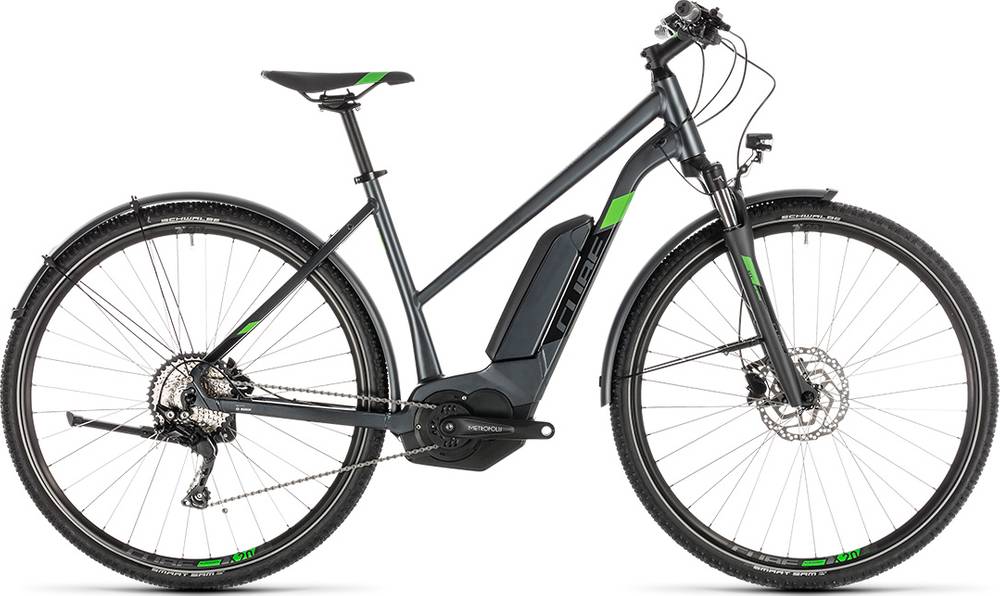

CUBE CROSS HYBRID Pro 400 Allroad Trapeze 2019
2019 E-bike
Estimate price |
2,522$
Weight | 22.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort, Gravity Casting Bracket, Double Butted, Semi-Integrated Battery
Suspension Fork
SR Suntour NEX-E25 HLO, 63mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-GS, 10-Speed
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
FSA Metropolis Urban AL-8, 15T, 175mm
Chain
KMC X10-73
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 36H, Disc
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit Z-t-R ECO, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/2"
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.68 mm |
| Front Center | 637 mm | 644 mm | 651 mm |
| Rake | 42 mm | 42 mm | 47 mm |
| Trail | 86 mm | 82 mm | 70 mm |
| Stack | 631 mm | 633 mm | 668 mm |
| Reach | 384 mm | 396 mm | 397 mm |
| Top Tube Length | 575 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1106 mm | 1113 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
CROSS HYBRID Pro 400 Allroad Trapeze is a Cube E Cross model. There are 67 e-bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
CUBE CROSS HYBRID ONE 400 2019 is the cheapest e-bike model and costs 1910$. CUBE CROSS HYBRID SL 500 Allroad Trapeze 2019 is the most expensive one and costs 3503$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 2335$. If we compare this with the average Hybrid e-bike cost we notice that the price is 6.21% lower.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CROSS HYBRID Pro 400 Allroad Trapeze weighs 22.3 kg (49.16 lbs) and is a bit lighter than the average. In other words, this model is 6.68% lighter than the average Hybrid e-bike.
Overview of components
Fork
The CROSS HYBRID Pro 400 Allroad Trapeze comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the CROSS HYBRID Pro 400 Allroad Trapeze model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSS HYBRID Pro 400 Allroad Trapeze has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
