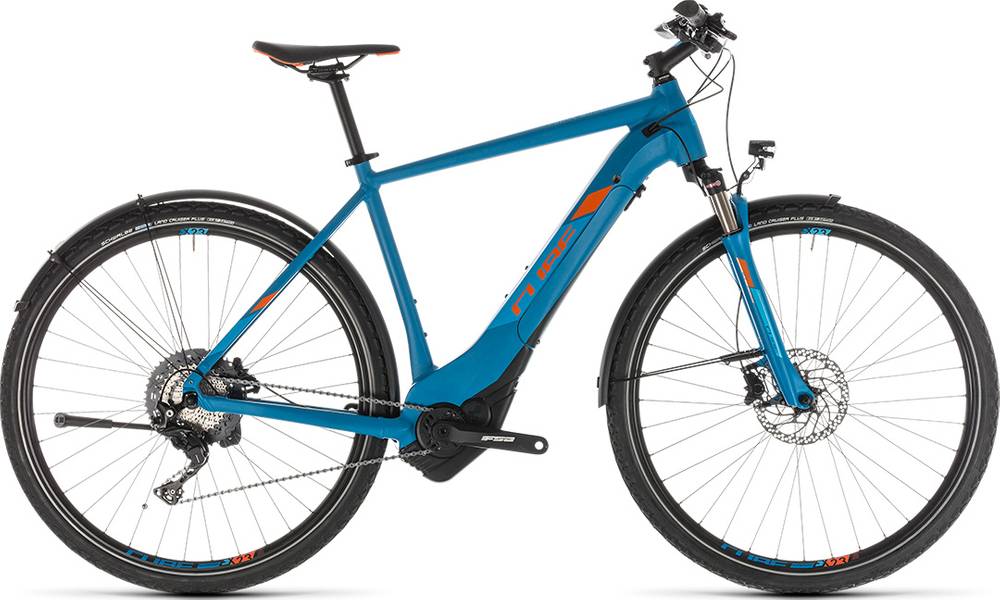

CUBE CROSS HYBRID Race 500 Allroad 2019
2019 E-bike
Estimate price |
3,210$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NCX -
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Comfort, Tapered Headtube, Internal Cable Routing, Full Integrated Battery
Suspension Fork
SR Suntour NCX D LO Air, 63mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 16T, 175mm
Chain
KMC X11e
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Deore FH-M6000, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Land Cruiser, Active, 47-622
Brakes
Brakes
Shimano BR-MT400, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit GRIP All Terrain
Headset
FSA Orbit 1.5E ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.58 mm | 1.6 mm | 1.63 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 649 mm | 655 mm | 667 mm | 679 mm |
| Rake | 42 mm | 37 mm | 37 mm | 42 mm |
| Trail | 81 mm | 83 mm | 83 mm | 78 mm |
| Stack | 603 mm | 630 mm | 647 mm | 661 mm |
| Reach | 391 mm | 398 mm | 404 mm | 406 mm |
| Top Tube Length | 577 mm | 588 mm | 599 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1097 mm | 1103 mm | 1115 mm | 1127 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
CROSS HYBRID Race 500 Allroad completes the Cube E Cross model. There are 67 e-bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
CUBE CROSS HYBRID ONE 400 2019 is the most economical model, with a starting price of 1910$. CUBE CROSS HYBRID SL 500 Allroad Trapeze 2019 on the other hand costs 3503$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Touring e-bikes
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2972$. Comparing the average cost of a Touring e-bike to this one, you will see that CROSS HYBRID Race 500 Allroad price is 22.35% more expensive.
Average weight for Touring e-bikes
Touring e-bikes weigh an average of 25.55 kg (56.33 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE CROSS HYBRID Race 500 Allroad it’s weighing 23.4 kg (51.59 lbs). At this weight, is a bit lighter than average. In short, the average Touring e-bike weight is 9.19% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
CROSS HYBRID Race 500 Allroad components
Fork
CUBE CROSS HYBRID Race 500 Allroad 2019 e-bike is equipped with the SunTour NCX fork, and has mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the CROSS HYBRID Race 500 Allroad model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSS HYBRID Race 500 Allroad comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
