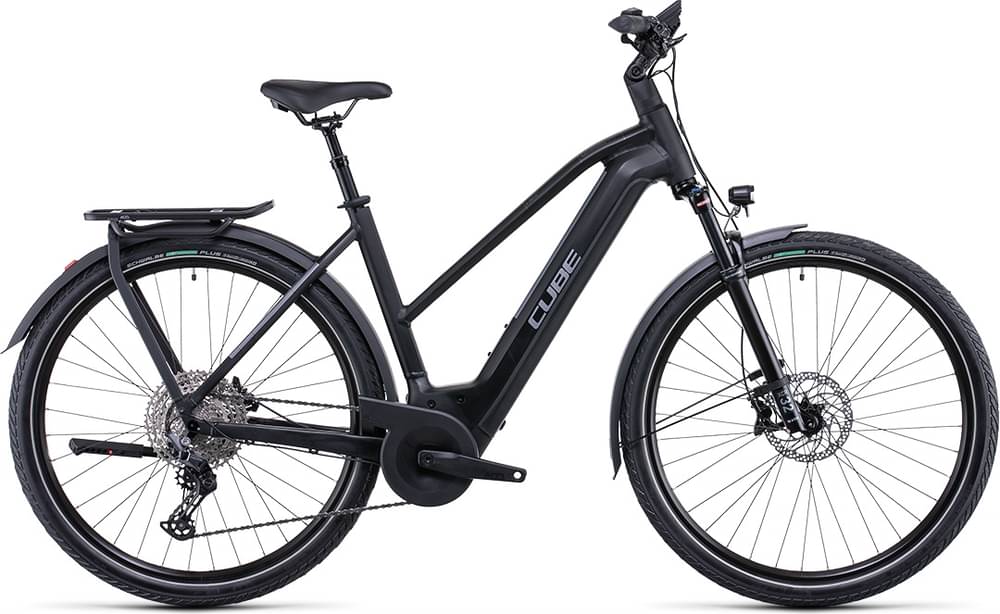

CUBE KATHMANDU HYBRID EXC 750 Trapeze 2022
2022 E-bike
Estimate price |
4,013$
Weight | 27.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour XCR 32 Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Suspension Fork
SR Suntour XCR32 LO-R Air, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
Shimano CN-M6100
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Brakes
Brakes
Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch Kiox 300
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.49 mm |
| Front Center | 745 mm | 748 mm |
| Rake | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm |
| Stack | 647 mm | 657 mm |
| Reach | 442 mm | 441 mm |
| Top Tube Length | 628 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 133 mm | 144 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1190 mm | 1193 mm |
| Bottom Bracket Drop | 75 mm | 75 mm |
| Standover Height | 672 mm | 684 mm |
| Wheels | 700 | 700 |
Model Overview
KATHMANDU HYBRID EXC 750 Trapeze is a Cube E Kathmandu model. CUBE released 59 e-bikes variations of this model so far. You can easily view all of the Cube E Kathmandu e-bikes models from 2022, here.
Model range prices
The most economical model, the CUBE KATHMANDU HYBRID ONE 500 Trapeze 2022 has a starting price of 2866$. CUBE KATHMANDU HYBRID SLT 750 Trapeze 2022 on the other hand is the most expensive at 4565$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 3715$. Doing a quick comparison, we notice that KATHMANDU HYBRID EXC 750 Trapeze price is 49.8% higher than the average cost of a Hybrid e-bike.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 27.5 kg (60.63 lbs), CUBE e-bike is much heavier than average. In short, the average Hybrid e-bike weight is 15.59% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
CUBE KATHMANDU HYBRID EXC 750 Trapeze 2022 e-bike is equipped with the SunTour XCR 32 Air fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the KATHMANDU HYBRID EXC 750 Trapeze e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE KATHMANDU HYBRID EXC 750 Trapeze has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
