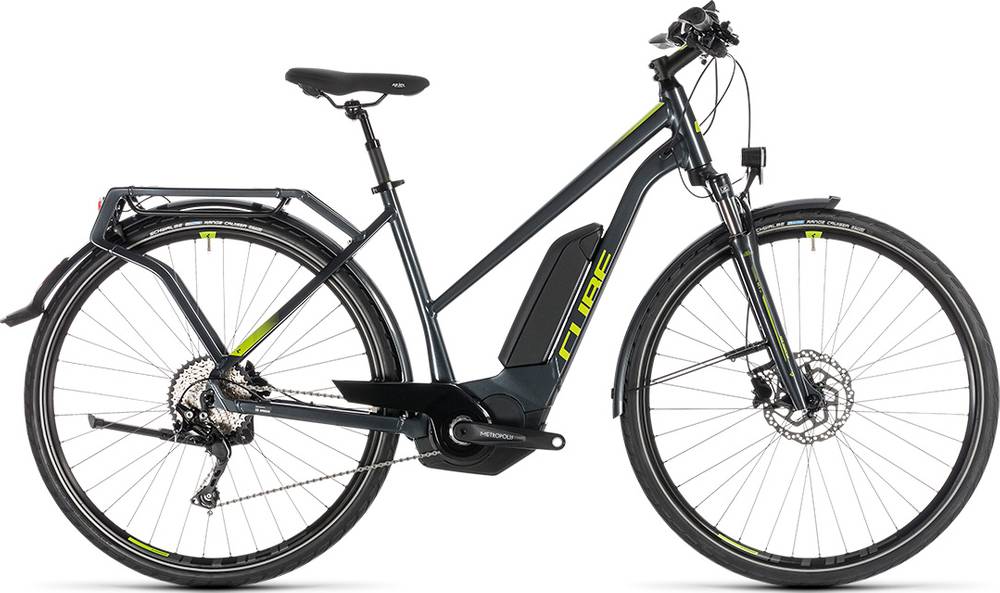

CUBE KATHMANDU HYBRID Pro 500 Trapeze 2019
2019 E-bike
Estimate price |
2,866$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Efficient Comfort Geometry, Gravity Casting, Integrated Carrier 1.0 Classic, Double Butted, Tapered, Disc Only; EE: Integrated Carrier 1.0 Hybrid
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-GS, 10-Speed
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
FSA Metropolis Urban AL-8, 15T, 175mm
Chain
KMC X10-73
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 36H, Disc
Tires
Schwalbe Range Cruiser, Active, K-Guard, 40x622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm; EE: Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
FSA Orbit Z-t-R ECO, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/2"; EE: FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Ariel
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.68 mm |
| Front Center | 637 mm | 644 mm | 651 mm |
| Rake | 42 mm | 42 mm | 47 mm |
| Trail | 86 mm | 82 mm | 70 mm |
| Stack | 631 mm | 633 mm | 668 mm |
| Reach | 384 mm | 396 mm | 397 mm |
| Top Tube Length | 575 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1106 mm | 1113 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
About this model
KATHMANDU HYBRID Pro 500 Trapeze completes the Cube E Kathmandu model. There are 59 e-bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
CUBE KATHMANDU HYBRID Pro 500 Trapeze 2019 is the most economical model, with a starting price of 2653$. CUBE KATHMANDU HYBRID SL 500 2019 on the other hand costs 4246$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2019 and its price was 2653$. If we compare this with the average Hybrid e-bike cost we notice that the price is 6.98% more expensive.
Hybrid e-bikes average weight
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 23.9 kg (52.69 lbs), the KATHMANDU HYBRID Pro 500 Trapeze model is slightly heavier than average. In conclusion, the average Hybrid e-bike weighs 0.46% less than KATHMANDU HYBRID Pro 500 Trapeze.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The KATHMANDU HYBRID Pro 500 Trapeze 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The KATHMANDU HYBRID Pro 500 Trapeze comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
