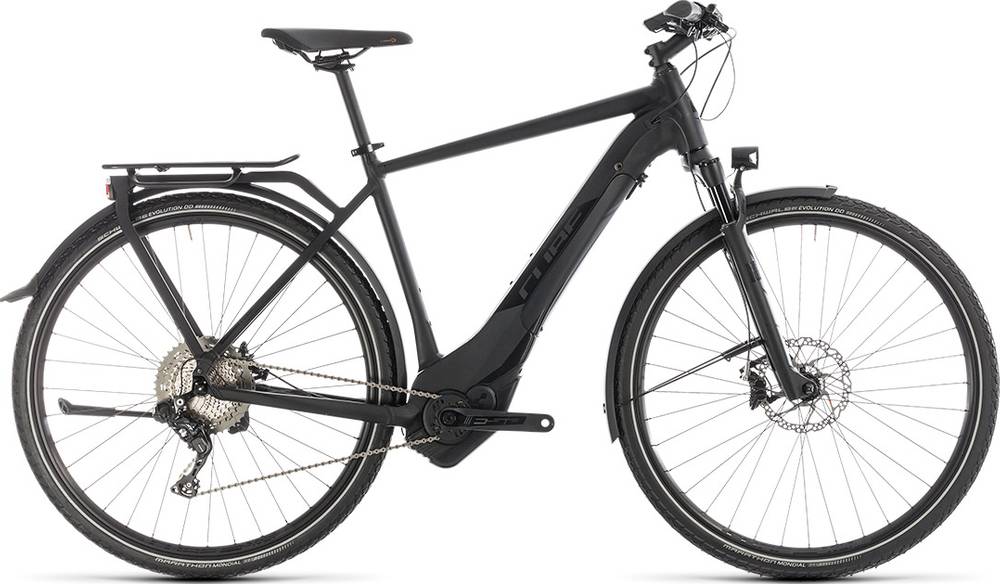

CUBE KATHMANDU HYBRID SL 500 2019
2019 E-bike
Estimate price |
4,587$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset XT Di2, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Efficient Comfort Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Integrated Carrier 2.0
Suspension Fork
RockShox Paragon Gold Air, 65mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT Di2 RD-M8050-DGS, 11-Speed
Shift Levers
Shimano XT Di2 SW-M8050-R
Cassette
Shimano XT CS-M8000, 11-46T
Crank
FSA CK-745, 16T, 175mm
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano XT HB-M8000, QR, Centerlock
Rear Hub
Shimano XT FH-M8000, QR, Centerlock
Rims
CUBE EX23, 36H, Disc
Tires
Schwalbe Marathon Mondial, Kevlar, 47-622
Brakes
Brakes
Shimano XT BR-M8020/BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit GRIP Comfort
Headset
FSA Orbit 1.5E ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal Lookin Moderate, Royalgel™
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Kiox
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.58 mm | 1.6 mm | 1.63 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 649 mm | 655 mm | 667 mm | 679 mm |
| Rake | 42 mm | 37 mm | 37 mm | 42 mm |
| Trail | 81 mm | 83 mm | 83 mm | 78 mm |
| Stack | 603 mm | 630 mm | 647 mm | 661 mm |
| Reach | 391 mm | 398 mm | 404 mm | 406 mm |
| Top Tube Length | 577 mm | 588 mm | 599 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1097 mm | 1103 mm | 1115 mm | 1127 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
KATHMANDU HYBRID SL 500 belongs to the Cube E Kathmandu model. 59 e-bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
CUBE KATHMANDU HYBRID Pro 500 Trapeze 2019 is the cheapest e-bike model and costs 2653$. CUBE KATHMANDU HYBRID SL 500 2019 is the most expensive one and costs 4246$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Touring e-bikes average price
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, even though the average price of a Touring e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When CUBE released this model in 2019, its price was 4246$. If we compare this with the average Touring e-bike cost we notice that the price is 74.8% more expensive.
Average weight for Touring e-bikes
If we make a quick analysis of the average weight of a Touring e-bike, we get 25.55 kg (56.33 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
KATHMANDU HYBRID SL 500 weighs 23.9 kg (52.69 lbs) and is a bit lighter than the average. To sum up, it’s 6.9% lighter than the average weight of Touring e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
KATHMANDU HYBRID SL 500 components
Fork
The fork installed on this bike is the RockShox Paragon Gold RL model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, CUBE KATHMANDU HYBRID SL 500 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The KATHMANDU HYBRID SL 500 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
