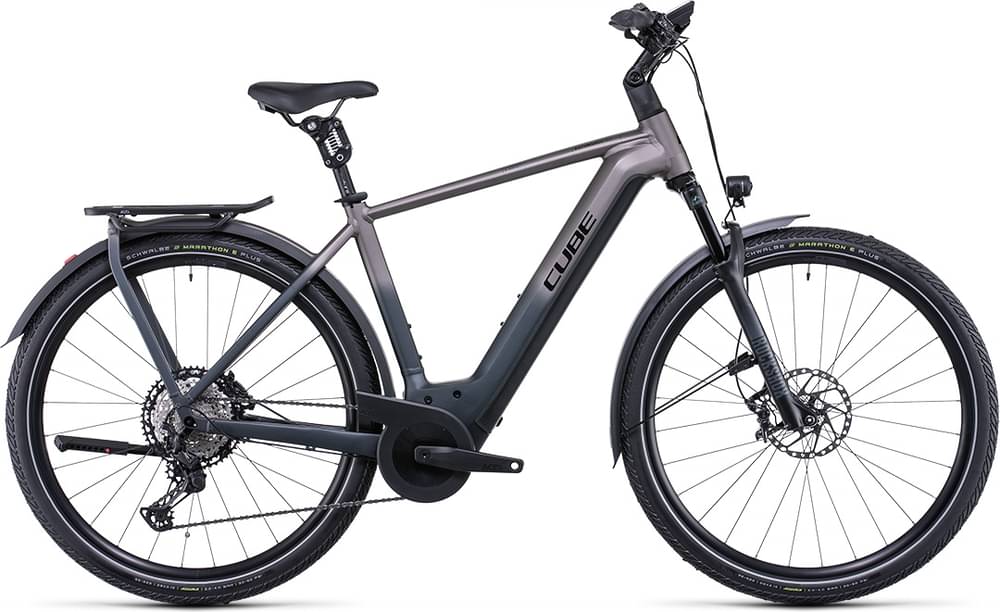

CUBE KATHMANDU HYBRID SLT 750 2022
2022 E-bike
Estimate price |
4,931$
Weight | 27.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Suspension Fork
RockShox Recon Gold RL Air, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Shimano XT CS-M8100, 10-51T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
Shimano CN-M8100
Pedals
ACID PP Trekking
Wheels
Rims
Newmen Performance 25, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Marathon E-Plus, 55-622
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
BySchulz G.2 Parallelogram Suspension Seatpost, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch Kiox 300
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.47 mm | 1.5 mm |
| Front Center | 746 mm | 747 mm | 753 mm | 765 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 639 mm | 639 mm | 656 mm | 676 mm |
| Reach | 446 mm | 447 mm | 446 mm | 450 mm |
| Top Tube Length | 629 mm | 630 mm | 635 mm | 645 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 124 mm | 124 mm | 143 mm | 164 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1191 mm | 1192 mm | 1198 mm | 1210 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 792 mm | 818 mm | 851 mm | 884 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
KATHMANDU HYBRID SLT 750 completes the Cube E Kathmandu model. CUBE launched 59 e-bikes of this model so far. Take a sneak peek at all Cube E Kathmandu e-bikes models from 2022, by clicking here.
Model range prices
CUBE KATHMANDU HYBRID ONE 500 Trapeze 2022 is the most affordable e-bike of this model and has a price of 2866$. On the other hand, CUBE KATHMANDU HYBRID SLT 750 2022, is the most expensive and costs 4565$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4565$. In conclusion, this e-bike price is 84.07% more expensive than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CUBE KATHMANDU HYBRID SLT 750 it’s weighing 27.1 kg (59.75 lbs). At this weight, is considerably heavier than average. To sum up, it’s 13.91% heavier than the average weight of Hybrid e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
CUBE KATHMANDU HYBRID SLT 750 2022 e-bike is equipped with the RockShox Recon Gold RL fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The KATHMANDU HYBRID SLT 750 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE KATHMANDU HYBRID SLT 750 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
CUBE KATHMANDU HYBRID SLT 750 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
