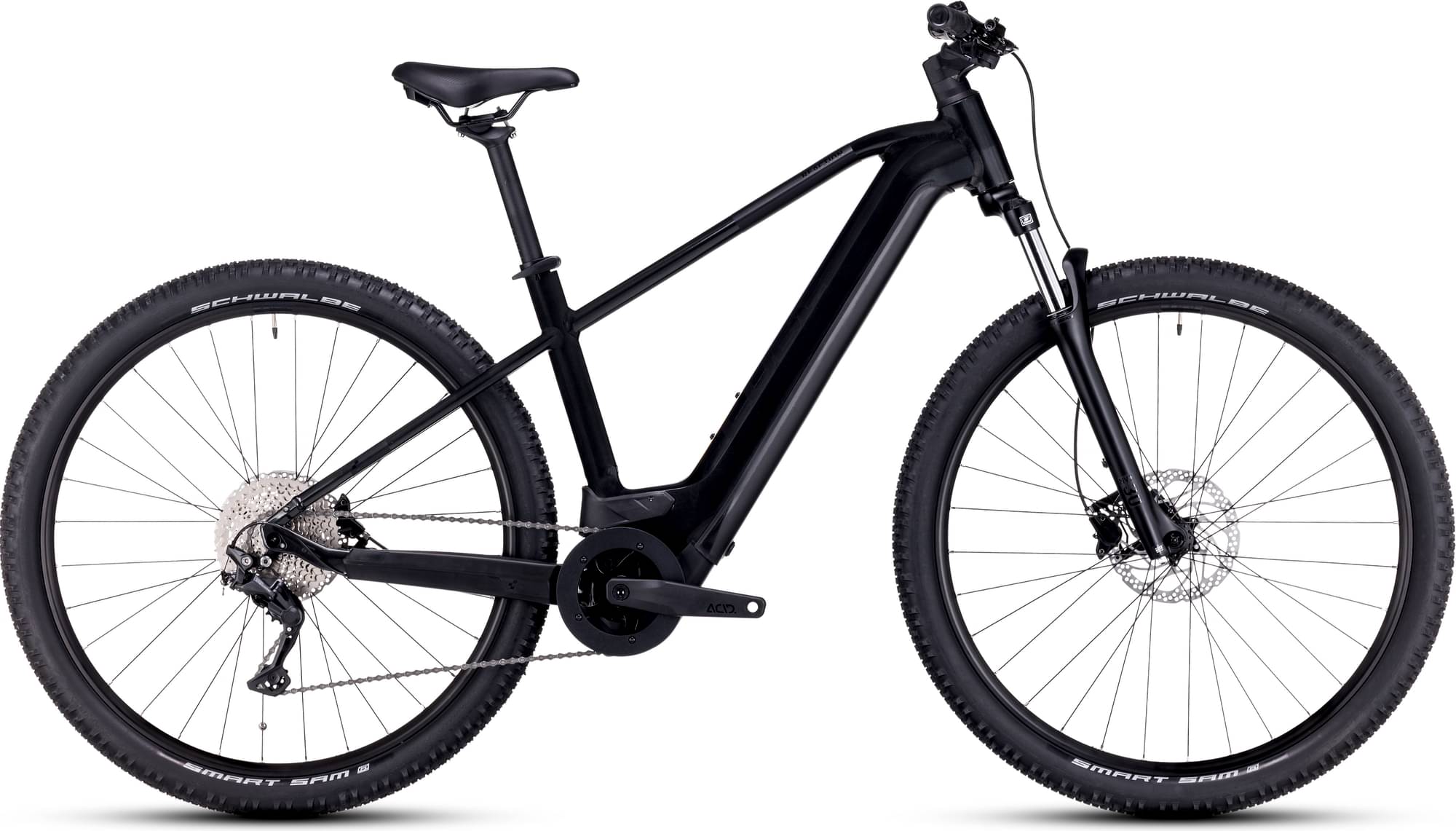

CUBE REACTION HYBRID, ONE 500 2023
2023 E-bike
Estimate price |
3,038$
Weight | 22.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M4120-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M4100, Rapidfire-Plus
Cassette
Shimano Deore CS-M4100, 11-42T
Crank
ACID E-Crank, 38T, 175mm
Chain
KMC X10
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.35
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
ACID React Pro / EE: ACID Hybrid Perform
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 500

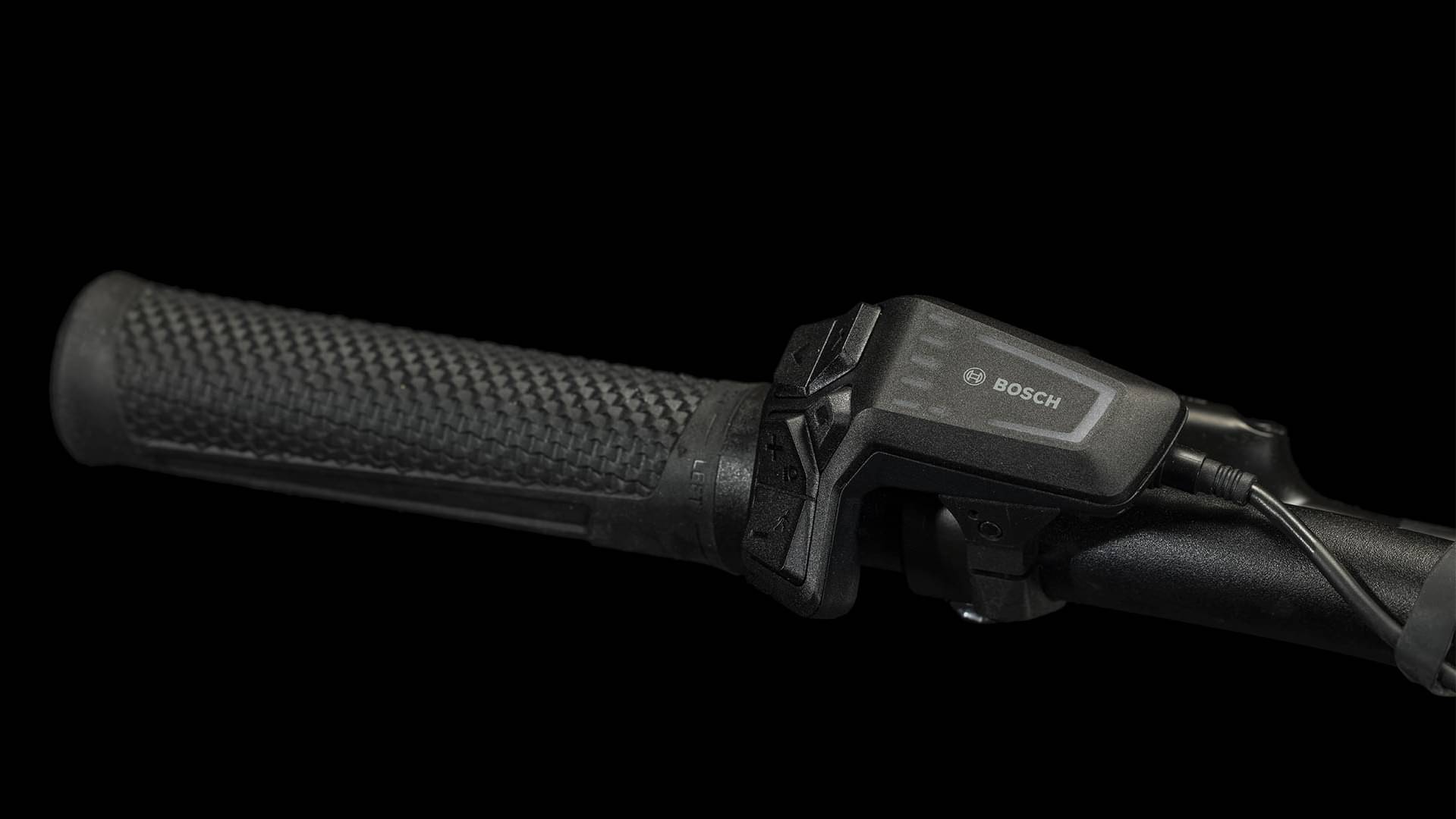

Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.46 mm | 1.48 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 310 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 692 mm | 743 mm | 743 mm | 755 mm | 783 mm |
| Rake | 45 mm | 52 mm | 52 mm | 51 mm | 51 mm |
| Trail | 102 mm | 91 mm | 91 mm | 89 mm | 89 mm |
| Stack | 611 mm | 643 mm | 648 mm | 659 mm | 675 mm |
| Reach | 397 mm | 441 mm | 439 mm | 453 mm | 475 mm |
| Top Tube Length | 562 mm | 625 mm | 625 mm | 642 mm | 669 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 67 ° | 67.5 ° | 67.5 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 122 mm | 122 mm | 132 mm | 149 mm |
| Chainstay Length | 444 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1132 mm | 1193 mm | 1193 mm | 1205 mm | 1233 mm |
| Bottom Bracket Drop | 45 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
REACTION HYBRID, ONE 500 is part of the Cube E Reaction model. CUBE launched 139 e-bikes of this model so far. You can easily view all of the Cube E Reaction e-bikes models from 2023, here.
Model range prices
The most economical model, the CUBE REACTION HYBRID PERFORMANCE, 500 2023 has a starting price of 2706$. CUBE REACTION HYBRID, ABS 750 2023 on the other hand is the most expensive at 4883$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2813$. Comparing the average cost of a Crosscountry e-bike to this one, you will see that REACTION HYBRID, ONE 500 price is 14.68% higher.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 22.7 kg (50.04 lbs), CUBE e-bike is slightly lighter than average. To sum up, it’s 2.25% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Suntour NVX is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The REACTION HYBRID, ONE 500 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE REACTION HYBRID, ONE 500 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
