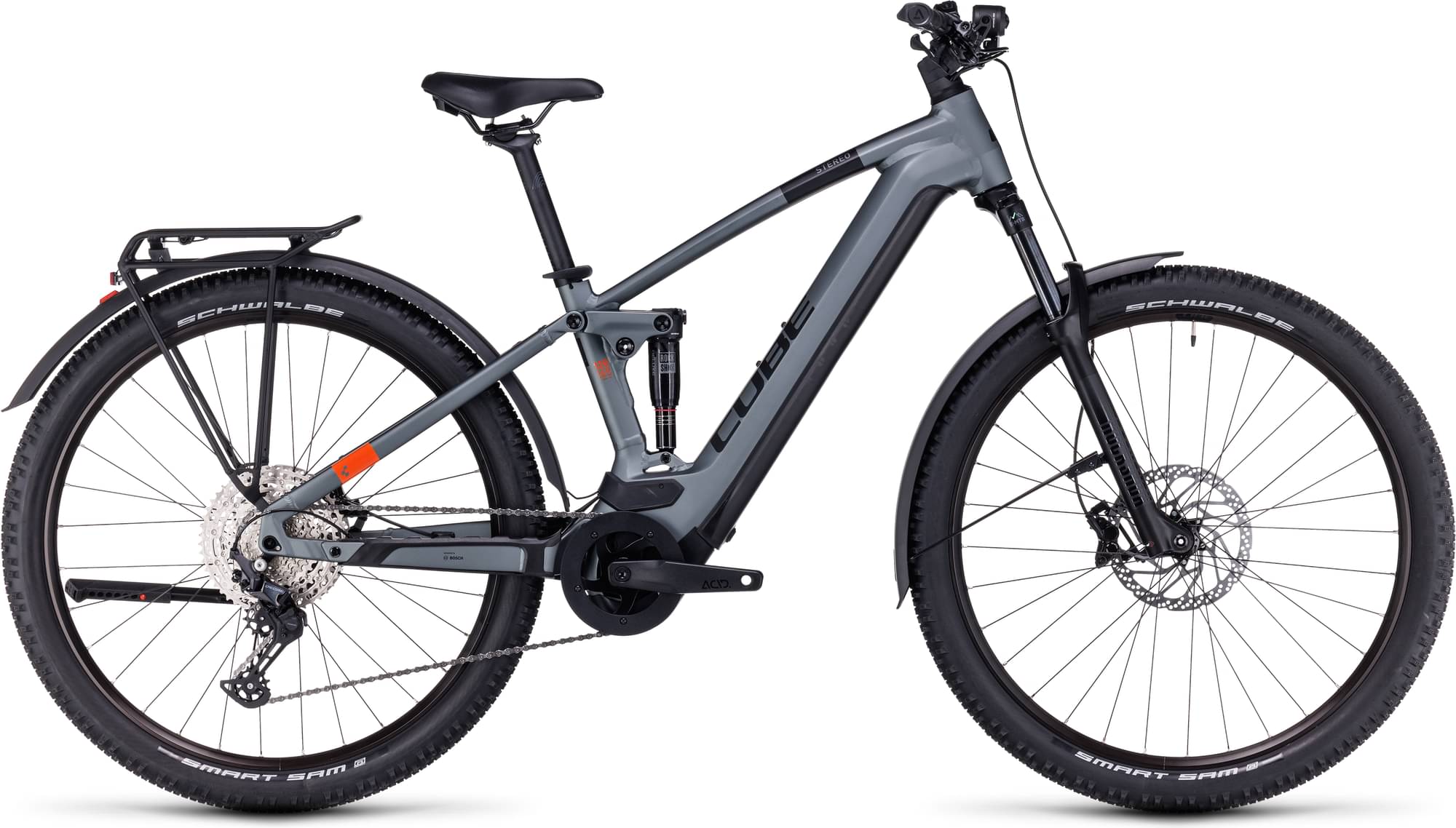

CUBE STEREO HYBRID 120, PRO 750 ALLROAD 2022
2022 E-bike
Estimate price |
4,931$
Weight | 27.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 130mm, Lockout
Rear Shock

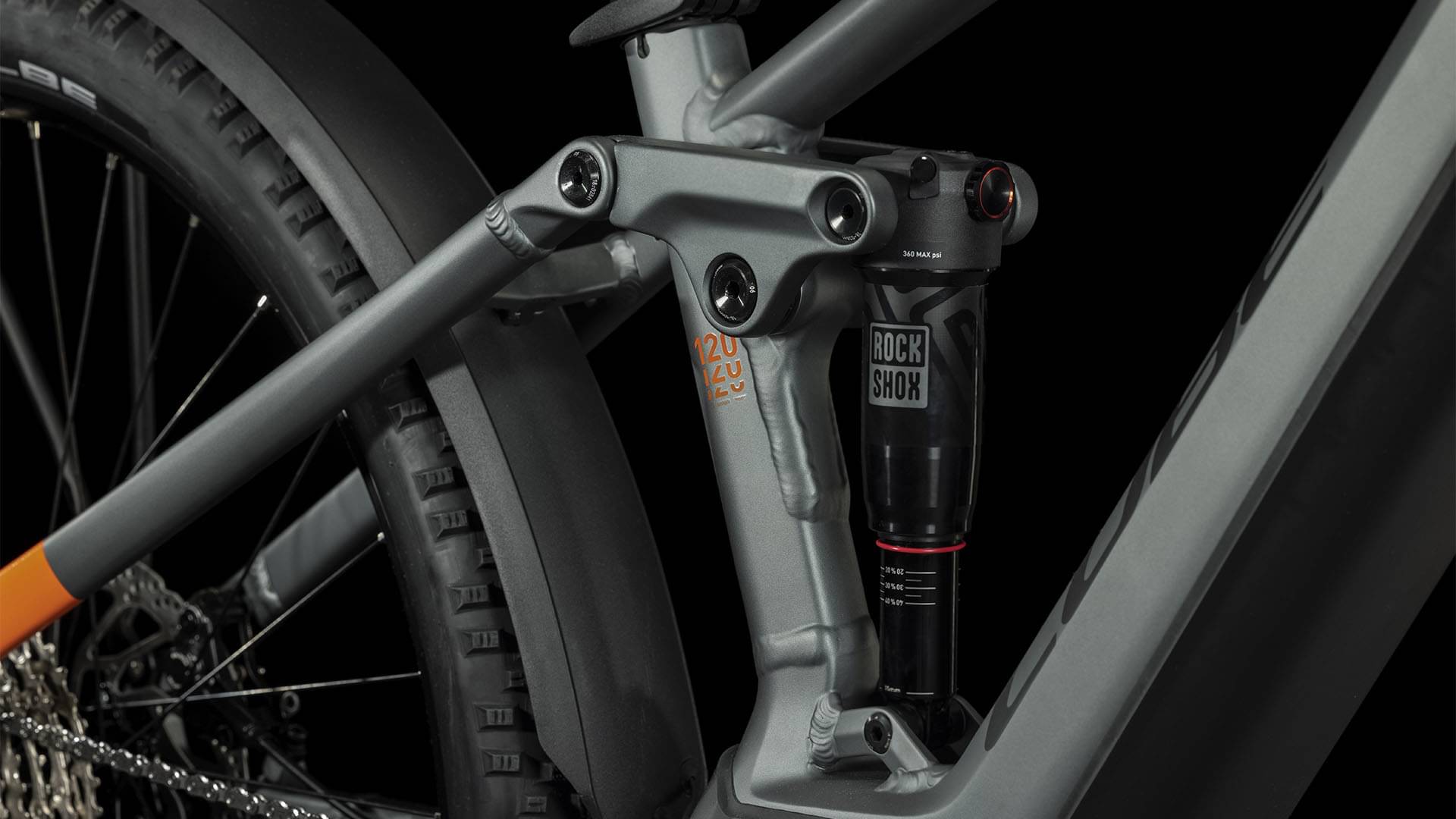

RockShox Deluxe Select, 185x55mm (27.5: 165x45mm), Rebound Adjust, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Sunrace CSMZ600, 11-51T
Crank
ACID E-Crank, 38T, 170mm
Chain
Shimano CN-M6100
Pedals
ACID PP MTB
Wheels
Front Hub
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
Rims
Rodi Tryp 30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.6
Brakes
Brakes
Shimano BR-MT420, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
ACID Hybrid Perform
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 734 mm | 767 mm | 793 mm | 820 mm |
| Rake | 43 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 104 mm | 104 mm | 104 mm |
| Stack | 613.6 mm | 651 mm | 660 mm | 673.5 mm |
| Reach | 438 mm | 458 mm | 480 mm | 500.6 mm |
| Top Tube Length | 581.6 mm | 614 mm | 639 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 420 mm | 465 mm | 515 mm |
| Head Tube Angle | 66.7 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 470 mm | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1203 mm | 1248 mm | 1274 mm | 1300 mm |
| Bottom Bracket Drop | 23 mm | 42 mm | 42 mm | 42 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
STEREO HYBRID 120, PRO 750 ALLROAD belongs to the Cube E Stereo Hybrid 120 model. CUBE released 83 e-bikes variations of this model so far. Take a sneak peek at all Cube E Stereo Hybrid 120 e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the CUBE STEREO HYBRID 120 PRO 625 2022 has a starting price of 3874$. CUBE STEREO HYBRID 120 SLT 29 2022 on the other hand is the most expensive at 5414$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4565$. Comparing the average cost of a Trail e-bike to this one, you will see that STEREO HYBRID 120, PRO 750 ALLROAD price is 35.66% more expensive.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, STEREO HYBRID 120, PRO 750 ALLROAD has a weight of 27.5 kg (60.63 lbs). To sum up, it’s 16.03% heavier than the average weight of Trail e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
STEREO HYBRID 120, PRO 750 ALLROAD components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, CUBE STEREO HYBRID 120, PRO 750 ALLROAD 2022, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO HYBRID 120, PRO 750 ALLROAD has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
