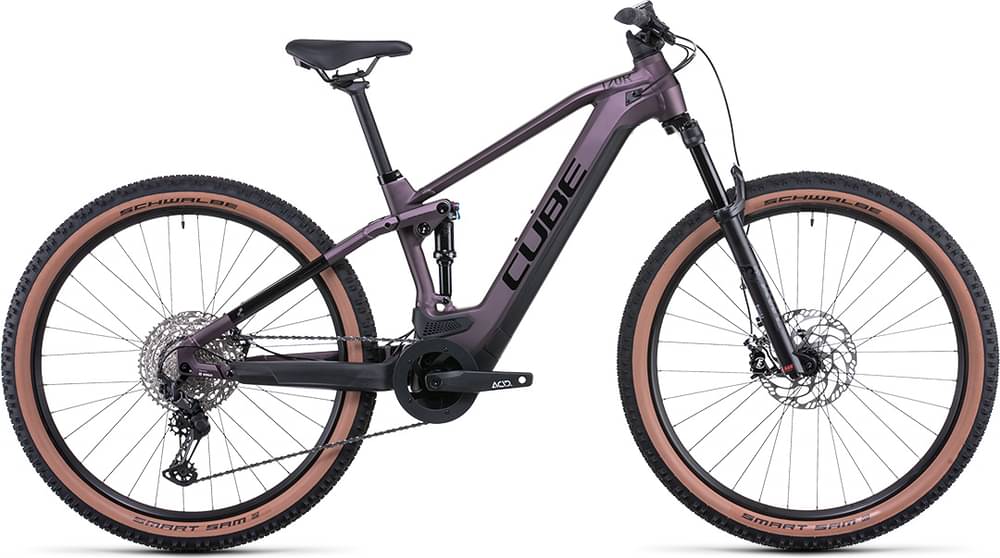

CUBE STEREO HYBRID 120 RACE 625 2022
2022 E-bike
Estimate price |
4,472$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork Fox Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm
Rear Shock
Fox Float DPS EVOL, 185x55mm (27.5: 165x45mm), Open/Medium/Firm Mode, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 170mm, 38T
Chain
Shimano CN-M6100
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.6
Brakes
Brakes
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
Natural Fit All Terrain
Headset
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 625
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.36 mm | 1.44 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 715 mm | 715 mm | 735 mm | 757 mm | 784 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 103 mm | 103 mm | 104 mm | 104 mm | 104 mm |
| Stack | 585.1 mm | 585.1 mm | 626.3 mm | 635.5 mm | 649.4 mm |
| Reach | 431.5 mm | 431.5 mm | 434.7 mm | 453 mm | 473.9 mm |
| Top Tube Length | 577.3 mm | 577.3 mm | 593.5 mm | 614.7 mm | 639.9 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 370 mm | 395 mm | 420 mm | 465 mm | 515 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 119 mm | 119 mm | 127 mm | 137 mm | 152 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1208 mm | 1208 mm | 1227 mm | 1249 mm | 1276 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 758 mm | 772 mm | 785 mm | 787 mm | 825 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
STEREO HYBRID 120 RACE 625 completes the Cube E Stereo Hybrid 120 model. CUBE released 83 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CUBE STEREO HYBRID 120 PRO 625 2022 is the cheapest e-bike model and costs 3874$. CUBE STEREO HYBRID 120 SLT 29 2022 is the most expensive one and costs 5414$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, CUBE STEREO HYBRID 120 RACE 625 price was 4140$. In conclusion, this e-bike price is 23.03% more expensive than the price of the average Trail e-bike.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, STEREO HYBRID 120 RACE 625 has a weight of 25 kg (55.12 lbs). In other words, this model is 5.49% heavier than the average Trail e-bike.
Overview of components
Fork
This e-bike has the Fox Float 34 fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the STEREO HYBRID 120 RACE 625 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The STEREO HYBRID 120 RACE 625 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
STEREO HYBRID 120 RACE 625 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
