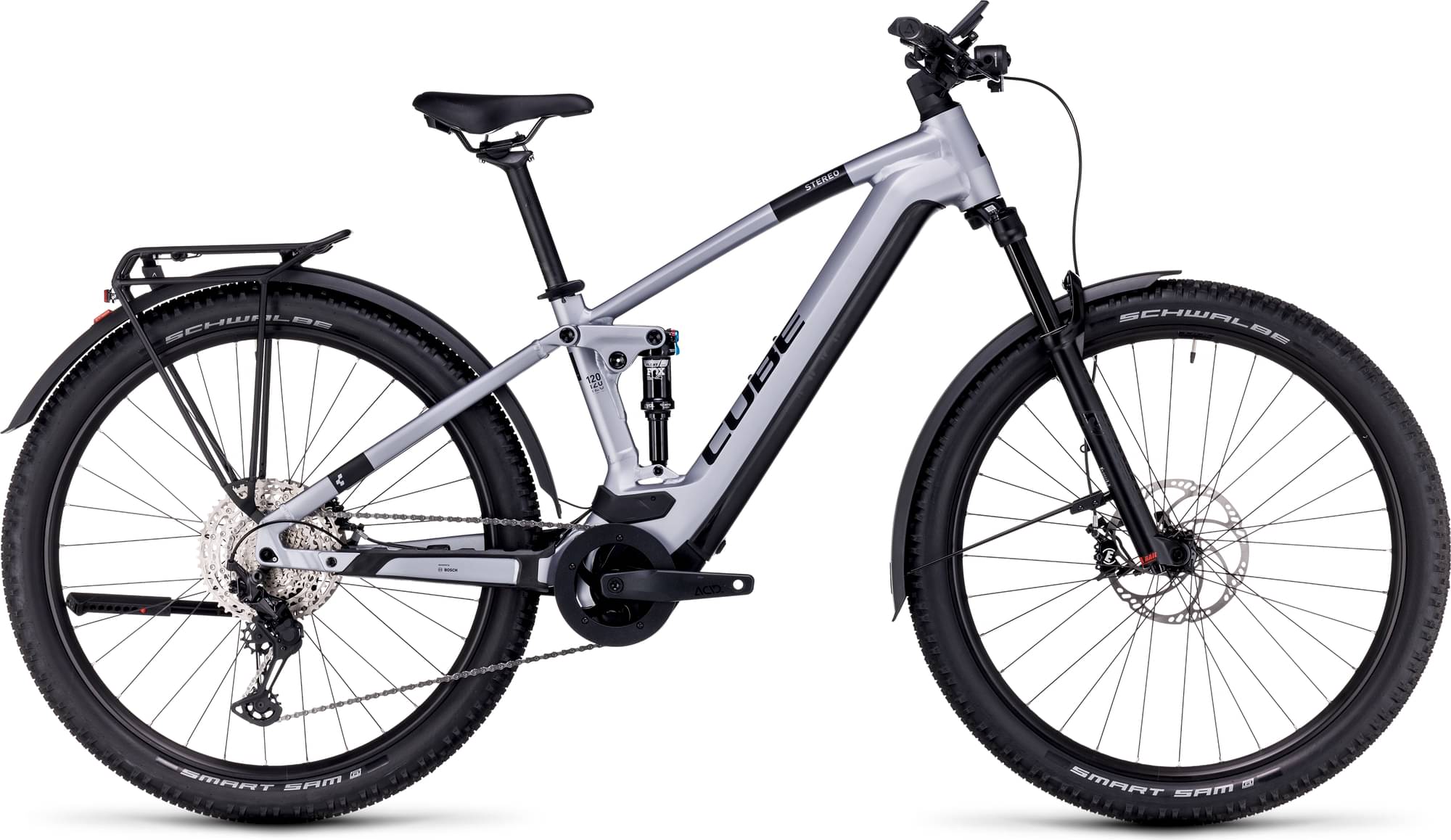

CUBE STEREO HYBRID 120, RACE 750 ALLROAD 2023
2023 E-bike
Estimate price |
5,390$
Weight | 27.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm

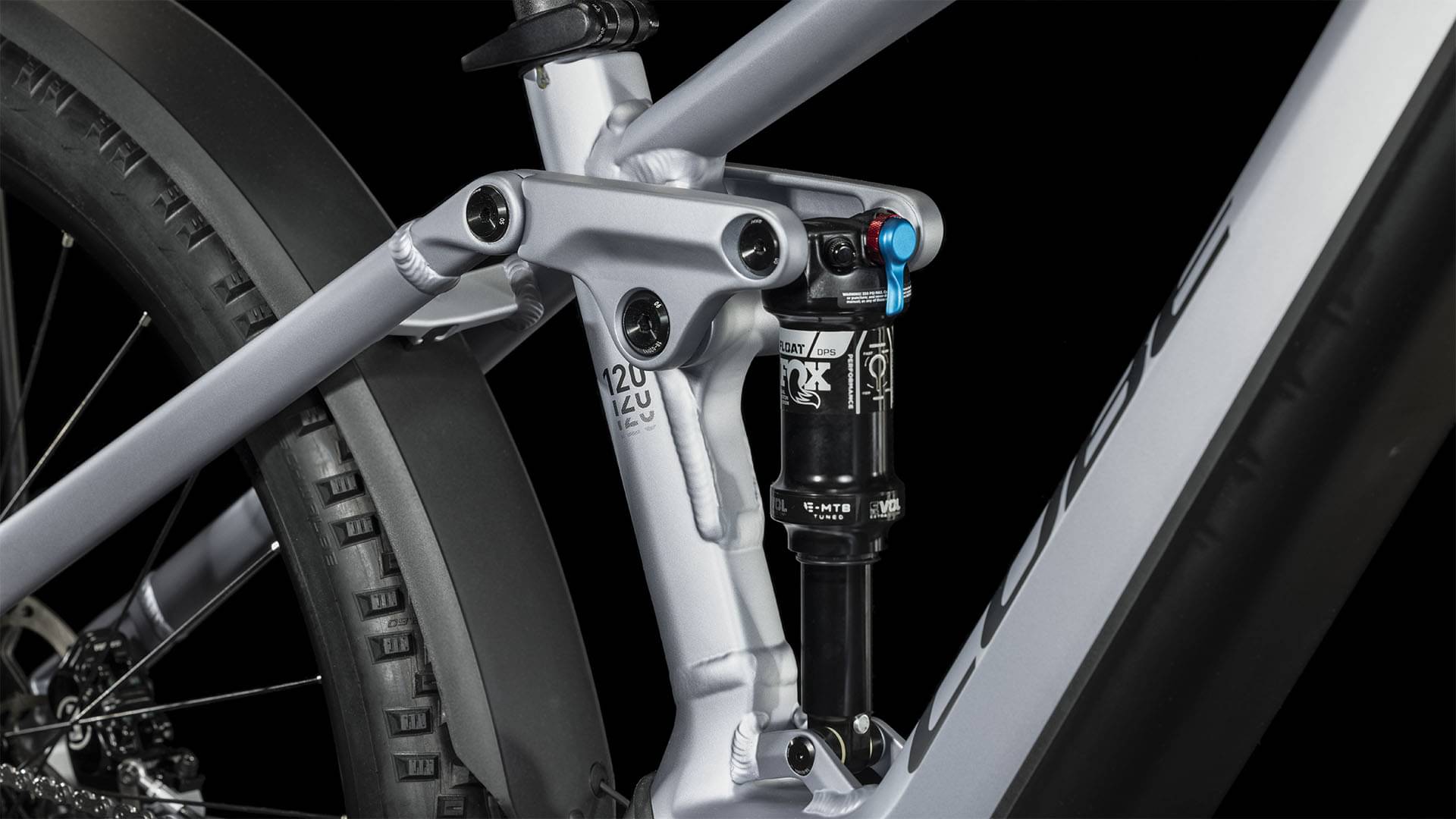

Rear Shock
Fox Float DPS EVOL, 185x55mm (27.5: 165x45mm), Open/Medium/Firm Mode, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 38T, 170mm
Chain
Shimano CN-M6100
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.6
Brakes
Brakes
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
ACID Hybrid Perform
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Front Center | 734 mm | 767 mm | 793 mm | 820 mm |
| Rake | 43 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 104 mm | 104 mm | 104 mm |
| Stack | 614 mm | 651 mm | 660 mm | 674 mm |
| Reach | 438 mm | 458 mm | 480 mm | 501 mm |
| Top Tube Length | 582 mm | 614 mm | 639 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 420 mm | 465 mm | 515 mm |
| Head Tube Angle | 66.7 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 470 mm | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1203 mm | 1248 mm | 1274 mm | 1301 mm |
| Bottom Bracket Drop | 24 mm | 43 mm | 43 mm | 43 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
STEREO HYBRID 120, RACE 750 ALLROAD belongs to the Cube E Stereo Hybrid 120 model. CUBE released 83 e-bikes variations of this model so far. You can easily view all of the Cube E Stereo Hybrid 120 e-bikes models from 2023, here.
Model range prices
The most economical model, the CUBE STEREO HYBRID 120, PRO 625 2023 has a starting price of 4140$. CUBE STEREO HYBRID 120, SLT 750 2023 on the other hand is the most expensive at 5626$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4989$. Comparing the average cost of a Trail e-bike to this one, you will see that STEREO HYBRID 120, RACE 750 ALLROAD price is 48.26% higher.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE STEREO HYBRID 120, RACE 750 ALLROAD it’s weighing 27.4 kg (60.41 lbs). At this weight, is much heavier than average. To sum up, it’s 15.61% heavier than the average weight of Trail e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
STEREO HYBRID 120, RACE 750 ALLROAD components
Fork
CUBE STEREO HYBRID 120, RACE 750 ALLROAD 2023 e-bike is equipped with the Fox AWL fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on STEREO HYBRID 120, RACE 750 ALLROAD are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO HYBRID 120, RACE 750 ALLROAD comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
STEREO HYBRID 120, RACE 750 ALLROAD comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
