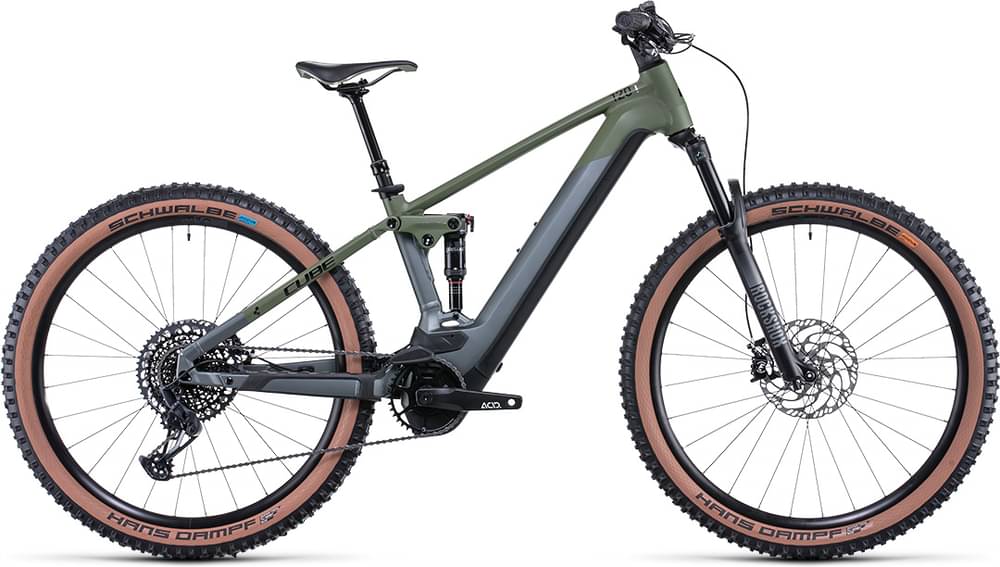

CUBE STEREO HYBRID 120 TM 29 2022
2022 E-bike
Estimate price |
5,275$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset GX Eagle -
Suspension Full -
Motor mid-drive -
Battery [This component is subject to an embargo until 31.08.21] -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
RockShox 35 Gold, Tapered, 15x110mm, eMTB, Approved, 130mm
Rear Shock
RockShox Deluxe Select+, 185x55mm, Rebound Adjust, Trunnion Mount, Lockout
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger, Single Click
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
ACID E-Crank, 170mm, 38T
Chain
SRAM NX Eagle™
Pedals
CUBE PP MTB
Wheels
Rims
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
Brakes
Brakes
Magura MT5, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 780mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (M: 125mm, L, XL: 150mm)
Motor & Battery
Motor
[This component is subject to an embargo until 31.08.21]
Battery
[This component is subject to an embargo until 31.08.21]
Remote
[This component is subject to an embargo until 31.08.21]
Charger
[This component is subject to an embargo until 31.08.21]
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm |
| Front Center | 767 mm | 793 mm | 820 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 650 | 659 mm | 672.5 mm |
| Reach | 457 mm | 479 mm | 499.6 mm |
| Top Tube Length | 613 mm | 638 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 465 mm | 515 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1247 mm | 1273 mm | 1299 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm |
| Standover Height | 786 mm | 793 mm | 834 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
STEREO HYBRID 120 TM 29 is part of the Cube E Stereo Hybrid 120 model. There are 83 e-bikes that carry this model name. Take a sneak peek at all Cube E Stereo Hybrid 120 e-bikes models from 2022, by clicking here.
Model range prices
CUBE STEREO HYBRID 120 PRO 625 2022 is the cheapest e-bike model and costs 3874$. CUBE STEREO HYBRID 120 SLT 29 2022 is the most expensive one and costs 5414$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 4883$. If we compare this with the average Trail e-bike cost we notice that the price is 45.11% higher.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
STEREO HYBRID 120 TM 29 weighs 26.2 kg (57.76 lbs) and is considerably heavier than the average. In other words, this model is 10.55% heavier than the average Trail e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The STEREO HYBRID 120 TM 29 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO HYBRID 120 TM 29 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
CUBE STEREO HYBRID 120 TM 29 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the STEREO HYBRID 120 TM 29. Therefore, climbing or descending will be a breeze.
