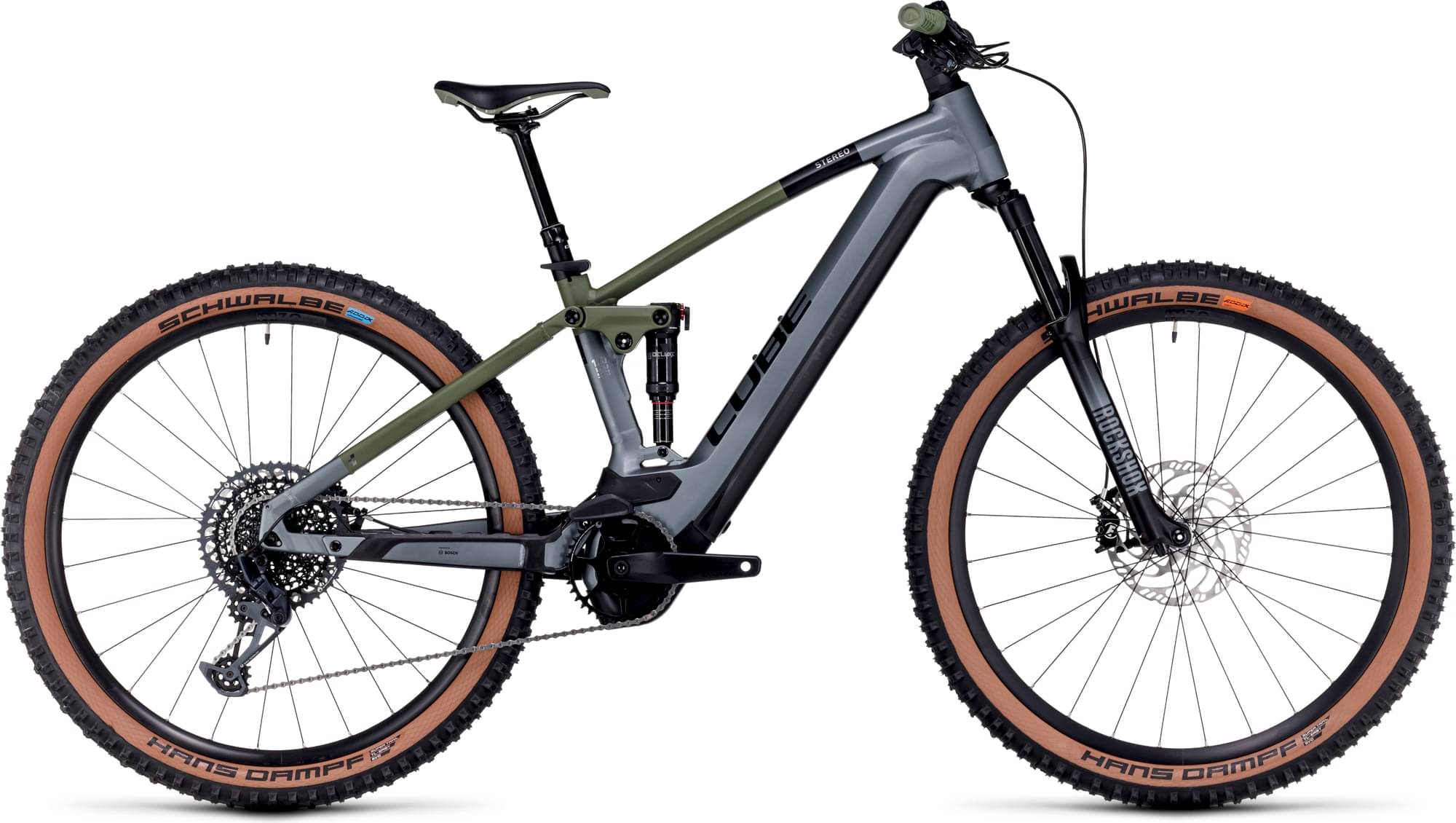

CUBE STEREO HYBRID 120, TM 750 2023
2023 E-bike
Estimate price |
5,734$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

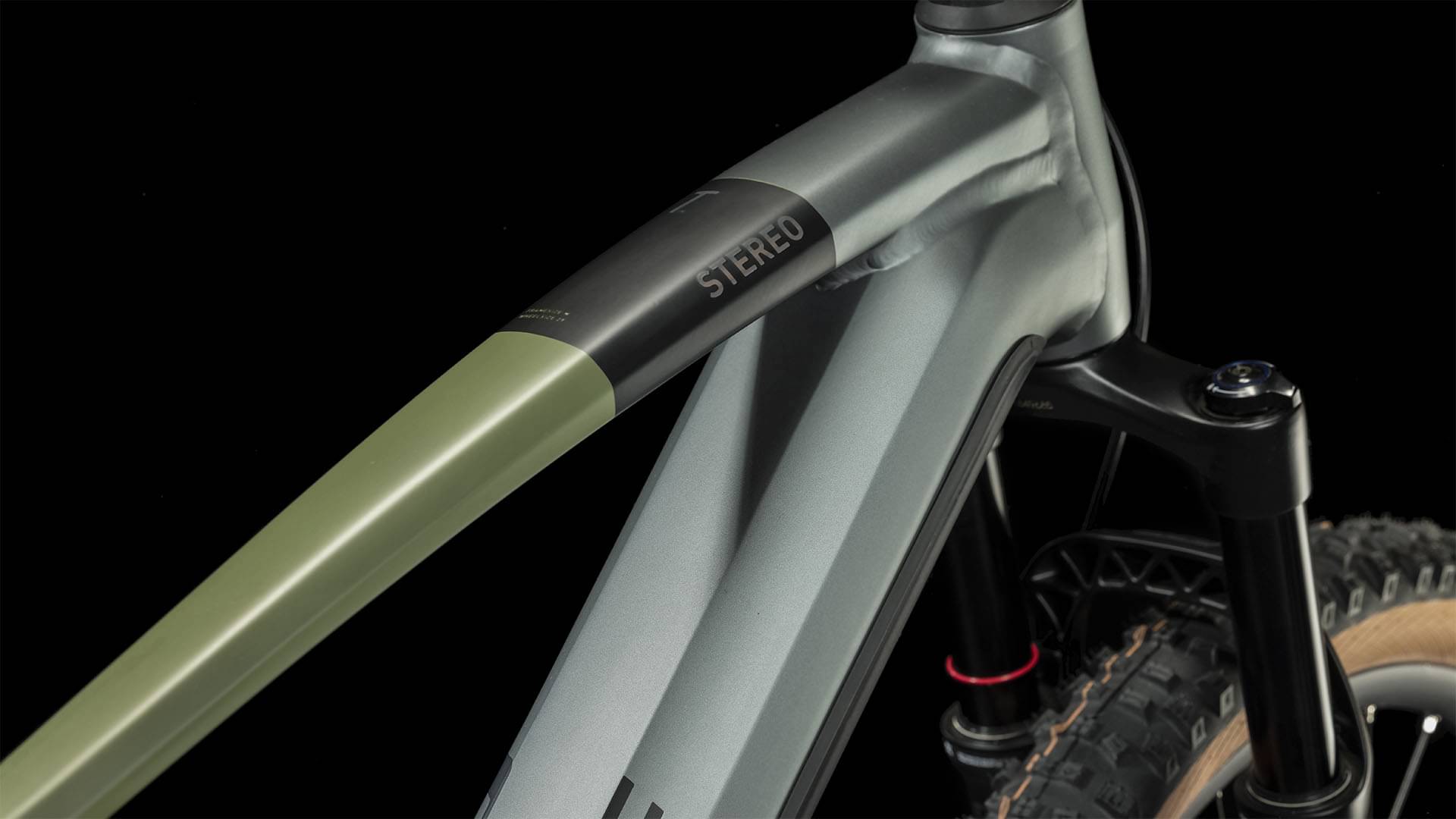

Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Suspension Fork

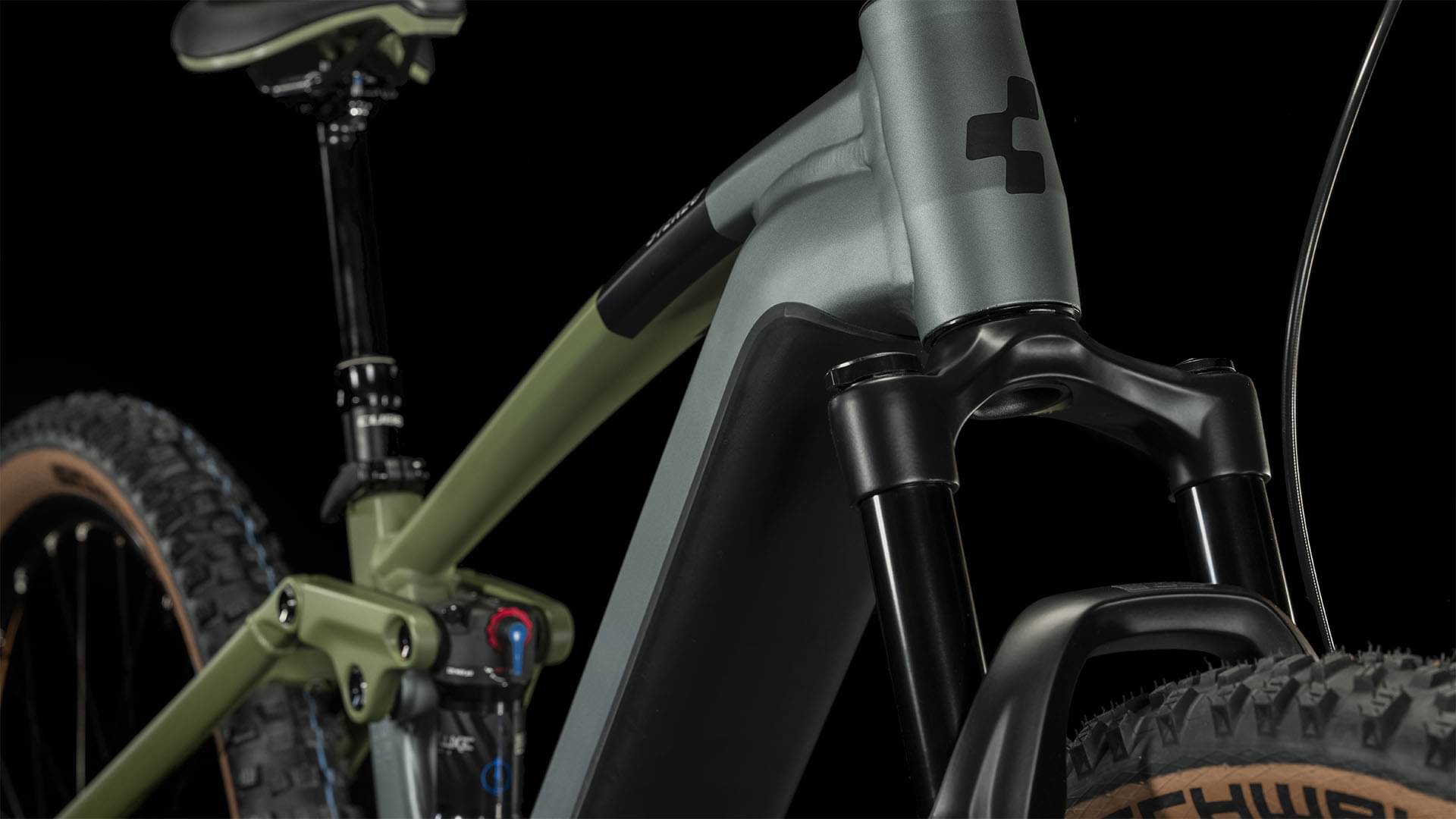

RockShox 35 Gold RL Air, Tapered, 15x110mm, eMTB, Approved, 130mm, Lockout
Rear Shock

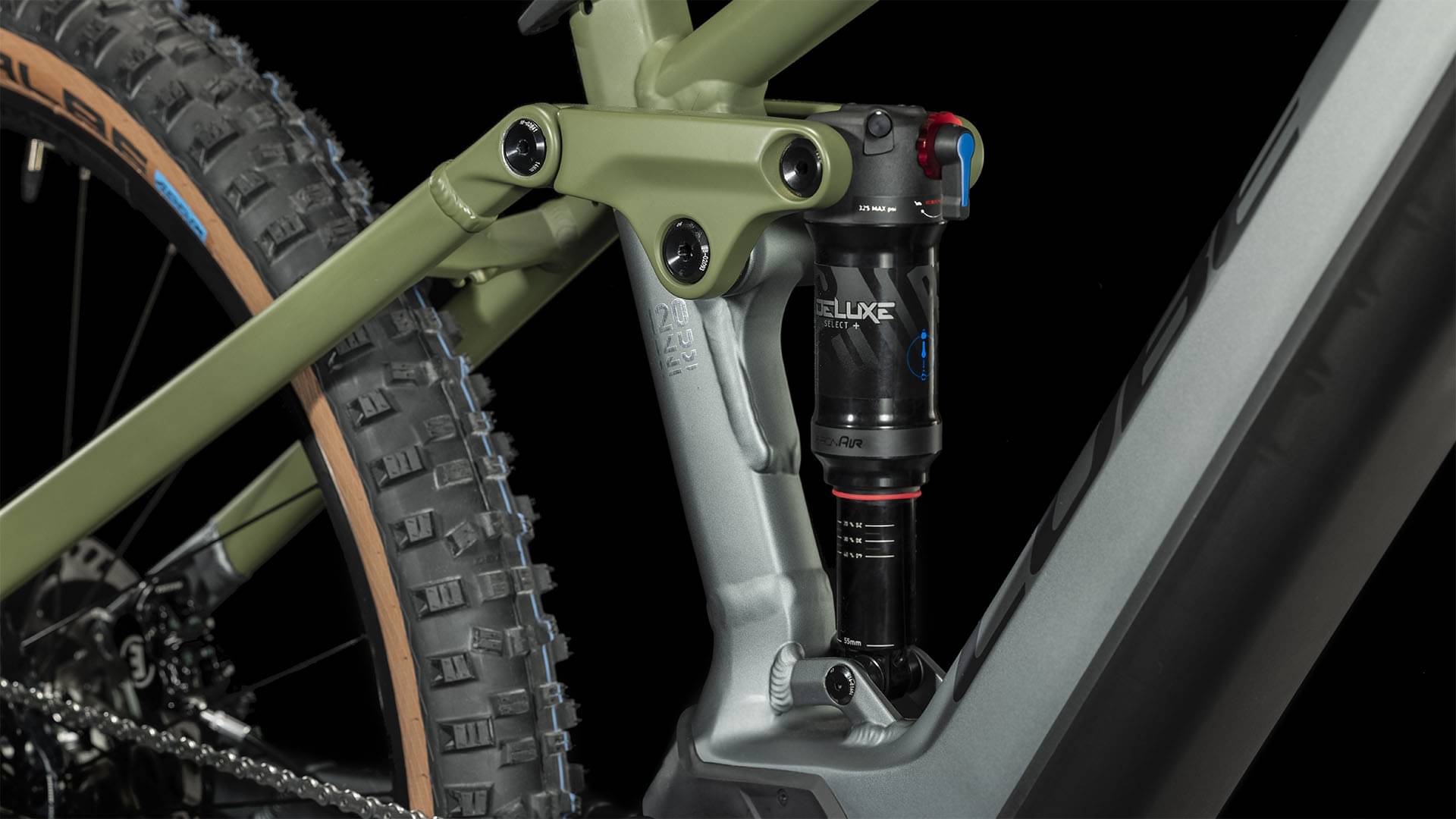

RockShox Deluxe Select+, 185x55mm (27.5: 165x45mm), Rebound Adjust, Trunnion Mount, Lockout
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger, Single Click
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
ACID E-Crank, 38T, 170mm
Chain
SRAM NX Eagle™
Pedals
ACID PP MTB
Wheels
Rims
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6, Rear: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
Brakes
Brakes
Magura MT5, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 780mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle

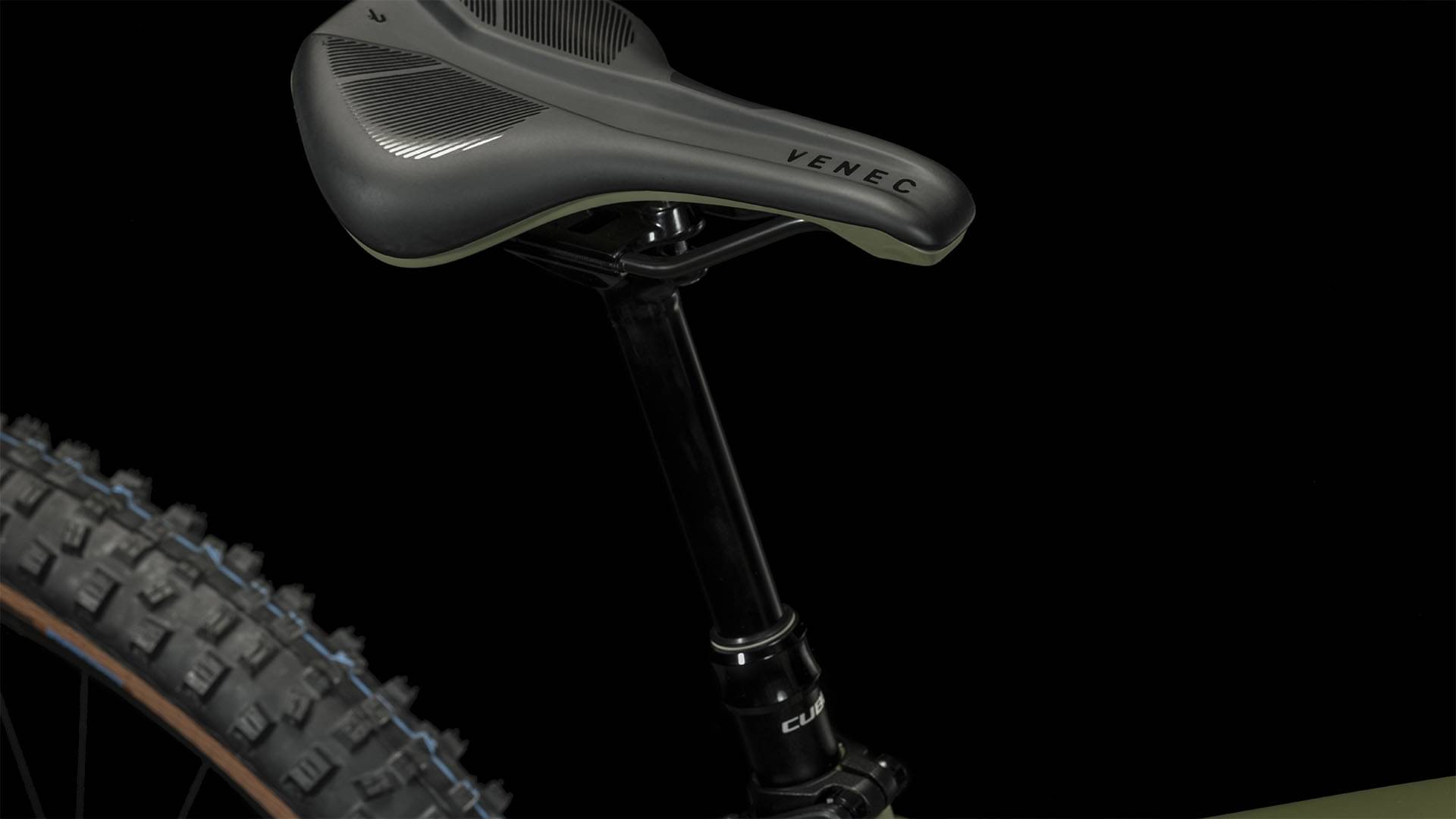

Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote

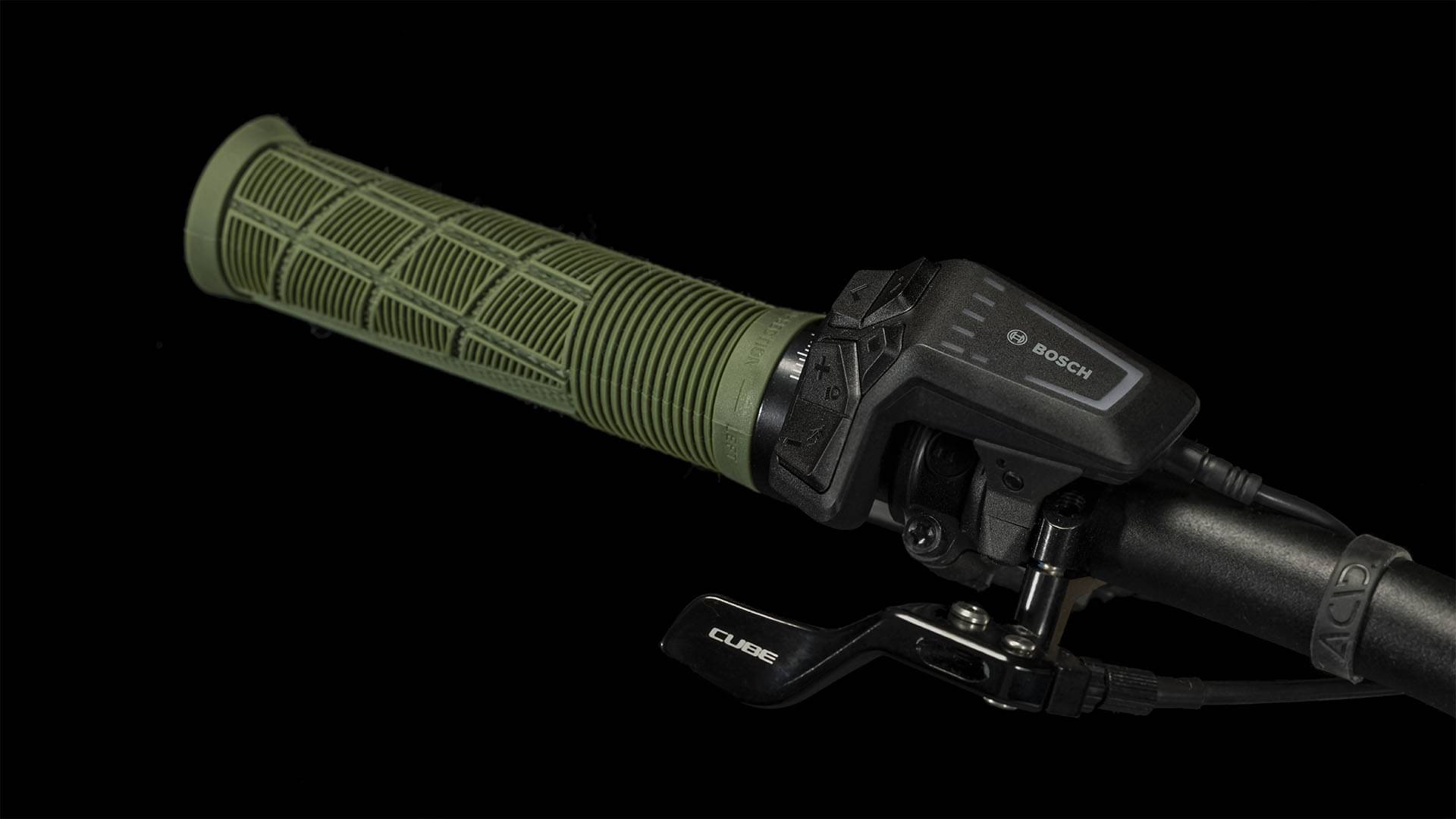

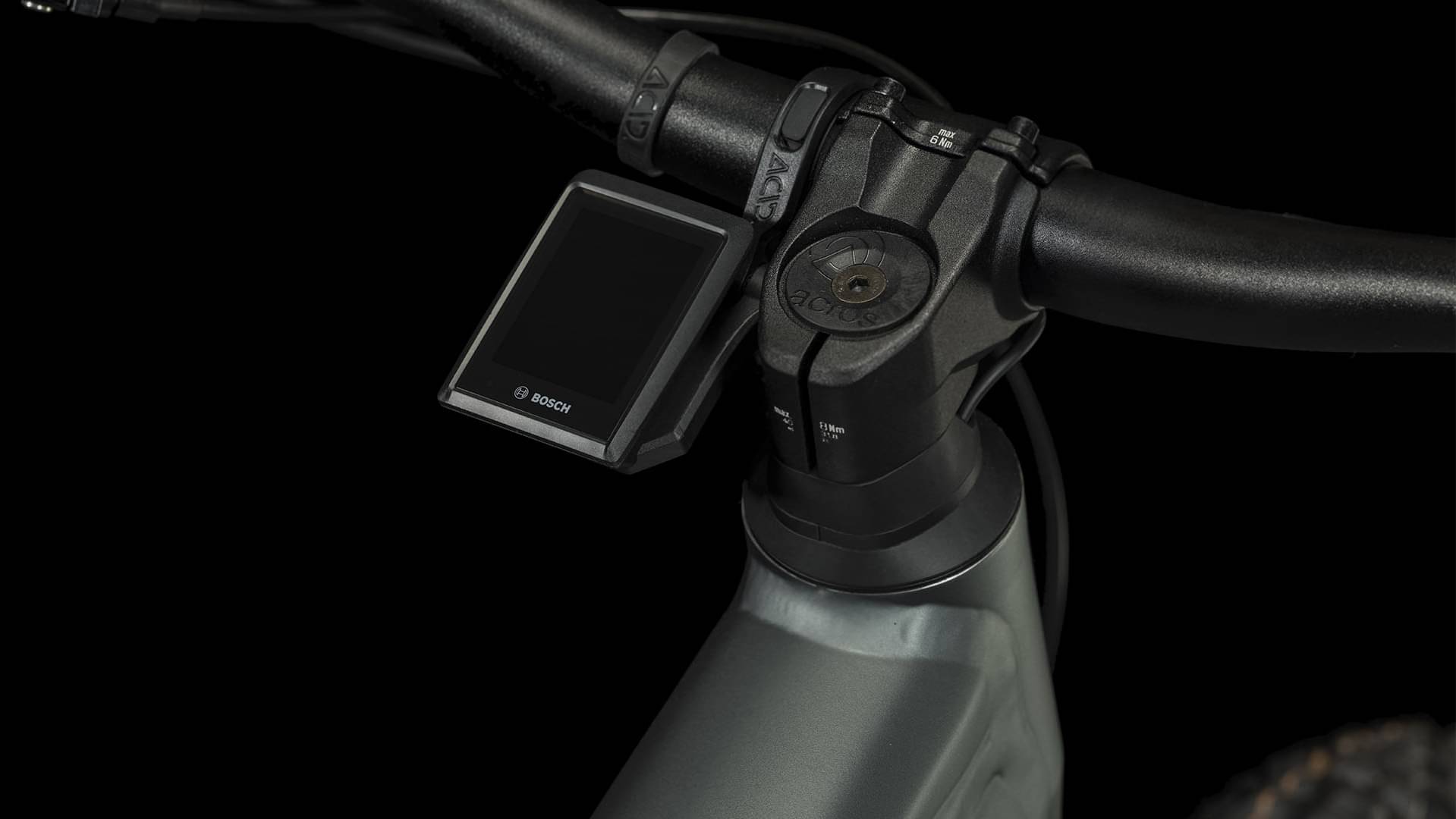

Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Front Center | 734 mm | 767 mm | 793 mm | 820 mm |
| Rake | 43 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 104 mm | 104 mm | 104 mm |
| Stack | 614 mm | 651 mm | 660 mm | 674 mm |
| Reach | 438 mm | 458 mm | 480 mm | 501 mm |
| Top Tube Length | 582 mm | 614 mm | 639 mm | 664 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 420 mm | 465 mm | 515 mm |
| Head Tube Angle | 66.7 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 470 mm | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1203 mm | 1248 mm | 1274 mm | 1301 mm |
| Bottom Bracket Drop | 24 mm | 43 mm | 43 mm | 43 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
STEREO HYBRID 120, TM 750 is part of the Cube E Stereo Hybrid 120 model. CUBE released 83 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
CUBE STEREO HYBRID 120, PRO 625 2023 is the most affordable e-bike of this model and has a price of 4140$. On the other hand, CUBE STEREO HYBRID 120, SLT 750 2023, is the most expensive and costs 5626$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, CUBE STEREO HYBRID 120, TM 750 price was 5308$. If we compare this with the average Trail e-bike cost we notice that the price is 57.74% more expensive.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 25.9 kg (57.1 lbs), CUBE e-bike is a bit heavier than average. To sum up, it’s 9.28% heavier than the average weight of Trail e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the STEREO HYBRID 120, TM 750 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE STEREO HYBRID 120, TM 750 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
STEREO HYBRID 120, TM 750 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
CUBE STEREO HYBRID 120, TM 750 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
